Parts list and schematic for: Elna Models: 544de Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WASHER | 396501-03 | Not Available |
| 2 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 3 | Not Available | E6 CLIP-ON-WASHER | 396501-09 | Not Available |
| 4 | Not Available | WASHER | 396501-12 | Not Available |
| 5 | Not Available | WASHER | 396501-13 | Not Available |
| 6 | Not Available | KNIFE LEVER ASSEMBLY | 396501-64 | Not Available |
| 7 | Not Available | FIXING BASE | 396501-65 | Not Available |
| 8 | Not Available | M5 BOLT WITH WASHER | 396501-67 | Not Available |
| 9 | Not Available | STUD | 396501-71 | Not Available |
| 10 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 11 | Not Available | COLLAR | 396501-91 | Not Available |
| 12 | Not Available | M4 STUD SCREW | 396501-97 | Not Available |
| 13 | Not Available | NEEDLE PLATE | 396502-78 | Not Available |
| 14 | Not Available | UPPER CUTTING BLADE | 396502-79 | Not Available |
| 15 | Not Available | LOWER CUTTING BLADE | 396502-80 | Not Available |
| 16 | Not Available | LEAF SPRING | 396503-05 | Not Available |
| 17 | Not Available | NEEDLE PLATE HOLDER | 396503-09 | Not Available |
| 18 | Not Available | NEEDLE RECEIVER (B) | 396503-11 | Not Available |
| 19 | Not Available | THREAD CUTTER ARM | 396503-24 | Not Available |
| 20 | Not Available | SLIDER | 396503-25 | Not Available |
| 21 | Not Available | M4 SCREW | 396503-41 | Not Available |
| 22 | Not Available | M4 SCREW | 396503-46 | Not Available |
| 23 | Not Available | M4 STUD SCREW | 396503-64 | Not Available |
| 24 | Not Available | SHAFT | 396503-65 | Not Available |
| 25 | Not Available | EXTENSION SPRING | 396503-77 | Not Available |
| 26 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 27 | Not Available | WASHER | 396504-33 | Not Available |
| 28 | Not Available | KNOB | 396504-38 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | E6 CLIP-ON-WASHER | 396501-09 | Not Available |
| 2 | Not Available | THRUST WASHER | 396501-14 | Not Available |
| 3 | Not Available | WASHER | 396501-23 | Not Available |
| 4 | Not Available | SPRING PIN | 396501-46 | Not Available |
| 5 | Not Available | M4 PHILLIPS SCREW | 396501-56 | Not Available |
| 6 | Not Available | WASHER | 396501-59 | Not Available |
| 7 | Not Available | WASHER | 396501-73 | Not Available |
| 8 | Not Available | M4 SCREW | 396501-76 | Not Available |
| 9 | Not Available | M3 SCREW | 396501-78 | Not Available |
| 10 | Not Available | M4 BOLT | 396501-81 | Not Available |
| 11 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 12 | Not Available | M3.5 PHILLIPS SCREW | 396501-88 | Not Available |
| 13 | Not Available | COLLAR | 396501-90 | Not Available |
| 14 | Not Available | THREAD GUIDE (B) | 396501-99 | Not Available |
| 15 | Not Available | M4 BOLT | 396502-25 | Not Available |
| 16 | Not Available | LOOPER BASE | 396502-53 | Not Available |
| 17 | Not Available | UPPER LOOPER SUPPORTING ARM | 396502-54 | Not Available |
| 18 | Not Available | PIVOT | 396502-56 | Not Available |
| 19 | Not Available | SUPPORT PLATE | 396502-74 | Not Available |
| 20 | Not Available | NEEDLE RECEIVER (A) | 396502-10 | Not Available |
| 21 | Not Available | BED COVER | 396503-29 | Not Available |
| 22 | Not Available | LOOPER COVER | 396503-30 | Not Available |
| 23 | Not Available | THREAD GUIDE (A) | 396503-33 | Not Available |
| 24 | Not Available | PIN | 396503-44 | Not Available |
| 25 | Not Available | LOOPER SLIDE SHAFT | 396503-48 | Not Available |
| 26 | Not Available | SHAFT | 396503-49 | Not Available |
| 27 | Not Available | SHAFT | 396503-50 | Not Available |
| 28 | Not Available | PIN | 396503-71 | Not Available |
| 29 | Not Available | COLLAR | 396503-74 | Not Available |
| 30 | Not Available | THREAD GUIDE | 396503-78 | Not Available |
| 31 | Not Available | M3 PHILLIPS SCREW | 396504-13 | Not Available |
| 32 | Not Available | M4 BOLT | 396504-14 | Not Available |
| 33 | Not Available | UPPER LOOPER | 396504-24 | Not Available |
| 34 | Not Available | LOWER LOOPER | 396504-25 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | TERMINAL BLOCK COVER | 396501-18 | Not Available |
| 2 | Not Available | WASHER | 396501-19 | Not Available |
| 3 | Not Available | M3 NUT | 396501-29 | Not Available |
| 4 | Not Available | M2.5 PHILLIPS SCREW | 396501-47 | Not Available |
| 5 | Not Available | MOTOR PULLEY | 396501-48 | Not Available |
| 6 | Not Available | SWITCH ASSEMBLY | 396501-53 | Not Available |
| 7 | Not Available | M4 PHILLIPS SCREW | 396501-55 | Not Available |
| 8 | Not Available | M4 PHILLIPS SCREW | 396501-57 | Not Available |
| 9 | Not Available | M5 BOLT WITH WASHER | 396501-82 | Not Available |
| 10 | Not Available | TIMING BELT | 396501-95 | Not Available |
| 11 | Not Available | WASHER | 396501-98 | Not Available |
| 12 | Not Available | REFLECTING PLATE | 396502-29 | Not Available |
| 13 | Not Available | TERMINAL CASE | 396502-61 | Not Available |
| 14 | Not Available | MOTOR BRACKET | 396503-06 | Not Available |
| 15 | Not Available | TERMINAL BRACKET | 396503-22 | Not Available |
| 16 | Not Available | SWITCH BRACKET | 396503-27 | Not Available |
| 17 | Not Available | CORD GUIDE | 396503-31 | Not Available |
| 18 | Not Available | LAMP HOLDER BRACKET | 396504-01 | Not Available |
| 19 | Not Available | LAMP HOLDER ASSEMBLY | 396504-02 | Not Available |
| 20 | Not Available | CAP BOLT | 396504-03 | Not Available |
| 21 | Not Available | LIGHT BULB | 396504-04 | Not Available |
| 22 | Not Available | HARNESS | 396504-05 | Not Available |
| 23 | Not Available | VINYL TUBE | 396504-06 | Not Available |
| 24 | Not Available | MOTOR | 396504-07 | Not Available |
| 25 | Not Available | M4 PHILLIPS SCREW WITH WASHER | 396504-09 | Not Available |
| 26 | Not Available | TERMINAL BLOCK | 396504-10 | Not Available |
| 27 | Not Available | WASHER | 396504-15 | Not Available |
| 28 | Not Available | TERMINAL BLOCK COVER | 396504-21 | Not Available |
| 29 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 30 | Not Available | M3 PHILLIPS SCREW | 396504-34 | Not Available |

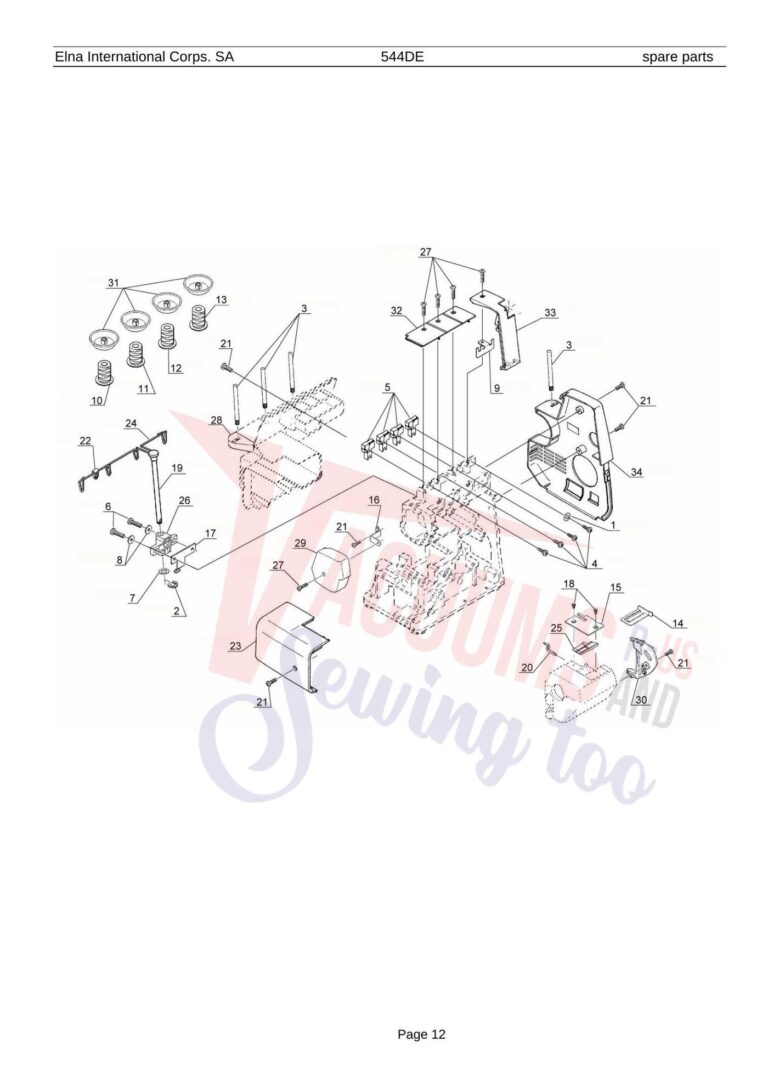

| # | Part image | Description | SKU | Price |

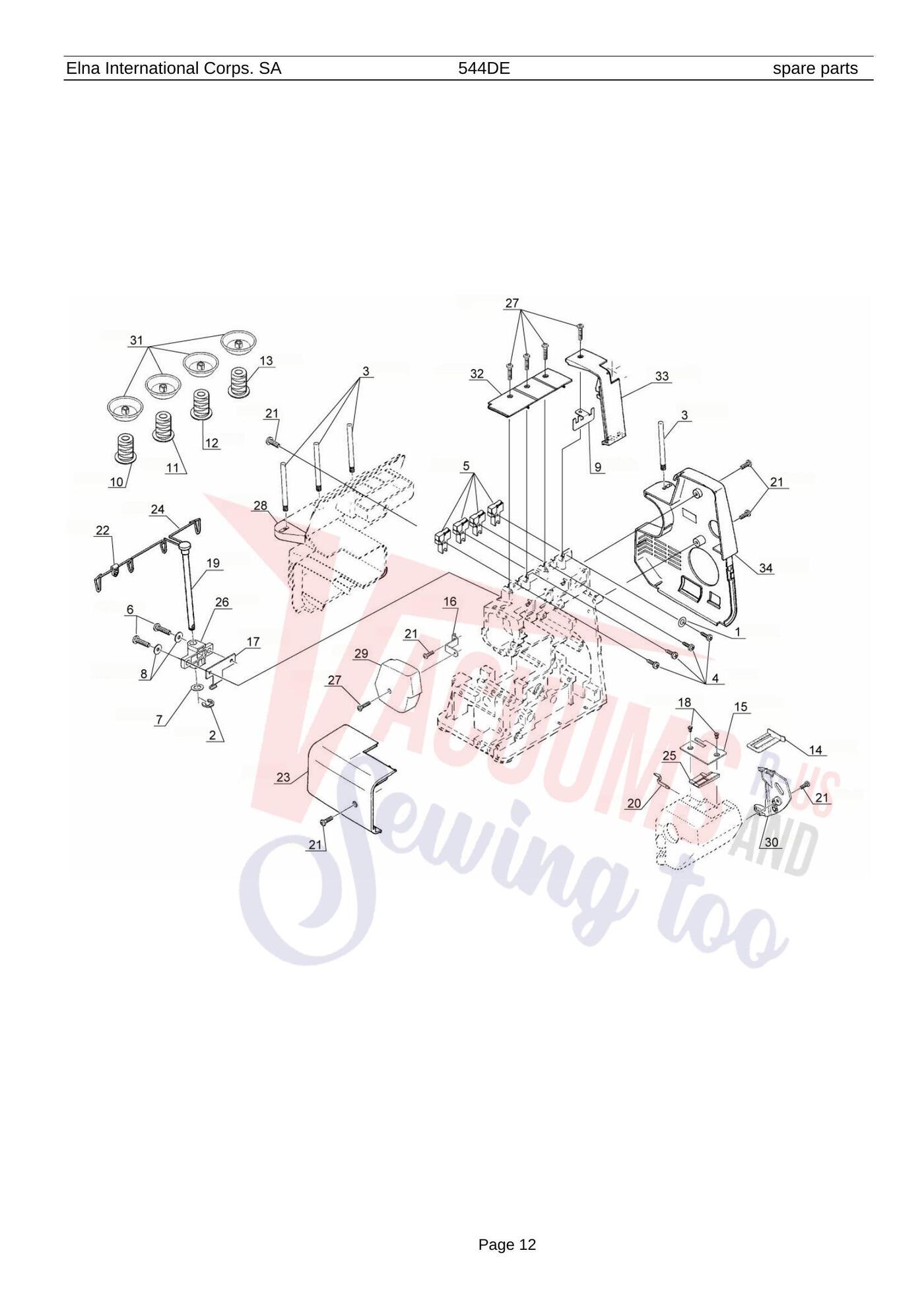

| 1 | Not Available | WASHER | 396501-00 | Not Available |
| 2 | Not Available | E6 CLIP-ON-WASHER | 396501-09 | Not Available |
| 3 | Not Available | SPOOL PIN | 396501-27 | Not Available |
| 4 | Not Available | TAPPING SCREW | 396501-32 | Not Available |
| 5 | Not Available | THREAD GUIDE | 396501-37 | Not Available |
| 6 | Not Available | M4 PHILLIPS SCREW | 396501-58 | Not Available |
| 7 | Not Available | WASHER | 396501-59 | Not Available |
| 8 | Not Available | WASHER | 396501-98 | Not Available |
| 9 | Not Available | STOPPER | 396505-59 | Not Available |
| 10 | Not Available | THREAD | 396505-60 | Not Available |
| 11 | Not Available | THREAD | 396505-61 | Not Available |
| 12 | Not Available | THREAD | 396505-62 | Not Available |
| 13 | Not Available | THREAD | 396505-63 | Not Available |
| 14 | Not Available | CLOTH GUIDE | 396502-76 | Not Available |
| 15 | Not Available | COVER PLATE | 396502-77 | Not Available |
| 16 | Not Available | BRACKET | 396502-81 | Not Available |
| 17 | Not Available | LEAF SPRING | 396503-26 | Not Available |
| 18 | Not Available | M4 SCREW | 396503-46 | Not Available |
| 19 | Not Available | EXTENSION BAR | 396503-73 | Not Available |
| 20 | Not Available | DETACHABLE INSERT PLATE | 396503-98 | Not Available |
| 21 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 22 | Not Available | DETACHABLE CORD GUIDE | 396504-37 | Not Available |
| 23 | Not Available | BED COVER | 396504-41 | Not Available |
| 24 | Not Available | THREAD GUIDE | 396504-46 | Not Available |
| 25 | Not Available | GUIDE PLATE | 396504-47 | Not Available |
| 26 | Not Available | HOLDER | 396504-54 | Not Available |
| 27 | Not Available | M4 PHILLIPS SCREW | 396504-63 | Not Available |
| 28 | Not Available | SPOOL STAND | 396505-67 | Not Available |
| 29 | Not Available | FACE COVER | 396505-68 | Not Available |
| 30 | Not Available | SHUTTER | 396505-69 | Not Available |
| 31 | Not Available | SPOOL PIN CAP | 396504-65 | Not Available |
| 32 | Not Available | TOP COVER | 396505-73 | Not Available |
| 33 | Not Available | TOP COVER | 396505-76 | Not Available |
| 34 | Not Available | SIDE COVER | 396505-77 | Not Available |

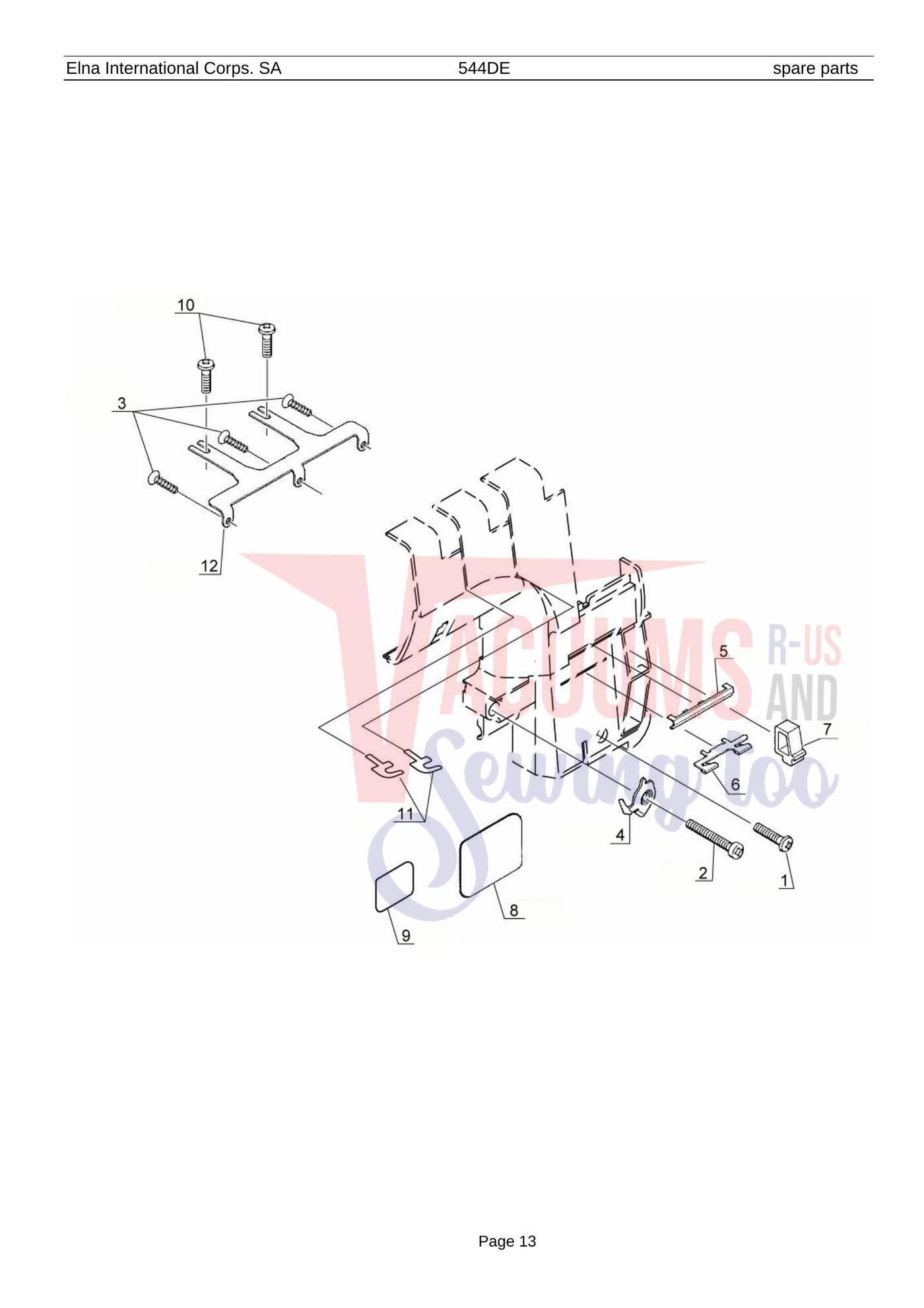

| # | Part image | Description | SKU | Price |
| 1 | Not Available | M4 PHILLIPS SCREW | 396501-58 | Not Available |
| 2 | Not Available | M4 PHILLIPS SCREW | 396501-77 | Not Available |
| 3 | Not Available | TAPPING SCREW | 396505-55 | Not Available |
| 4 | Not Available | THREAD GUIDE | 396502-32 | Not Available |
| 5 | Not Available | THREAD GUIDE PALTE | 396503-18 | Not Available |
| 6 | Not Available | THREAD GUIDE | 396503-19 | Not Available |
| 7 | Not Available | SPONGE | 396503-88 | Not Available |
| 8 | Not Available | THREADING SHEET | 396503-90 | Not Available |
| 9 | Not Available | SEAL | 396503-91 | Not Available |
| 10 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 11 | Not Available | THREAD GUIDE | 396505-74 | Not Available |
| 12 | Not Available | MOUNTING BRACKET | 396505-75 | Not Available |

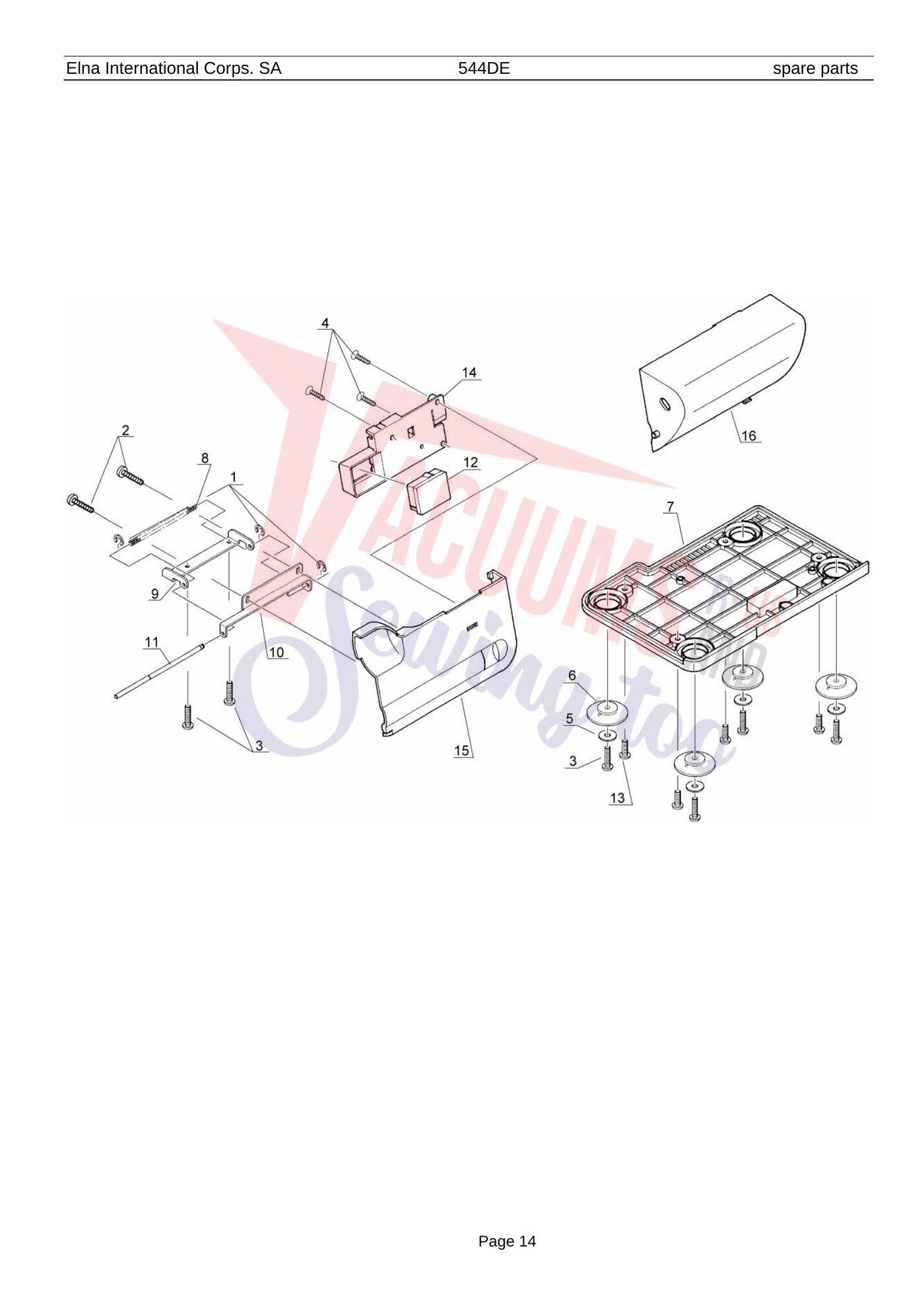

| # | Part image | Description | SKU | Price |
| 1 | Not Available | E3 CLIP-ON-WASHER | 396501-02 | Not Available |
| 2 | Not Available | TAPPING SCREW | 396501-16 | Not Available |
| 3 | Not Available | M4 PHILLIPS SCREW | 396501-57 | Not Available |
| 4 | Not Available | TAPPING SCREW | 396501-60 | Not Available |
| 5 | Not Available | WASHER | 396501-98 | Not Available |
| 6 | Not Available | RUBBER CUSHION | 396502-33 | Not Available |
| 7 | Not Available | BASE | 396502-62 | Not Available |
| 8 | Not Available | COMPRESSION SPRING | 396502-66 | Not Available |
| 9 | Not Available | HINGED BRACKET(A) | 396503-16 | Not Available |
| 10 | Not Available | HINGED BRACKET(B) | 396503-17 | Not Available |
| 11 | Not Available | SHAFT | 396503-63 | Not Available |
| 12 | Not Available | SPONGE HOLDER | 396503-89 | Not Available |
| 13 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 14 | Not Available | INNER ATTACHMENT CASE | 396505-70 | Not Available |
| 15 | Not Available | FRONT COVER | 396505-78 | Not Available |
| 16 | Not Available | LINT BOX | 396505-79 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SPANNER | 396501-28 | Not Available |
| 2 | Not Available | CUSHION HOLDER | 396501-30 | Not Available |
| 3 | Not Available | ACCESSORY SET | 396501-38 | Not Available |
| 4 | Not Available | EXTENSION PLATE | 396501-54 | Not Available |
| 5 | Not Available | SEWING MACHINE OIL | 396501-69 | Not Available |
| 6 | Not Available | NET | 396501-72 | Not Available |
| 7 | Not Available | CLEANING BRUSH | 396501-79 | Not Available |
| 8 | Not Available | LARGE SCREW DRIVER | 396501-80 | Not Available |
| 9 | Not Available | DUST COVER | 396502-21 | Not Available |
| 10 | Not Available | DETACHABLE INSERT PLATE | 396502-30 | Not Available |
| 11 | Not Available | TWEEZERS | 396502-34 | Not Available |
| 12 | Not Available | TWO-THREAD CONVERTOR | 396502-75 | Not Available |
| 13 | Not Available | ACCESSORY VINYL BAG | 396503-92 | Not Available |
| 14 | Not Available | SMALL SCREW DRIVER | 396504-17 | Not Available |
| 15 | Not Available | NEEDLE SET | 396504-18 | Not Available |
| 16 | Not Available | FOOT CONTROL | 396504-20 | Not Available |
| 17 | Not Available | INSTRUCTION BOOK | 396505-66 | Not Available |
| 18 | Not Available | CAP | 396504-48 | Not Available |
| 19 | Not Available | UPPER KNIFE | 396504-78 | Not Available |

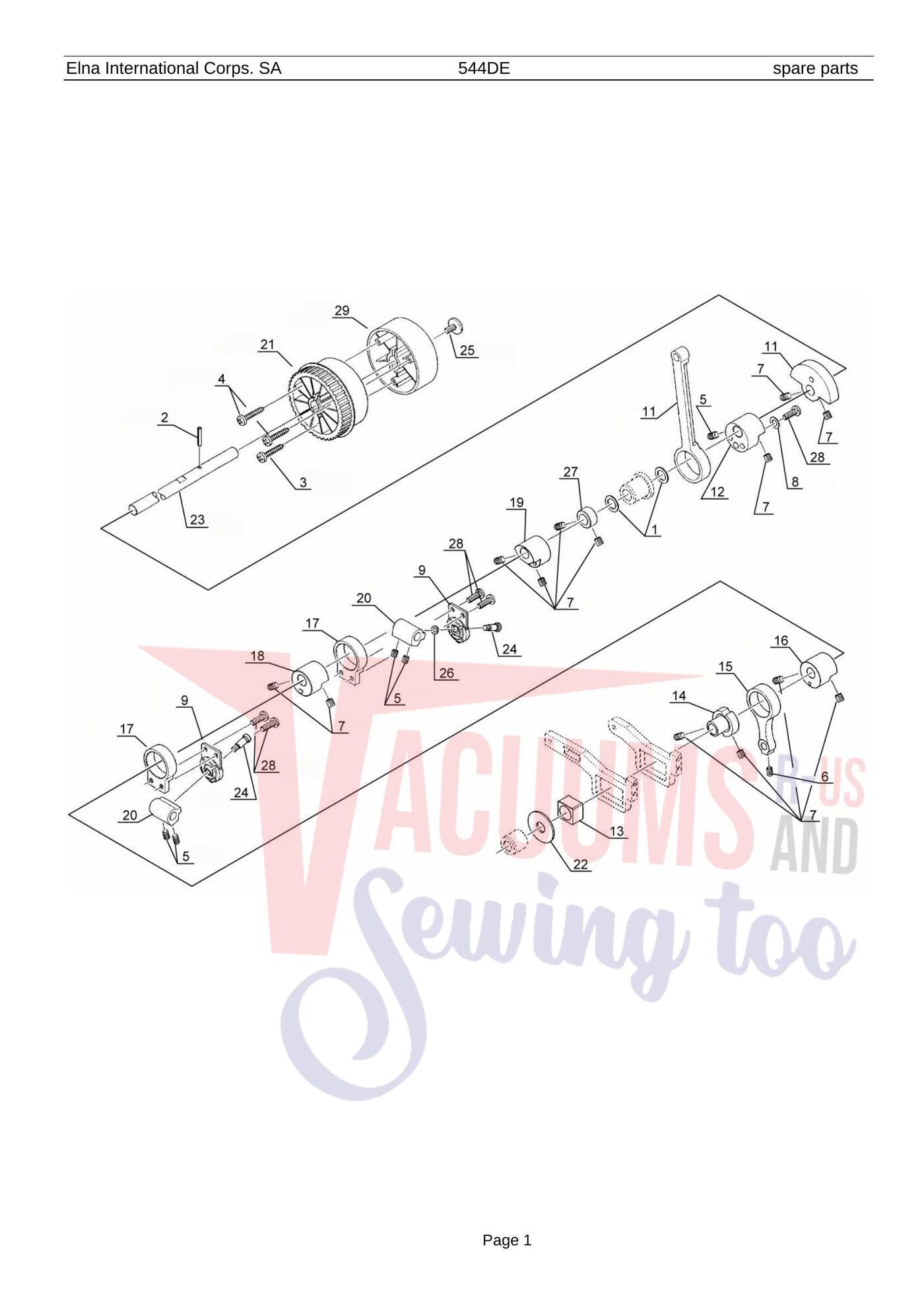

| # | Part image | Description | SKU | Price |
| 1 | Not Available | THRUST WASHER | 396501-20 | Not Available |
| 2 | Not Available | SPRING PIN | 396501-26 | Not Available |
| 3 | Not Available | M4 PHILLIPS SCREW | 396501-32 | Not Available |
| 4 | Not Available | TAPPING SCREW | 396501-49 | Not Available |
| 5 | Not Available | M5 SCREW | 396501-85 | Not Available |
| 6 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 7 | Not Available | M5 SCREW | 396501-92 | Not Available |
| 8 | Not Available | WASHER | 396501-98 | Not Available |
| 9 | Not Available | BALL JOINT | 396502-14 | Not Available |
| 10 | Not Available | BALANCE CAM | 396502-26 | Not Available |
| 11 | Not Available | CRANK ROD | 396502-37 | Not Available |
| 12 | Not Available | ECCENTRIC CAM | 396502-38 | Not Available |
| 13 | Not Available | SLIDE BLOCK | 396502-44 | Not Available |
| 14 | Not Available | ECCENTRIC CAM | 396502-45 | Not Available |
| 15 | Not Available | CRANK ROD | 396502-48 | Not Available |
| 16 | Not Available | ECCENTRIC CAM | 396502-49 | Not Available |
| 17 | Not Available | ECCENTRIC CAM | 396502-50 | Not Available |
| 18 | Not Available | ECCENTRIC CAM | 396502-51 | Not Available |
| 19 | Not Available | ECCENTRIC CAM | 396502-52 | Not Available |
| 20 | Not Available | LOOPER DRIVING ARM | 396502-55 | Not Available |
| 21 | Not Available | BELT PULLEY | 396502-63 | Not Available |
| 22 | Not Available | NYLON WASHER | 396502-65 | Not Available |
| 23 | Not Available | MAIN SHAFT | 396503-37 | Not Available |
| 24 | Not Available | M4 STUD SCREW | 396503-45 | Not Available |
| 25 | Not Available | M5 SCREW | 396503-61 | Not Available |
| 26 | Not Available | WASHER | 396503-96 | Not Available |
| 27 | Not Available | COLLAR | 396504-12 | Not Available |
| 28 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 29 | Not Available | HAND WHEEL | 396504-49 | Not Available |

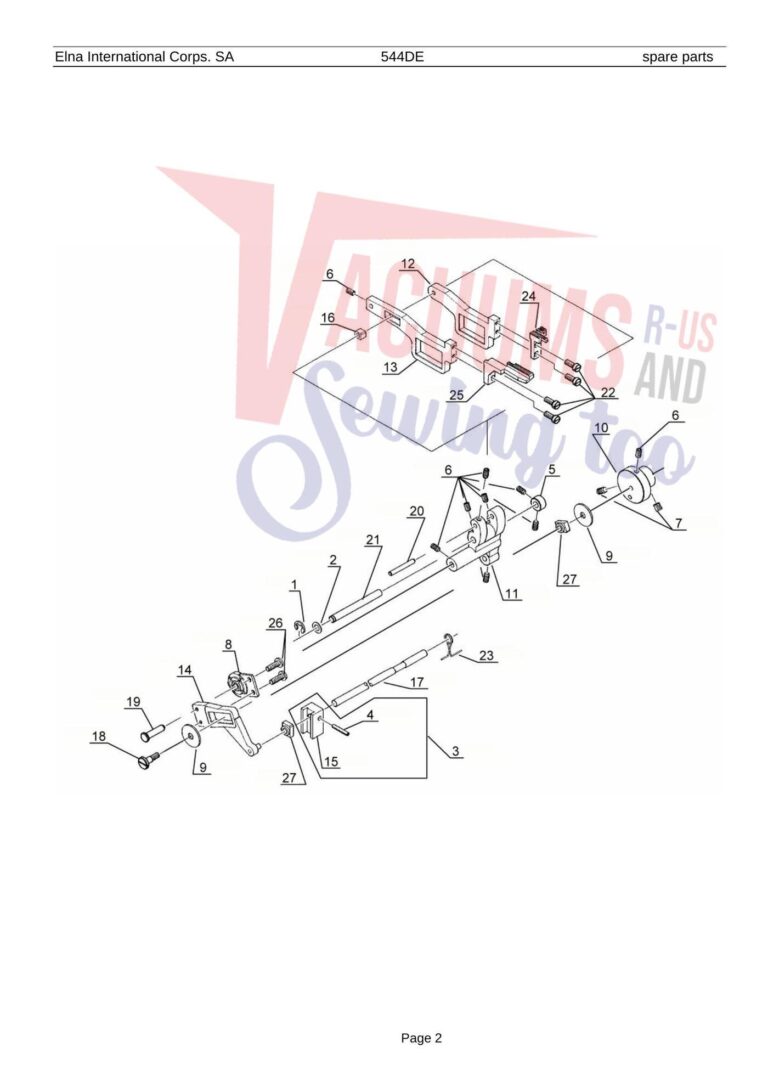

| # | Part image | Description | SKU | Price |
| 1 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 2 | Not Available | WASHER | 396501-12 | Not Available |
| 3 | Not Available | FEED REGULATING BLOCK SET | 396501-39 | Not Available |
| 4 | Not Available | SPRING PIN | 396501-75 | Not Available |
| 5 | Not Available | COLLAR | 396501-86 | Not Available |
| 6 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 7 | Not Available | M5 SCREW | 396501-92 | Not Available |
| 8 | Not Available | BALL JOINT | 396502-14 | Not Available |
| 9 | Not Available | THRUST WASHER | 396502-23 | Not Available |
| 10 | Not Available | ECCENTRIC CAM | 396502-27 | Not Available |
| 11 | Not Available | FEED ARM | 396502-35 | Not Available |
| 12 | Not Available | FEED BASE | 396502-39 | Not Available |
| 13 | Not Available | D.F.FEED BASE | 396502-40 | Not Available |
| 14 | Not Available | FEED REGULATING ARM | 396502-41 | Not Available |
| 15 | Not Available | FEED REGULATING BLOCK | 396502-46 | Not Available |
| 16 | Not Available | SLIDE BLOCK | 396502-47 | Not Available |
| 17 | Not Available | SHAFT | 396503-38 | Not Available |
| 18 | Not Available | PIN | 396503-47 | Not Available |
| 19 | Not Available | PIN | 396503-53 | Not Available |
| 20 | Not Available | SHAFT | 396503-57 | Not Available |
| 21 | Not Available | SHAFT | 396503-58 | Not Available |
| 22 | Not Available | M3.5 SCREW | 396503-66 | Not Available |
| 23 | Not Available | TORSION SPRING | 396503-76 | Not Available |
| 24 | Not Available | REAR FEED DOG | 396504-26 | Not Available |
| 25 | Not Available | FRONT FEED DOG | 396504-27 | Not Available |
| 26 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 27 | Not Available | SLIDE BLOCK | 396504-36 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | E4 CLIP-ON-WASHER | 396501-01 | Not Available |
| 2 | Not Available | WASHER | 396501-04 | Not Available |
| 3 | Not Available | PIPE KNOCK PIN | 396501-10 | Not Available |
| 4 | Not Available | CLIP-ON-WASHER | 396501-15 | Not Available |
| 5 | Not Available | THRUST WASHER | 396501-22 | Not Available |
| 6 | Not Available | WASHER | 396501-24 | Not Available |
| 7 | Not Available | STUD | 396501-25 | Not Available |
| 8 | Not Available | NEEDLE | 396501-45 | Not Available |
| 9 | Not Available | M4 PHILLIPS SCREW | 396501-55 | Not Available |
| 10 | Not Available | BUSH | 396501-84 | Not Available |
| 11 | Not Available | M5 SCREW | 396501-85 | Not Available |
| 12 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 13 | Not Available | CRANK-ROD ARM | 396501-89 | Not Available |
| 14 | Not Available | COLLAR | 396501-90 | Not Available |
| 15 | Not Available | M5 SCREW | 396501-92 | Not Available |
| 16 | Not Available | HOLDER | 396501-93 | Not Available |
| 17 | Not Available | #7 SCREW | 396501-96 | Not Available |
| 18 | Not Available | NEEDLE CLAMP | 396502-13 | Not Available |
| 19 | Not Available | M3 SCREW | 396502-15 | Not Available |
| 20 | Not Available | NEEDLE BAR CRANK | 396502-16 | Not Available |
| 21 | Not Available | THREAD GUIDE | 396502-22 | Not Available |
| 22 | Not Available | MAIN SHAFT ARM LEVER | 396502-36 | Not Available |
| 23 | Not Available | THREAD GUIDE | 396503-13 | Not Available |
| 24 | Not Available | OSCILLATING LEVER | 396503-14 | Not Available |
| 25 | Not Available | CONNECTING ARM | 396503-15 | Not Available |
| 26 | Not Available | THREAD GUIDE | 396503-34 | Not Available |
| 27 | Not Available | NEEDLE BAR | 396503-35 | Not Available |
| 28 | Not Available | UPPER SHAFT | 396503-36 | Not Available |
| 29 | Not Available | PIN | 396503-51 | Not Available |
| 30 | Not Available | CENTER PIN | 396503-52 | Not Available |
| 31 | Not Available | THREADER POSITIONER | 396503-95 | Not Available |
| 32 | Not Available | M4 PHILLIPS SCREW | 396504-29 | Not Available |

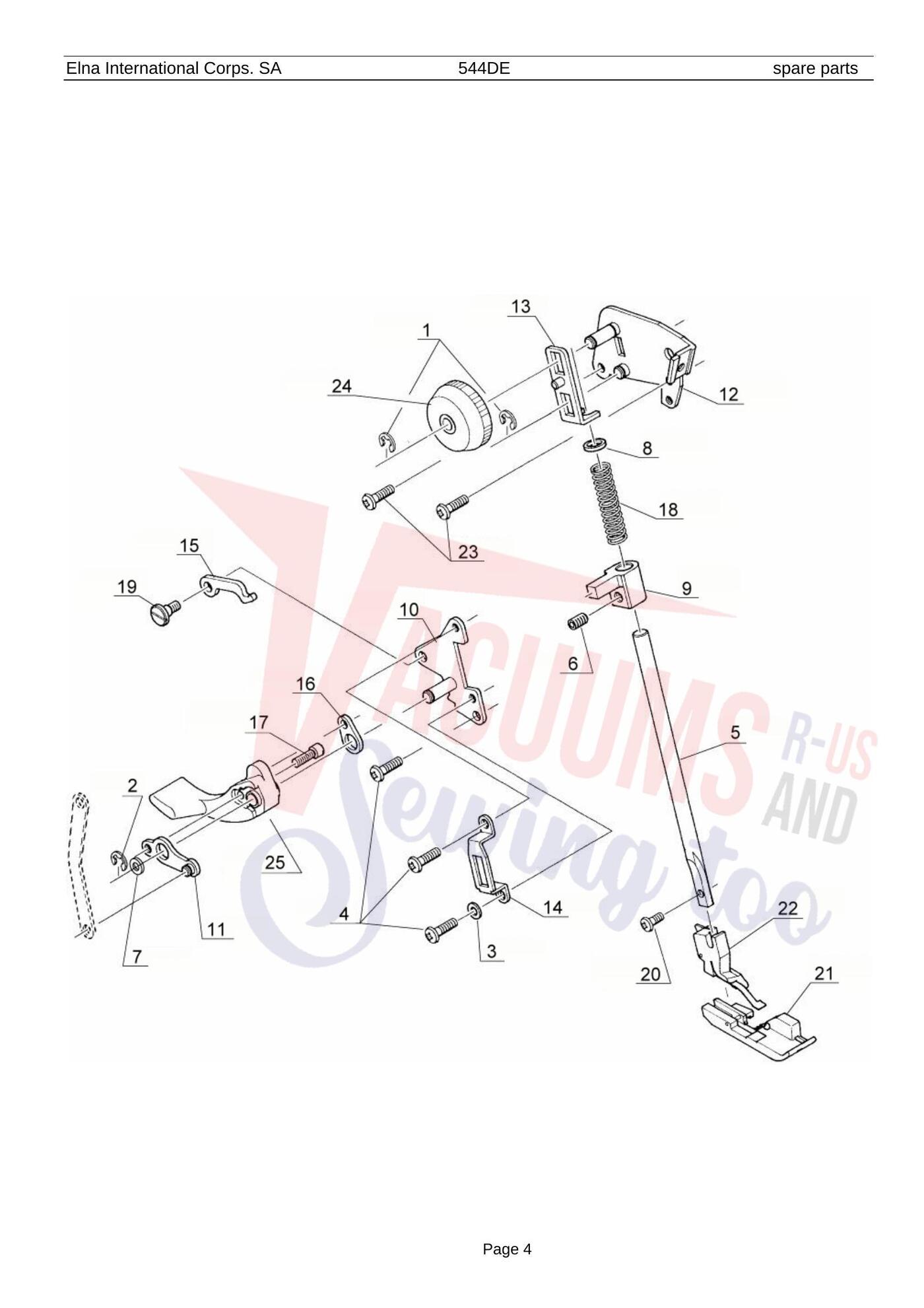

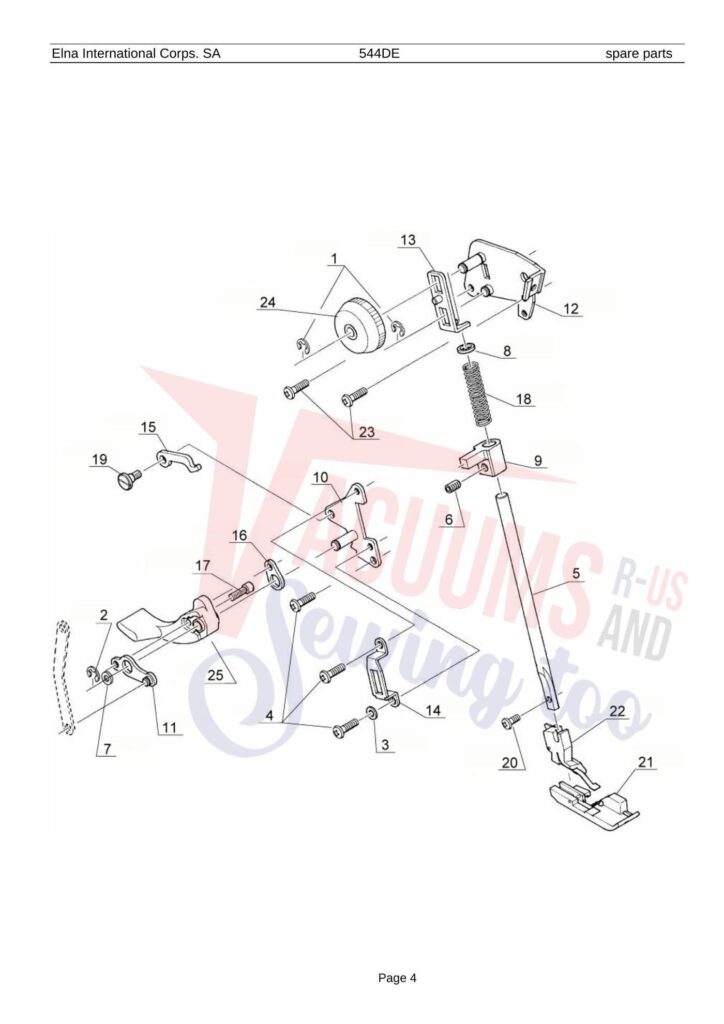

| # | Part image | Description | SKU | Price |
| 1 | Not Available | E4 CLIP-ON-WASHER | 396501-01 | Not Available |
| 2 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 3 | Not Available | WASHER | 396501-51 | Not Available |
| 4 | Not Available | M4 PHILLIPS SCREW | 396501-55 | Not Available |
| 5 | Not Available | PRESSER BAR | 396501-68 | Not Available |
| 6 | Not Available | M5 SCREW | 396501-92 | Not Available |
| 7 | Not Available | WASHER | 396501-94 | Not Available |
| 8 | Not Available | WASHER | 396502-20 | Not Available |
| 9 | Not Available | PRESSER BAR GUIDE BLOCK | 396502-57 | Not Available |
| 10 | Not Available | BRACKET | 396502-85 | Not Available |
| 11 | Not Available | TENSION RELEASE ARM | 396502-87 | Not Available |
| 12 | Not Available | BRACKET | 396502-88 | Not Available |
| 13 | Not Available | GUIDE PLATE | 396502-93 | Not Available |
| 14 | Not Available | GUIDE PLATE | 396502-95 | Not Available |
| 15 | Not Available | TENSION RELEASE LEVER | 396502-96 | Not Available |
| 16 | Not Available | LIFTER | 396503-28 | Not Available |
| 17 | Not Available | M4 STUD SCREW | 396503-62 | Not Available |
| 18 | Not Available | COMPRESSION SPRING | 396503-79 | Not Available |
| 19 | Not Available | #4 STUD SCREW | 396503-93 | Not Available |
| 20 | Not Available | #7 PHILLIPS SCREW | 396503-94 | Not Available |
| 21 | Not Available | PRESSER FOOT | 396504-23 | Not Available |
| 22 | Not Available | PRESSER FOOT HOLDER | 396504-28 | Not Available |
| 23 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 24 | Not Available | PRESSER CONTROL KNOB | 396504-51 | Not Available |
| 25 | Not Available | PRESSER FOOT LIFTER | 396504-52 | Not Available |

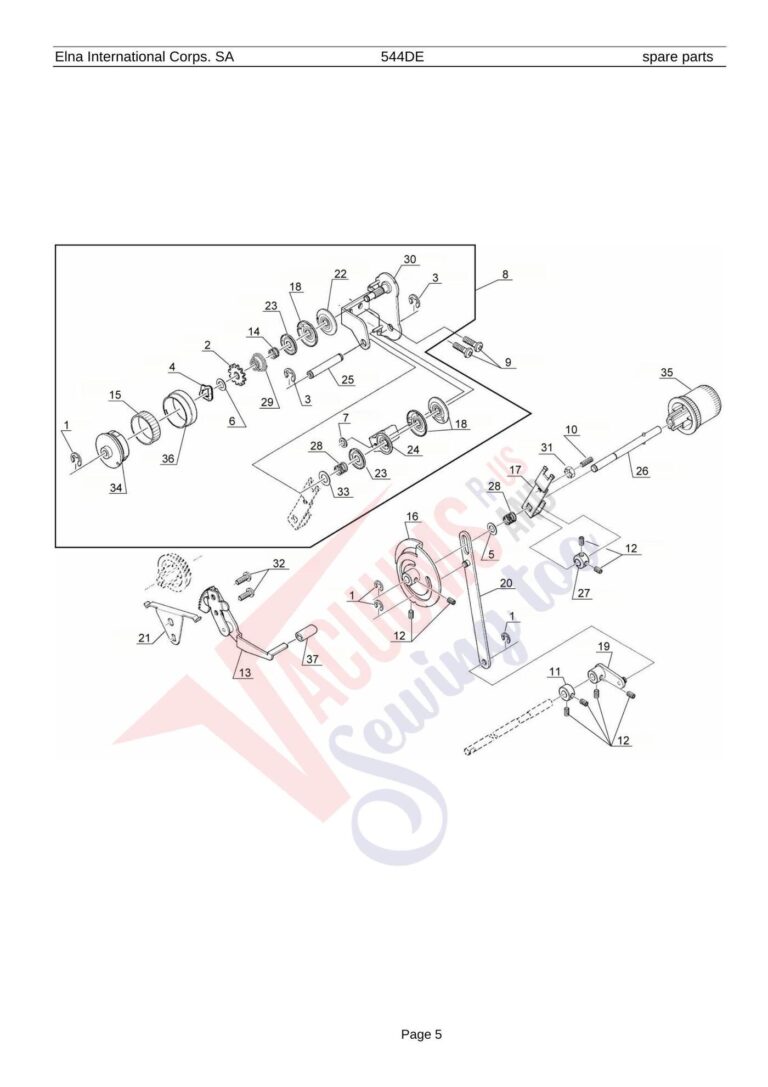

| # | Part image | Description | SKU | Price |
| 1 | Not Available | E4 CLIP-ON-WASHER | 396501-01 | Not Available |
| 2 | Not Available | TOOTHED WASHER | 396501-06 | Not Available |
| 3 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 4 | Not Available | CRINKLE WASHER | 396501-11 | Not Available |
| 5 | Not Available | WASHER | 396501-12 | Not Available |
| 6 | Not Available | WASHER | 396501-13 | Not Available |
| 7 | Not Available | CLIP-ON-WASHER | 396501-17 | Not Available |
| 8 | Not Available | TENSION DIAL SET (LOWER LOOPER) | 396505-54 | Not Available |
| 9 | Not Available | M4 PHILLIPS SCREW | 396501-56 | Not Available |
| 10 | Not Available | M4 SCREW | 396501-74 | Not Available |
| 11 | Not Available | COLLAR | 396501-86 | Not Available |
| 12 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 13 | Not Available | D.F. GEAR | 396505-58 | Not Available |
| 14 | Not Available | COMPRESSION SPRING | 396502-28 | Not Available |
| 15 | Not Available | RUBBER BAND (PURPLE) | 396502-72 | Not Available |
| 16 | Not Available | STITCH LENGTH CONTROL CAM | 396502-82 | Not Available |
| 17 | Not Available | TENSION CONTROL PLATE | 396502-92 | Not Available |
| 18 | Not Available | TENSION DISC (B) | 396502-94 | Not Available |
| 19 | Not Available | STITCH LENGTH CONTROL ARM | 396502-97 | Not Available |
| 20 | Not Available | CONNECTING PLATE | 396502-98 | Not Available |
| 21 | Not Available | LEAF SPRING | 396503-04 | Not Available |
| 22 | Not Available | TENSION DISC (A) | 396503-12 | Not Available |
| 23 | Not Available | PRESSURE DISC | 396503-23 | Not Available |
| 24 | Not Available | PRESSURE PLATE | 396503-32 | Not Available |
| 25 | Not Available | SHAFT | 396503-40 | Not Available |
| 26 | Not Available | SHAFT | 396503-42 | Not Available |
| 27 | Not Available | COLLAR | 396503-67 | Not Available |
| 28 | Not Available | COMPRESSION SPRING | 396503-75 | Not Available |
| 29 | Not Available | COMPRESSION SPRING | 396503-82 | Not Available |
| 30 | Not Available | BRACKET | 396505-65 | Not Available |
| 31 | Not Available | M4 TORQUE NUT | 396504-11 | Not Available |
| 32 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 33 | Not Available | WASHER | 396504-33 | Not Available |
| 34 | Not Available | THREAD TENSION DIAL | 396504-50 | Not Available |
| 35 | Not Available | STITCH LENGTH CONTROL DIAL | 396504-56 | Not Available |
| 36 | Not Available | THREAD TENSION RING | 396504-58 | Not Available |
| 37 | Not Available | D.F. LEVER CAP | 396505-71 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | E4 CLIP-ON-WASHER | 396501-01 | Not Available |
| 2 | Not Available | TOOTHED WASHER | 396501-06 | Not Available |
| 3 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 4 | Not Available | CRINKLE WASHER | 396501-11 | Not Available |
| 5 | Not Available | WASHER | 396501-13 | Not Available |
| 6 | Not Available | TENSION DIAL SET (LEFT NEEDLE) | 396505-51 | Not Available |
| 7 | Not Available | TENSION DIAL SET (RIGHT NEEDLE) | 396505-52 | Not Available |
| 8 | Not Available | TENSION DIAL SET (UPPER LOOPER) | 396505-53 | Not Available |
| 9 | Not Available | CORD GUARD | 396501-52 | Not Available |
| 10 | Not Available | M4 PHILLIPS SCREW | 396501-56 | Not Available |
| 11 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 12 | Not Available | TENSION RELEASE PLATE (A) | 396505-57 | Not Available |
| 13 | Not Available | RUBBER BAND (GREEN) | 396502-69 | Not Available |
| 14 | Not Available | RUBBER BAND (YELLOW) | 396502-70 | Not Available |
| 15 | Not Available | RUBBER BAND (BLUE) | 396502-71 | Not Available |
| 16 | Not Available | TENSION RELEASE PLATE (B) | 396502-84 | Not Available |
| 17 | Not Available | TENSION RELEASE ARM | 396502-86 | Not Available |
| 18 | Not Available | TENSION RELEASE GUIDE | 396502-89 | Not Available |
| 19 | Not Available | TENSION DISC (B) | 396502-94 | Not Available |
| 20 | Not Available | TENSION RELEASE LINK | 396503-00 | Not Available |
| 21 | Not Available | TENSION DISC (A) | 396503-12 | Not Available |
| 22 | Not Available | PRESSER DISC | 396503-23 | Not Available |
| 23 | Not Available | SHAFT | 396503-39 | Not Available |
| 24 | Not Available | COMPRESSION SPRING | 396503-80 | Not Available |
| 25 | Not Available | COMPRESSION SPRING | 396503-81 | Not Available |
| 26 | Not Available | COMPRESSION SPRING | 396503-82 | Not Available |
| 27 | Not Available | BRACKET | 396505-64 | Not Available |
| 28 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 29 | Not Available | THREAD TENSION DIAL | 396504-50 | Not Available |
| 30 | Not Available | THREAD TENSION RING | 396504-58 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | E4 CLIP-ON-WASHER | 396501-01 | Not Available |
| 2 | Not Available | E3 CLIP-ON-WASHER | 396501-02 | Not Available |
| 3 | Not Available | WASHER | 396501-04 | Not Available |
| 4 | Not Available | CLIP-ON-WASHER | 396501-31 | Not Available |
| 5 | Not Available | M4 NUT | 396501-61 | Not Available |
| 6 | Not Available | M4 PHILLIPS SCREW | 396501-83 | Not Available |
| 7 | Not Available | BUSH | 396501-84 | Not Available |
| 8 | Not Available | COLLAR | 396501-86 | Not Available |
| 9 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 10 | Not Available | D.F. GEAR | 396505-56 | Not Available |
| 11 | Not Available | D.F. LOCKING ARM | 396502-42 | Not Available |
| 12 | Not Available | D.F. LINK | 396502-43 | Not Available |
| 13 | Not Available | SLIDE BLOCK | 396502-47 | Not Available |
| 14 | Not Available | SLIDE BLOCK | 396502-58 | Not Available |
| 15 | Not Available | D.F.ARM | 396502-67 | Not Available |
| 16 | Not Available | CONNECTING ROD | 396502-68 | Not Available |
| 17 | Not Available | D.F. ARM (A) | 396502-99 | Not Available |
| 18 | Not Available | D.F. ARM (C) | 396503-01 | Not Available |
| 19 | Not Available | D.F. ARM (D) | 396503-02 | Not Available |
| 20 | Not Available | CONNECTING PLATE | 396503-03 | Not Available |
| 21 | Not Available | SHAFT | 396503-43 | Not Available |
| 22 | Not Available | PIN | 396503-54 | Not Available |
| 23 | Not Available | PIN | 396503-55 | Not Available |
| 24 | Not Available | SHAFT | 396503-56 | Not Available |
| 25 | Not Available | PIN | 396503-59 | Not Available |
| 26 | Not Available | SHAFT | 396503-60 | Not Available |
| 27 | Not Available | HOOK FOR SPRING | 396503-84 | Not Available |
| 28 | Not Available | EXTENSION SPRING | 396503-85 | Not Available |
| 29 | Not Available | TORSION SPRING | 396503-86 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WASHER | 396501-03 | Not Available |
| 2 | Not Available | WASHER | 396501-05 | Not Available |
| 3 | Not Available | E5 CLIP-ON-WASHER | 396501-08 | Not Available |
| 4 | Not Available | E6 CLIP-ON-WASHER | 396501-09 | Not Available |
| 5 | Not Available | WASHER | 396505-50 | Not Available |
| 6 | Not Available | M4 PHILLIPS SCREW | 396501-57 | Not Available |
| 7 | Not Available | PIN | 396501-66 | Not Available |
| 8b | Not Available | WASHER (T = 0.3) | 396501-70 | Not Available |
| 8a | Not Available | WASHER (T = 0.5) | 396501-59 | Not Available |
| 9 | Not Available | M3 SCREW | 396501-78 | Not Available |
| 10 | Not Available | M4 SCREW | 396501-87 | Not Available |
| 11 | Not Available | COLLAR | 396501-91 | Not Available |
| 12 | Not Available | M5 SCREW | 396501-92 | Not Available |
| 13 | Not Available | STUD | 396502-00 | Not Available |
| 14 | Not Available | KNIFE RELEASE KNOB | 396502-01 | Not Available |
| 15 | Not Available | COLLAR | 396502-02 | Not Available |
| 16 | Not Available | KNOB MOUNTING BRACKET | 396502-03 | Not Available |
| 17 | Not Available | LINK (B) | 396502-04 | Not Available |
| 18 | Not Available | STUD | 396502-05 | Not Available |
| 19 | Not Available | M3.5 BOLT | 396502-06 | Not Available |
| 20 | Not Available | COMPRESSION SPRING | 396502-07 | Not Available |
| 21 | Not Available | STUD | 396502-08 | Not Available |
| 22 | Not Available | COMPRESSION SPRING | 396502-09 | Not Available |
| 23 | Not Available | DRIVING ARM | 396502-11 | Not Available |
| 24 | Not Available | SHAFT | 396502-12 | Not Available |
| 25 | Not Available | COMPRESSION SPRING | 396502-19 | Not Available |
| 26 | Not Available | SPRING PLATE | 396502-31 | Not Available |
| 27 | Not Available | LINK | 396502-59 | Not Available |
| 28 | Not Available | POSITIONER | 396502-60 | Not Available |
| 29 | Not Available | LOWER KNIFE HOLDER | 396502-73 | Not Available |
| 30 | Not Available | NEEDLE PLATE HOLDER | 396503-07 | Not Available |
| 31 | Not Available | LEAF SPRING | 396503-08 | Not Available |
| 32 | Not Available | LEVER | 396503-21 | Not Available |
| 33 | Not Available | M4 SCREW | 396503-46 | Not Available |
| 34 | Not Available | SHAFT | 396503-68 | Not Available |
| 35 | Not Available | SHAFT | 396503-70 | Not Available |
| 36 | Not Available | HEXAGONAL KNIFE | 396503-72 | Not Available |
| 37 | Not Available | STUD | 396503-87 | Not Available |
| 38 | Not Available | M4 PHILLIPS SCREW | 396504-30 | Not Available |
| 39 | Not Available | M3 PHILLIPS SCREW | 396504-31 | Not Available |
| 40 | Not Available | M3 PHILLIPS SCREW | 396504-32 | Not Available |
| 41 | Not Available | CONTROL KNOB | 396504-53 | Not Available |
| 42 | Not Available | LOWER KNIFE COVER | 396504-55 | Not Available |
| 43 | Not Available | UPPER KNIFE | 396504-78 | Not Available |
| 44 | Not Available | LOWER KNIFE | 396505-72 | Not Available |
Report errors on this page HERE
