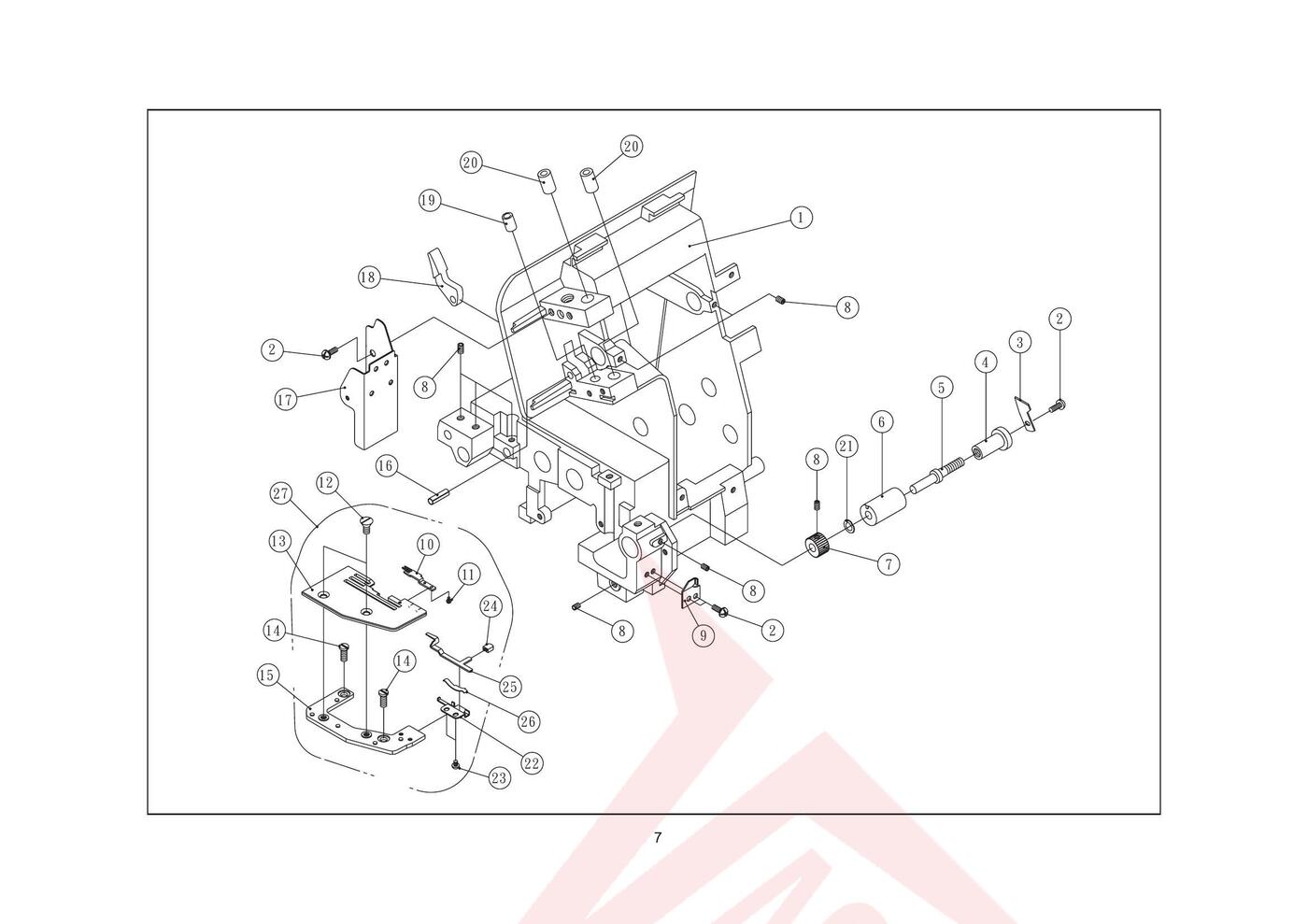

Parts list and schematic for: Elna Models: 344, el344 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.

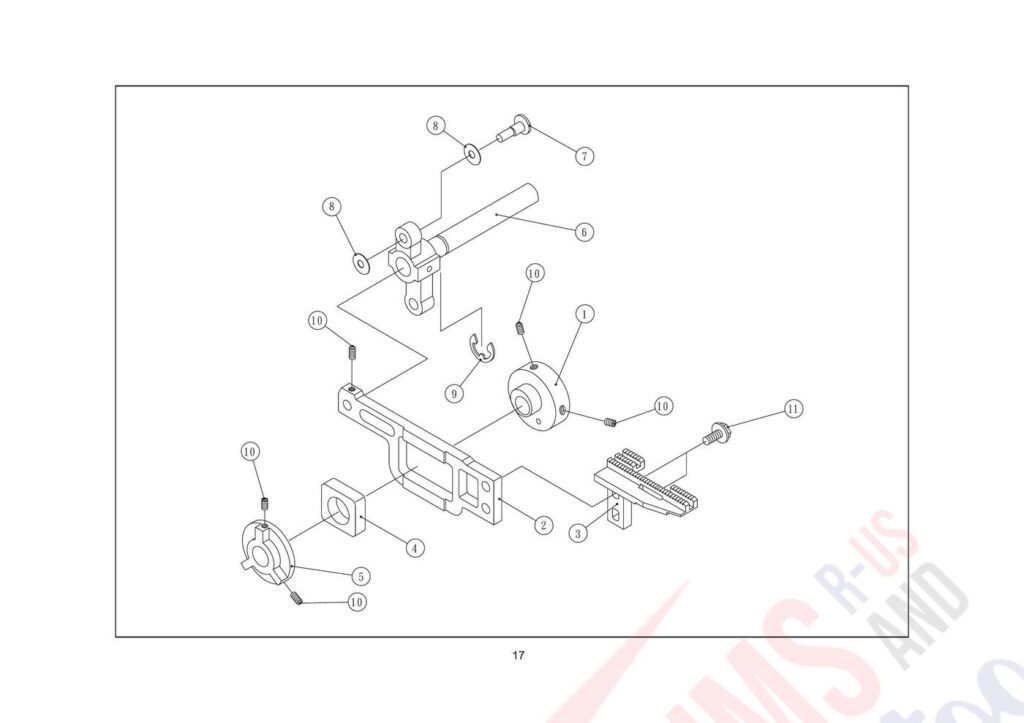

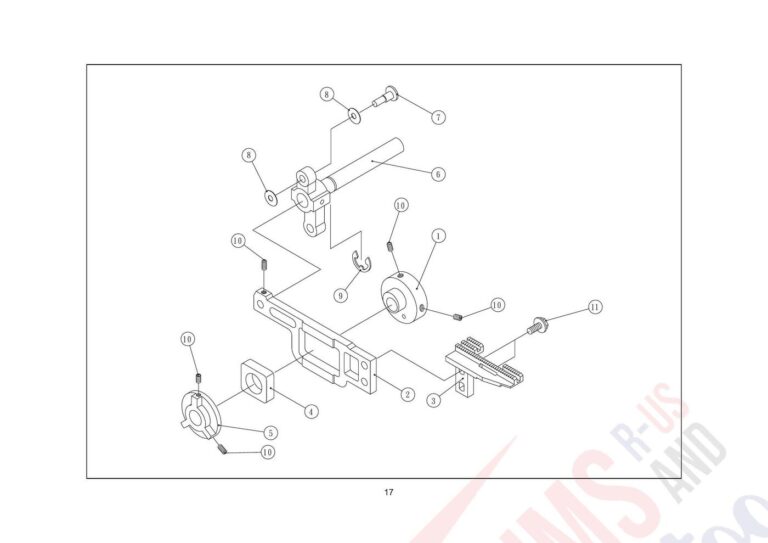

| # | Part image | Description | SKU | Price |

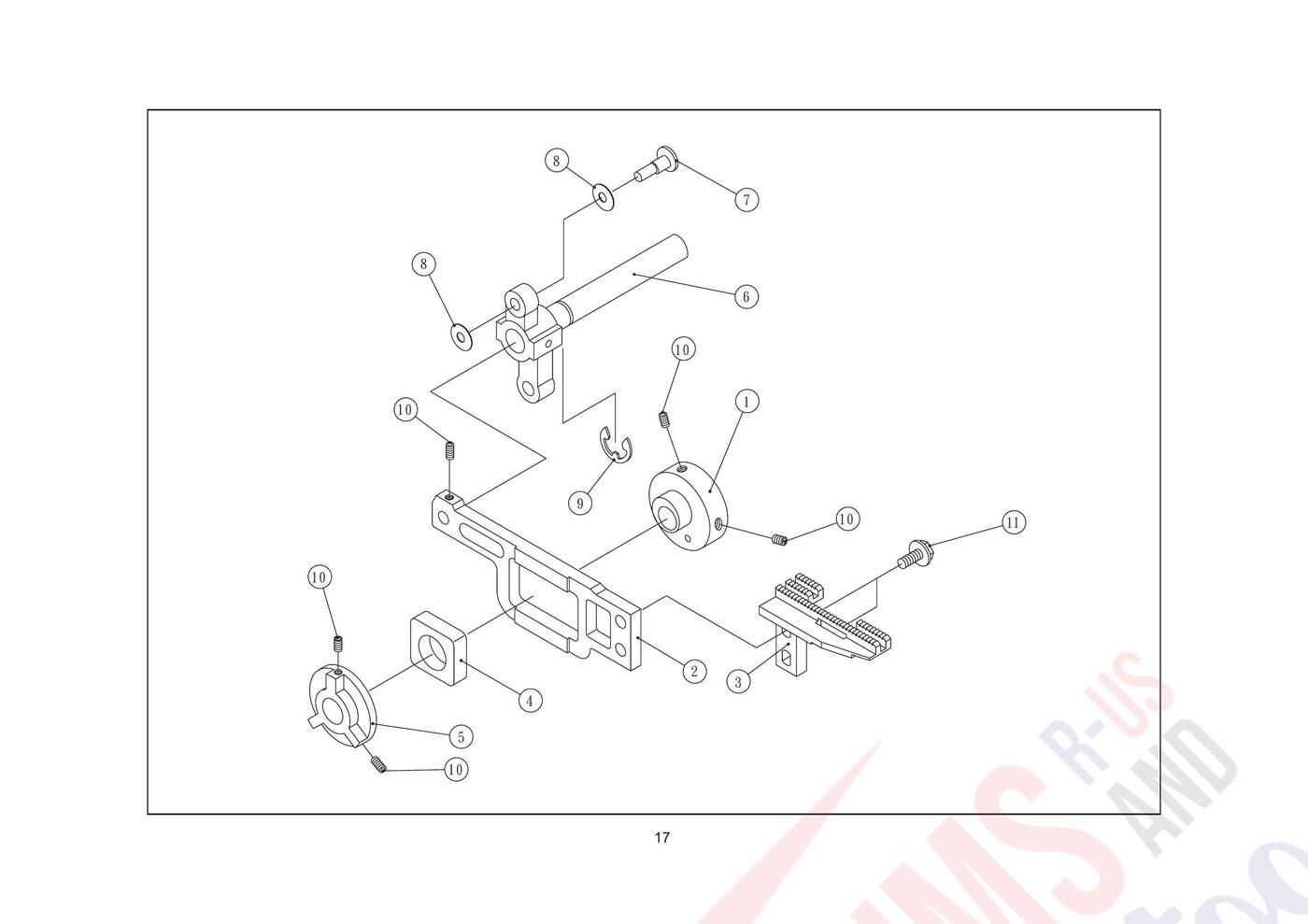

| 1 | Not Available | Feeddogcam | 396408-27 | Not Available |
| 2 | Not Available | Feeddogholder | 396403-54 | Not Available |
| 3 | Not Available | Feeddog | 396408-29 | Not Available |
| 4 | Not Available | Feeddogsupporterslideblock | 396408-30 | Not Available |
| 5 | Not Available | Settingcollar | 396403-58 | Not Available |
| 6 | Not Available | Feeddogshakerodcompleteset | 396403-59 | Not Available |
| 7 | Not Available | Feeddogholderpin | 396403-60 | Not Available |
| 8 | Not Available | Washer | 396402-51 | Not Available |
| 9 | Not Available | Ering | 396408-34 | Not Available |
| 10 | Not Available | Setscrew | 396402-33 | Not Available |
| 11 | Not Available | Setscrew | 396408-35 | Not Available |
| # | Part image | Description | SKU | Price |

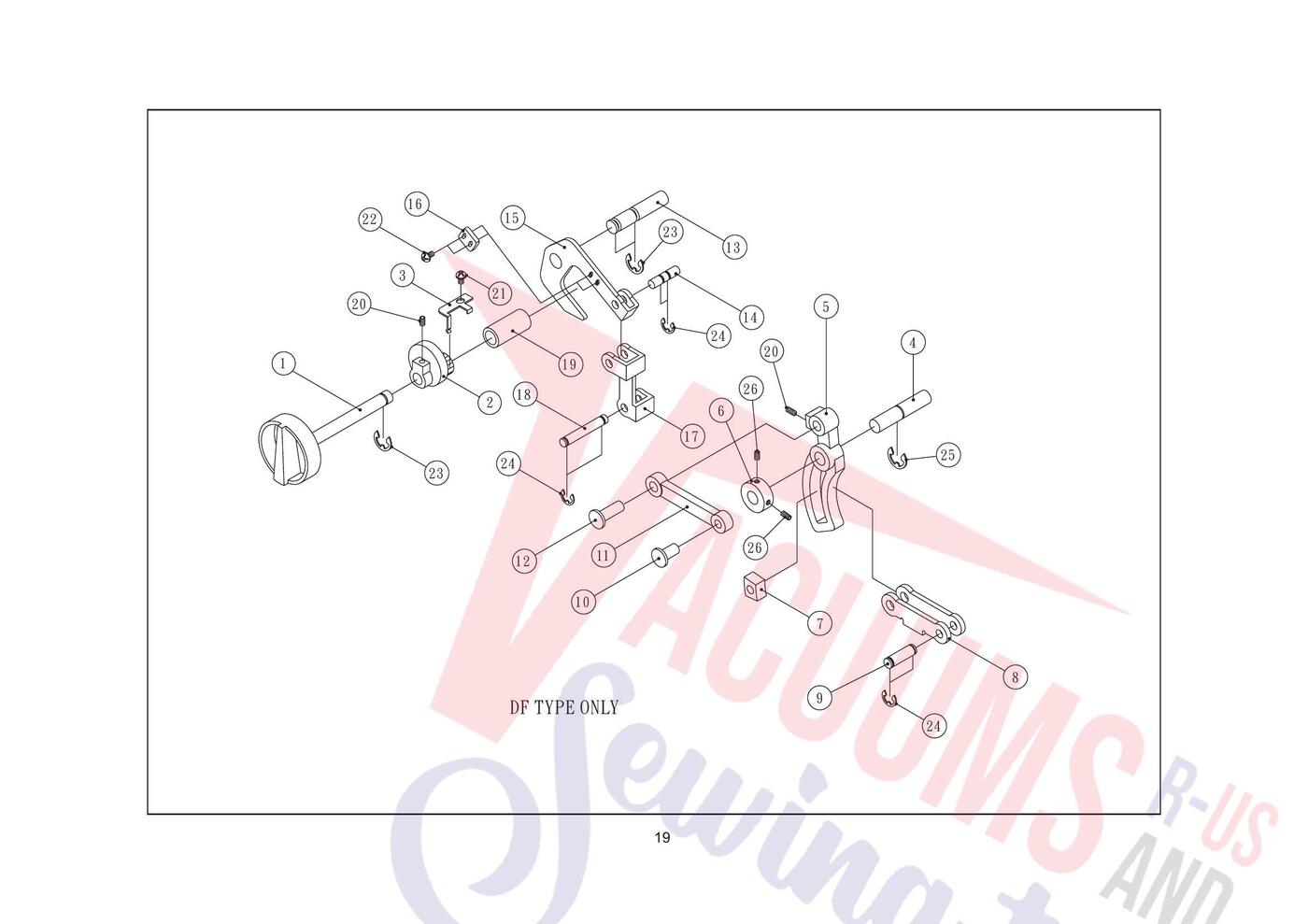

| 1 | Not Available | D.F.regulatelinkpin | 396403-47 | Not Available |
| 1 | Not Available | Differentialfeeddial 14 396403-47 D.F.regulatelinkpin | 396403-35 | Not Available |
| 2 | Not Available | D.F.regulateholder | 396403-48 | Not Available |
| 2 | Not Available | D.F.regulatecam 15 396403-48 D.F.regulateholder | 396403-36 | Not Available |
| 3 | Not Available | Settingplate | 396403-49 | Not Available |
| 3 | Not Available | D.F.seingspring 16 396403-49 Settingplate | 396403-37 | Not Available |
| 4 | Not Available | D.F.regulatelink | 396403-50 | Not Available |
| 4 | Not Available | D.F.slideholdershaft 17 396403-50 D.F.regulatelink | 396403-38 | Not Available |
| 5 | Not Available | D.F.linkpin(B) | 396403-51 | Not Available |
| 5 | Not Available | D.F.slideholder 18 396403-51 D.F.linkpin(B) | 396403-39 | Not Available |
| 6 | Not Available | D.F.dialbushing | 396403-52 | Not Available |
| 6 | Not Available | Settingcollar 19 396403-52 D.F.dialbushing | 396402-49 | Not Available |
| 7 | Not Available | Setscrew | 396402-33 | Not Available |
| 7 | Not Available | D.F.slideblock 20 396402-33 Setscrew | 396403-40 | Not Available |
| 8 | Not Available | Setscrew | 396402-20 | Not Available |
| 8 | Not Available | D.F.link 21 396402-20 Setscrew | 396403-41 | Not Available |
| 9 |  | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 9 | Not Available | D.F.linkpin(A) 22 396406-67 Setscrew | 396403-42 | Not Available |
| 10 | Not Available | Ering | 396402-78 | Not Available |
| 10 | Not Available | Feedregulatelinkpin 23 396402-78 Ering | 396403-43 | Not Available |
| 11 | Not Available | Ering | 396402-00 | Not Available |
| 11 | Not Available | Feeddogsupporterlink 24 396402-00 Ering | 396403-44 | Not Available |
| 12 | Not Available | Ering | 396401-99 | Not Available |
| 12 | Not Available | Feeddrivelinkpin(B) 25 396401-99 Ering | 396403-45 | Not Available |
| 13 | Not Available | Setscrew | 396402-82 | Not Available |
| 13 | Not Available | D.F.regulateholdershaft 26 396402-82 Setscrew | 396403-46 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Feeddogcam | 396403-53 | Not Available |
| 2 | Not Available | Feeddogholder | 396403-54 | Not Available |
| 3 | | Genuine Janome/Elna FEED DOG (REAR) | 396403-55 | $15.20Read more |
| 4 | Not Available | Feeddogsupporter(front) | 396403-56 | Not Available |
| 5 | Not Available | Feeddog(front) | 396408-36 | Not Available |
| 6 | Not Available | Deeddogsupportersiideblock | 396403-57 | Not Available |
| 7 | Not Available | Settingcollar | 396403-58 | Not Available |
| 8 | Not Available | Feeddogshakerodcompleteset | 396403-59 | Not Available |
| 9 | Not Available | Feeddogholderpin | 396403-60 | Not Available |
| 10 | Not Available | Washer | 396402-51 | Not Available |
| 11 | Not Available | Ering | 396401-99 | Not Available |
| 12 | Not Available | Setscrew | 396402-33 | Not Available |
| 13 | Not Available | Setscrew | 396403-61 | Not Available |
| # | Part image | Description | SKU | Price |

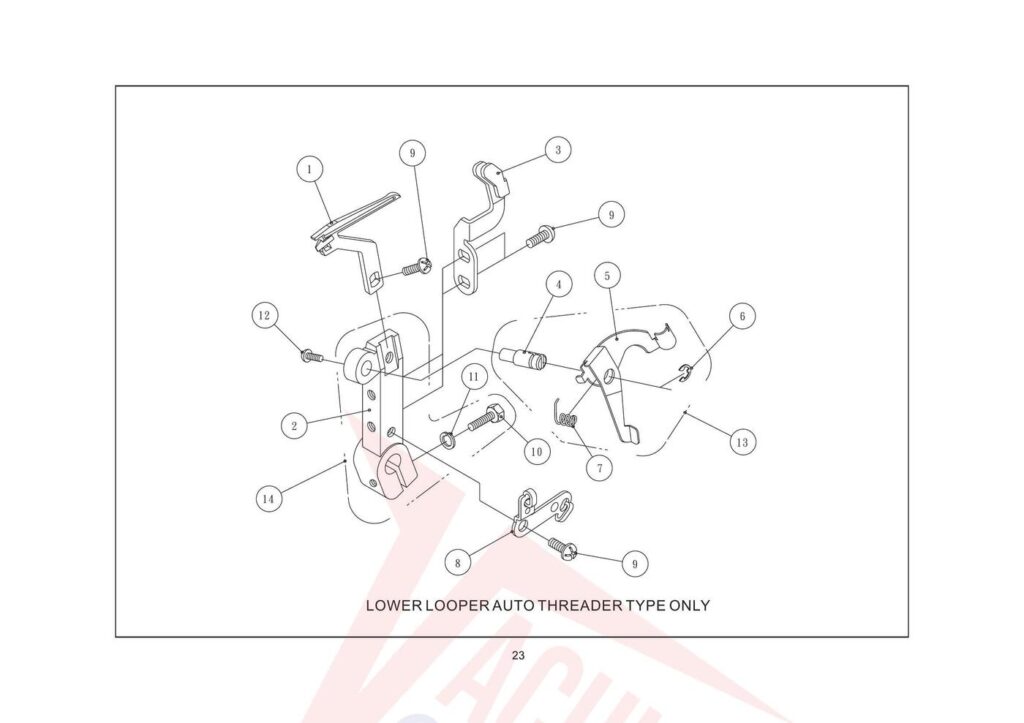

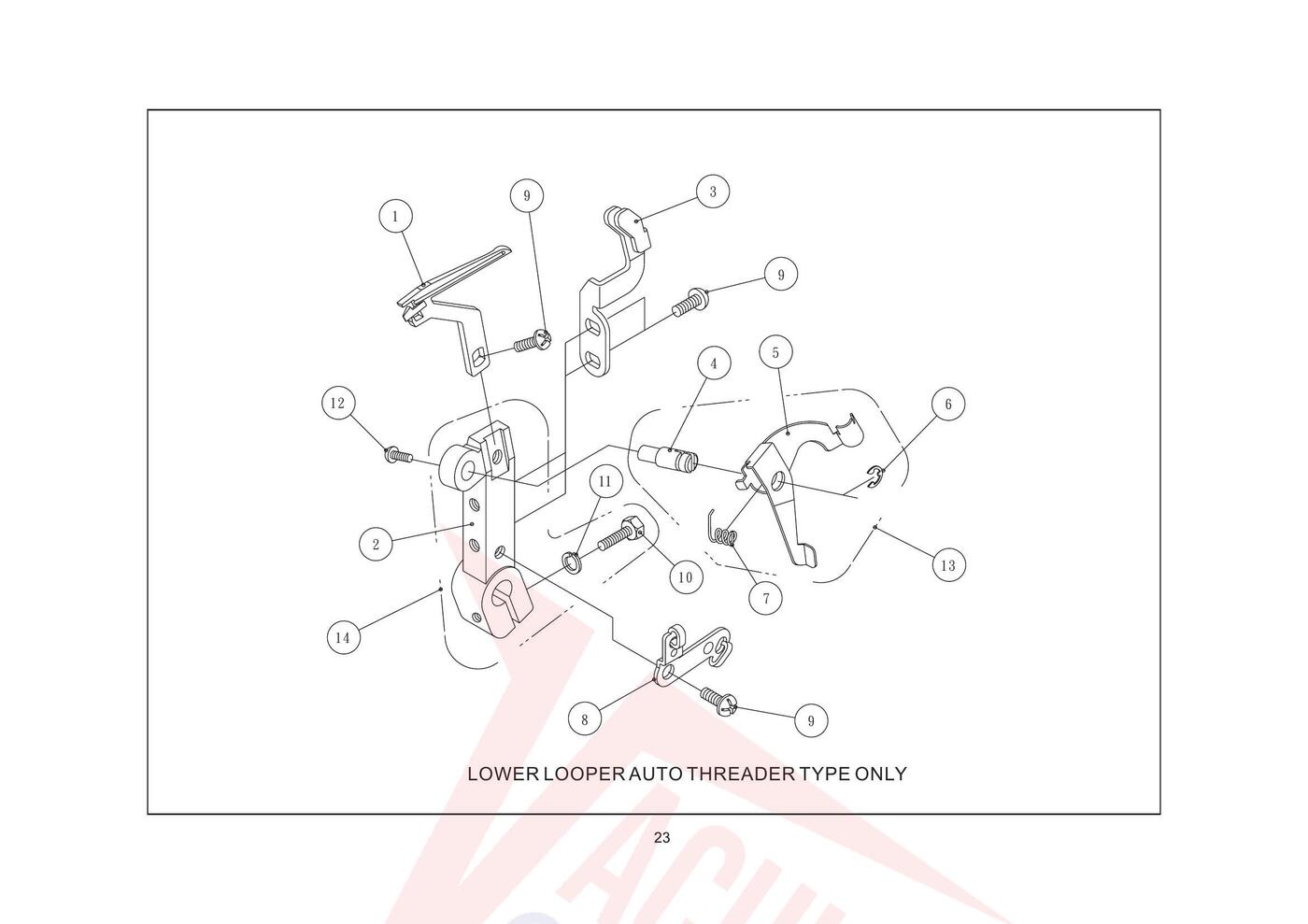

| 1 | | Genuine Janome/Elna LOWER LOOPER EL344 | 396401-09 | $79.60Read more |
| 2 | | Genuine Janome/Elna LOWER LOOPER SUPPORTER | 396403-62 | $17.60Read more |
| 3 | Not Available | Needleguard | 396403-63 | Not Available |
| 4 | Not Available | Autothreadershaft | 396403-64 | Not Available |
| 5 | Not Available | Autothreader | 396403-65 | Not Available |
| 6 | Not Available | Ering | 396402-00 | Not Available |
| 7 | Not Available | Autothreaderspring | 396403-66 | Not Available |
| 8 | Not Available | Lowerlooperthreadguide | 396408-23 | Not Available |
| 9 |  | Genuine Janome/Elna SEW SCREW ELNA 344 | 396403-15 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Setscrew | 396403-31 | Not Available |
| 11 | Not Available | Springwasher | 396408-25 | Not Available |
| 12 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 13 | Not Available | Autothreaderset | 396408-37 | Not Available |
| 14 | Not Available | Lowerloopersupporterset(B) | 396408-38 | Not Available |
| # | Part image | Description | SKU | Price |

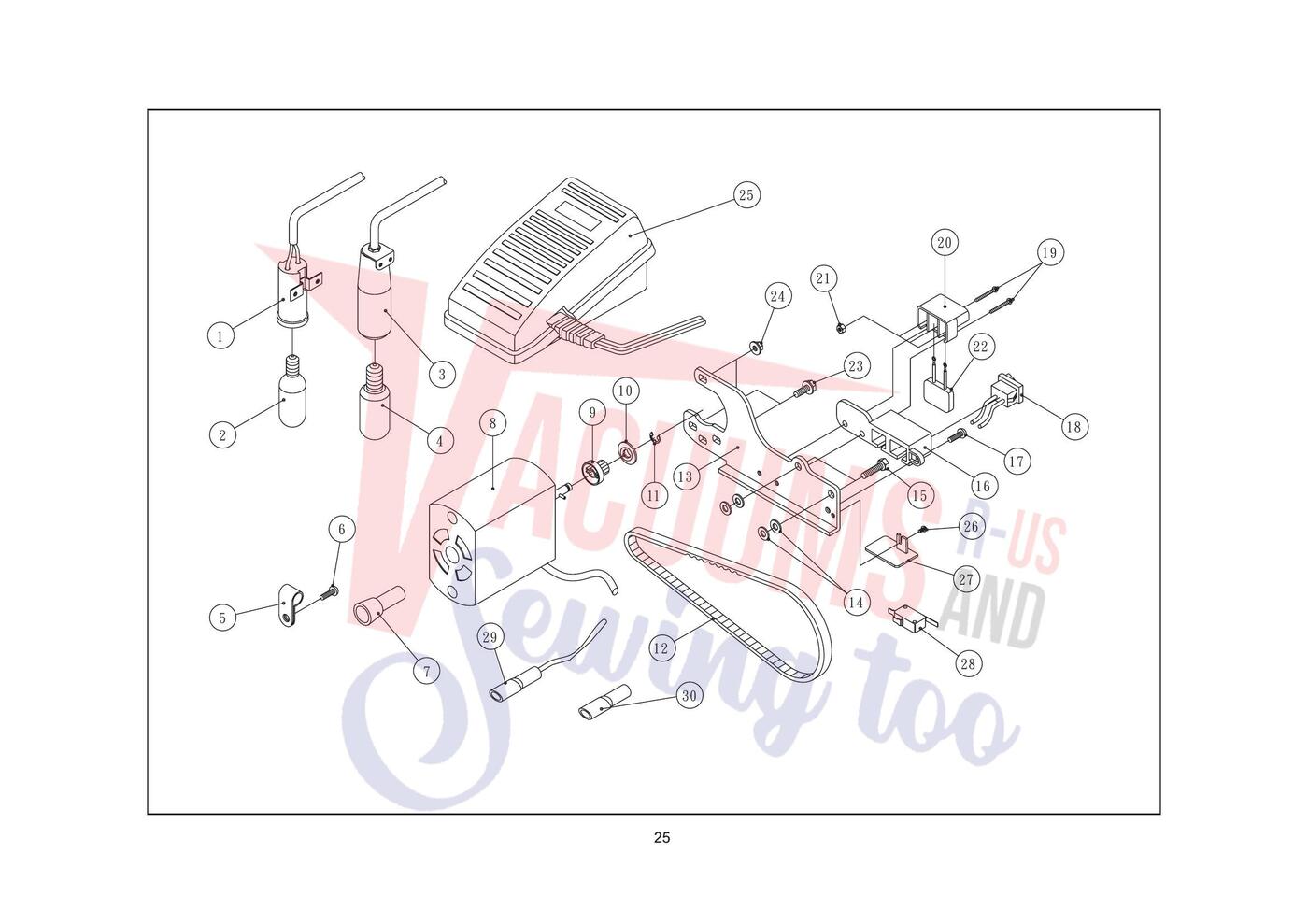

| xx | Not Available | Condenser(new) | 396408-45 | Not Available |
| xx | Not Available | Nut(new) | 396408-44 | Not Available |
| 1 |  | Genuine Janome/Elna MACHINE SOCKET | 396407-35 | $21.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Lightingset(120V) 20 396407-35 Machinesocket | 396403-71 | Not Available |
| 2 | Not Available | Machinesocket(new) | 396408-43 | Not Available |
| 2 |  | Genuine Janome/Elna BULB 683 686 654 | 396419-04 | $3.40Read more |
| 3 | Not Available | Nut | 396407-36 | Not Available |
| 3 | Not Available | Lightingset(220-240V) 21 396407-36 Nut | 396403-72 | Not Available |
| 4 | | Genuine Janome/Elna CONDENSER | 396407-37 | $9.60Read more |
| 4 | | Genuine Janome/Elna BULB 230V | 396419-03 | $10.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Setscrew | 396407-39 | Not Available |
| 5 | Not Available | HW(1/4)Cordclip 23 396407-39 Setscrew | 396403-73 | Not Available |
| 6 | Not Available | Setscrew(new) | 396408-46 | Not Available |
| 6 | Not Available | Setscrew 23 396408-46 Setscrew(new) | 396402-20 | Not Available |
| 7 | Not Available | Nut | 396407-40 | Not Available |
| 7 | Not Available | C4Endterminal 24 396407-40 Nut | 396403-74 | Not Available |
| 8 | Not Available | Footcontroller(220V)(new) | 396408-50 | Not Available |
| 8 | Not Available | Footcontroller(220V)(new) | 396408-49 | Not Available |
| 8 | | Genuine Janome/Elna FOOT CONTROL 120V ELNA 654 | 396407-42 | $143.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Footcontroller(220V) | 396407-44 | Not Available |
| 8 | Not Available | Footcontroller(220V) | 396407-43 | Not Available |
| 8 | Not Available | Footcontroller(120V)(new) | 396408-48 | Not Available |
| 8 | Not Available | Nut(new) | 396408-47 | Not Available |
| 8 | Not Available | Motor(120V) 24 396408-47 Nut(new) | 396407-20 | Not Available |
| 8 | Not Available | Motor(120V)(new) 25 396407-42 Footcontroller(120V) | 396408-39 | Not Available |
| 8 | Not Available | Motor(220V) 25 396408-48 Footcontroller(120V)(new) | 396407-21 | Not Available |
| 8 | | Genuine Janome/Elna MOTOR 230V | 396407-22 | $198.00Read more |
| 8 | Not Available | Motor(220V~230V)(new) 25 396408-49 Footcontroller(220V)(new) | 396408-40 | Not Available |
| 8 | Not Available | Motor(240V) 25 396407-44 Footcontroller(220V) | 396407-23 | Not Available |
| 8 | Not Available | Motor(240V)(new) 25 396408-50 Footcontroller(220V)(new) | 396408-41 | Not Available |
| 9 | Not Available | Footcontroller(220V) | 396407-45 | Not Available |
| 9 | Not Available | Timingbeltpulley 25 396407-45 Footcontroller(220V) | 396401-22 | Not Available |
| 10 | Not Available | Footcontroller(220V)(new) | 396408-51 | Not Available |
| 10 | Not Available | Timingbeltpulleycover 25 396408-51 Footcontroller(220V)(new) | 396403-75 | Not Available |
| 11 | | Genuine Janome/Elna FOOT CONTROL 230V CEE | 396407-46 | $172.20Read more |
| 11 | Not Available | Ering 25 396407-46 Footcontroller(230V) | 396402-00 | Not Available |
| 12 | Not Available | Footcontroller(230V)(new) | 396408-52 | Not Available |
| 12 | | Genuine Janome/Elna MOTOR BELT | 396401-32 | $19.80Read more |
| 13 | | Genuine Janome/Elna FOOT CONTROL 240V UK | 396407-47 | $139.20Read more |
| 13 | Not Available | Motorsupporter 25 396407-47 Footcontroller(240V) | 396403-76 | Not Available |
| 14 | Not Available | Footcontroller(240V)(new) | 396408-53 | Not Available |
| 14 | Not Available | Washer 25 396408-53 Footcontroller(240V)(new) | 396403-77 | Not Available |
| 15 | | Genuine Janome/Elna FOOT CONTROL 240V AUS/NZ | 396407-48 | $146.80Read more |
| 15 | Not Available | Setscrew 25 396407-48 Footcontroller(240V) | 396402-92 | Not Available |
| 16 | Not Available | Footcontroller(240V)(new) | 396408-54 | Not Available |
| 16 | Not Available | Switchsupporter 25 396408-54 Footcontroller(240V)(new) | 396403-78 | Not Available |
| 17 | Not Available | Setscrew | 396401-69 | Not Available |
| 17 | Not Available | Setscrew 26 396401-69 Setscrew | 396401-70 | Not Available |
| 18 | Not Available | Microswitchinsulationplate | 396403-84 | Not Available |
| 18 | | Genuine Janome/Elna SWITCH | 396401-10 | $15.20Read more |
| 19 | Not Available | Terminalw/transparentinsulationtube | 396403-86 | Not Available |
| 19 | Not Available | Microswitch | 396403-85 | Not Available |
| 19 | Not Available | Setscrew 28 396403-85 Microswitch | 396407-34 | Not Available |
| 19 | Not Available | Setscrew(new) 29 396403-86 Terminalw/transparentinsulationtube | 396408-42 | Not Available |
| 30 | Not Available | Terminalw/untransparentinsulationtube | 396403-87 | Not Available |
| # | Part image | Description | SKU | Price |

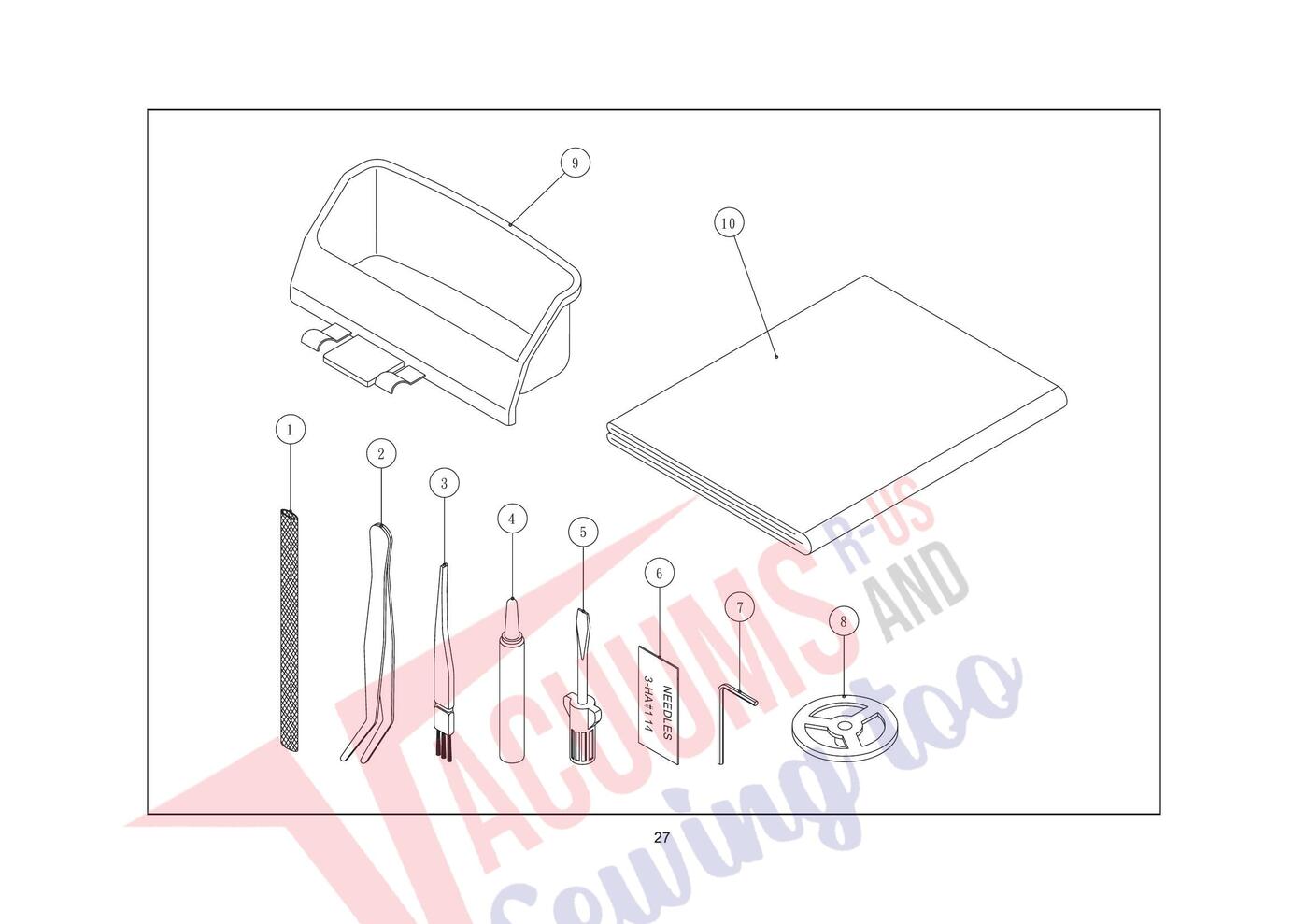

| 1 | Not Available | Nut | 396419-07 | Not Available |
| 2 |  | Genuine Janome/Elna TWEEZERS EL683 EL686 | 396419-08 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Cleaningbruch | 396419-09 | Not Available |
| 4 | Not Available | Oiler | 396419-10 | Not Available |
| 5 |  | Genuine Janome/Elna SCREW DRIVER EL683 EL686 | 396419-11 | $4.00Read more |
| 6 |  | Genuine Janome/Elna ASSORTMENT 5 NEEDLES MODEL 705 | 396002-27 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Genuine Janome/Elna HEXAGON WRENCH EL683 EL686 | 396419-12 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Genuine Janome/Elna SPOOL CAP | 396419-13 | $3.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Genuine Janome/Elna MATER. WASTE CONTAIN | 396419-14 | $20.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Janome/Elna DUST COVER EL683 EL686 | 396419-15 | $25.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Genuine Janome/Elna ACCESSORY SET | 396419-02 | $58.60Add to cart Product is special order please allow 2-4 weeks for delivery. |

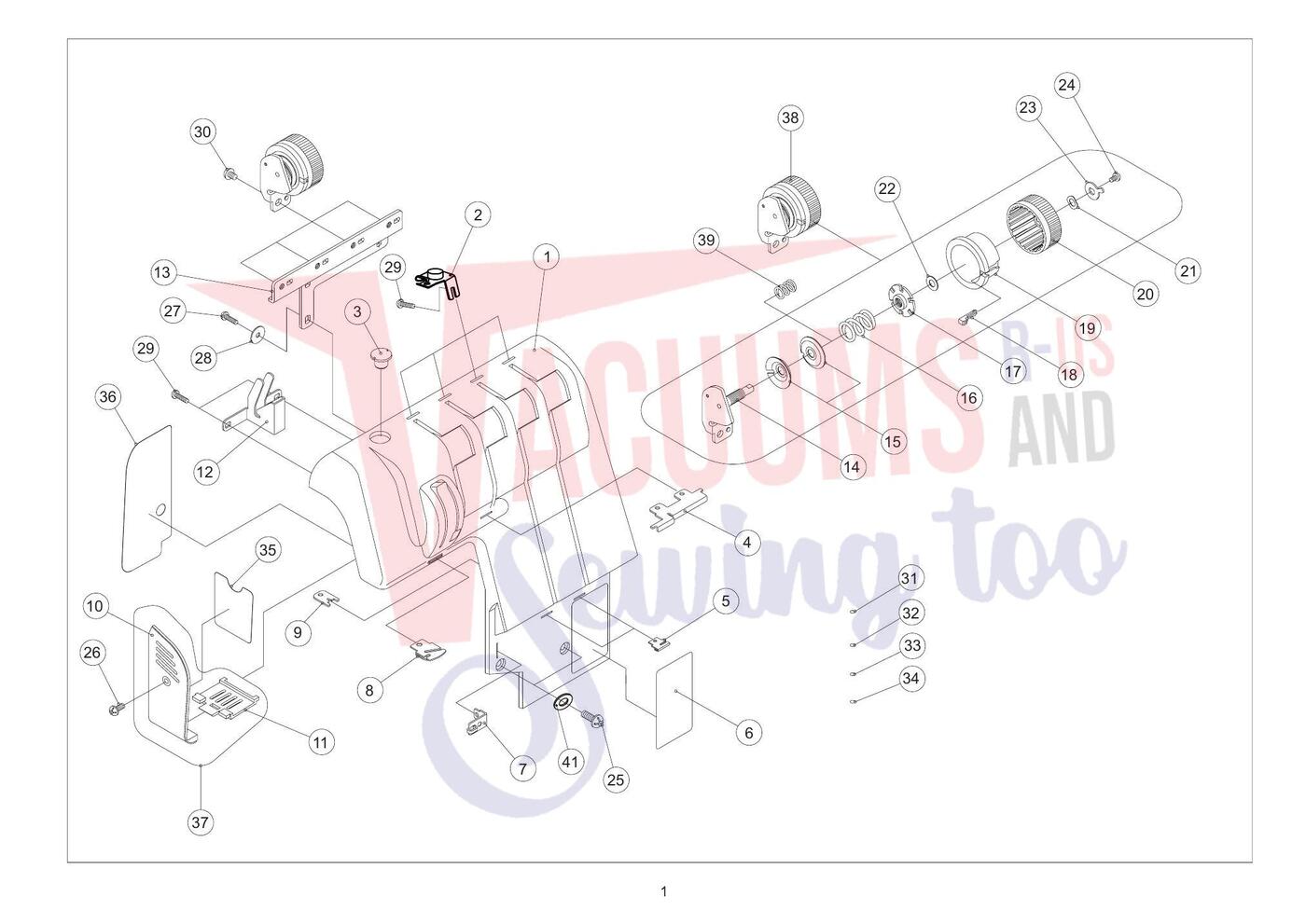

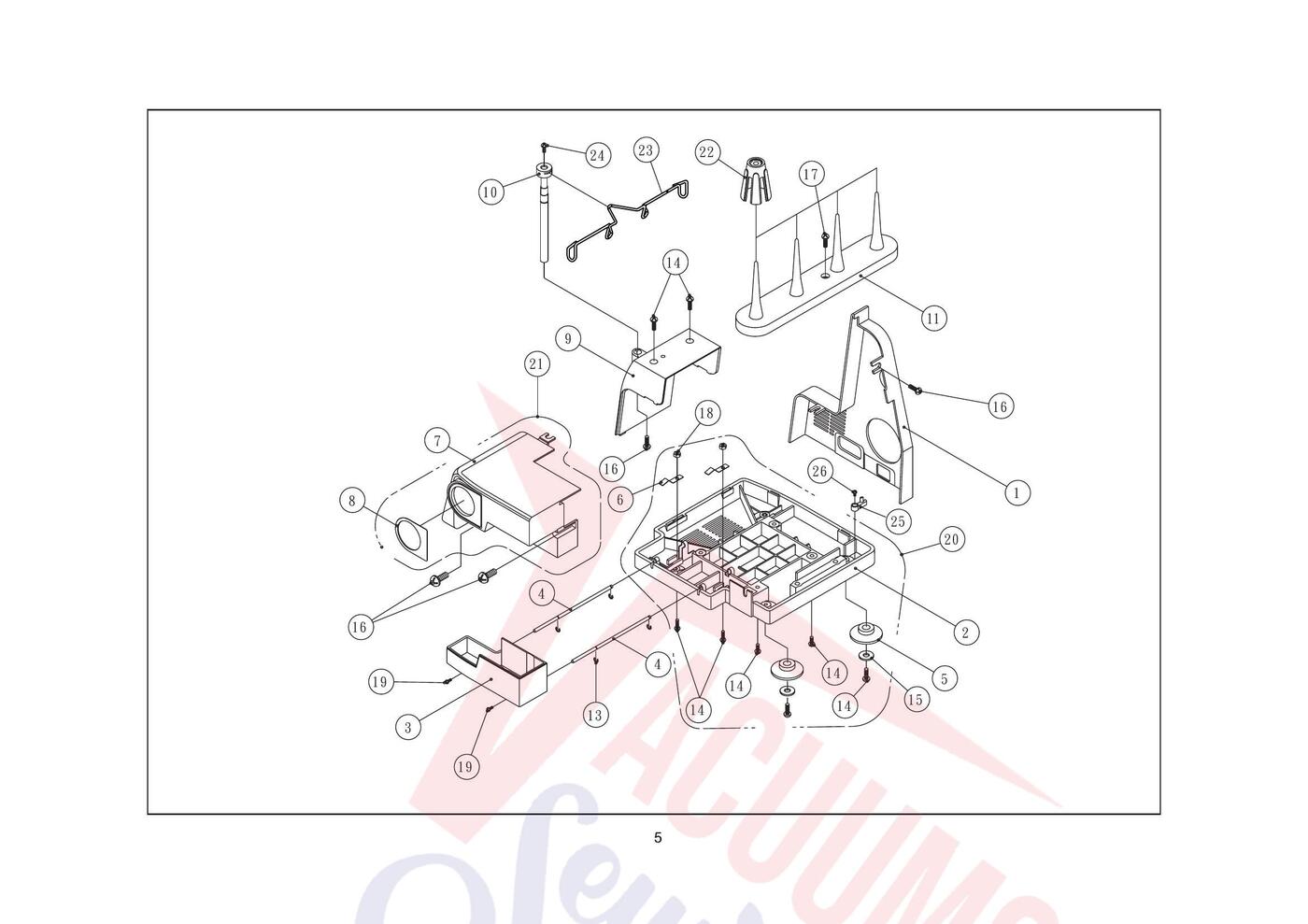

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tensiondial(2,3,4red) | 396401-62 | Not Available |
| 1 | Not Available | Frontcover(No.1,4,5,7,8,9included) 20 396401-62 Tensiondial(2,3,4red) | 396408-00 | Not Available |
| 2 | Not Available | Tensiondail(2,3,4green) | 396401-63 | Not Available |
| 2 |  | Genuine Janome/Elna THREAD GUIDE A ELNA 344 | 396408-01 | $2.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Tensiondial(2,3,4blue) | 396401-64 | Not Available |
| 3 | Not Available | Regulatecover 20 396401-64 Tensiondial(2,3,4blue) | 396401-36 | Not Available |
| 4 | Not Available | Tensiondial(2,3,4yellow) | 396408-04 | Not Available |
| 4 |  | Genuine Janome/Elna THREAD GUIDE B ELNA 344 | 396401-37 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Wavewasher | 396401-66 | Not Available |
| 5 |  | Genuine Janome/Elna THREAD GUIDE F ELNA 344 | 396401-38 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Washer | 396401-67 | Not Available |
| 6 | Not Available | Threadguidesticker(D2) 22 396401-67 Washer | 396408-02 | Not Available |
| 7 | Not Available | Tensiondialsettingplate | 396401-68 | Not Available |
| 7 |  | Genuine Janome/Elna THREAD GUIDE E ELNA 344 | 396401-41 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Setscrew | 396401-69 | Not Available |
| 8 | Not Available | Setscrew | 396401-69 | Not Available |
| 8 |  | Genuine Janome/Elna THREAD GUIDE C ELNA 344 | 396401-42 | $1.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Setscrew | 396401-70 | Not Available |
| 9 |  | Genuine Janome/Elna THREAD GUIDE D ELNA 344 | 396401-43 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Bulbcover 26 396401-69 Setscrew | 396401-44 | Not Available |
| 11 | Not Available | Setscrew | 396401-71 | Not Available |
| 11 | Not Available | Bulbshieldingplate 27 396401-71 Setscrew | 396401-45 | Not Available |
| 12 | Not Available | Washer | 396401-72 | Not Available |
| 12 | Not Available | Threadtake-upcover 28 396401-72 Washer | 396401-46 | Not Available |
| 13 | Not Available | Setscrew | 396401-73 | Not Available |
| 13 | Not Available | Tensiondialholder 29 396401-73 Setscrew | 396401-47 | Not Available |
| 14 | Not Available | Setscrew | 396401-74 | Not Available |
| 14 | Not Available | Tensiondialholderset 30 396401-74 Setscrew | 396401-48 | Not Available |
| 15 | | Genuine Janome/Elna STICKER RED | 396401-75 | $0.80Read more |
| 15 | Not Available | Tensiondisc 31 396401-75 Colorsticker(red) | 396401-49 | Not Available |
| 16 | Not Available | Colorsticker(yellow) | 396404-24 | Not Available |
| 16 | Not Available | Colorsticker(blue) | 396401-77 | Not Available |
| 16 | Not Available | Colorsticker(green) | 396401-76 | Not Available |
| 16 | Not Available | Tensionspring(lowerlooper) 32 396401-76 Colorsticker(green) | 396401-50 | Not Available |
| 16 | Not Available | Tensionspring(rightneedle,leftneedle) 33 396401-77 Colorsticker(blue) | 396401-51 | Not Available |
| 16 | Not Available | Tensionspring(upperlooper) 34 396404-24 Colorsticker(yellow) | 396401-52 | Not Available |
| 17 | Not Available | Lampcoverheatoutplate | 396401-79 | Not Available |
| 17 | Not Available | Tensionregulatenut 35 396401-79 Lampcoverheatoutplate | 396401-53 | Not Available |
| 18 | Not Available | Tensiondialset(upperlooper) | 396401-85 | Not Available |
| 18 | Not Available | Tensiondialset(lowerlooper) | 396401-83 | Not Available |
| 18 | Not Available | Bulbcovercompleteset | 396401-81 | Not Available |
| 18 | Not Available | Frontcoverheatoutplate | 396401-80 | Not Available |
| 18 | Not Available | Tensionregulatepin(red) 36 396401-80 Frontcoverheatoutplate | 396401-54 | Not Available |
| 18 | Not Available | Tensionregulatepin(green) 37 396401-81 Bulbcovercompleteset | 396401-55 | Not Available |
| 18 | Not Available | Tensionregulatepin(blue) 38 396401-83 Tensiondialset(lowerlooper) | 396401-56 | Not Available |
| 18 |  | Genuine Janome/Elna TENSION PIN (YELLOW) | 396404-48 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Frontcoverset(No.35,37excluded) | 396408-05 | Not Available |
| 19 | Not Available | Tensionspring | 396401-86 | Not Available |
| 19 | Not Available | Tensiondialset(leftneedle) | 396401-84 | Not Available |
| 19 | Not Available | Tensiondialset(rightneedle) | 396401-82 | Not Available |
| 19 | Not Available | Tensionregulatedisc(red) 38 396401-82 Tensiondialset(rightneedle) | 396401-58 | Not Available |
| 19 | Not Available | Tensionregulatedisc(green) 38 396401-84 Tensiondialset(leftneedle) | 396401-59 | Not Available |
| 19 | Not Available | Tensionregulatedisc(blue) 39 396401-86 Tensionspring | 396401-60 | Not Available |
| 19 | Not Available | Tensionregulatedisc(yellow) 40 396408-05 Frontcoverset(No.35,37excluded) | 396404-44 | Not Available |
| 41 | Not Available | Washer | 396408-06 | Not Available |
| # | Part image | Description | SKU | Price |

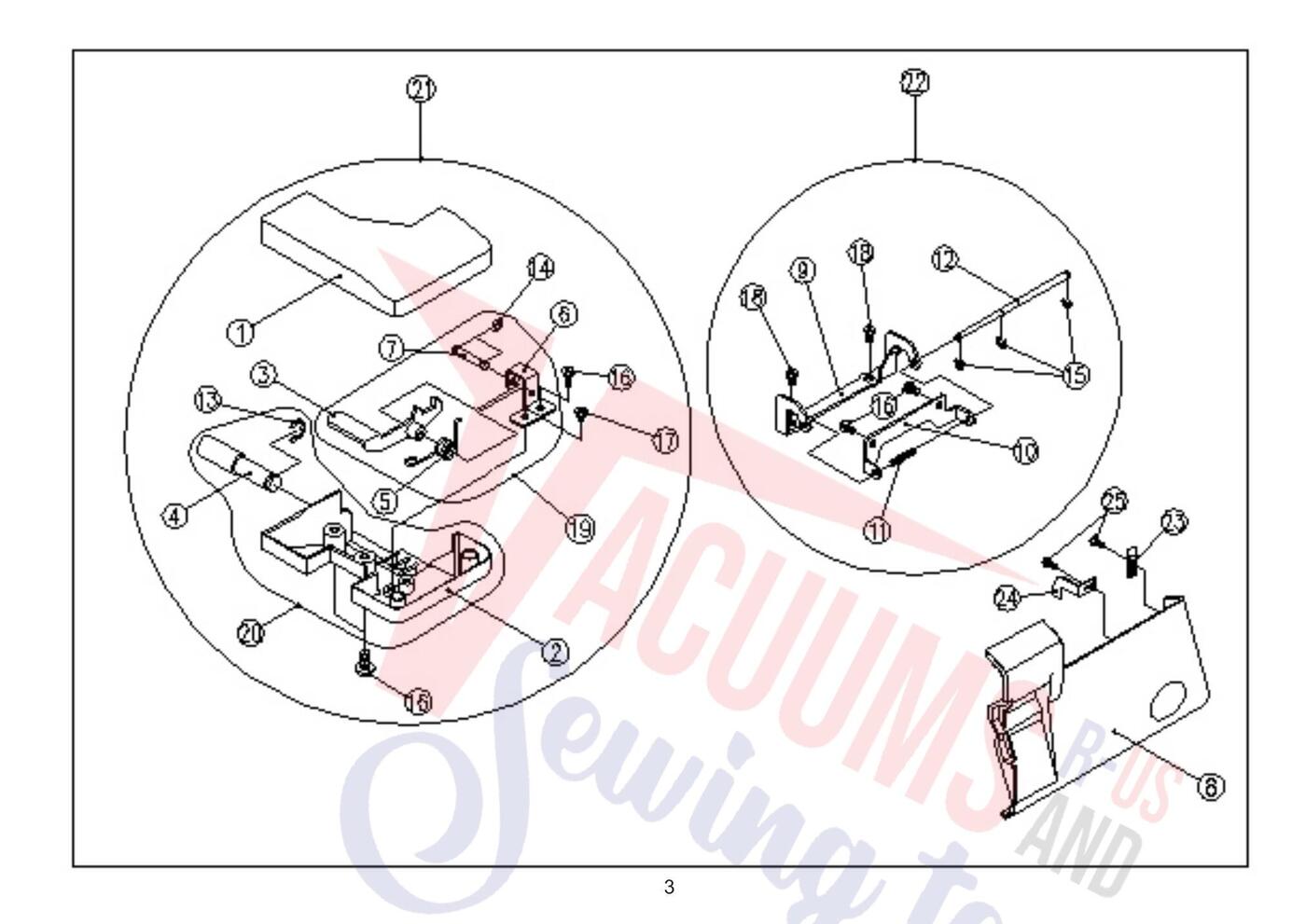

| 1 | Not Available | Loopercoverhingeshaft | 396401-98 | Not Available |
| 1 | | Genuine Janome/Elna SEWING TABLE COVER | 396401-88 | $10.80Read more |
| 2 | Not Available | Ering | 396401-99 | Not Available |
| 2 | Not Available | Sewingtablebase 13 396401-99 Ering | 396401-89 | Not Available |
| 3 | Not Available | Ering | 396402-00 | Not Available |
| 3 | Not Available | Sewingtableopeninglever 14 396402-00 Ering | 396401-90 | Not Available |
| 4 | Not Available | Ering | 396408-09 | Not Available |
| 4 | Not Available | Sewingtableshaft 15 396408-09 Ering | 396401-91 | Not Available |
| 5 | Not Available | Setscrew | 396402-02 | Not Available |
| 5 | Not Available | Openingleverspring 16 396402-02 Setscrew | 396401-92 | Not Available |
| 6 | Not Available | Setscrew | 396402-03 | Not Available |
| 6 | Not Available | Openingleverholder 17 396402-03 Setscrew | 396401-93 | Not Available |
| 7 | Not Available | Setscrew | 396401-70 | Not Available |
| 7 | Not Available | Openinglevershaft 18 396401-70 Setscrew | 396401-94 | Not Available |
| 8 | Not Available | Sewingtableopeningleverset | 396402-04 | Not Available |
| 8 | Not Available | Elna344Loopercover 19 396402-04 Sewingtableopeningleverset | 396408-07 | Not Available |
| 9 | Not Available | Sewingtablebasecompleteset | 396402-05 | Not Available |
| 9 | Not Available | Loopercoverhinge(A) 20 396402-05 Sewingtablebasecompleteset | 396401-95 | Not Available |
| 10 | | Genuine Janome/Elna SEWING TABLE COMPL. SET | 396402-06 | $59.60Read more |
| 10 | Not Available | Loopercoverhinge(B) 21 396402-06 Sewngtablecompleteset | 396401-96 | Not Available |
| 11 | Not Available | Loopercoverhingeset | 396401-19 | Not Available |
| 11 | Not Available | Loopercoverhingespring 22 396401-19 Loopercoverhingeset | 396408-08 | Not Available |
| 23 | Not Available | Loopercoversettingplate | 396402-07 | Not Available |
| 24 | Not Available | Contactorregulateplate | 396402-08 | Not Available |
| 25 | Not Available | Setscrew | 396402-09 | Not Available |
| # | Part image | Description | SKU | Price |

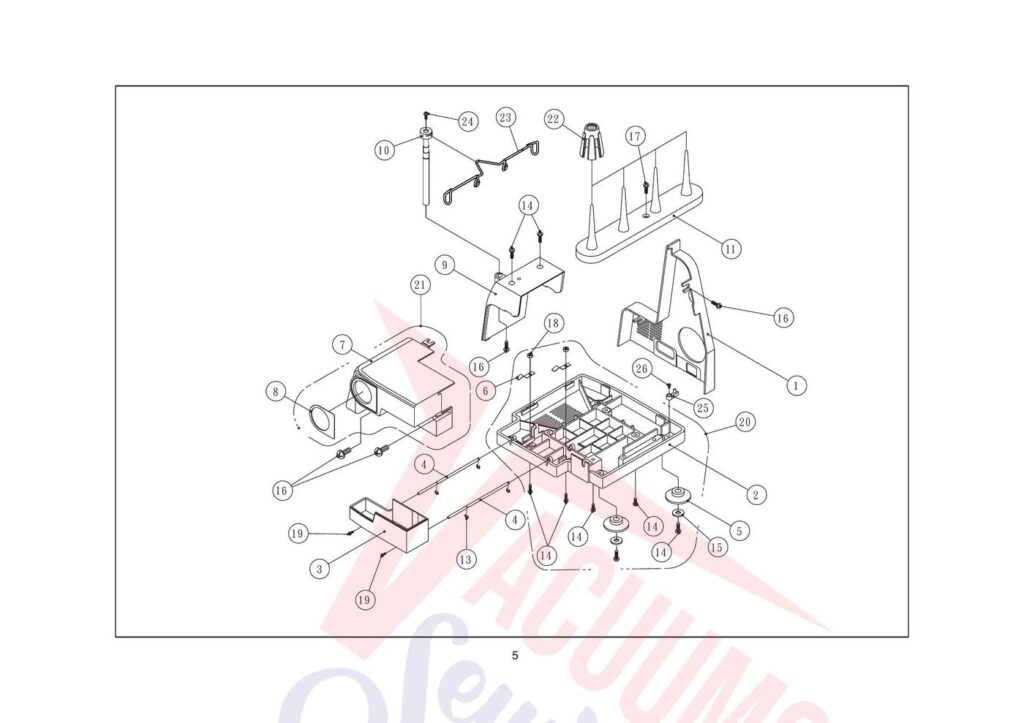

| 1 | Not Available | Ering | 396402-01 | Not Available |
| 1 | Not Available | Sidecover 13 396402-01 Ering | 396402-10 | Not Available |
| 2 | Not Available | Setscrew | 396402-18 | Not Available |
| 2 | Not Available | Baseplate 14 396402-18 Setscrew | 396408-10 | Not Available |
| 3 | Not Available | Washer | 396402-19 | Not Available |
| 3 | Not Available | Accessorybox 15 396402-19 Washer | 396408-11 | Not Available |
| 4 | Not Available | Setscrew | 396402-20 | Not Available |
| 4 | Not Available | Accessoryboxslideshaft 16 396402-20 Setscrew | 396402-12 | Not Available |
| 5 | Not Available | Setscrew | 396402-21 | Not Available |
| 5 | Not Available | Rubber 17 396402-21 Setscrew | 396402-13 | Not Available |
| 6 | Not Available | Nut | 396402-22 | Not Available |
| 6 | Not Available | Accessoryboxseingspring 18 396402-22 Nut | 396402-14 | Not Available |
| 7 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 7 | | Genuine Janome/Elna EXTENSION TABLE EZ34 | 396402-15 | $30.40Read more |
| 8 | Not Available | Baseplatecompleteset | 396402-23 | Not Available |
| 8 | Not Available | D.F.decorateplate 20 396402-23 Baseplatecompleteset | 396408-12 | Not Available |
| 9 | | Genuine Janome/Elna EXTENSION TABLE COMPL. | 396401-34 | $36.60Read more |
| 9 |  | Genuine Janome/Elna MOTOR COVER | 396401-11 | $23.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Coneholder | 396419-05 | Not Available |
| 10 |  | Genuine Janome/Elna EXTENSION BAR | 396401-05 | $41.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Treadguide | 396408-13 | Not Available |
| 11 | Not Available | Spoolstand 23 396408-13 Treadguide | 396402-17 | Not Available |
| 24 |  | Genuine Janome/Elna SET SCREW EL683 | 396406-84 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Microswitchcontactor | 396402-27 | Not Available |
| 26 | Not Available | Setscrew | 396402-09 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | LoopershaftIink | 396402-68 | Not Available |
| 1 | Not Available | Setscrew | 396402-35 | Not Available |
| 1 | Not Available | Machineframe 12 396402-35 Setscrew | 396402-28 | Not Available |
| 1 | Not Available | Upperknifearmshaftbushing 21 396402-68 LoopershaftIink | 396402-48 | Not Available |
| 2 | Not Available | Settingcollar | 396402-69 | Not Available |
| 2 |  | Genuine Janome/Elna NEEDLE PLATE | 396401-07 | $41.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Setscrew 13 396401-07 Stitchplate | 396402-20 | Not Available |
| 2 | Not Available | Settingcollar 22 396402-69 Settingcollar | 396402-49 | Not Available |
| 3 | Not Available | Loopershaftbushing | 396402-70 | Not Available |
| 3 | | Genuine Janome/Elna SET SCREW | 396402-36 | $0.80Read more |
| 3 |  | Genuine Janome/Elna LOWER KNIFE EL344 | 396401-01 | $22.20Read more |
| 3 | Not Available | Needlebarcrank 23 396402-70 Loopershaftbushing | 396402-50 | Not Available |
| 4 | Not Available | Upperloopershaft | 396402-71 | Not Available |
| 4 | Not Available | Stitchplateholder | 396402-37 | Not Available |
| 4 | Not Available | Lowerknifeholder 15 396402-37 Stitchplateholder | 396402-29 | Not Available |
| 4 | Not Available | Washer 24 396402-71 Upperloopershaft | 396402-51 | Not Available |
| 5 | Not Available | Lowerloopershaft | 396402-72 | Not Available |
| 5 | Not Available | Springpin | 396402-38 | Not Available |
| 5 | Not Available | Cuttingwidthknobshaft 16 396402-38 Springpin | 396402-30 | Not Available |
| 5 | Not Available | NeedlebarIink 25 396402-72 Lowerloopershaft | 396402-52 | Not Available |
| 6 | Not Available | Fork | 396402-73 | Not Available |
| 6 | Not Available | Bulbholder | 396402-39 | Not Available |
| 6 | Not Available | Lowerknifeholderbushing 17 396402-39 Bulbholder | 396402-31 | Not Available |
| 6 | Not Available | NeedlebarIinkpin 26 396402-73 Fork | 396402-53 | Not Available |
| 7 | Not Available | Upperknifearmset | 396402-74 | Not Available |
| 7 | | Genuine Janome/Elna PRESSER FOOT LEVER | 396402-40 | $2.40Read more |
| 7 | | Genuine Janome/Elna CUTTING WIDTH KNOB | 396402-32 | $3.80Read more |
| 7 | Not Available | NeedlebarIinkshaft 27 396402-74 Upperknifearmset | 396402-54 | Not Available |
| 8 | Not Available | Upperknifeholdercollar | 396402-75 | Not Available |
| 8 | Not Available | Presserbarbushing | 396402-41 | Not Available |
| 8 | Not Available | Setscrew 19 396402-41 Presserbarbushing | 396402-33 | Not Available |
| 8 | Not Available | NeeldebardriveIinkpin 28 396402-75 Upperknifeholdercollar | 396402-55 | Not Available |
| 9 | Not Available | Upperknifespring | 396402-76 | Not Available |
| 9 | Not Available | Needlebarbushing | 396402-42 | Not Available |
| 9 | Not Available | Openingleverstopper 20 396402-42 Needlebarbushing | 396402-34 | Not Available |
| 9 | Not Available | Washer 29 396402-76 Upperknifespring | 396402-56 | Not Available |
| 10 | Not Available | Upperknifeholder | 396402-77 | Not Available |
| 10 | Not Available | Wavewasher | 396401-66 | Not Available |
| 10 |  | Genuine Janome/Elna FIXED LEVER | 396401-02 | $19.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Mainshaftset 30 396402-77 Upperknifeholder | 396402-57 | Not Available |
| 11 |  | Genuine Janome/Elna UPPER KNIFE 344 | 396401-00 | $25.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Movingleverholder | 396408-14 | Not Available |
| 11 |  | Genuine Janome/Elna SET SCREW | 396401-24 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Mainshaftbushing(A) 31 396401-00 Upperknife | 396402-58 | Not Available |
| 12 | Not Available | Setscrew | 396402-20 | Not Available |
| 12 | Not Available | Settingcollar 32 396402-20 Setscrew | 396402-59 | Not Available |
| 13 | Not Available | Ering | 396401-99 | Not Available |
| 13 | Not Available | Needlebarcam 33 396401-99 Ering | 396402-60 | Not Available |
| 14 | Not Available | Ering | 396402-78 | Not Available |
| 14 | Not Available | Washer 34 396402-78 Ering | 396402-61 | Not Available |
| 15 | Not Available | Setscrew | 396402-79 | Not Available |
| 15 | Not Available | NeedlebardriveIink 35 396402-79 Setscrew | 396402-62 | Not Available |
| 16 | Not Available | Setscrew | 396402-33 | Not Available |
| 16 | Not Available | LooperIink 36 396402-33 Setscrew | 396402-63 | Not Available |
| 17 | Not Available | Setscrew | 396402-80 | Not Available |
| 17 | Not Available | Loopercam(B) 37 396402-80 Setscrew | 396402-64 | Not Available |
| 18 | Not Available | Nut | 396402-81 | Not Available |
| 18 | Not Available | Mainshaftbushing(B) 38 396402-81 Nut | 396402-65 | Not Available |
| 19 | Not Available | Setscrew | 396402-82 | Not Available |
| 19 | Not Available | Bearing 39 396402-82 Setscrew | 396402-66 | Not Available |
| 20 | Not Available | Loopercam(A) | 396402-83 | Not Available |
| 20 | Not Available | LoopershaftIinkpin 40 396402-83 Loopercam(A) | 396402-67 | Not Available |
| 23 | Not Available | Setscrew | 396402-25 | Not Available |
| 24 | | Genuine Janome/Elna MOVING LEVER COVER | 396402-45 | $1.60Read more |
| 25 | | Genuine Janome/Elna MOVING LEVER | 396401-03 | $19.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Locatingspring | 396402-46 | Not Available |
| 27 |  | Genuine Janome/Elna NEEDLE PLATE SET ELNA 344 | 396402-47 | $85.20Read more |
| # | Part image | Description | SKU | Price |

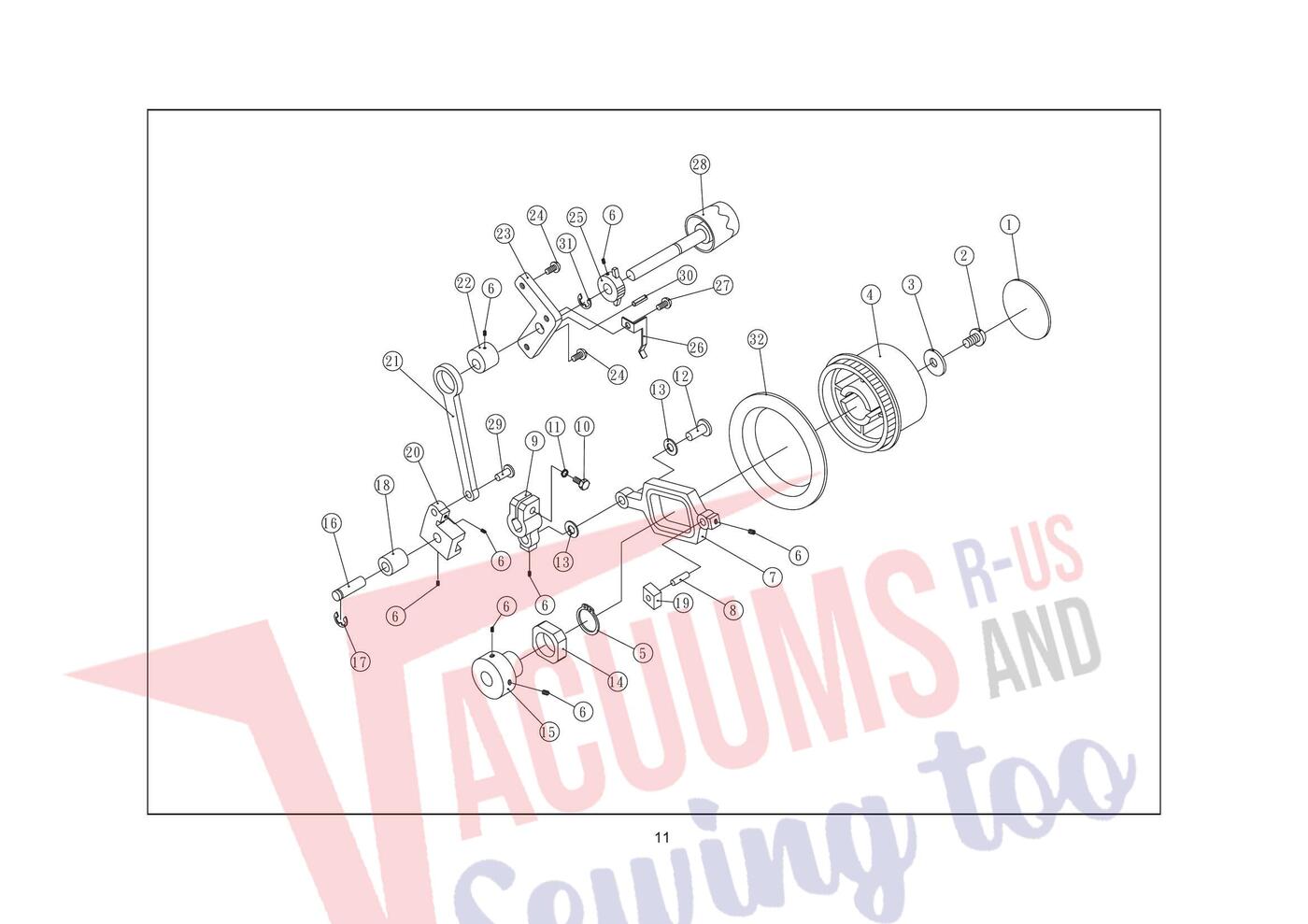

| 1 | Not Available | Feedregulateholdershaft | 396402-98 | Not Available |
| 1 | Not Available | Handwheeldocorateplate 16 396402-98 Feedregulateholdershaft | 396402-84 | Not Available |
| 2 | Not Available | Ering | 396402-78 | Not Available |
| 2 | Not Available | Setscrew 17 396402-78 Ering | 396402-85 | Not Available |
| 3 | Not Available | Feedregulateholderbushing | 396403-00 | Not Available |
| 3 | Not Available | Washer 18 396403-00 Feedregulateholderbushing | 396402-86 | Not Available |
| 4 | Not Available | Feedslideblock | 396403-01 | Not Available |
| 4 | Not Available | Handwheel 19 396403-01 Feedslideblock | 396402-87 | Not Available |
| 5 | Not Available | Feedslideholder | 396403-02 | Not Available |
| 5 | Not Available | Cring 20 396403-02 Feedslideholder | 396402-88 | Not Available |
| 6 | Not Available | Feedregulatelink | 396403-03 | Not Available |
| 6 | Not Available | Setscrew 21 396403-03 Feedregulatelink | 396402-33 | Not Available |
| 7 | Not Available | Feedregulatecam | 396403-04 | Not Available |
| 7 | Not Available | Feeddrivelink 22 396403-04 Feedregulatecam | 396402-89 | Not Available |
| 8 | Not Available | Feedregulateholder | 396403-05 | Not Available |
| 8 | Not Available | Feeddrivelinkpin(A) 23 396403-05 Feedregulateholder | 396402-90 | Not Available |
| 9 | Not Available | Setscrew | 396402-18 | Not Available |
| 9 | Not Available | Feedlink 24 396402-18 Setscrew | 396402-91 | Not Available |
| 10 | Not Available | Feedregulatecollar | 396403-06 | Not Available |
| 10 | Not Available | Setscrew 25 396403-06 Feedregulatecollar | 396402-92 | Not Available |
| 11 | Not Available | Locatingspring | 396403-07 | Not Available |
| 11 | Not Available | Springwasher 26 396403-07 Locatingspring | 396402-93 | Not Available |
| 12 | Not Available | Setscrew | 396403-08 | Not Available |
| 12 | Not Available | Feeddrivelinkpin(B) 27 396403-08 Setscrew | 396402-94 | Not Available |
| 13 | Not Available | StitchIengthdial | 396408-15 | Not Available |
| 13 | Not Available | Washer 28 396408-15 StitchIengthdial | 396402-95 | Not Available |
| 14 | Not Available | Feedregulatelinkpin | 396403-10 | Not Available |
| 14 | Not Available | Feedcamslideblock 29 396403-10 Feedregulatelinkpin | 396402-96 | Not Available |
| 15 | Not Available | Springpin | 396408-16 | Not Available |
| 15 | Not Available | Feedcam 30 396408-16 Springpin | 396402-97 | Not Available |
| 31 | Not Available | Ering | 396401-99 | Not Available |
| 32 | Not Available | Handwheelsettingcollar | 396408-17 | Not Available |

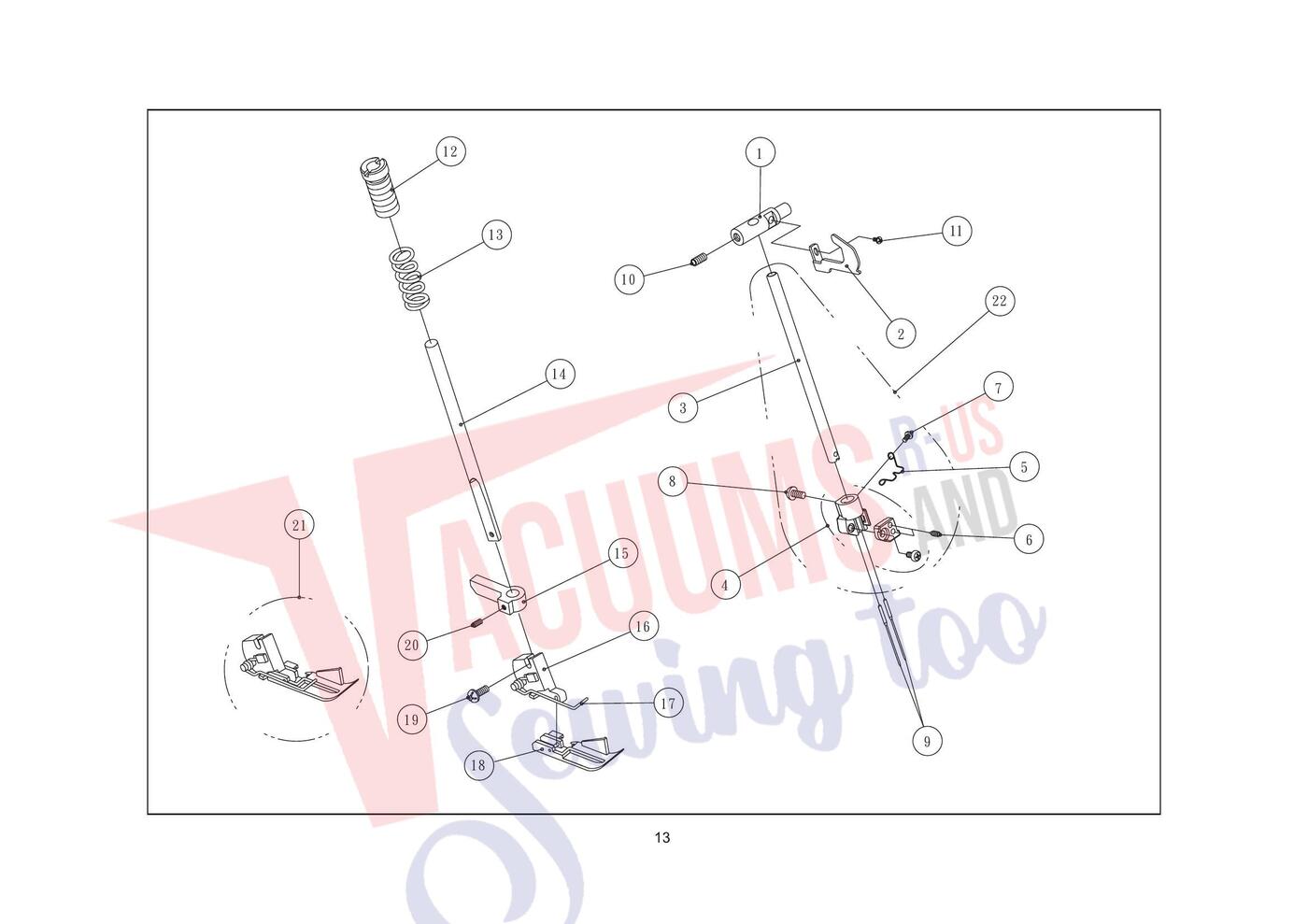

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Presserbarspring | 396403-19 | Not Available |
| 1 | Not Available | NeedlebarsettingIink 13 396403-19 Presserbarspring | 396403-11 | Not Available |
| 2 | Not Available | Presserbar | 396403-20 | Not Available |
| 2 | Not Available | Needlebarthreadtake-uplever 14 396403-20 Presserbar | 396403-12 | Not Available |
| 3 | Not Available | PresserbarsettingIink | 396403-21 | Not Available |
| 3 |  | Genuine Janome/Elna NEEDLE BAR | 396405-89 | $27.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Genuine Janome/Elna PRESSER FOOT SHANK | 396419-16 | $22.80Read more |
| 4 | Not Available | Needleclampcompleteset 16 396419-16 Presserfootholder | 396404-75 | Not Available |
| 5 | | Genuine Janome/Elna PRESSER FOOT SPRING | 396403-22 | $3.20Read more |
| 5 | | Genuine Janome/Elna NEEDLE CLAMP THREAD GUIDE | 396403-13 | $2.00Read more |
| 6 | Not Available | Presserfoot | 396419-00 | Not Available |
| 6 |  | Genuine Janome/Elna SET SCREW | 396401-25 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Genuine Janome/Elna SET SCREW | 396401-26 | $1.20Read more |
| 7 |  | Genuine Janome/Elna SET SCREW | 396403-14 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Setscrew | 396402-33 | Not Available |
| 8 | | Genuine Janome/Elna SEW SCREW ELNA 344 | 396403-15 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Genuine Janome/Elna PRESSER FOOT COMPL. | 396419-01 | $63.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Needle 21 396419-01 Presserfootcompleteset | 396419-06 | Not Available |
| 10 | Not Available | Needlebarcompleteset(needlesexcluded) | 396408-18 | Not Available |
| 10 | Not Available | Setscrew 22 396408-18 Needlebarcompleteset(needlesexcluded) | 396402-80 | Not Available |
| 11 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 12 | Not Available | Presserbarregulatescrew | 396403-18 | Not Available |

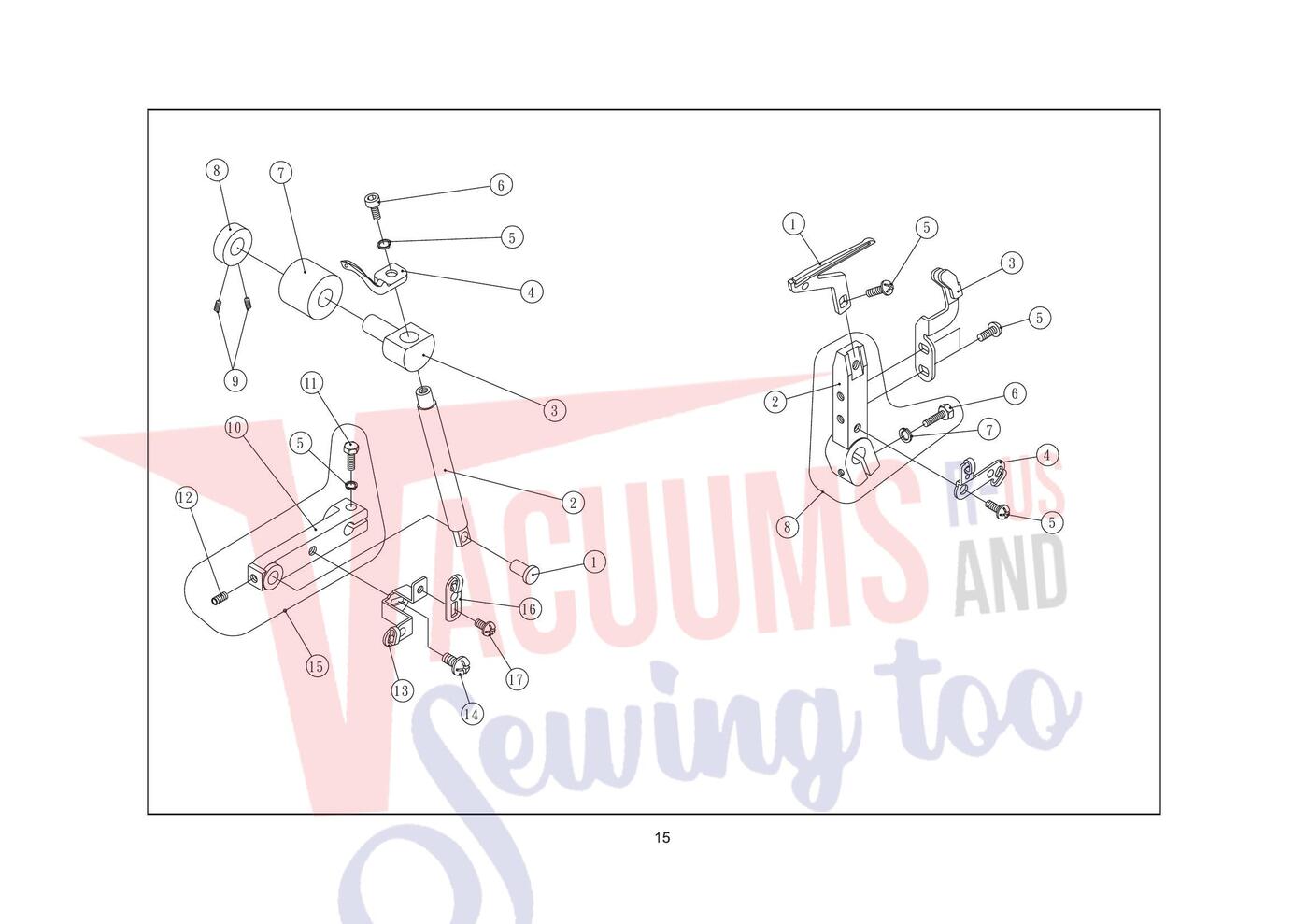

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lowerlooper(A) | 396408-20 | Not Available |
| 1 | Not Available | Slideshaftpin 1 396408-20 Lowerlooper(A) | 396403-24 | Not Available |
| 2 | Not Available | Lowerloopersupporter(A) | 396408-21 | Not Available |
| 2 | Not Available | Slideshaft 2 396408-21 Lowerloopersupporter(A) | 396403-25 | Not Available |
| 3 | Not Available | Needleguard | 396403-63 | Not Available |
| 3 | Not Available | Slideshaftholder 3 396403-63 Needleguard | 396403-26 | Not Available |
| 4 | Not Available | Lowerlooperthreadguide | 396408-23 | Not Available |
| 4 | | Genuine Janome/Elna UPPER LOOPER EL344 | 396401-08 | $75.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Genuine Janome/Elna SEW SCREW ELNA 344 | 396403-15 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Springwasher 5 396403-15 Setscrew | 396403-27 | Not Available |
| 6 | | Genuine Janome/Elna SET SCREW | 396406-88 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Setscrew 6 396406-88 Setscrew | 396403-28 | Not Available |
| 7 | Not Available | Springwasher | 396407-01 | Not Available |
| 7 | Not Available | Slideshaftholderbushing 7 396407-01 Springwasher | 396403-29 | Not Available |
| 8 | Not Available | Lowerloopersupporterset(A) | 396408-26 | Not Available |
| 8 | Not Available | Settingcollar 8 396408-26 Lowerloopersupporterset(A) | 396402-69 | Not Available |
| 9 | Not Available | Setscrew | 396402-82 | Not Available |
| 10 | Not Available | Upperlooperconnectingarm | 396403-30 | Not Available |
| 11 | Not Available | Setscrew | 396403-31 | Not Available |
| 12 | Not Available | Setscrew | 396402-33 | Not Available |
| 13 | Not Available | Lowerlooperthreadtake-uplever | 396403-32 | Not Available |
| 14 | Not Available | Setscrew | 396402-20 | Not Available |
| 15 | Not Available | Upperlooperconnectingarmset | 396403-33 | Not Available |
| 16 | Not Available | Upperlooperthreadtake-uplever | 396403-34 | Not Available |
| 17 | | Genuine Janome/Elna SET SCREW EL683 EL686 | 396406-67 | $0.40Read more |
| 18 | Not Available | Lowperlooperthreadtake-uplevercompleteset | 396408-19 | Not Available |
Report errors on this page HERE
