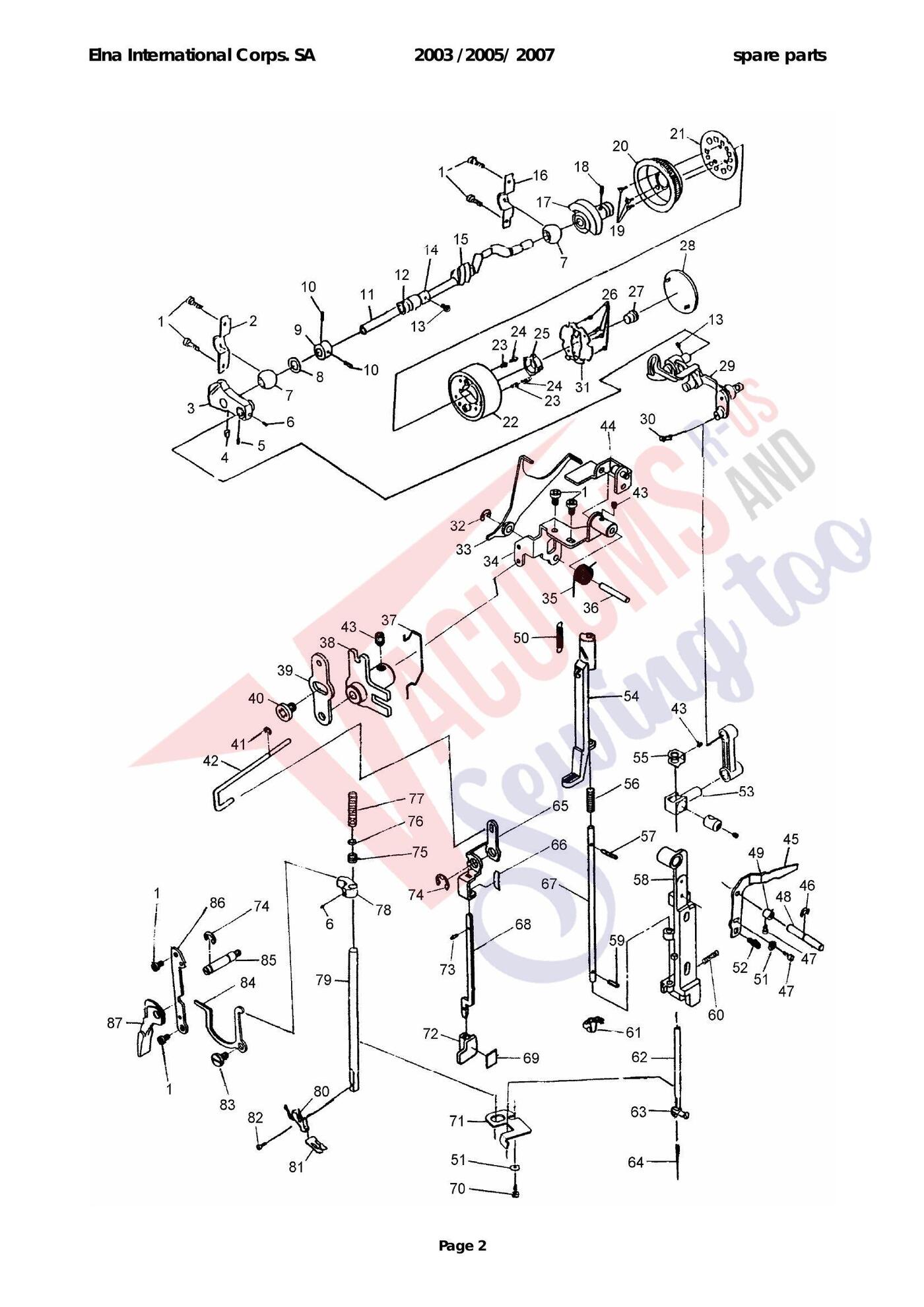

Parts list and schematic for: Elna Models: 2003, 2005, 2007 Note than the Janome and Elna brands are owned and manufactured by the same company. Many parts are interchangeable. You may find that your Elna machine calls for a Janome part or vice versa. This is not in error. Repairs on Janome and Elna sewing machines should be performed only by experienced sewing technicians.
While we fully support the consumer's right to repair we are not liable for any damage that may occur as a result of your repair attempts. Note that it is the policy of this company and many other service centers not to accept machines for repair which have been previously disassembled by an outside party.
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DROP FEED CRANK BODY | 395622-59 | Not Available |
| 2 | Not Available | DROP FEED ADJ. SHAFT | 395622-61 | Not Available |
| 3 | Not Available | DROP FEED SHAFT | 395624-00 | Not Available |
| 4 | Not Available | SNAP RING 5D | 395621-23 | Not Available |
| 5 | Not Available | SET SCREW | 395624-01 | Not Available |
| 6 | Not Available | SET SCREW | 395622-23 | Not Available |
| 7 | Not Available | NUT | 395620-45 | Not Available |
| 8 | Not Available | SPRING HOLDER | 395622-63 | Not Available |
| 9 | Not Available | FEED DOG BASE SPRING | 395622-64 | Not Available |
| 10 | Not Available | DROP FEED STOPP. PLATE | 395622-60 | Not Available |
| 11 | Not Available | SET SCREW | 395622-58 | Not Available |
| 12 | Not Available | SPRING | 395622-57 | Not Available |
| 13 | Not Available | DROP FEED DRIVING ROD | 395622-02 | Not Available |
| 14 | Not Available | WAVE WASHER | 395622-56 | Not Available |
| 15 | Not Available | HINGED SCREW | 395622-54 | Not Available |
| 16 | Not Available | SPRING PIN 2.5x8 | 395622-52 | Not Available |
| 17 | Not Available | OSCILLATING SHAFT GEAR | 395630-06 | Not Available |
| 18 | Not Available | SET SCREW | 395622-50 | Not Available |
| 19 | Not Available | SET SCREW | 395622-49 | Not Available |
| 20 | Not Available | LOWER SHAFT BUSHING | 395622-45 | Not Available |
| 21 | Not Available | SET SCREW | 395620-95 | Not Available |
| 22 | Not Available | COLLAR | 395630-07 | Not Available |
| 23 | Not Available | SET SCREW | 395621-00 | Not Available |
| 24 | Not Available | FEED LIFTING CAM | 395622-46 | Not Available |
| 25 | Not Available | LOWER SHAFT BUSHING | 395622-48 | Not Available |
| 26 | Not Available | LOWER SHAFT | 395622-44 | Not Available |
| 27 | Not Available | LOWER SHAFT BRACKET | 395630-08 | Not Available |
| 28 | Not Available | SET SCREW | 395622-42 | Not Available |
| 29 | Not Available | TAPER SCEW | 395622-40 | Not Available |
| 29 | Not Available | TAPER SCEW | 395622-40 | Not Available |
| 31 | Not Available | CRANK ROD COMP | 395622-41 | Not Available |
| 32 | Not Available | FORKED ROD | 395623-37 | Not Available |
| 33 | Not Available | SET SCREW | 395622-39 | Not Available |
| 34 | Not Available | FORKED ROD SLIDE BLOCK | 395622-38 | Not Available |
| 35 | Not Available | SNAP RING 6D | 395622-36 | Not Available |
| 36 | Not Available | CONNECTING PIN | 395630-09 | Not Available |
| 37 | Not Available | CENTER PIN | 395622-24 | Not Available |
| 38 | Not Available | SET SCREW | 395622-31 | Not Available |
| 39 | Not Available | SET SCREW | 395622-32 | Not Available |
| 40 | Not Available | FEED ROCK SHSFT CRANK | 395630-10 | Not Available |
| 41 | Not Available | FEED ROCK SHAFT | 395622-30 | Not Available |
| 42 | Not Available | SET SCREW | 395624-03 | Not Available |
| 43 | Not Available | FEED DOG BASE | 395622-27 | Not Available |
| 44 | Not Available | SNAP RING 4D | 395621-21 | Not Available |
| 45 | Not Available | FEED DOG BASE SHAFT | 395622-28 | Not Available |
| 46 | Not Available | SET SCREW | 395622-26 | Not Available |
| 47 | Not Available | FEED DOG | 395622-25 | Not Available |
| 48 | Not Available | BEVEL GEAR | 395630-11 | Not Available |
| 49 | Not Available | COLLAR | 395622-67 | Not Available |
| 50 | Not Available | NYLON WASHER | 395622-68 | Not Available |
| 51 | Not Available | HOOK RACE BADY | 395622-69 | Not Available |
| 52 | Not Available | HOOK YACE RING | 395624-04 | Not Available |
| 53 | Not Available | COP SPRING | 395624-05 | Not Available |
| 54 | Not Available | SET SCREW | 395622-75 | Not Available |
| 55 | Not Available | CLASP (RIGHT) | 395622-71 | Not Available |
| 56 | Not Available | CLASP SPRING | 395622-72 | Not Available |
| 57 | Not Available | HINGED SCREW | 395622-73 | Not Available |
| 58 | Not Available | SET SCREW | 395622-79 | Not Available |
| 59 | Not Available | HOOK DRIVER SPRING | 395622-78 | Not Available |
| 60 | Not Available | HOOK DRIVER BODY | 395630-12 | Not Available |
| 61 | Not Available | HOOKPANEL | 395630-13 | Not Available |
| 62 |  | Genuine Janome/Elna BOBBIN | 395120-00 | $3.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | | Genuine Janome/Elna BOBBIN CASE CMPLT 100 SERIES | 395520-25 | $14.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | Not Available | CLASP (LEFT) | 395622-70 | Not Available |
| 65 | Not Available | WASHER | 395629-90 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | CARTON BOX (not illustrated) | 395630-60 | Not Available |
| xx | Not Available | STYROFOAMS (not illustrated) | 395630-61 | Not Available |

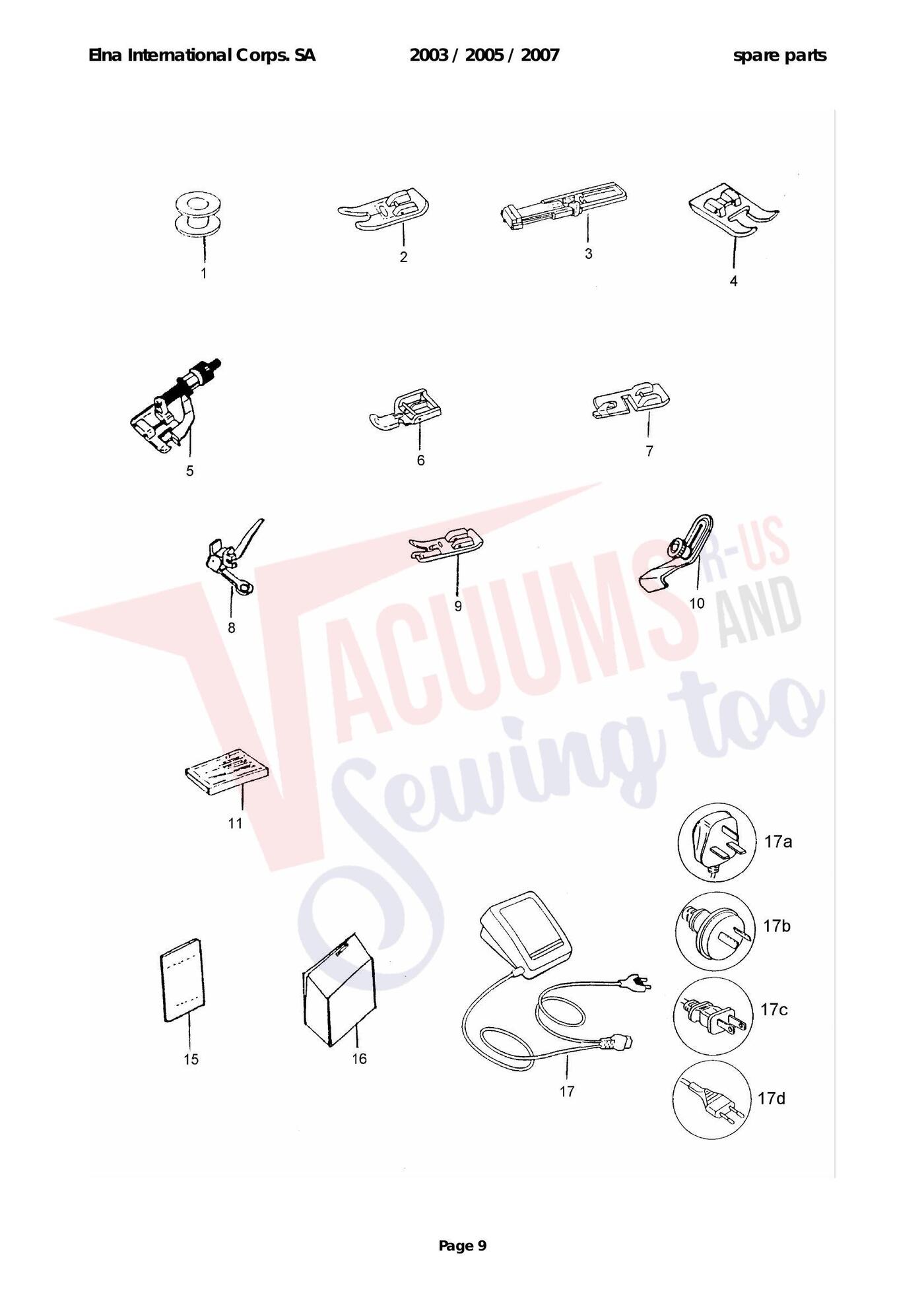

| 1 | Not Available | BOBBIN | 395626-04 | Not Available |
| 2 | Not Available | Z/Z PRESSER FOOT | 395236-00 | Not Available |
| 03b | | Genuine Janome/Elna FT BUTTONHOLE SLIDING 14E | 395273-00 | $3.40Read more |
| 03a | Not Available | BUTTONHOLE FOOT 2005 / 2007 | 395631-00 | Not Available |
| 4 | Not Available | SATIN STITCH FOOT | 395622-82 | Not Available |
| 5 | | Genuine Janome/Elna BLINDSTITCH FOOT ELNA 1400 | 395285-02 | $6.00Read more |
| 6 | | Genuine Janome/Elna ZIPPER SOLE | 395285-01 | $8.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | HEMMER FOOT | 395123-04 | Not Available |
| 8 | | Genuine Janome/Elna DARNING FOOT | 395276-01 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | OVERLOCK FOOT | 395631-01 | Not Available |
| 10 | Not Available | SEAM GUIDE | 395622-81 | Not Available |
| 11 | Not Available | NEEDLE BOX COMP | 427151-20 | Not Available |
| 12 | Not Available | BUTTONHOLE KNIFE | 395631-02 | Not Available |
| 13 | | Genuine Janome/Elna OILER WITH OIL | 395049-43 | $4.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | SCREW DIRVER (L) | 395622-80 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL GB. | 395610-22 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL D. | 395610-21 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL F. | 395610-27 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL E. | 395610-24 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL NL. | 395610-29 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL I. | 395610-31 | Not Available |
| 15 | Not Available | INSTRUCTION MANUAL NECCHI | 395610-41 | Not Available |
| 16b | Not Available | DUST COVER 2003 | 395631-04 | Not Available |
| 16a | Not Available | DUST COVER 2005 / 2007 | 395631-03 | Not Available |
| 17d | Not Available | FOOT CONTROLLER COMP EUROPE/SOUTH AFRICA | 395630-59 | Not Available |
| 17c | | Genuine Janome/Elna FOOT CONTROL 120V USA/CDN | 395630-53 | $118.60Read more |
| 17b | Not Available | FOOT CONTROLLER COMP. AUSTRALIA | 395630-52 | Not Available |
| 17a | Not Available | FOOT CONTROLLER COMP. UK/SINGAPORE | 395630-14 | Not Available |
| 18a | | Genuine Janome/Elna ACCESSORY KIT ELNA 2003 | 395631-06 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | Genuine Janome/Elna ACCESSORY KIT ELNA 2005 | 395631-05 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

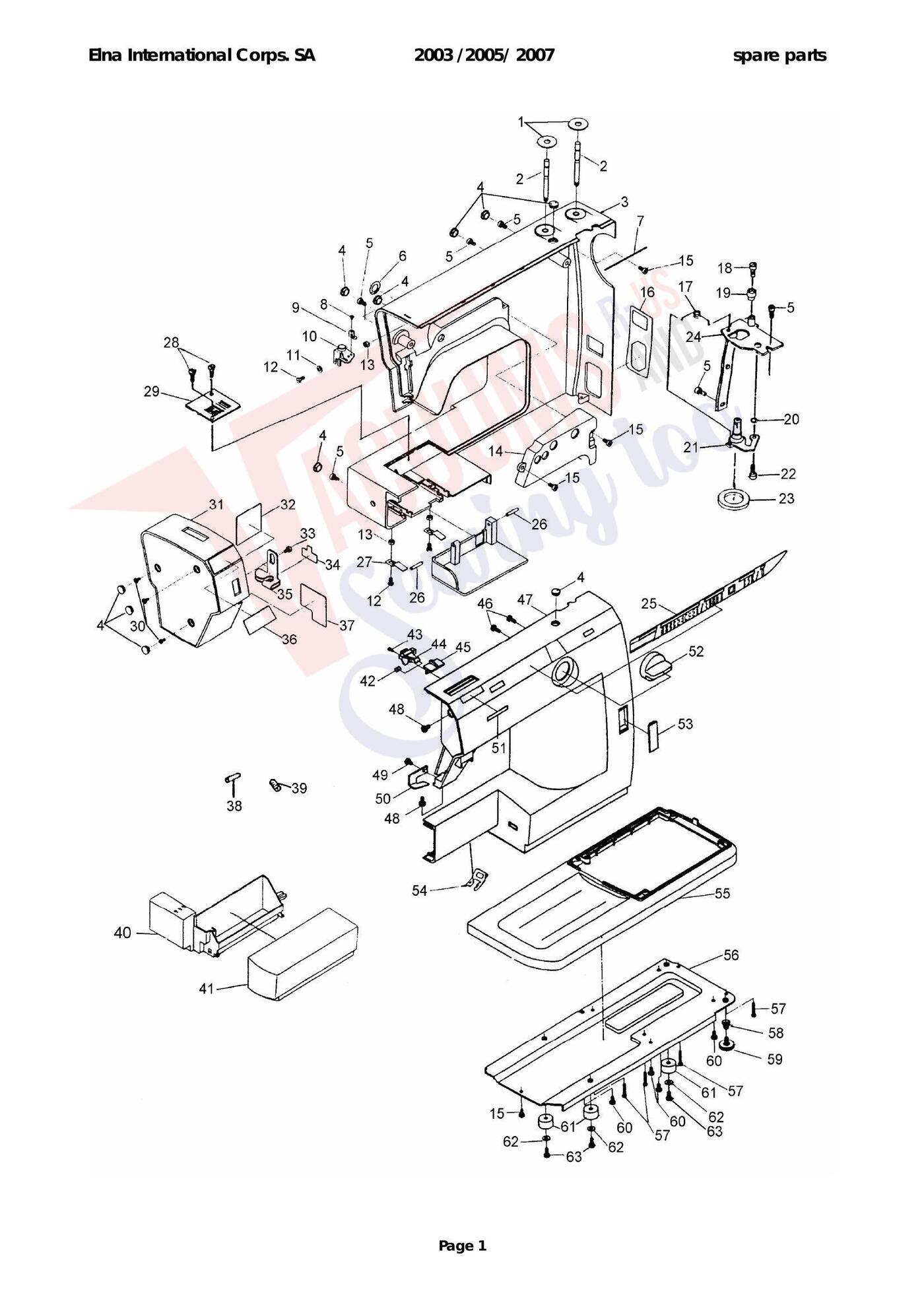

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FELT | 395628-00 | Not Available |
| 2 | Not Available | SPOOL PIN | 395620-06 | Not Available |
| 03b | Not Available | REAR COVER 2003 | 395628-02 | Not Available |
| 03a | Not Available | REAR COVER 2005/2007 | 395628-01 | Not Available |
| 4 | Not Available | ADJUSTING HOLE PLUG | 395625-18 | Not Available |
| 5 | Not Available | SET SCREW | 395620-21 | Not Available |
| 6 | Not Available | STICKER | 395628-03 | Not Available |
| 7 | Not Available | SPRING | 395628-04 | Not Available |
| 8 | Not Available | SET SCREW | 395627-28 | Not Available |
| 9 | Not Available | THREAD GUIDE SPRING | 395628-06 | Not Available |
| 10 | Not Available | THREAD GUIDE SET | 395628-07 | Not Available |
| 11 | Not Available | WASHER | 395620-20 | Not Available |
| 12 | Not Available | SET SCREW | 395620-12 | Not Available |
| 13 | Not Available | NUT | 395620-45 | Not Available |
| 14 | Not Available | HANDLE COVER | 395628-08 | Not Available |
| 15 | Not Available | SET SCREW | 395620-47 | Not Available |
| 16 | Not Available | SOCKET PANEL | 395628-09 | Not Available |
| 17 | Not Available | BOBBIN WINDER SPRING | 395623-51 | Not Available |
| 18 | Not Available | SET SCREW | 395622-87 | Not Available |
| 19 | Not Available | BOBBIN WINDER STOPPER | 395620-08 | Not Available |
| 20 | Not Available | WASHER 5.1X18 t=0.5 | 395622-95 | Not Available |
| 21 | Not Available | BOBBIN WINDER COMP | 395622-89 | Not Available |
| 22 | Not Available | HINGED SCREW 8 2.65 | 395622-90 | Not Available |
| 23 | Not Available | RUBBER RING | 395623-01 | Not Available |
| 24 | Not Available | BOBBIN WINDER SUPP. PLATE | 395623-52 | Not Available |
| 25c | Not Available | PATTERN PANEL | 395628-12 | Not Available |
| 25b | Not Available | PATTERN PANEL | 395628-11 | Not Available |
| 25a | Not Available | PATTERN PANEL | 395628-10 | Not Available |
| 26 | Not Available | SPRING PIN 3X18 | 395620-43 | Not Available |
| 27 | Not Available | COVER SPRING PLATE | 395623-47 | Not Available |
| 28 | Not Available | SET SCREW | 395620-53 | Not Available |
| 29 | Not Available | NEEDLE PLATE | 395628-13 | Not Available |
| 30 | Not Available | SCREW | 395625-31 | Not Available |
| 31 | Not Available | FACE PLATE | 395628-14 | Not Available |
| 32 | Not Available | FACE PLATE SHIELD | 395628-15 | Not Available |
| 33 | Not Available | SET SCREW | 395628-16 | Not Available |
| 33 | Not Available | SET SCREW | 395628-16 | Not Available |
| 34 | Not Available | REFLECTION PLATE | 395628-17 | Not Available |
| 35 | Not Available | THREAD CUTTER | 395628-18 | Not Available |
| 36c | Not Available | FACE PLATE PANEL | 395628-21 | Not Available |
| 36b | Not Available | FACE PLATE PANEL | 395628-20 | Not Available |
| 36a | Not Available | FACE PLATE PANEL | 395628-19 | Not Available |
| 37 | Not Available | FACE PLATE SHIELD | 395625-32 | Not Available |
| 38 | Not Available | LEAD SHAFT | 395623-57 | Not Available |
| 39 | Not Available | SET SCREW | 395621-00 | Not Available |
| 40 | Not Available | EXTENION TABLE | 395628-22 | Not Available |
| 41 | Not Available | EXTENION TABLE COVER | 395628-23 | Not Available |
| 42 | Not Available | ZIGZAG INDIC. STICKER | 395628-24 | Not Available |
| 43 | Not Available | SET SCREW | 395628-25 | Not Available |
| 44 | Not Available | ZIGZAG CONTR. PLATE | 395628-26 | Not Available |
| 45 | Not Available | ZIGZAG WIDTH DIAL | 395628-27 | Not Available |
| 46 | Not Available | SET SCREW | 395625-23 | Not Available |
| 47b | Not Available | FRONT COVER 2003 | 395628-40 | Not Available |
| 47a | Not Available | FRONT COVER 2005/2007 | 395628-28 | Not Available |
| 48 | Not Available | SET SCREW | 395623-12 | Not Available |
| 48 | Not Available | SET SCREW | 395623-12 | Not Available |
| 50 | Not Available | THREAD GUIDE PLATE | 395628-29 | Not Available |
| 51 | Not Available | ZZ WIDTH INDIC. STICKER | 395628-30 | Not Available |
| 52 | Not Available | SELECT/STITCH DIAL | 395628-31 | Not Available |
| 53 | Not Available | STITCH LENGTH PANEL | 395628-32 | Not Available |
| 54 | Not Available | PANEL FIXATION | 395623-65 | Not Available |
| 55 | Not Available | BASE | 395628-33 | Not Available |
| 56 | Not Available | BOTTOM COVER | 395628-34 | Not Available |
| 57 | Not Available | SET SCREW | 395628-35 | Not Available |
| 58 | Not Available | SPRING | 395628-36 | Not Available |
| 59 | Not Available | ADJUSTING FOOT | 395628-37 | Not Available |
| 61 | Not Available | RUBBER FOOT | 395628-38 | Not Available |
| 62 | Not Available | WASHER | 395622-14 | Not Available |
| 63 | Not Available | SET SCREW | 395628-39 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | SET SCREW | 395621-30 | Not Available |
| 1 | Not Available | SET SCREW 70 395621-30 SET SCREW | 395620-21 | Not Available |
| 02 | Not Available | NEEDLE BAR LIMIT PLATE | 395628-68 | Not Available |
| 2 | Not Available | FORNT BUSHING BRACKE 71 395628-68 NEEDLE BAR LIMIT PLATE | 395623-76 | Not Available |
| 03 | Not Available | B/H BUTTON | 395628-69 | Not Available |
| 3 | Not Available | TAKE-UP LEVER SHAFT 72 395628-69 B/H BUTTON | 395628-41 | Not Available |
| 04 | Not Available | SPRING PIN | 395628-70 | Not Available |
| 4 | Not Available | SPRING PIN 4x20 73 395628-70 SPRING PIN | 395620-87 | Not Available |
| 05 | Not Available | SNAP RING 6D | 395622-36 | Not Available |
| 5 | Not Available | SET SCREW 74 395622-36 SNAP RING 6D | 395620-89 | Not Available |
| 06 | Not Available | SPRING | 395621-34 | Not Available |
| 6 | Not Available | SET SCREW 75 395621-34 SPRING | 395620-88 | Not Available |
| 07 | Not Available | WASHER | 395621-35 | Not Available |
| 7 | Not Available | FRONT BUSHING 76 395621-35 WASHER | 395623-71 | Not Available |
| 08 | Not Available | PRESSURE BAR SPRING | 395628-71 | Not Available |
| 8 | Not Available | NYLON WASHER 77 395628-71 PRESSURE BAR SPRING | 395620-93 | Not Available |
| 09 | Not Available | GUIDE BRACKET | 395621-33 | Not Available |
| 9 | Not Available | COLLAR 78 395621-33 GUIDE BRACKET | 395625-45 | Not Available |
| 10 | Not Available | PRESSER BAR | 395621-31 | Not Available |
| 10 | Not Available | SET SCREW 79 395621-31 PRESSER BAR | 395620-95 | Not Available |
| 11 |  | Genuine Janome/Elna SOLE SHANK | 395526-29 | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | UPPER SHAFT 80 395526-29 PRESSER FOOT HOLDER | 395623-75 | Not Available |
| 12a | Not Available | SCREW | 395625-59 | Not Available |
| 12a | Not Available | WORM GEAR 2003 82 395625-59 SCREW | 395630-15 | Not Available |
| 12 | Not Available | ZZ PRESSER FOOT | 395236-00 | Not Available |
| 12 | Not Available | WORM GEAR 2005/2007 81 395236-00 ZZ PRESSER FOOT | 395628-42 | Not Available |
| 13 | Not Available | HINGED SCREW | 395623-79 | Not Available |
| 13 | Not Available | SET SCREW 83 395623-79 HINGED SCREW | 395621-00 | Not Available |
| 14 | Not Available | RELEASE THREAD BAR | 395628-72 | Not Available |
| 14 | Not Available | COLLAR 84 395628-72 RELEASE THREAD BAR | 395620-99 | Not Available |
| 15 | Not Available | PRESSURE SHAFT | 395628-73 | Not Available |
| 15 | Not Available | SELECT CAM COMP 85 395628-73 PRESSURE SHAFT | 395623-73 | Not Available |
| 16 | Not Available | PRESSURE SHAFT PLATE | 395628-74 | Not Available |
| 16 | Not Available | REAR BUSHING BRACKET 86 395628-74 PRESSURE SHAFT PLATE | 395623-72 | Not Available |
| 17 | Not Available | PRESSER BAR LIFTER | 395623-80 | Not Available |
| 17 | Not Available | HAND WHEEL BUSHING 87 395623-80 PRESSER BAR LIFTER | 395621-05 | Not Available |
| 18 | Not Available | SPRING PIN 3 X 18 | 395620-43 | Not Available |
| 19 | Not Available | SET SCREW | 395621-06 | Not Available |
| 20 | Not Available | BELT RING | 395621-07 | Not Available |
| 21 | Not Available | GEAR TRANSMITTING PLATE | 395621-08 | Not Available |
| 22 | Not Available | HANDWHEEL | 395628-43 | Not Available |
| 23 | Not Available | TRANSMITING PIN | 395621-10 | Not Available |
| 24 | Not Available | SPRING | 395621-11 | Not Available |
| 25 | Not Available | WHEEL TRANS. RING | 395621-12 | Not Available |
| 26 | Not Available | SET SCREW | 395620-47 | Not Available |
| 27 | Not Available | SET SCREW | 395621-14 | Not Available |
| 28 | Not Available | HANDWHEEL COVER | 395628-44 | Not Available |
| 29 | Not Available | TAKE-UP LEVER COMP | 395628-45 | Not Available |
| 30 | Not Available | SET SCREW | 395623-33 | Not Available |
| 31 | Not Available | INDEX SPRING PLATE | 395621-13 | Not Available |
| 32 | Not Available | SNAP RING 4D | 395621-21 | Not Available |
| 33 | Not Available | F.R. SELECTING ROD | 395628-46 | Not Available |
| 34 | Not Available | Z/Z MECH. UNIT | 395628-47 | Not Available |
| 35 | Not Available | SPRING | 395628-48 | Not Available |
| 36 | Not Available | Z/Z CRANK SHAFT | 395628-49 | Not Available |
| 37 | Not Available | SPRING | 395628-50 | Not Available |
| 38 | Not Available | FR SELECTING ROD | 395628-51 | Not Available |
| 39 | Not Available | F.R ADJUST PLATE | 395628-52 | Not Available |
| 40 | Not Available | SCREW | 395627-38 | Not Available |
| 41 | Not Available | 2.5D E RING | 395628-53 | Not Available |
| 42 | Not Available | FR CONNECTING ROD | 395627-54 | Not Available |
| 43 | Not Available | SCREW | 395627-13 | Not Available |
| 44 | Not Available | Z/Z CONNECTING SHAFT | 395628-55 | Not Available |
| 45 | Not Available | NEEDLE BAR PLATE | 395628-56 | Not Available |
| 46 | Not Available | SNAP RING 5D | 395621-23 | Not Available |
| 47 | Not Available | SET SCREW | 395620-12 | Not Available |
| 48 | Not Available | NEEDLE BAR SUPP. SHAFT | 395628-57 | Not Available |
| 49 | Not Available | COLLAR | 395628-58 | Not Available |
| 50 | Not Available | SPRING | 395627-65 | Not Available |
| 51 | Not Available | WASHER | 395620-20 | Not Available |
| 52 | Not Available | ADJUST PIN | 395628-59 | Not Available |
| 53 | Not Available | NEEDLE HOLDER | 395621-17 | Not Available |
| 54 | Not Available | NEEDLE THREADER | 395628-60 | Not Available |
| 55 | Not Available | THREADING POSITIONER | 395627-67 | Not Available |
| 56 | Not Available | SPRING | 395627-68 | Not Available |
| 57 | Not Available | PIN | 395627-69 | Not Available |
| 58 | Not Available | NEEDLE BAR SUPPORT | 395628-61 | Not Available |
| 59 | Not Available | SPRING PIN | 395627-71 | Not Available |
| 60 | Not Available | SPRING | 395621-25 | Not Available |
| 61 | Not Available | THREADING GUIDE COMP | 395627-72 | Not Available |
| 62 | Not Available | NEEDLE BAR | 395628-62 | Not Available |
| 63 | Not Available | NEEDLE CLAMP COMP | 395623-15 | Not Available |
| 65 | Not Available | FR MOVED SHAFT | 395628-63 | Not Available |
| 66 | Not Available | SPRING | 395628-64 | Not Available |
| 67 | Not Available | THREADER BAR | 395628-65 | Not Available |
| 68 | Not Available | E/H LEVER ROD | 395628-66 | Not Available |
| 69 | Not Available | BH OPERATING STICKER | 395628-67 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | SANP PING 4D | 395627-79 | Not Available |
| 1 | Not Available | SNAP RING 5D 68 395627-79 SANP PING 4D | 395621-23 | Not Available |
| 02 | Not Available | TENSION ADJUST PLATE | 395629-13 | Not Available |
| 2 | Not Available | FORKED WASHER 69 395629-13 TENSION ADJUST PLATE | 395626-39 | Not Available |
| 03 | Not Available | TENSION SPRING | 395629-14 | Not Available |
| 3 | Not Available | PRESSURE CAM 70 395629-14 TENSION SPRING | 395628-75 | Not Available |
| 04 | Not Available | SPRING PLATE | 395629-15 | Not Available |
| 4 | Not Available | PRESS. INDICATION LABEL 71 395629-15 SPRING PLATE | 395628-76 | Not Available |
| 05a | Not Available | TENSION PLATE | 395629-17 | Not Available |
| 05a | Not Available | LIGHT CORD 120V 73 395629-17 TENSION PLATE | 395630-54 | Not Available |
| 05 | Not Available | TENSION RELEASEW | 395629-16 | Not Available |
| 5 | Not Available | LIGHT CORD 230V 72 395629-16 TENSION RELEASEW | 395628-77 | Not Available |
| 06a | Not Available | LIGHT BULB 12OV | 395630-55 | Not Available |
| 06 | Not Available | TENSION PLATE | 395629-18 | Not Available |
| 6 | Not Available | LIGHT BULB 23OV 74 395629-18 TENSION PLATE | 395627-31 | Not Available |
| 7 | Not Available | SET SCREW | 395620-21 | Not Available |
| 8 | Not Available | WAVE WASHER | 395621-43 | Not Available |
| 9 | Not Available | SCREW | 395625-31 | Not Available |
| 9 | Not Available | SCREW | 395625-31 | Not Available |
| 9 | Not Available | SCREW | 395625-31 | Not Available |
| 9 | Not Available | SCREW | 395625-31 | Not Available |
| 10 | Not Available | WASHER | 395625-42 | Not Available |
| 10 | Not Available | WASHER | 395625-42 | Not Available |
| 11 | Not Available | CORD FIXING PLATE | 395628-78 | Not Available |
| 12 | Not Available | SCREW | 395627-38 | Not Available |
| 12 | Not Available | SCREW | 395627-38 | Not Available |
| 13 | Not Available | B/H SPRING | 395628-79 | Not Available |
| 14 | Not Available | CORD FIXED PLATE | 395628-80 | Not Available |
| 15 | Not Available | PRESSER ADJUSTING PLATE | 395628-81 | Not Available |
| 16 | Not Available | PRESSER ADJ. PLATE SHAFT | 395628-82 | Not Available |
| 17 | Not Available | SNAP RING 4D | 395621-21 | Not Available |
| 18 | Not Available | PRESSURE PLATE | 395628-83 | Not Available |
| 19 | Not Available | PIN | 395628-84 | Not Available |
| 19 | Not Available | PIN | 395628-84 | Not Available |
| 20 | Not Available | TENSION FIXED PLATE | 395628-85 | Not Available |
| 21 | Not Available | CONNECTING PIN | 395628-86 | Not Available |
| 22 | Not Available | FEED CONNECTING ROD | 395628-87 | Not Available |
| 23 | Not Available | REVERSE SPRING | 395628-88 | Not Available |
| 24 | Not Available | R BUTTON LEVER B | 395628-89 | Not Available |
| 25 | Not Available | HINGED SCREW 6 2.1 | 395628-90 | Not Available |
| 26 | Not Available | R BUTTON SHAFT | 395628-91 | Not Available |
| 27 | Not Available | SPRING PIN 214 | 395622-03 | Not Available |
| 27 | Not Available | SPRING PIN 214 | 395622-03 | Not Available |
| 28 | Not Available | R BUTTON | 395628-92 | Not Available |
| 29 | Not Available | NUT | 395622-98 | Not Available |
| 30 | Not Available | WASHER | 395628-93 | Not Available |
| 31 | Not Available | WASHER | 395622-14 | Not Available |
| 32 | Not Available | O ADJUSTING CRANK | 395628-94 | Not Available |
| 33 | Not Available | Z/Z PLATE | 395628-95 | Not Available |
| 34 | Not Available | O ADJUSTING PIN | 395628-96 | Not Available |
| 35 | Not Available | WASHER | 395628-97 | Not Available |
| 36 | Not Available | WAVE WASHER | 395625-58 | Not Available |
| 37 | Not Available | WASHER | 395628-98 | Not Available |
| 37 | Not Available | WASHER | 395628-98 | Not Available |
| 38 | Not Available | HINGED SCREW | 395628-99 | Not Available |
| 39 | Not Available | SNAP PING 5D | 395625-39 | Not Available |
| 41 | Not Available | NUT | 395620-45 | Not Available |
| 42 | Not Available | SCREW | 395625-25 | Not Available |
| 43 | Not Available | SET SCREW | 395623-55 | Not Available |
| 43 | Not Available | SET SCREW | 395623-55 | Not Available |
| 44 | Not Available | Z/Z ADJUST PLATE | 395629-00 | Not Available |
| 45 | Not Available | SCREW | 395625-86 | Not Available |
| 47 | Not Available | TENSION DIAL | 395629-01 | Not Available |
| 49 | Not Available | TENSION ADJUST SHAFT | 395629-02 | Not Available |
| 50 | Not Available | RELEASE THREAD BAR B | 395629-03 | Not Available |
| 51 | Not Available | SPRING | 395629-04 | Not Available |
| 52 | Not Available | SPRING PIN | 395628-70 | Not Available |
| 53 | Not Available | ADJUST SHAFT PLATED | 395629-05 | Not Available |
| 54 | Not Available | TENSION SUPP. PLATE | 395629-06 | Not Available |
| 55 | Not Available | THREAD GUIDE SPRING | 395629-07 | Not Available |
| 56 | Not Available | SET SCREW | 395625-12 | Not Available |
| 57 | Not Available | SPRING ADJUSTING PLATE | 395629-08 | Not Available |
| 59 | Not Available | TAKE-UP THREAD SPRING | 395629-09 | Not Available |
| 61 | Not Available | RELEASE THREAD BAR A | 395629-10 | Not Available |
| 66 | Not Available | TENSION SUPP. PLATE | 395629-12 | Not Available |
| 83 | Not Available | TENSION SUPPORTED | 395629-11 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | S RING | 395629-19 | Not Available |
| 2 | Not Available | WASHER | 395629-20 | Not Available |
| 3 | Not Available | SPRING | 395629-21 | Not Available |
| 4 | Not Available | S, S. ADJUST PIN | 395629-22 | Not Available |
| 5 | Not Available | NUT | 395625-16 | Not Available |
| 5 | Not Available | NUT | 395625-16 | Not Available |
| 6 | Not Available | S. S. PLATE | 395629-23 | Not Available |
| 7 | Not Available | ADJUST SPRING | 395629-24 | Not Available |
| 8 | Not Available | ADJUST SCREW | 395629-25 | Not Available |
| 10 | Not Available | ADJUST PLATE | 395629-26 | Not Available |
| 11 | Not Available | LENGTH DIAL | 395629-27 | Not Available |
| 12 | Not Available | FEED REG. SHAFT | 395621-54 | Not Available |
| 13 | Not Available | LEVER SPRING | 395629-28 | Not Available |
| 14 | Not Available | WASHER | 395629-29 | Not Available |
| 15 | Not Available | ADJUST PLATE | 395629-30 | Not Available |
| 16 | Not Available | WASHER | 395629-31 | Not Available |
| 17 | Not Available | SET SCREW | 395626-54 | Not Available |
| 18 | Not Available | SET SCREW | 395620-95 | Not Available |
| 19 | Not Available | SET SCREW | 395621-00 | Not Available |
| 20 | Not Available | COLLAR | 395629-32 | Not Available |
| 21 | Not Available | SET SCREW | 395629-33 | Not Available |
| 22 | Not Available | SUPPORT PLATE | 395629-34 | Not Available |
| 23 | Not Available | SCREW | 395625-31 | Not Available |
| 23 | Not Available | SCREW | 395625-31 | Not Available |
| 24 | Not Available | SNAP RING 5D | 395621-23 | Not Available |
| 25 | Not Available | SUPPORT RING | 395629-35 | Not Available |
| 26 | Not Available | STITCH STICKER | 395629-36 | Not Available |
| 27 | Not Available | SET SCREW | 395620-21 | Not Available |
| 28 | Not Available | SANP RING 6D | 395625-22 | Not Available |
| 29 | Not Available | WASHER 6.1X 12 t=1.0 | 395629-37 | Not Available |
| 30 | Not Available | WAVE WASHER | 395629-38 | Not Available |
| 31 | Not Available | STITCH LENGTH PLATE | 395629-39 | Not Available |
| 32 | Not Available | STITCH CAN | 395629-40 | Not Available |
| 33 | Not Available | SPRING | 395629-41 | Not Available |
| 34 | Not Available | SNAP RING 4D | 395621-21 | Not Available |
| 35 | Not Available | FEED CONNECTING ROD | 395629-42 | Not Available |
| 36 | Not Available | FEED DRIVING ROD | 395629-43 | Not Available |
| 37 | Not Available | SANP PING 4D | 395627-79 | Not Available |
| 38 | Not Available | STITCH LENGTH WHEEL | 395629-44 | Not Available |
| 39 | Not Available | STITCH SUPPORT PLATE | 395629-45 | Not Available |
| 40 | Not Available | SELECT/STITCH DIAL | 395628-31 | Not Available |
| 41 | Not Available | STITCH LENGTH SHAFT | 395629-47 | Not Available |
| 42 | Not Available | SPRING PIN 2X12 | 395629-48 | Not Available |
| 43 | Not Available | SCREW | 395627-13 | Not Available |
| 44 | Not Available | GEAR A | 395629-49 | Not Available |
| 45 | Not Available | TIMING BELT (200XL6MM) | 395621-83 | Not Available |
| 46a | Not Available | MOTOR COMP. 120V | 395630-56 | Not Available |
| 46 | Not Available | MOTOR COMP. 230V | 395629-50 | Not Available |
| 47 | Not Available | SPRING PIN 2X14 | 395622-03 | Not Available |
| 48 | Not Available | MOTOR CLUTH | 395622-02 | Not Available |
| 49 | Not Available | MOTOR PULLEY COMP | 395622-01 | Not Available |
| 50 | Not Available | SNAP RING 3D | 395622-00 | Not Available |
| 51 | Not Available | MOTOR BRACKET | 395629-51 | Not Available |
| 52 | Not Available | SPRING WASHER | 395623-92 | Not Available |
| 53 | Not Available | SET SCREW | 395620-42 | Not Available |
| 54 | Not Available | SET SCREW | 395621-44 | Not Available |
| 55 | Not Available | RECEPTACLE PLATE | 395629-52 | Not Available |
| 57 | Not Available | SOCKET BASE | 395629-53 | Not Available |
| 58a | Not Available | SWITCH COMP. 120V | 395630-57 | Not Available |
| 58 | Not Available | SWITCH COMP. 230V | 395627-46 | Not Available |
| 59 | Not Available | BAND | 395621-88 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | NUT | 395630-19 | Not Available |
| 2 | Not Available | NUT | 395620-45 | Not Available |
| 3 | Not Available | STITCH ROD | 395621-60 | Not Available |
| 4 | Not Available | SPRING | 395621-55 | Not Available |
| 5 | Not Available | ADJUSTER | 200081109 | Not Available |
| 7 |  | SNAP RING 9D sewing machine part or accessory For Janome Models: 7306, 7312 | Z000000505 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | ADJUSTING PLATE | 270022001 | Not Available |
| 9 |  | HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 | Z301154002 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | SET SCREW | 311046000 | Not Available |
| 12 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 | Z301289007 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Base sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303003001 | $6.80Read more |
| 14 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 | Z301087003 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | COLLAR sewing machine part or accessory For Janome Models: 7306, 7312 | Z301153104 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... | Z301046000 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | BAND sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, | Z351047006 | $0.60Read more |
| 18 | Not Available | SWITCH COMP | 650804005 | Not Available |
| 19 | Not Available | SOCKET BASE | 280149109 | Not Available |
| 20 | Not Available | SCREW | 000016010 | Not Available |
| 21 | Not Available | SET SCREW | 301279004 | Not Available |
| 22 | Not Available | SUPPORT PLATE | 280072007 | Not Available |
| 24 | | SNAP RING 5D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | 000000309 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | SUPPORT RING | 280073008 | Not Available |
| 26 | Not Available | STITCH LENGTH STICKER | 280160003 | Not Available |
| 27 | | Face cover set plate sewing machine part or accessory For Elna Models: EL2100 SRV | 301008000 | $5.40Read more |
| 28 | Not Available | SANP PING 6D | 000012304 | Not Available |
| 29 | Not Available | WASHER 6.1x12 =1.0 | 370051002 | Not Available |
| 30 | Not Available | WAVE WASHER | 250131002 | Not Available |
| 31 | Not Available | STITCH SUPPORTER PLATE | 270020102 | Not Available |
| 32 | Not Available | STITCH CAM | 280175001 | Not Available |
| 33 | Not Available | SPRING | 270032004 | Not Available |
| 34 |  | SNAP RING 4D sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 | Z000000206 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | FEED CONNECTING ROD | 270027006 | Not Available |
| 36 | Not Available | FEED DRIVING ROD | 270021000 | Not Available |
| 37 | Not Available | SANP PING 4D | 000012201 | Not Available |
| 38 | Not Available | STITCH LENGTH WHEEL | 280140007 | Not Available |
| 39 | Not Available | STITCH SUPPORT PLATE | 280141008 | Not Available |
| 40 | Not Available | SELECT/STITCH DIAL | 280075000 | Not Available |
| 41 | Not Available | STITCH LENGTH DIAL SHAFT | 280005009 | Not Available |
| 42 | | Spring pin 2x14 sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 20... | 000003601 | $0.60Read more |
| 43 | Not Available | SCREW | 255004000 | Not Available |
| 44 | Not Available | GEAR A | 280006000 | Not Available |
| 45 | Not Available | BELT (200XL6MM) | 301285003 | Not Available |
| 46 | Not Available | MOTOR COMP | 650818002 | Not Available |
| 47 |  | SPRING PIN 2*14 sewing machine part or accessory For Janome Models: 7306, 7312 | Z000003807 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | Not Available | MOTOR CLUTH | 301294005 | Not Available |
| 49 | Not Available | MOTOR PULLEY COMP | 301530006 | Not Available |
| 50 |  | SNAP RING 3D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | Z000000103 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | MOTOR BRACKET | 280147004 | Not Available |
| 52 | | SPRING WASHER sewing machine part or accessory For Janome Models: 7306, 7312 | Z450063008 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 | Z301143008 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 | Z301234007 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | RECEPTACLE PLATE | 280142009 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312 | Z356017002 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | WASHER sewing machine part or accessory For Janome Models: Magnolia 7306, | Z301009001 | $0.60Read more |
| 3 | Not Available | SELEC. INDEX SPRING PLATE | 356006101 | Not Available |
| 4 |  | SPRING sewing machine part or accessory For Janome Models: 7306, 7312 | Z301215002 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | SNAP RING 4D sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 | Z000000206 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Face cover set plate sewing machine part or accessory For Elna Models: EL2100 SRV | 301008000 | $5.40Read more |
| 7 |  | ZIGZAG MECHANISM sewing machine part or accessory For Janome Models: 7306, 7312 | Z250012006 | $1.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | SLIDE BLOCK sewing machine part or accessory For Janome Models: 7306, 7312 | Z301213000 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | CONNECTING CRANK sewing machine part or accessory For Janome Models: 7306, 7312 | Z354004000 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 | Z301218005 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | Z301196006 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | NUT | 395620-45 | Not Available |
| 13 |  | WASHER sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | Z301245001 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | RIVETING PIN sewing machine part or accessory For Janome Models: 7306, 7312 | Z301212009 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Bed lid sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303005003 | $2.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312 | Z355010002 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | ZERO ADJUSTING CRANK | 356602000 | Not Available |
| 20 | | ZIGZAG DRIVING SPRING sewing machine part or accessory For Janome Models: 7306 | Z250042005 | $0.60Read more |
| 21 | | SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... | Z301046000 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | STITCH SELECTOR CAM | 360026007 | Not Available |
| 24 | Not Available | ZIGZAG MECHANISM COMP | 360020207 | Not Available |
| 25 | Not Available | SET SCREW | 301233006 | Not Available |
| 26 | Not Available | SELECT CAM | 360025006 | Not Available |
| 27 | Not Available | SELECT CAM SHAFT | 280102007 | Not Available |
| 28 | | Spring pin 2x14 sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 20... | 000003601 | $0.60Read more |
| 29 | Not Available | SPRING | 360023004 | Not Available |
| 30 | Not Available | CONNECTING PLATE | 360022003 | Not Available |
| 33 | | Bobbin winder spring (1) sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303014005 | $4.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Needle threader shaft sewing machine part or accessory For Janome Models: | 303016007 | $4.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | SNAP RING 3D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | Z000000103 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | ZIGZAG CONNECTING CRANK | 356002004 | Not Available |
| 37 | Not Available | SNAP RING 7D | 000006408 | Not Available |
| 38 | Not Available | WASHER | 301050007 | Not Available |
| 39 | Not Available | S/S SELECT. CRANK SPRING | 303011002 | Not Available |
| 40 | | Bobbin winder base plate sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303012003 | $3.20Read more |
| 41 | | Top cover sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303009007 | $9.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Reverse feed lever sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303030007 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | | Arm thread guide sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303008006 | $2.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | PATTERN CAN | 303007005 | Not Available |
| 46 | | Handle sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303010001 | $3.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | HOSE, WITH HANDLE GRIP SH40055 Part Number: 303013004 for Hoover | 303013004 | $1.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | Not Available | SHAFT | 360021002 | Not Available |
| 50 | Not Available | SNAP PING 5D | 000012315 | Not Available |
| 52 | Not Available | SELECT GEAR | 280103008 | Not Available |
| 53 | | Clip ring #7 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1100D, 1100D, 1200... | 000016009 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | | Clip ring #7 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1100D, 1100D, 1200... | 000016009 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | GEAR | 280115003 | Not Available |
| 56 | Not Available | GEAR SUPPORTED PLATE | 280170006 | Not Available |
| 58 | Not Available | SELECT SHAFT | 280106001 | Not Available |
| 59 | Not Available | WASHER | 000014384 | Not Available |
| 60 | Not Available | SCREW | 255004000 | Not Available |
| 61 | Not Available | GEAR | 280104009 | Not Available |
| 62 | Not Available | WASHER | 000014281 | Not Available |
| 63 |  | ECCENTRIC PIN sewing machine part or accessory For Janome Models: 7306, 7312 | Z301045009 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | Not Available | GEAR SUPPORTER PLATE | 280105000 | Not Available |
| 67 | Not Available | STITCH ROTARY | 280169208 | Not Available |
| 69 | Not Available | PATTERN CAM FRAME | 280101006 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | BH CAM OPERATING PLATE | 395629-95 | Not Available |
| 1 | Not Available | SNAP RING 5D 68 395629-95 BH CAM OPERATING PLATE | 395621-23 | Not Available |
| 1 | Not Available | SNAP RING 5D 68 395629-95 BH CAM OPERATING PLATE | 395621-23 | Not Available |
| 1 | Not Available | SNAP RING 5D 68 395629-95 BH CAM OPERATING PLATE | 395621-23 | Not Available |

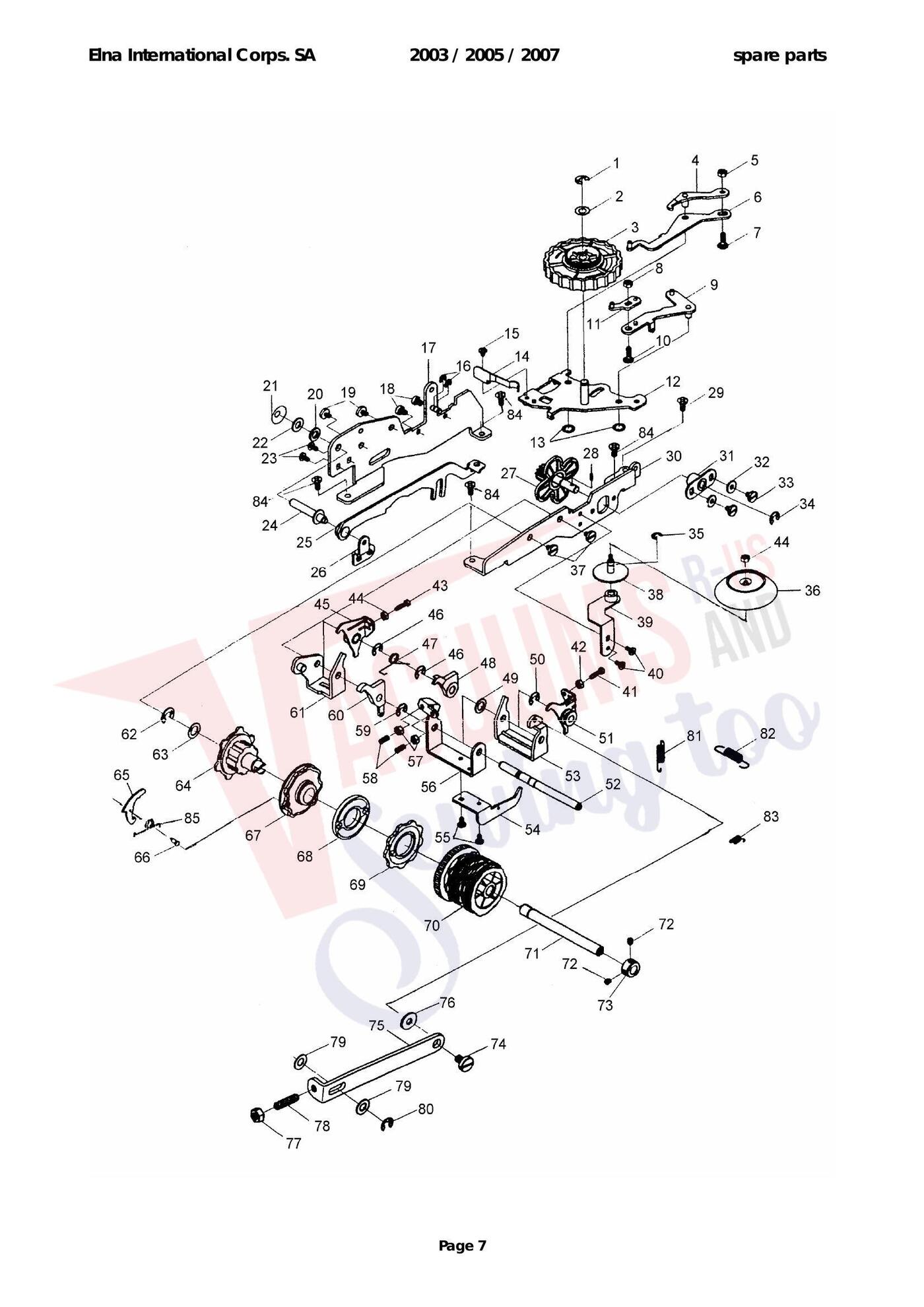

| 1 | Not Available | SNAP RING 5D 68 395629-95 BH CAM OPERATING PLATE | 395621-23 | Not Available |
| 1 | Not Available | SNAP RING 5D 68 395629-95 BH CAM OPERATING PLATE | 395621-23 | Not Available |
| 02 | Not Available | E/H CAM B | 395629-96 | Not Available |
| 2 | Not Available | WASHER # 69 395629-96 E/H CAM B | 395625-79 | Not Available |
| 03b | Not Available | PATTERN CAM SHAFT | 395629-98 | Not Available |
| 03b | Not Available | SELECT CAM 71 395629-98 PATTERN CAM SHAFT | 395629-55 | Not Available |
| 03a | Not Available | PATTERN CAM | 395629-97 | Not Available |
| 03a | Not Available | SELECT CAM 70 395629-97 PATTERN CAM | 395629-54 | Not Available |
| 04 | Not Available | SET SCREW | 395621-00 | Not Available |
| 4 | Not Available | SELECTOR PLATE 72 395621-00 SET SCREW | 395629-56 | Not Available |
| 05 | Not Available | COLLAR | 395626-21 | Not Available |
| 5 | Not Available | NUT 73 395626-21 COLLAR | 395620-45 | Not Available |
| 5 | Not Available | NUT 73 395626-21 COLLAR | 395620-45 | Not Available |
| 5 | Not Available | NUT 73 395626-21 COLLAR | 395620-45 | Not Available |
| 5 | Not Available | NUT 73 395626-21 COLLAR | 395620-45 | Not Available |
| 06 | Not Available | SET SCREW | 395629-99 | Not Available |
| 6 | Not Available | SELECTOR CRANK 74 395629-99 SET SCREW | 395629-57 | Not Available |
| 07 | Not Available | Z/Z SHAFT | 395630-00 | Not Available |
| 7 | Not Available | PIN 75 395630-00 Z/Z SHAFT | 395629-58 | Not Available |
| 7 | Not Available | PIN 75 395630-00 Z/Z SHAFT | 395629-58 | Not Available |
| 9 | Not Available | SELECTOR CRANK 77 395620-45 NUT | 395629-59 | Not Available |
| 10 | Not Available | SET SCREW | 395622-23 | Not Available |
| 11 | Not Available | WASHER | 395620-20 | Not Available |
| 11 | Not Available | SELECTOR PLATE 79 395620-20 WASHER | 395629-60 | Not Available |
| 12 | Not Available | SELECT SUPPORTED PLATE 80 395622-00 SNAP RING 3D | 395629-61 | Not Available |
| 13 | Not Available | SPRING | 395630-02 | Not Available |
| 13 | Not Available | SNAP PING 5D 81 395630-02 SPRING | 395625-39 | Not Available |
| 14 | Not Available | SPRING (A) | 395630-03 | Not Available |
| 14 | Not Available | SPRING 82 395630-03 SPRING (A) | 395629-62 | Not Available |
| 15 | Not Available | SPRING | 395630-04 | Not Available |
| 15 | Not Available | SCREW 83 395630-04 SPRING | 395627-38 | Not Available |
| 16 | Not Available | SET SCREW | 395620-21 | Not Available |
| 16 | Not Available | SNAP RING 3D 84 395620-21 SET SCREW | 395622-00 | Not Available |
| 16 | Not Available | SNAP RING 3D 84 395620-21 SET SCREW | 395622-00 | Not Available |
| 17 | Not Available | B/H CLUTCH SPRING | 395630-05 | Not Available |
| 17 | Not Available | Stitch MECHANISM (REAR) COMP 85 395630-05 B/H CLUTCH SPRING | 395629-63 | Not Available |
| 18 | Not Available | SET SCREW | 395620-38 | Not Available |
| 19 | Not Available | SET SCREW | 395629-64 | Not Available |
| 19 | Not Available | SET SCREW | 395629-64 | Not Available |
| 19 | Not Available | SET SCREW | 395629-64 | Not Available |
| 20 | Not Available | WAVE WASHER | 395629-38 | Not Available |
| 21 | Not Available | SL-RINGE | 395629-65 | Not Available |
| 22 | Not Available | WASHER 6.1x12 t=1.0 | 395629-37 | Not Available |
| 23 | Not Available | SCREW | 395629-66 | Not Available |
| 24 | Not Available | S. S ADJUST PIN | 395629-67 | Not Available |
| 25 | Not Available | S. S. CONNECTING ROD | 395629-68 | Not Available |
| 26 | Not Available | S. S ADJUST PLATE | 395629-69 | Not Available |
| 27 | Not Available | SELECT GEAR | 395629-70 | Not Available |
| 28 | Not Available | SPRING PIN 2x14 | 395622-03 | Not Available |
| 29 | Not Available | SET SCREW | 395623-12 | Not Available |
| 30 | Not Available | PATTERN MECHANISM | 395629-71 | Not Available |
| 31 | Not Available | SELECT SUPPORTED PLATE | 395629-72 | Not Available |
| 32 | Not Available | WASHER | 395628-97 | Not Available |
| 32 | Not Available | WASHER | 395628-97 | Not Available |
| 35 | Not Available | SNAP RING 4D | 395621-21 | Not Available |
| 36b | Not Available | STITCH ROTARY | 395629-74 | Not Available |
| 36a | Not Available | STITCH ROTARY | 395629-73 | Not Available |
| 38 | Not Available | STITCH ROTARY GEAR | 395629-75 | Not Available |
| 39 | Not Available | STITCH ROTARY SUPP. PLATE B | 395629-76 | Not Available |
| 40 | Not Available | SCREW | 395625-31 | Not Available |
| 40 | Not Available | SCREW | 395625-31 | Not Available |
| 41 | Not Available | SET SCREW | 395629-77 | Not Available |
| 41 | Not Available | SET SCREW | 395629-77 | Not Available |
| 42 | Not Available | NUT | 395626-29 | Not Available |
| 42 | Not Available | NUT | 395626-29 | Not Available |
| 45 | Not Available | CAM FOLLOWER | 395629-78 | Not Available |
| 47 | Not Available | SPRING | 395629-79 | Not Available |
| 48 | Not Available | B/H FOLLOWER | 395629-80 | Not Available |
| 49 | Not Available | WASHER 7.3x12 t= 1.0 | 395629-81 | Not Available |
| 51 | Not Available | Z/Z FINGER | 395629-82 | Not Available |
| 52 | Not Available | SHAFT | 395629-83 | Not Available |
| 53 | Not Available | Z/Z FRAME | 395629-84 | Not Available |
| 54 | Not Available | OPEN FLLOWER | 395629-85 | Not Available |
| 56 | Not Available | OPEN FRAME | 395629-86 | Not Available |
| 58 | Not Available | SET SCREW | 395629-87 | Not Available |
| 60 | Not Available | B/H SHAFT | 395629-88 | Not Available |
| 61 | Not Available | FRAME | 395629-89 | Not Available |
| 62 | Not Available | SNAP RING | 395625-15 | Not Available |
| 63 | Not Available | WASHER | 395629-90 | Not Available |
| 64 | Not Available | SS CAM | 395629-91 | Not Available |
| 65 | Not Available | B/H SUPPORTING PLATE | 395629-92 | Not Available |
| 66 | Not Available | CONNECTING PIN | 395629-93 | Not Available |
| 67 | Not Available | B/H CAM A | 395629-94 | Not Available |
Report errors on this page HERE
