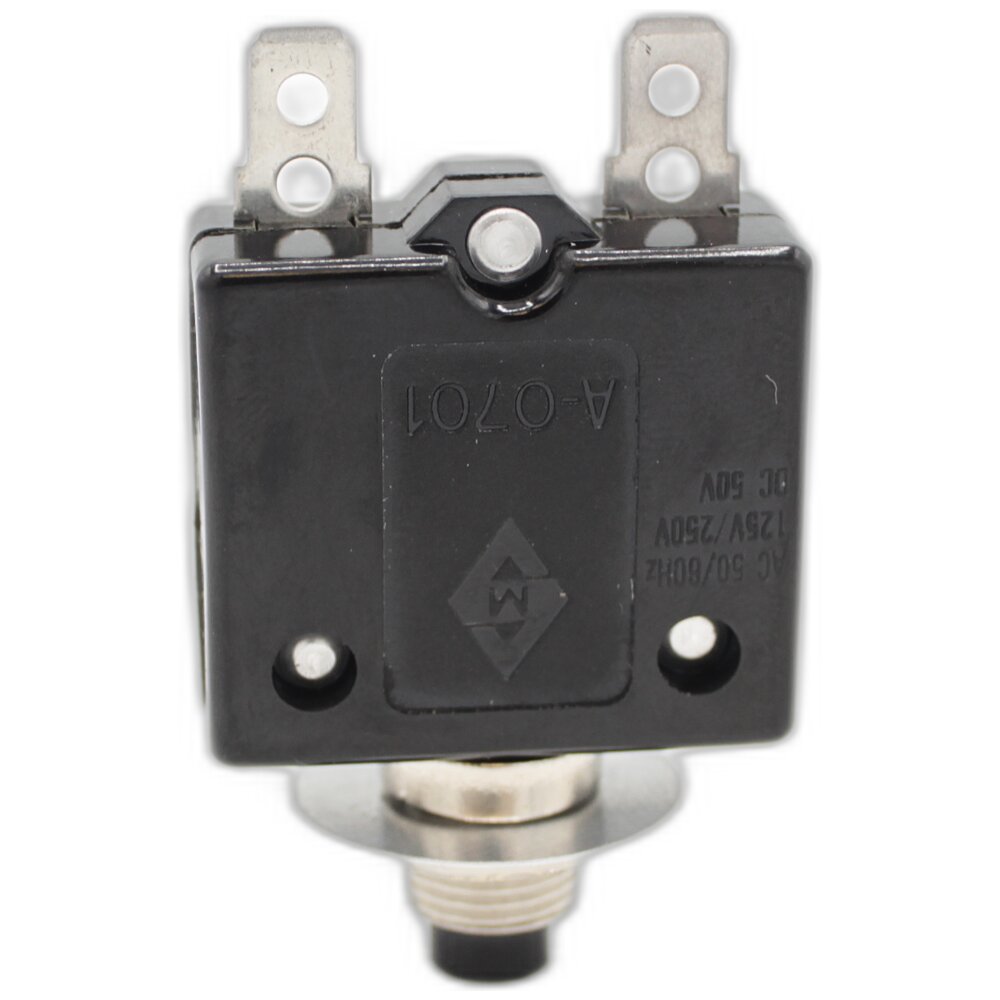

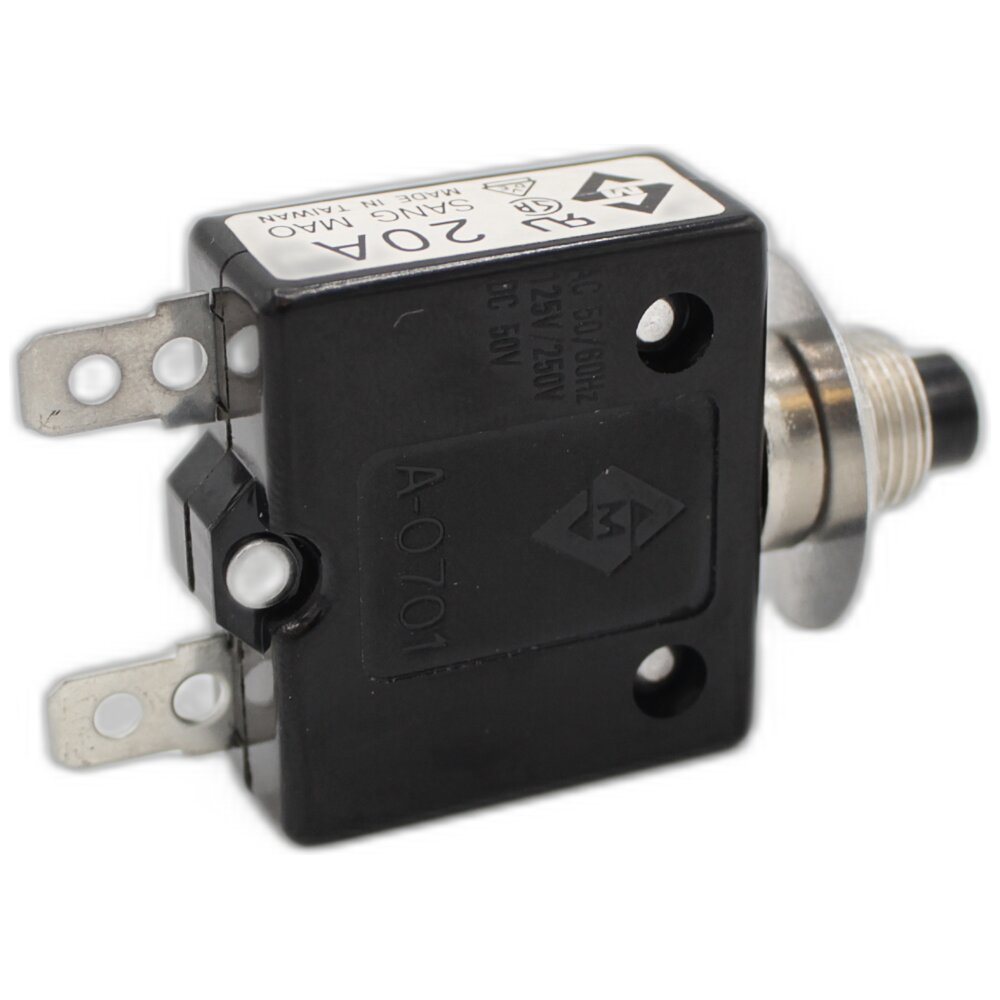

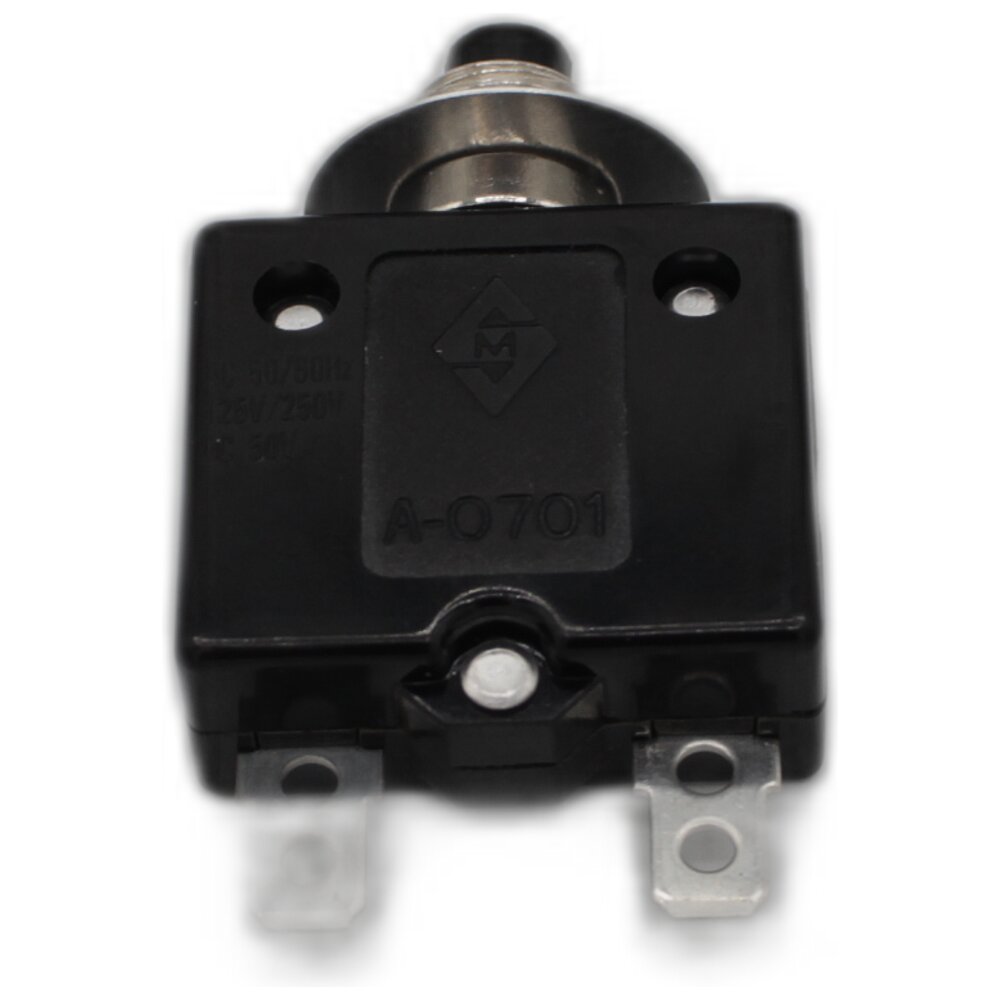

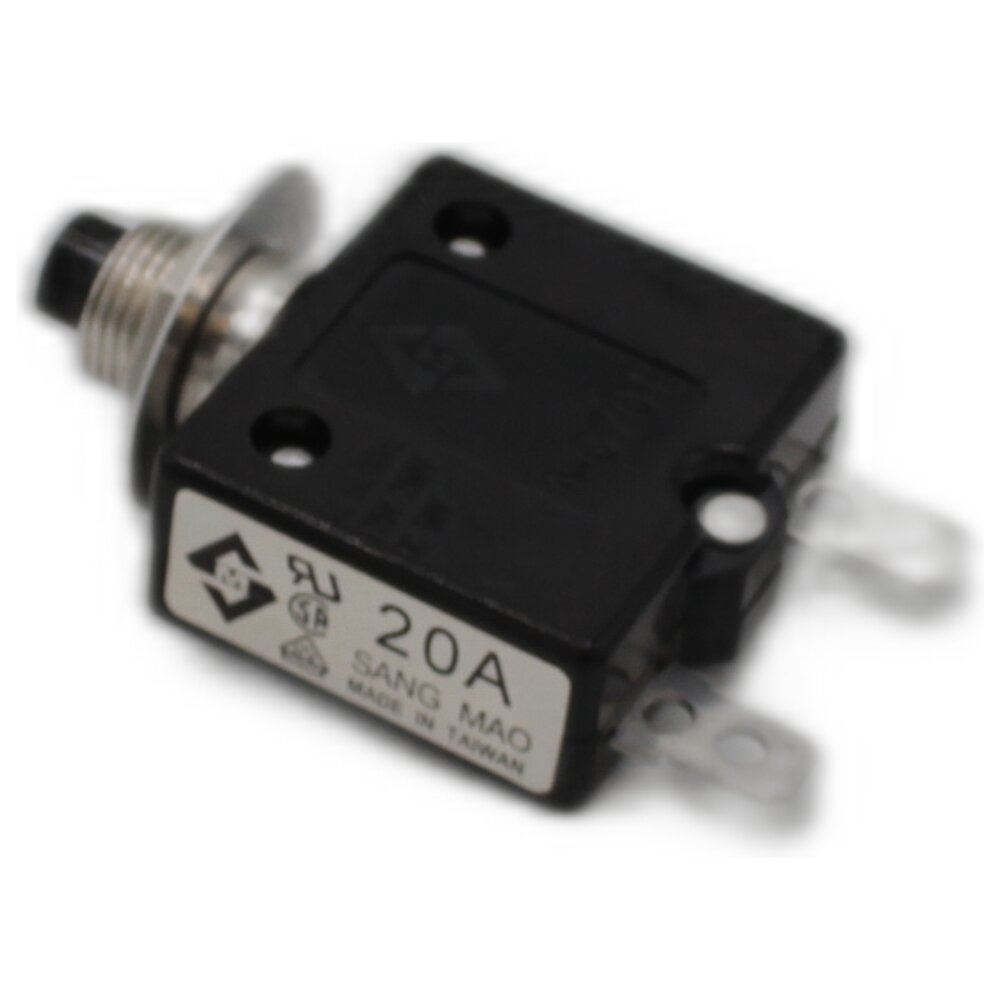

Product name Miniature Circuit Breaker / Overload Protector
Place of origin TAIWAN
Brand name SANG MAO
Model number A-0701HS
Current 2 – 50 A
Voltage 50 VDC / 125 VAC / 250 VAC

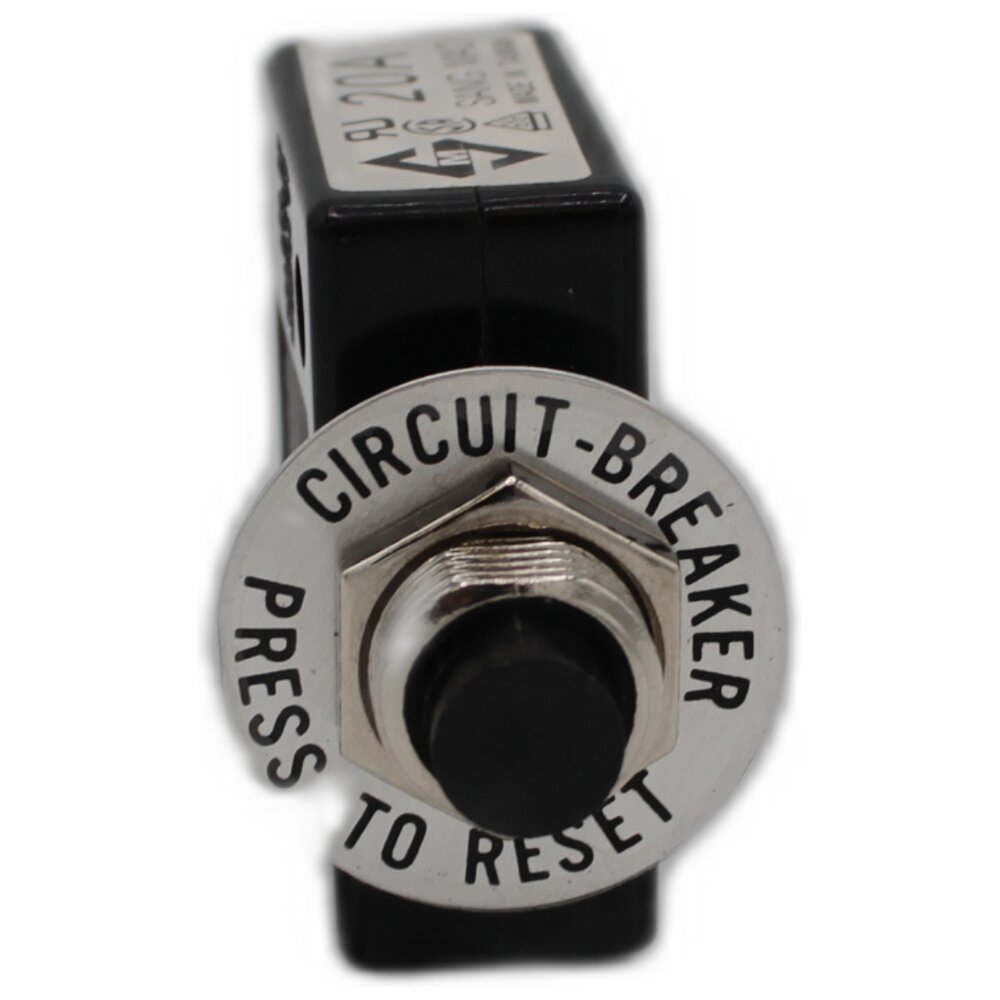

Reset Manual Push Reset
Certificate UL / CSA / VDE / CCC
SPECIFICATION
STANDARD RATING 2 – 50AMPERE.
INPUT POWER 50VDC /125VAC / 250VAC.
DIELECTRIC STRENGTH 1500 VAC / 1 MINUTE.
RATED CONDITIONAL
SHORT-CIRCUIT CURRENT
IEC-60934 “PC. 1 1000A” WITH ” FUSE 16 A gL / gG” .
INSULATION RESISTANCE > 100 MΩ.
RESET MANUAL PUSH RESET.
APPROVALS
U L APPROVAL 3 – 30A 125 / 250 VAC
CSA APPROVAL 3 – 30A 125 VAC , 60Hz TC2, OL1, SC:C1, 1kA, 125 VAC
CSA APPROVAL 5 – 30A 250 VAC , 60Hz TC2, OL1, SC:C1, 1kA, 250 VAC
VDE APPROVAL 4 – 30A 250VAC / 50VDC
CCC APPROVAL 4 – 20A 125 / 250VAC / 50VDC
APPLICATION
AC & DC MOTOR
GENERATOR
POWER STRIP
COMMON PROTECT
