Repairs of Simplicity and Maytag and Riccar units should only be performed by an authorized Simplicity and Maytag and Riccar service center. Repair attempts by unauthorized service centers may void manufacture warranty. Please check warranty status prior to performing any vacuum repair.

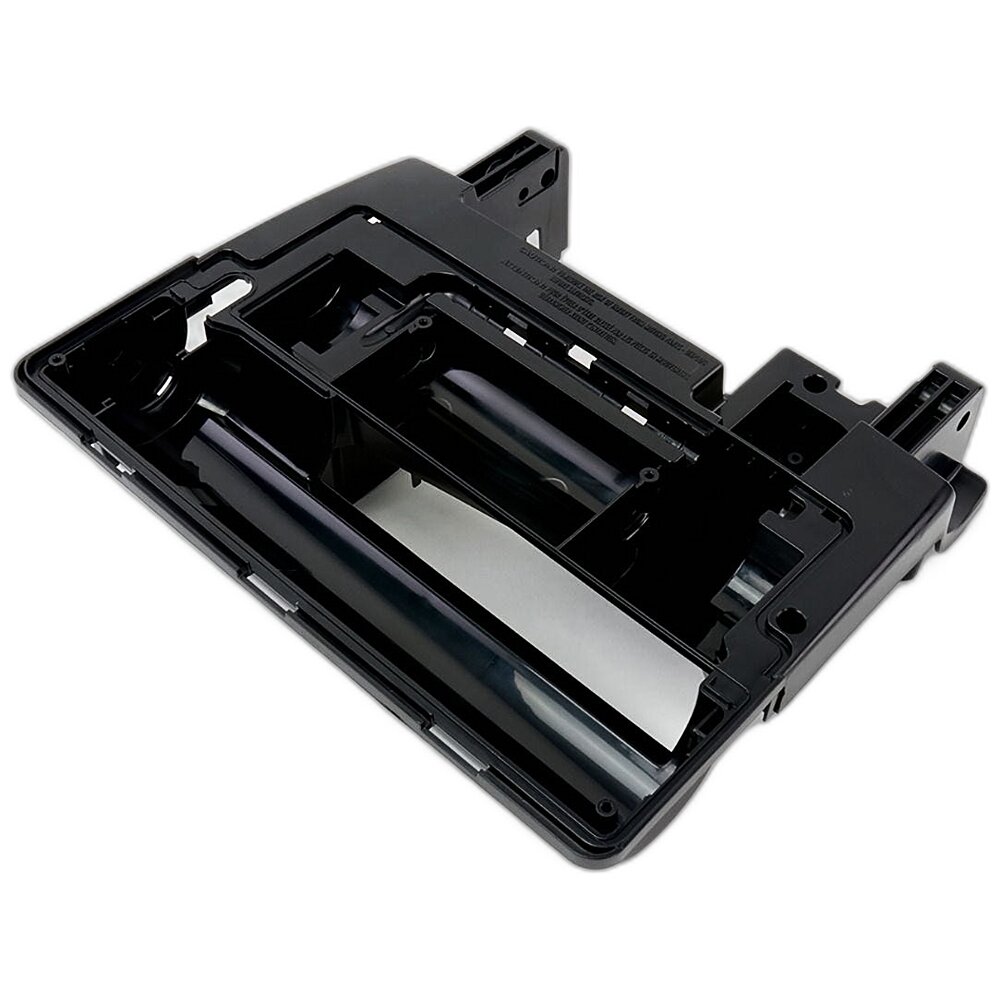

Nozzle Base Tray With UL BLK Engraving R30 Series And MV – This is a Riccar Simplicity Nozzle Base Tray With UL BLK Engraving R30 Series And MV.
Part number B470-1514F
Intended for use with Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,M1200,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,S30D, S30P, S30P.DS, S30PET,SCRS, SCRD, SCRD.FETCH, SCRD.LE, SCRP
For units with dirt sensors drill holes for the sensors at the locations shown in these images
