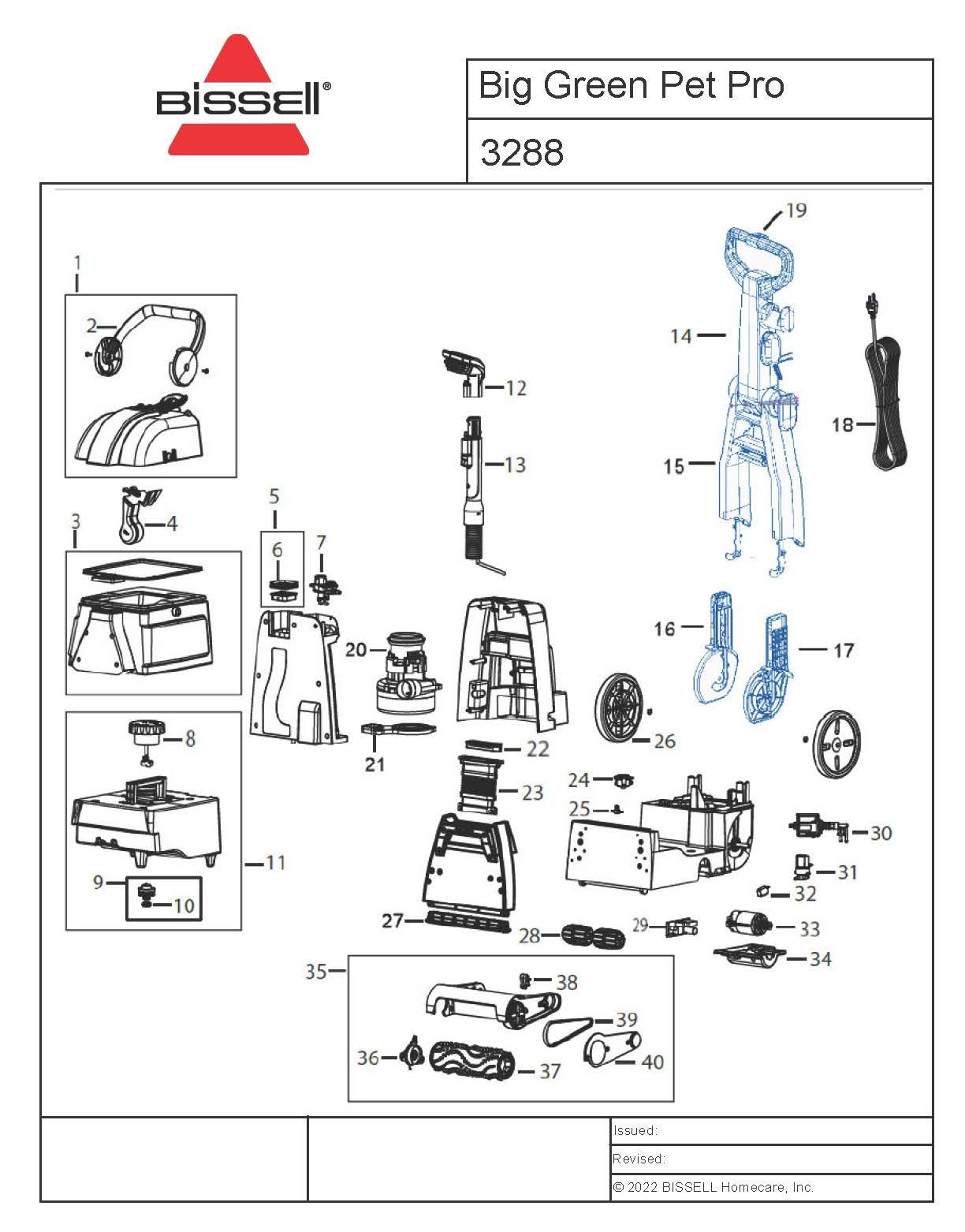

Schematic Parts Book for Bissell Model: 3288 Big Green Pet Pro
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we
cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HEREPopular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | TUBING Bissell repair part number: 2037438 | 2037438 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | SPECIAL SCREW PACK Bissell repair part number: 2037467 | 2037467 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Microswitch 120V Bissell repair part number: 1617703 | 1617703 | $4.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Microswitch 120V Bissell repair part number: 1617703 | 1617703 | $4.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | TUBING Bissell repair part number: 2037438 | 2037438 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | SPECIAL SCREW PACK Bissell repair part number: 2037467 | 2037467 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | WATER SEPERATOR HANDLE ASSY Bissell repair part number: 2037450 | 2037450 | $15.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | WATER SEPERATOR HANDLE ASSY Bissell repair part number: 2037450 | 2037450 | $15.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Bissell Assy Tank Dirty Black P2933 UDC REPL Part Number: 1627598 | 1627598 | $84.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Bissell Assy Tank Dirty Black P2933 UDC REPL Part Number: 1627598 | 1627598 | $84.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Bissell Float for Big Green Clean Machine | WP11180 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Bissell Float for Big Green Clean Machine | WP11180 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | UPPER HOUSING FILTER ASSY Bissell repair part number: 2037463 | 2037463 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | UPPER HOUSING FILTER ASSY Bissell repair part number: 2037463 | 2037463 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | MOTOR DUCK GASKET Bissell repair part number: 2037468 | 2037468 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | MOTOR DUCK GASKET Bissell repair part number: 2037468 | 2037468 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Indicator, Flow Assy Big Green 40M1/86T3/10N2 160-6811 | B-203-7439 | $13.99Add to cart |
| 7 | No Image | Indicator, Flow Assy Big Green 40M1/86T3/10N2 160-6811 | B-203-7439 | $13.99Add to cart |
| 8 | | CLEAN TANK CAP ASSY Bissell repair part number: 2037455 | 2037455 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | CLEAN TANK CAP ASSY Bissell repair part number: 2037455 | 2037455 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | AUTOLOAD GASKET Bissell repair part number: 2036679 | 2036679 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | AUTOLOAD GASKET Bissell repair part number: 2036679 | 2036679 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | CLEAN TANK ASSY Bissell repair part number: 2037454 | 2037454 | $57.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | CLEAN TANK ASSY Bissell repair part number: 2037454 | 2037454 | $57.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Bissell 6in Upholstery Tool for Stairs - Compatible with Most Bissell Shampooers | 2036654 | $19.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Bissell 6in Upholstery Tool for Stairs - Compatible with Most Bissell Shampooers | 2036654 | $19.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Bissell BG10 attachment hose with no tool 2037523 | WP11819 | $59.99Read more |
| 13 | No Image | Bissell BG10 attachment hose with no tool 2037523 | WP11819 | $59.99Read more |
| 14 | | Bissell Assy Handle Upper Black P2933 UDC REPL Part Number: 1627599 | 1627599 | $128.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Hose, Black Assembly Green Machine 86T3 2037443 | 203-7443 | $75.00Read more |
| 14 | No Image | Hose, Black Assembly Green Machine 86T3 2037443 | 203-7443 | $75.00Read more |
| 14 | | Bissell Assy Handle Upper Black P2933 UDC REPL Part Number: 1627599 | 1627599 | $128.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Bissell Assy Handle Lower Black P2933 UDC REPL Part Number: 1627600 | 1627600 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Bissell Assy Handle Lower Black P2933 UDC REPL Part Number: 1627600 | 1627600 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | MOTOR, 5.7" 120 VOLT B/S 1 STAGE THRU-FLO PERIPH Part Number: 116276-01 for Lamb | 11627601 | $164.80Read more |
| 16 | No Image | MOTOR, 5.7" 120 VOLT B/S 1 STAGE THRU-FLO PERIPH Part Number: 116276-01 for Lamb | 11627601 | $164.80Read more |
| 17 | No Image | MOTOR, 5.7" 120 VOLT B/S 1 STAGE THRU-FLO PERIPH Part Number: 116276-01 for Lamb | 11627601 | $164.80Read more |
| 17 | No Image | MOTOR, 5.7" 120 VOLT B/S 1 STAGE THRU-FLO PERIPH Part Number: 116276-01 for Lamb | 11627601 | $164.80Read more |
| 18 |  | CORD ASSY BG Rental Bissell repair part number: 2037445 | 2037445 | $35.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | CORD ASSY BG Rental Bissell repair part number: 2037445 | 2037445 | $35.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Bissell Assy Trigger Spray with PCB P2933 UDC REPL Part Number: 1627603 | 1627603 | $24.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Bissell Assy Trigger Spray with PCB P2933 UDC REPL Part Number: 1627603 | 1627603 | $24.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | MOTOR ASSY VACUUM Bissell repair part number: 2037432 | 2037432 | $159.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | MOTOR ASSY VACUUM Bissell repair part number: 2037432 | 2037432 | $159.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | MOTOR MOUNT ASSY Bissell repair part number: 2037465 | 2037465 | $10.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | MOTOR MOUNT ASSY Bissell repair part number: 2037465 | 2037465 | $10.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | NOZZLE GASKET Bissell repair part number: 2037456 | 2037456 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | NOZZLE GASKET Bissell repair part number: 2037456 | 2037456 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | NOZZLE ASSY Bissell repair part number: 2037457 | 2037457 | $18.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | NOZZLE ASSY Bissell repair part number: 2037457 | 2037457 | $18.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | RECEIVER Bissell repair part number: 2037429 | 2037429 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | RECEIVER Bissell repair part number: 2037429 | 2037429 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | SPRAY TIP WSCREWS Bissell repair part number: 2037430 | 2037430 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | SPRAY TIP WSCREWS Bissell repair part number: 2037430 | 2037430 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | WHEEL ASSY Bissell repair part number: 2037447 | 2037447 | $17.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | WHEEL ASSY Bissell repair part number: 2037447 | 2037447 | $17.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | NOZZLE A BIG GREEN Bissell repair part number: 2037530 | 2037530 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | NOZZLE A BIG GREEN Bissell repair part number: 2037530 | 2037530 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | | BASE ROLLER Bissell repair part number: 2037469 | 2037469 | $6.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | | BASE ROLLER Bissell repair part number: 2037469 | 2037469 | $6.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | MICRO SWITCH BRUSH Bissell repair part number: 2036759 | 2036759 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | MICRO SWITCH BRUSH Bissell repair part number: 2036759 | 2036759 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Pump, Assy Big Green 40M1/86T3/10N2 Comm Ext | 2037433 | $44.99Add to cart |
| 30 | No Image | Pump, Assy Big Green 40M1/86T3/10N2 Comm Ext | 2037433 | $44.99Add to cart |
| 31 | No Image | Bissell Commercial Shampooer Extractor Solenoid Valve 203-7436 for BG10 and 86T3 | 2037436 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Bissell Commercial Shampooer Extractor Solenoid Valve 203-7436 for BG10 and 86T3 | 2037436 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | MICRO SWITCH BRUSH Bissell repair part number: 2036759 | 2036759 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | MICRO SWITCH BRUSH Bissell repair part number: 2036759 | 2036759 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | MOTOR ASSY FOOT Bissell repair part number: 2037431 | 2037431 | $54.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | | MOTOR ASSY FOOT Bissell repair part number: 2037431 | 2037431 | $54.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | BRUSH MOTOR COVER ASSY Bissell repair part number: 2037466 | 2037466 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | BRUSH MOTOR COVER ASSY Bissell repair part number: 2037466 | 2037466 | $12.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | BRUSH CARRIAGE ASSY Bissell repair part number: 2037462 | 2037462 | $52.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | BRUSH CARRIAGE ASSY Bissell repair part number: 2037462 | 2037462 | $52.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | End Cap, 10N2 Part Number: 203-7459 for Bissell | 2037459 | $13.18Read more |
| 36 | No Image | End Cap, 10N2 Part Number: 203-7459 for Bissell | 2037459 | $13.18Read more |
| 37 |  | Brushroll, Bg10/86T3 Part Number: 203-7458 for Bissell | 2037458 | $33.23Read more |
| 37 | | Brushroll, Bg10/86T3 Part Number: 203-7458 for Bissell | 2037458 | $33.23Read more |
| 38 |  | Clip, Brush Carriage Big Green 40M1/86T3/10N2 Comm Part Number: 203-7470 for Bissell | 2037470 | $3.24Read more |
| 38 | | Clip, Brush Carriage Big Green 40M1/86T3/10N2 Comm Part Number: 203-7470 for Bissell | 2037470 | $3.24Read more |
| 39 |  | BELT BRUSH Bissell repair part number: 2037460 | 2037460 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | | BELT BRUSH Bissell repair part number: 2037460 | 2037460 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | BRUSH CARRIAGE PLATE ASSY Bissell repair part number: 2037461 | 2037461 | $6.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | BRUSH CARRIAGE PLATE ASSY Bissell repair part number: 2037461 | 2037461 | $6.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
