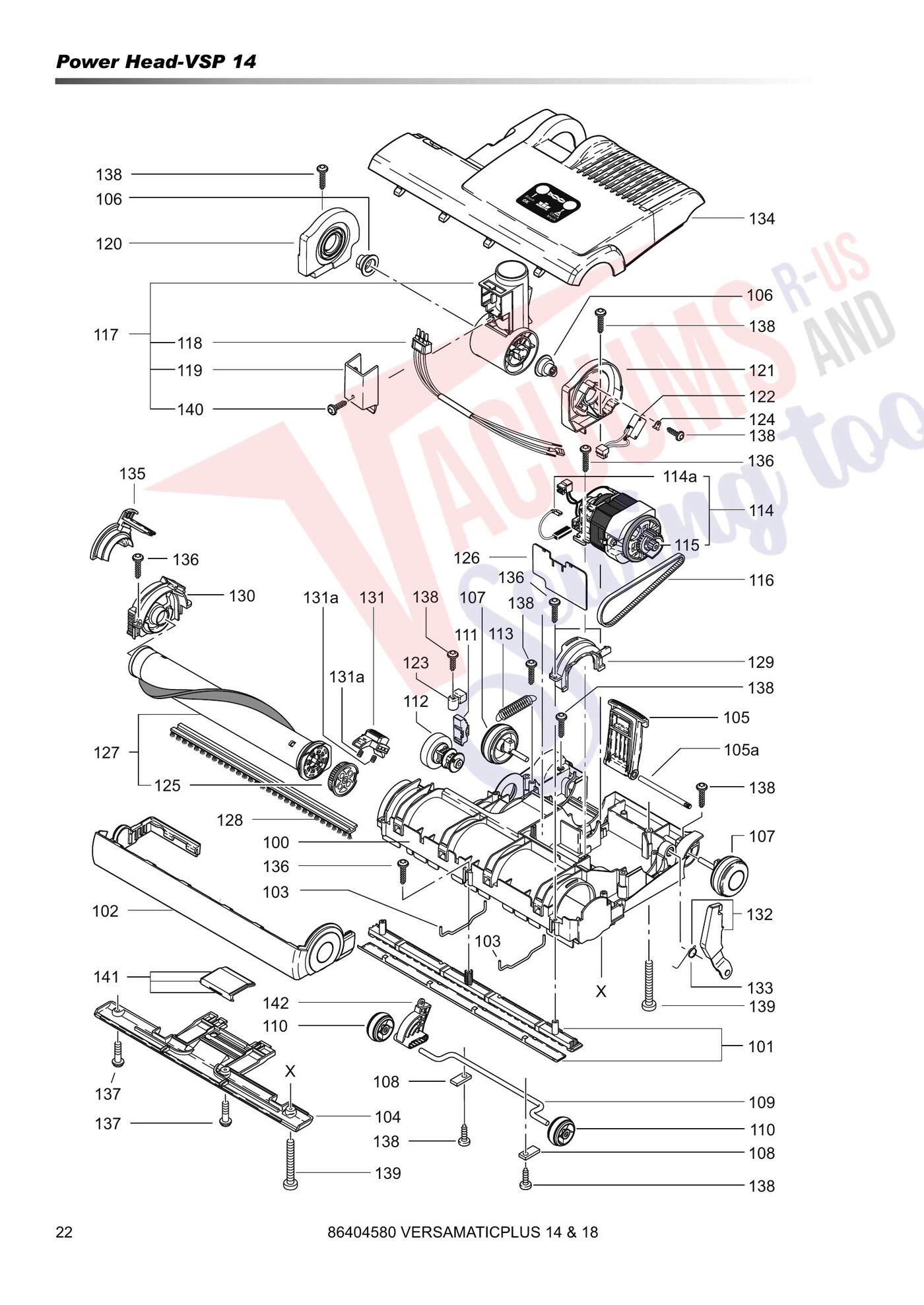

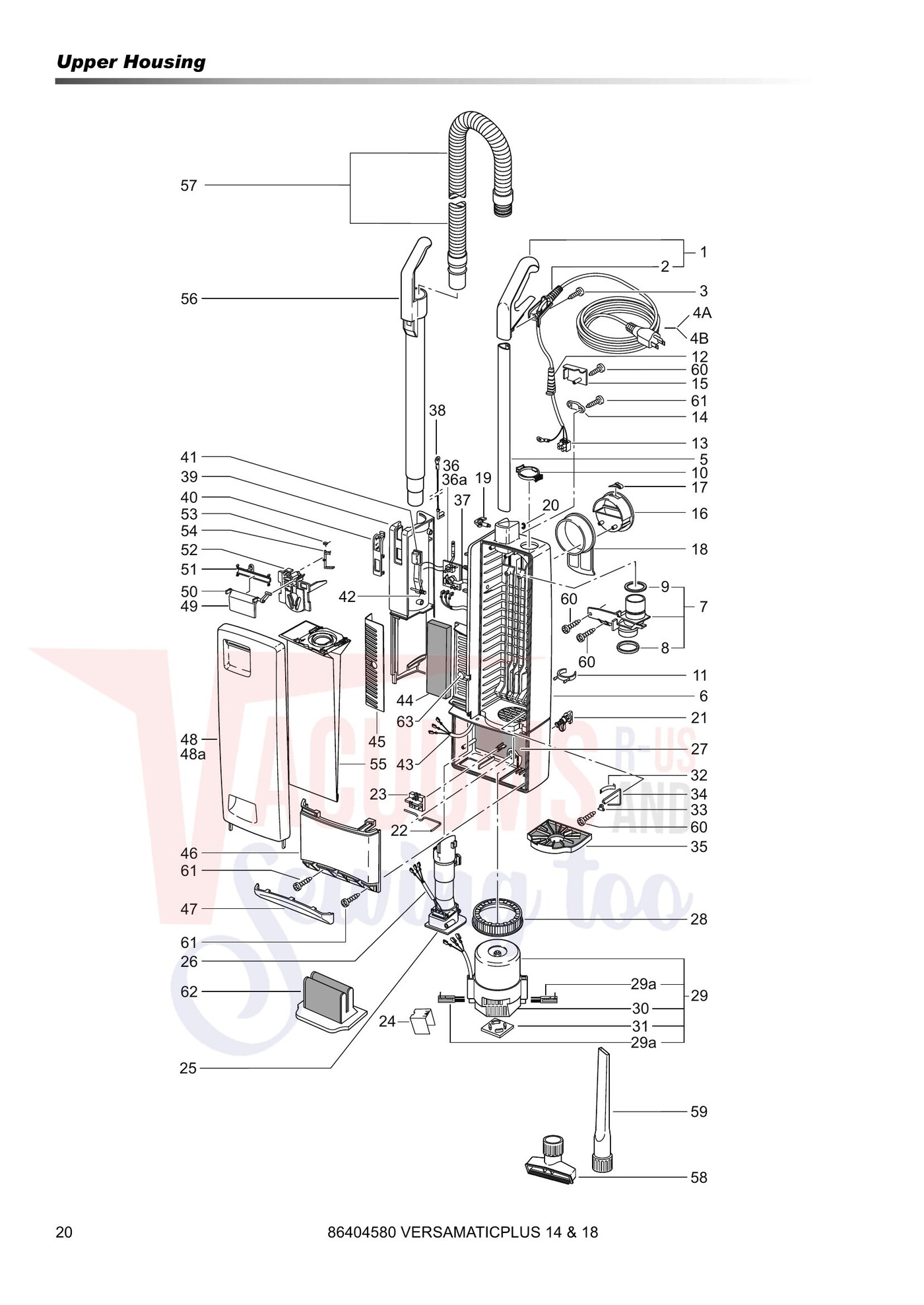

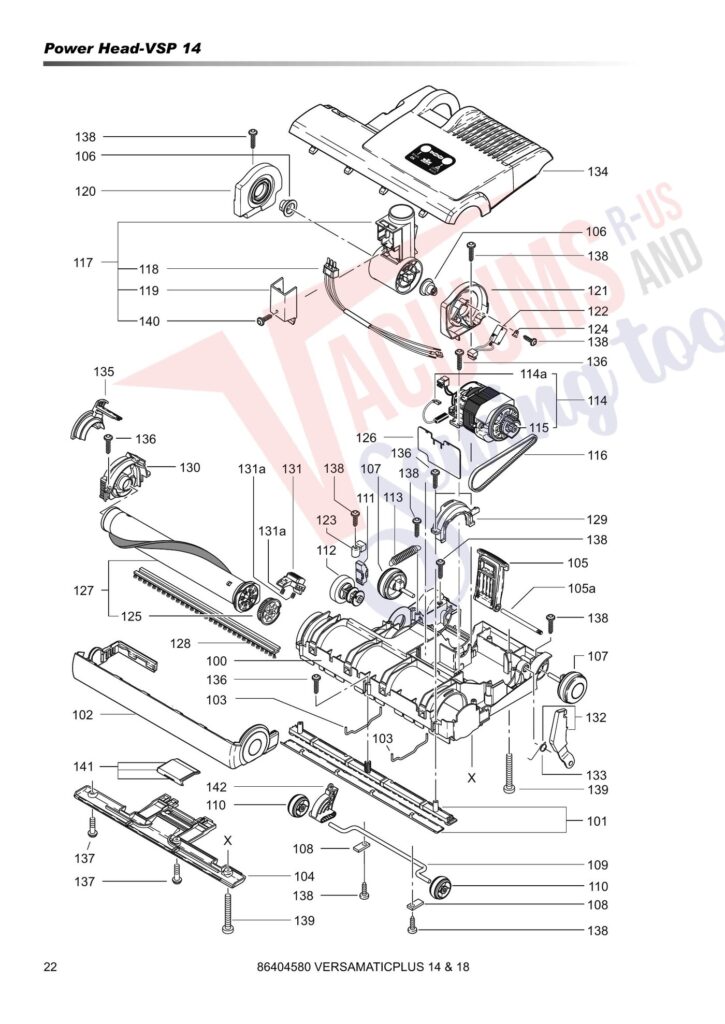

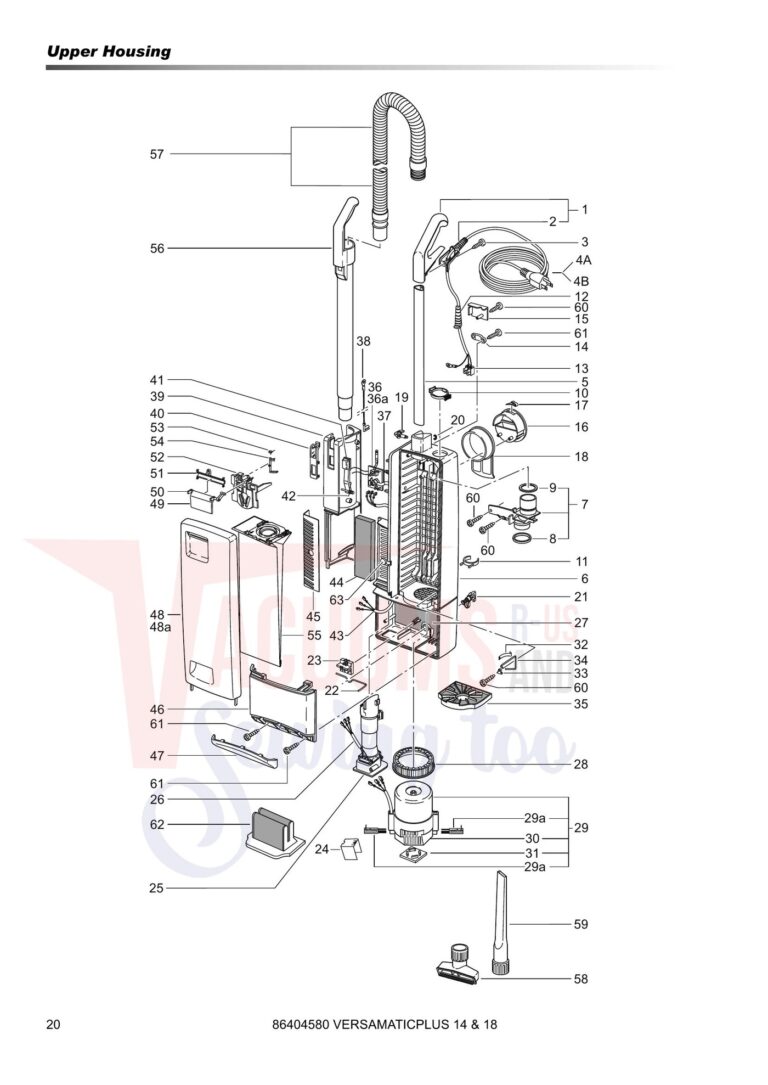

Schematic and parts list for: Windsor Model: VS14, VS18
This is a list of parts and a diagram and schematic for: Windsor Model: VS14, VS18
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Versamatic VS14 & VS18

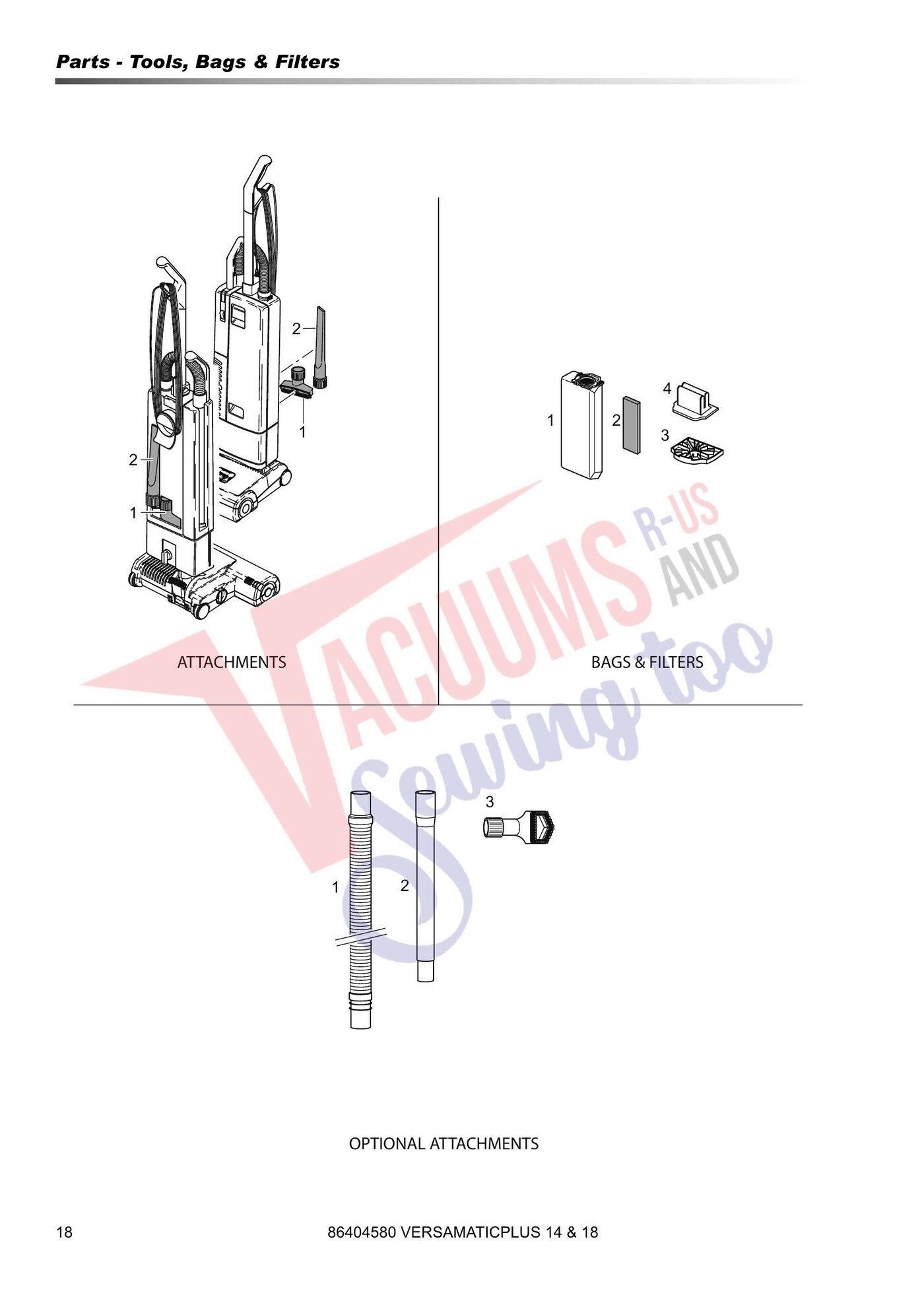

Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | Windsor Paper Bags, Versa-Matic Micro Filter | 98406410 | Not Available |
| 1 | Not Available | Windsor Cable Vs14 | 86139190 | Not Available |
| 1a |  | Cord, Yellow or Blue Power VS18 Part Number: 8.613-921.0 for Windsor | 86139210 | $138.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Handle Grip, VS 14/1 CSP 14/18 Part Number: 8.614-205.0 for Windsor | 86142050 | $82.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Cover, White Plastic Handle Versamatic Part Number: 8.614-212.0 for Windsor | 86142120 | $26.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Windsor Handle | 86142140 | Not Available |
| 5 | No Image | HOUSING, DUST BAG Part Number: 8.614-108.0 for Windsor | 86141080 | $248.06Read more |
| 6 | Not Available | Windsor Grommet | 86141950 | Not Available |
| 7 | Not Available | Windsor Switch Button | 86349900 | Not Available |
| 8 | Not Available | Windsor Spring | 86345570 | Not Available |
| 9 | Not Available | Windsor Switch-Vs (New) | 86145610 | Not Available |
| 10 | Not Available | Windsor Switch Holder | 86145540 | Not Available |
| 11 | Not Available | Windsor Switch Cover | 86349910 | Not Available |
| 12 | Not Available | Windsor Connecting Tube, Hose | 86140180 | Not Available |
| 13 |  | Retainer Ring, Versamatic VS14/VS18 Part Number: 8.614-460.0 for Windsor | 86144600 | $16.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Windsor Pc Board, 115V 3 Wire | 86372770 | Not Available |
| 15 | Not Available | Windsor Wire, Vse Swivel Neck | 86146720 | Not Available |
| 16 | Not Available | Windsor Internal Cable, 3 Wire | 86142810 | Not Available |
| 17 | Not Available | Windsor Cable Clamp | 86139110 | Not Available |
| 18 | Not Available | Windsor Switch Hsg Cover | 86145530 | Not Available |
| 19 | Not Available | Windsor Dust Bag Lever | 86140990 | Not Available |
| 20 | No Image | SPRING, RETURN VS14 Part Number: 8.614-464.0 for Windsor | 86144640 | $7.16Read more |
| 21 | Not Available | Windsor Leaf Spring | 86143010 | Not Available |
| 22 | Not Available | Windsor Connecting Rod | 86140170 | Not Available |
| 23 | Not Available | Windsor Clamp | 86139970 | Not Available |
| 24 |  | Filter, Versamatic Motor With Frame Part Number: 8.614-333.0 for Windsor | 86143330 | $37.42Read more |
| 25 |  | Filter, Exhaust Versamatic Plus W/ Off White Frame Part Number: 8.614-135.0 for Windsor | 86141350 | $60.08Read more |
| 26 | No Image | Cover, Blue Plastic Back W/Cord Hook VSE Part Number: 8.613-802.0 for Windsor | 86138020 | $275.28Read more |
| 27 | Not Available | Windsor Back Cover Seal | 86138010 | Not Available |
| 28 | No Image | GASKET, VS14 Part Number: 8.614-189.0 for Windsor | 86141890 | $10.31Read more |
| 29 | No Image | LATCH ASSEMBLY, VS 14/1 Part Number: 8.614-297.0 for Windsor | 86142970 | $29.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Hook, Blue Upper Cord Part Number: 8.614-633.0 for Windsor | 86146330 | $18.21Read more |
| 31 | Not Available | Windsor Lower Cord Hook, Blu | 86143150 | Not Available |
| 32 | Not Available | Windsor Hand Nozzle | 86142080 | Not Available |
| 33 |  | Hose, Gray W/Cuffs Versamatic Part Number: 8.614-263.0 for Windsor | 86142630 | $103.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Windsor Motor Housing | 86143390 | Not Available |
| 35 | No Image | COVER, COVER HOUSING R.H. Part Number: 8.614-271.0 for Windsor | 86142710 | $9.85Read more |
| 36 | Not Available | Windsor Filter Retaining Button | 86141610 | Not Available |
| 37 | Not Available | Windsor Insulation, Sound Use | 86142770 | Not Available |
| 38 | Not Available | Windsor Locking Rod | 86143090 | Not Available |
| 39 | Not Available | Windsor Locking Catch | 86143070 | Not Available |
| 40 |  | Motor, Versamatic 120V 1000 Watt Part Number: 8.614-642.0 for Windsor | 86146420 | $814.94Read more |
| 41 |  | Carbon Brush, 100/120V Sensor/VersaMatic 2Pk Part Number: 8.613-940.0 for Windsor | 86139400 | $108.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Windsor Motor Cover | 86143410 | Not Available |
| 43 | Not Available | Windsor Motor Support | 86143340 | Not Available |
| 44 | No Image | MOTOR, HAND VAC FLEXAMATIC Part Number: 8.614-638-0 for Windsor | 86146380 | $42.10Read more |
| 45 | Not Available | Windsor Female Contact Holder (3-Wire) | 86141570 | Not Available |
| 46 | Not Available | Windsor Terminal Block | 86146200 | Not Available |
| 47 | No Image | COVER, TERMINAL BLOCK VS14 VSP14/18 Part Number: 8.614-042.0 for Windsor | 86140420 | $16.25Read more |
| 48 | No Image | SCREW, M3,9 X 9,5 MM DIN 7981 VS14/1 Part Number: 8.619-629.0 for Windsor | 86196290 | $1.84Read more |
| 49 |  | Screw, M3 9 x 13 MM Din 7981 VersaMatic/Sensor Part Number: 8.614-703.0 for Windsor | 86147030 | $3.82Read more |
| 50 | No Image | SCREW, M3, 9 X 16 MM DIN 7981 VS/14,18,S12/15 Part Number: 8.614-704.0 for Windsor | 86147040 | $1.84Read more |
| 51 |  | SCREW, M5 X 30MM DIN 7985A NP VS/14/VSP14/VSP18 Part Number: 8.614-707.0 for Windsor | 86147070 | $5.72Read more |
| 52 | Not Available | Windsor Washer, Vs14/18 | 86146540 | Not Available |
| 53 |  | Ring, Retaining Part Number: 8.614-458.0 for Windsor | 86144580 | $17.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | COVER, PC BOARD VS14 Part Number: 8.614-373.0 for Windsor | 86143730 | $15.62Read more |
| 100 | No Image | COVER, VS14 Part Number: 8.614-059.0 for Windsor | 86140590 | $368.22Read more |
| 100 |  | Cover, Chassis VS/VSE18 Part Number: 8.614-071.0 for Windsor | 86140710 | $332.82Read more |
| 101 |  | Cover, Gray Brush Strip VSE 14/18 Part Number: 8.614-053.0 for Windsor | 86140530 | $38.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 102 | Not Available | Windsor Chassis Vse-1 Gry Bumper 14 | 86345590 | Not Available |
| 102 | Not Available | Windsor Chassis Vse-1 Gry Bumper 18 | 86345600 | Not Available |
| 103 | No Image | BUMPER, VS18/VSP18 Part Number: 8.613-891.0 for Windsor | 86138910 | $54.94Read more |
| 103 | No Image | BUMPER, VS 14, VSP 14/18 Part Number: 8.613-886.0 for Windsor | 86138860 | $39.36Read more |
| 104 | Not Available | Windsor Axle Asm, Vse2 | 86137950 | Not Available |
| 104 | Not Available | Windsor Axle Assembly | 86137910 | Not Available |
| 105 | Not Available | Windsor Axle, Vse2 | 86137960 | Not Available |
| 105 | Not Available | Windsor Axle, Vse-1 | 86137890 | Not Available |
| 106 |  | Pedal, Foot VS14/VS18/VSP14/VSP18 Part Number: 8.614-170.0 for Windsor | 86141700 | $30.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 107 |  | Spring, Rear Axle Sensor/VersaMatic Models Part Number: 8.614-657.0 for Windsor | 86146570 | $10.39Read more |
| 108 | Not Available | Windsor Wheel And End Clip | 86146590 | Not Available |
| 108 | No Image | WHEEL, VS18 W/CLIP Part Number: 8.614-664.0 for Windsor | 86146640 | $32.84Read more |
| 109 | Not Available | Windsor Clamp Connecting Rod (Axle) | 86140000 | Not Available |
| 110 | Not Available | Windsor Pile Adjustment Knob | 86143820 | Not Available |
| 111 | No Image | SPRING, VS14/18, VSP14/18 Part Number: 8.614-527.0 for Windsor | 86145270 | $10.12Read more |
| 111 | Not Available | Windsor Pile Adjustment Lever | 86143880 | Not Available |
| 112 | No Image | SPRING, VS14/18, VSP14/18 Part Number: 8.614-527.0 for Windsor | 86145270 | $10.12Read more |
| 112 | Not Available | Windsor Axle, Vse1 Pile Adjustment | 86137880 | Not Available |
| 113 | No Image | WHEEL, PILE ADJUSTMENT VS14/18 Part Number: 8.614-390.0 for Windsor | 86143900 | $30.59Read more |
| 113 | No Image | WHEEL, W/AXLE PILE ADJ VS18 VSP18 Part Number: 8.614-387.0 for Windsor | 86143870 | $37.71Read more |
| 114 | Not Available | Windsor Swivel Neck Assembly | 86145800 | Not Available |
| 114 | No Image | WHEEL, PILE ADJUSTMENT VS14/18 Part Number: 8.614-390.0 for Windsor | 86143900 | $30.59Read more |
| 115 | Not Available | Windsor Swivel Neck Assembly | 86145800 | Not Available |
| 115 | Not Available | Windsor Wire/Swivel Neck 3-Wire | 86146740 | Not Available |
| 116 | Not Available | Windsor Wire/Swivel Neck 3-Wire | 86146740 | Not Available |
| 116 | No Image | SPRING, LEAF VSE Part Number: 8.614-524.0 for Windsor | 86145240 | $6.04Read more |
| 117 | Not Available | Windsor Lever, Vse Switch | 86143050 | Not Available |
| 117 | No Image | SPRING, LEAF VSE Part Number: 8.614-524.0 for Windsor | 86145240 | $6.04Read more |
| 118 | No Image | COVER, SWIVEL NECK VS14 VS18 Part Number: 8.614-582.0 for Windsor | 86145820 | $36.12Read more |
| 118 | Not Available | Windsor Lever, Vse Switch | 86143050 | Not Available |
| 119 | Not Available | Windsor Support, Vse Swivel | 86145420 | Not Available |
| 119 | No Image | COVER, SWIVEL NECK VS14 VS18 Part Number: 8.614-582.0 for Windsor | 86145820 | $36.12Read more |
| 120 | Not Available | Windsor Support, Vse Swivel | 86145420 | Not Available |
| 120 |  | Brushroll, Without End Caps Versamatic Part Number: 8.613-843.0 for Windsor | 86138430 | $209.08Read more |
| 121 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 |  | Brush Strip, 14 In Strip Vs14 Versamatic Black Part Number: 8.600-244.0 for Windsor | 86002440 | $39.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 122 | Not Available | Windsor Bearing Block, Vsm/Vse Lh | 86138110 | Not Available |
| 122 |  | Brush Strip, Vs18 18 In Long Versamatic Part Number: 8.600-164.0 for Windsor | 86001640 | $51.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 | Not Available | Windsor Bearing Block, Vsm/Vse Lh | 86138110 | Not Available |
| 123 | Not Available | Windsor Pulley, Vse Brush Roller | 86144430 | Not Available |
| 124 | Not Available | Windsor Bearing Block, Vsm/Vse Rh | 86138100 | Not Available |
| 124 | Not Available | Windsor Pulley, Vse Brush Roller | 86144430 | Not Available |
| 125 | Not Available | Windsor Brush Motor Drive, 115V U70G32 | 86138460 | Not Available |
| 125 | Not Available | Windsor Bearing Block, Vsm/Vse Rh | 86138100 | Not Available |
| 126 | Not Available | Windsor Brush Motor, 115V U70G40 | 86138580 | Not Available |
| 126 | Not Available | Windsor Carbon Brush Set 120V | 86139380 | Not Available |
| 127 | Not Available | Windsor Carbon Brush Set 120V | 86139380 | Not Available |
| 127 |  | Pulley, Belt Drive Motor VersaMatic Part Number: 8.614-442.0 for Windsor | 86144420 | $37.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 128 | Not Available | Windsor Drive Belt | 86147010 | Not Available |
| 128 | | Pulley, Belt Drive Motor VersaMatic Part Number: 8.614-442.0 for Windsor | 86144420 | $37.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 129 | Not Available | Windsor Drive Belt | 86147010 | Not Available |
| 129 |  | BOARD, PC CONTROL Part Number: 8.614-029.0 for Windsor | 86140290 | $239.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 |  | CIRCUIT BOARD, PCB VSP18 Part Number: 8.614-371.0 for Windsor | 86143710 | $322.82Read more |
| 130 |  | LEVER WITH SPRING, SUPPORT VSP14 VSP18 Part Number: 8.614-544.0 for Windsor | 86145440 | $71.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | | LEVER WITH SPRING, SUPPORT VSP14 VSP18 Part Number: 8.614-544.0 for Windsor | 86145440 | $71.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | Not Available | Windsor Spring, Vse Return | 86345580 | Not Available |
| 132 | Not Available | Windsor Spring, Vse Return | 86345580 | Not Available |
| 132 | | Screw, M3 9 x 13 MM Din 7981 VersaMatic/Sensor Part Number: 8.614-703.0 for Windsor | 86147030 | $3.82Read more |
| 133 | | Screw, M3 9 x 13 MM Din 7981 VersaMatic/Sensor Part Number: 8.614-703.0 for Windsor | 86147030 | $3.82Read more |
| 133 | No Image | SCREW, M3, 9 X 16 MM DIN 7981 VS/14,18,S12/15 Part Number: 8.614-704.0 for Windsor | 86147040 | $1.84Read more |
| 134 | No Image | SCREW, BRIDGE SR VS14/18 VSP14/18 Part Number: 8.614-488.0 for Windsor | 86144880 | $1.84Read more |
| 134 | No Image | SCREW, M3, 9 X 16 MM DIN 7981 VS/14,18,S12/15 Part Number: 8.614-704.0 for Windsor | 86147040 | $1.84Read more |
| 135 | No Image | SCREW, BRIDGE SR VS14/18 VSP14/18 Part Number: 8.614-488.0 for Windsor | 86144880 | $1.84Read more |
| 135 | | SCREW, M5 X 30MM DIN 7985A NP VS/14/VSP14/VSP18 Part Number: 8.614-707.0 for Windsor | 86147070 | $5.72Read more |
| 136 | Not Available | Windsor Spacer Washer | 86145190 | Not Available |
| 136 | | SCREW, M5 X 30MM DIN 7985A NP VS/14/VSP14/VSP18 Part Number: 8.614-707.0 for Windsor | 86147070 | $5.72Read more |
| 137 | Not Available | Windsor Spacer Washer | 86145190 | Not Available |
