Schematic and parts list for: Windsor Model: VACPAC VP10
This is a list of parts and a diagram and schematic for: Windsor Model: VACPAC VP10
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: VACPAC VP10

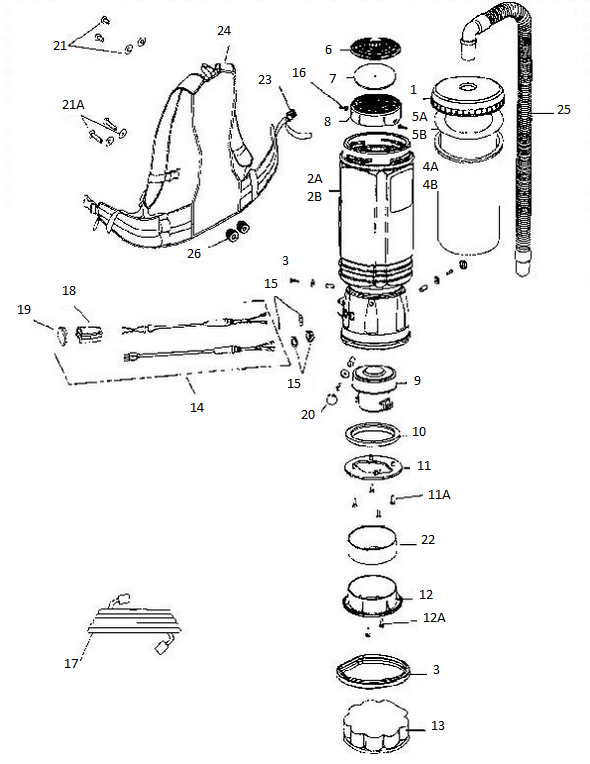

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Cap, Black | 88198740 | Not Available |
| 3 | Not Available | Windsor Bumper | 86198730 | Not Available |
| 4A | Not Available | Windsor Filter Bag. Micro-Tex (Cloth) Lg | 80198940 | Not Available |
| 4B | No Image | CLOTH BAG, LINER FILTER BACKPACK Part Number: 8.619-890.0 for Windsor | 86198900 | $77.68Read more |
| 5B | Not Available | Windsor Filter Bag, Micro (Paper) Sm 10/Pkg | 89198910 | Not Available |
| 5A |  | Cloth Bag, 10 Qt. Backpack 10 Pk Part Number: 8.619-885.0 for Windsor | 86198850 | $70.24Read more |
| 6 | Not Available | Windsor Cover, Filter Housing | 86198880 | Not Available |
| 7 | Not Available | Windsor Filter, Dome | 86198870 | Not Available |
| 8 | Not Available | Windsor Housing, Filter | 86198880 | Not Available |
| 9 | No Image | Motor, VP6/VP10 Backpack 115V UVP6 Part Number: 8.619-900.0 for Windsor | 86199000 | $399.30Read more |
| 10 | Not Available | Windsor Seal, Motor | 86169010 | Not Available |
| 11A | Not Available | Windsor Scr, Mtr Comp Ring (4/Pkg) | 88199070 | Not Available |
| 11 | Not Available | Windsor Ring, Mtr Compw/Scrs | 86199050 | Not Available |
| 12 | No Image | SCREWS, DIFFUSER VP6 Part Number: 8.619-879.0 for Windsor | 86198790 | $27.62Read more |
| 12A | Not Available | Windsor Scr, Air Diffuser (2/Pkg) | 86199080 | Not Available |
| 13 | Not Available | Windsor Filter, Air/Sound Diffuser | 8B198890 | Not Available |
| 14 |  | Switch, Black w/Power Cord w/o Box Kit VP6/VP10 Part Number: 8.619.895.0 for Windsor | 86198950 | $54.00Read more |
| 15 | Not Available | Windsor Nut, Strain Relief W1 Washer | 86199020 | Not Available |
| 16 | Not Available | Windsor Fastener Set, Filter Housing | 86198830 | Not Available |
| 17 | Not Available | Windsor Cord Asm, 50' Extension | 86198750 | Not Available |
| 18 | No Image | SWITCH, HOUSING Part Number: 8.622-510.0 for Windsor | 86225100 | $8.00Read more |
| 19 | No Image | SWITCH, VP6 VP10 Part Number: 8.619-912.0 for Windsor | 86199120 | $14.50Read more |
| 20 | Not Available | Windsor Fastener Set, Motor Mount | 80198800 | Not Available |
| 21 | Not Available | Windsor Fastener Set, Back Plate (Top) | 86198810 | Not Available |
| 21A | Not Available | Windsor Fastener Set, Back Plate (Btm) | 86198820 | Not Available |
| 22 | Not Available | Windsor Foam, Diffuser | 86198930 | Not Available |
| 23 | Not Available | Windsor Latch, Waist Belt | 86193990 | Not Available |
| 24 | Not Available | Windsor Harness Assembly, Vp6A/P10 | 86312540 | Not Available |
| 25 | Not Available | Windsor Hose Assembly | 86198770 | Not Available |
| 26 | Not Available | Windsor Spacer, Back Plate | 86199090 | Not Available |

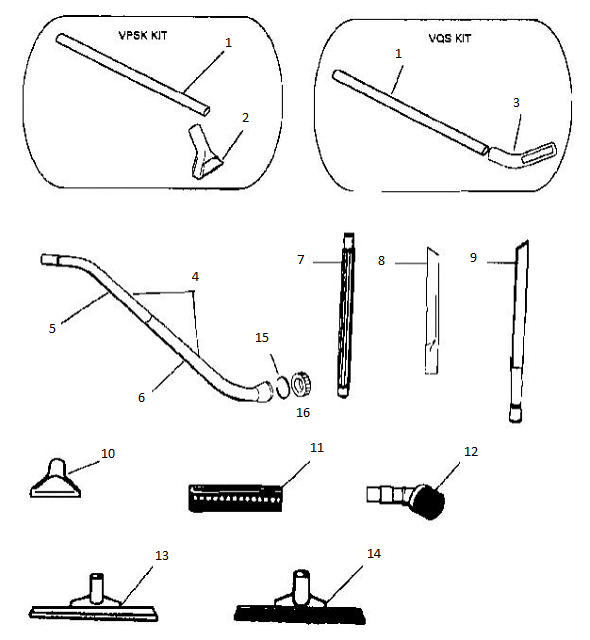

| # | Part image | Description | SKU | Price |
| 1 | No Image | WAND, SPOTTER 42" PVC VAC PAC Part Number: 8.609-022.0 for Windsor | 86090220 | $77.92Read more |
| 2 | Not Available | Windsor Tool Spot Lite | 63120 | Not Available |
| 3 | Not Available | Windsor Tool, Quick Sweep | 86033020 | Not Available |
| 4 | Not Available | Windsor Wand, Double Curve 2 Pc. Alum. | 96286660 | Not Available |
| 5 | Not Available | Windsor Wand, Upper | 86199140 | Not Available |
| 6 | Not Available | Windsor Wand, Lower | 8619B150 | Not Available |
| 7 | Not Available | Windsor Tube, 20" Extension | 86000090 | Not Available |
| 8 | Not Available | Windsor Tool, 16" Crevice | 86198760 | Not Available |
| 9 | Not Available | Windsor Tool, 28" Plastic Crevice | 86284510 | Not Available |
| 10 | Not Available | Windsor Tool, 5" Upholstery | 86000080 | Not Available |
| 11 | Not Available | Windsor Brush, Upholstery | 86283600 | Not Available |
| 12 | Not Available | Windsor Brush, 3" Dust | 86000070 | Not Available |
| 13 | Not Available | Windsor Tool, Carpet | 86284450 | Not Available |
| 14 | Not Available | Windsor Tool Bristle Shod Dry Pick-Up | 86284440 | Not Available |
| 15 | Not Available | Windsor Ring, Bottom Wand | 6199060 | Not Available |
| 16 | Not Available | Windsor Nut, Bottom Wand | B6199030 | Not Available |
