This is a list of parts and a diagram and schematic for: Windsor Model: TrekVac 3
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: TrekVac 3
| # | Part image | Description | SKU | Price |
| XX | Not Available | Windsor 01. Cover Complete T 7/1 | 40690020 | Not Available |
| 2 | Not Available | Windsor Straight Pin 5M6X50 - St Iso 2338 | 73140320 | Not Available |
| 3 | Not Available | Windsor Catch For Cable | 50325970 | Not Available |
| 4 | Not Available | Windsor Cable With Plug *Can | 66492480 | Not Available |
| 5 | Not Available | Windsor Caliper Kpl. | 43240190 | Not Available |
| 6 | Not Available | Windsor Screw 5X100-A2-70(In6Rd) | 73031550 | Not Available |
| 7 | Not Available | Windsor Air Circulation Kpl. | 46920310 | Not Available |
| 8 | Not Available | Windsor Blowing Filter | 64148020 | Not Available |
| 9 | Not Available | Windsor Grate Exhaust Opening | 50325690 | Not Available |
| 10 | Not Available | Windsor Handle T 12/1 | 53217270 | Not Available |
| 11 | Not Available | Windsor Filter Hepa (Optional) | 64148010 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Windsor 01. Housing Kpl. | 46050840 | Not Available |
| 2 | Not Available | Windsor Vacuum Motor Kpl. | 46100710 | Not Available |
| 3 | Not Available | Windsor Carbon Brush Set 100V-120V | 66102690 | Not Available |
| 4 | Not Available | Windsor Housing Complete | 46050700 | Not Available |
| 5 | Not Available | Windsor Locking Strap | 50325680 | Not Available |
| 6 | Not Available | Windsor Cover Plate | 50029230 | Not Available |
| 7 | No Image | SWITCH, RC3000 ROBO VAC Part Number: 66302140 for Karcher | 66302140 | $11.10Read more |
| 8 | Not Available | Windsor Electrical Small Parts | 48393580 | Not Available |
| 9 | Not Available | Windsor Screw 4X25 - 10.9-R2R (K-In6Rd) | 73030840 | Not Available |
| 10 | Not Available | Windsor Pull Relief | 50326720 | Not Available |
| 11 | Not Available | Windsor Filter 5 St. | 64146110 | Not Available |
| 12 | Not Available | Windsor Filtering Basket | 57316190 | Not Available |
| 13 | Not Available | Windsor Grate Filter Motor Protecting | 20326740 | Not Available |
| 14 | Not Available | Windsor Sael Gehaeuse | 62702400 | Not Available |
| 15 | Not Available | Windsor Countersuk Screw 3X16 - 10.9-R2R (In6Rd) | 73031230 | Not Available |
| # | Part image | Description | SKU | Price |

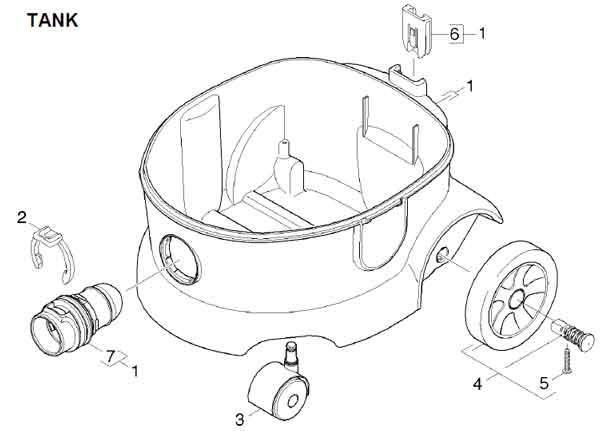

| XX | Not Available | Windsor 01. Tank Complete Blue | 40706400 | Not Available |
| 2 | Not Available | Windsor Locking Ring | 53430220 | Not Available |
| 3 | Not Available | Windsor Castor (2) | 64357070 | Not Available |
| 4 | Not Available | Windsor Wheel Complete Ral 9005 | 45152720 | Not Available |
| 5 | Not Available | Windsor Screw 5X30 - 10.9-R2R (K-In6Rd) -2 | 73030860 | Not Available |
| 6 | Not Available | Windsor Moulded Part | 50326680 | Not Available |
| 7 | Not Available | Windsor Suction Connection - T | 50325670 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Windsor 01. Suction Tube Black Dn32 | 69066180 | Not Available |
| 2 | Not Available | Windsor Combination Nozzle Dn 32 | 69066540 | Not Available |
| 3 | Not Available | Windsor Joint Complete | 69066970 | Not Available |
| 4 | Not Available | Windsor Filter Bag Paper Neutrally 200 Stck. | 69043180 | Not Available |
| 5 | Not Available | Windsor Filter Bags Fleece | 69043210 | Not Available |
| 6 | Not Available | Windsor Elbow | 44080510 | Not Available |
| 8 | Not Available | Windsor Tension Ring | 50317030 | Not Available |
| 9 | Not Available | Windsor Gasket 30,2X3,0 | 63631820 | Not Available |
| 10 | Not Available | Windsor Suction Hose Complete | 44409070 | Not Available |
| 11 | Not Available | Windsor Thread Clipper | 69066980 | Not Available |
