This is a list of parts and a diagram and schematic for: Windsor Model: TrekVac 2
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: TrekVac 2
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Cover Complete T 7/1 | 40690030 | Not Available |
| 2 | Not Available | Windsor Screw 4X25 - 10.9-R2R (K-In6Rd) | 73030840 | Not Available |
| 3 | Not Available | Windsor Screw 5X100-A2-70 (In6Rd) | 73031550 | Not Available |
| 4 | Not Available | Windsor Cable With Plug *Ca | 66493520 | Not Available |
| 5 | Not Available | Windsor Pushbutton Complete T 7/1 | 43240230 | Not Available |
| 6 | No Image | SWITCH, RC3000 ROBO VAC Part Number: 66302140 for Karcher | 66302140 | $11.10Read more |
| 7 | Not Available | Windsor Electrical Small Parts | 48393580 | Not Available |
| 8 | Not Available | Windsor Air Circulation Blue Ral 5005 | 56920930 | Not Available |
| 9 | Not Available | Windsor Strain Relief T 7/1 | 50328880 | Not Available |
| 10 | Not Available | Windsor Filter Exhaust Opening Neutrally 3 St. | 64148300 | Not Available |
| 11 | Not Available | Windsor Insulating Mat Set | 62865050 | Not Available |
| 12 | Not Available | Windsor Loack Washer 5 | 63431450 | Not Available |
| # | Part image | Description | SKU | Price |

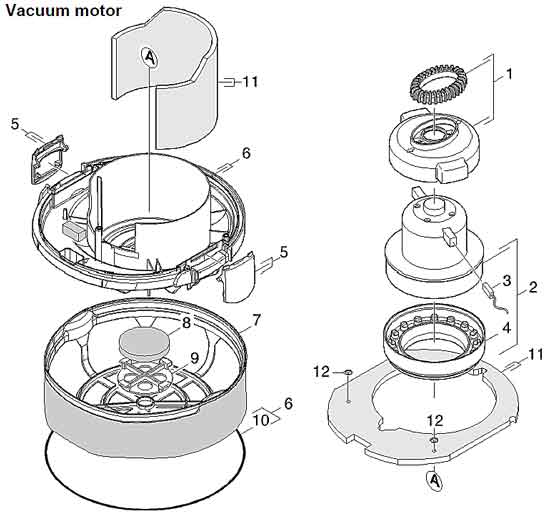

| 1 | Not Available | Windsor Housing Kpl. | 46050840 | Not Available |
| 2 | Not Available | Windsor Vacuum Motor Kpl. | 46100710 | Not Available |
| 3 | Not Available | Windsor Carbon Brush Set | 66102750 | Not Available |
| 4 | Not Available | Windsor Seal Turbine | 53636180 | Not Available |
| 5 | Not Available | Windsor Locking Strap | 50325680 | Not Available |
| 6 | Not Available | Windsor Housing Complete Only For Replacement Ra | 46050910 | Not Available |
| 7 | Not Available | Windsor Filtering Baslet Packaged T 7/1 | 57316240 | Not Available |
| 8 | Not Available | Windsor Filter 5 St. | 64146110 | Not Available |
| 9 | Not Available | Windsor Grate Filter Motor Protecting | 50326740 | Not Available |
| 10 | Not Available | Windsor Seal String Cellular Rubber D6 850 +/-5 | 62732610 | Not Available |
| 11 | Not Available | Windsor Insulating Mat Set | 62865050 | Not Available |
| 12 | Not Available | Windsor Lock Washer 5 | 63431450 | Not Available |
| # | Part image | Description | SKU | Price |

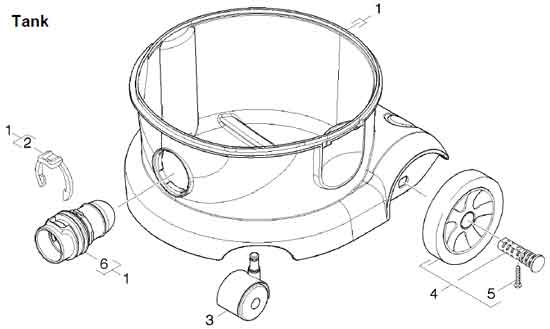

| 1 | Not Available | Windsor Tank Complete Trek Vac 2 Ral 5005 | 40706440 | Not Available |
| 2 | Not Available | Windsor Locking Ring | 53430220 | Not Available |
| 3 | Not Available | Windsor Castor | 64353530 | Not Available |
| 4 | Not Available | Windsor Wheel Complete T 7/1 | 45152570 | Not Available |
| 5 | Not Available | Windsor Screw 4X25 - 10.9-R2R (K-In6Rd) | 73030860 | Not Available |
| 6 | Not Available | Windsor Suction Connection - T | 50325670 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Suction Tube Black Dn32 | 69066180 | Not Available |
| 3 | Not Available | Windsor Floor Tool Packaged Dn 32 | 69068120 | Not Available |
| 4 | Not Available | Windsor Paper Filtering Bag 10 Stck Karcher | 69043330 | Not Available |
| 5 | Not Available | Windsor Filter Bags Fleece 10 Stck Karcher | 69043350 | Not Available |
| 6 | Not Available | Windsor Elbow | 44080510 | Not Available |
| 7 | Not Available | Windsor Crevice Nozzle Dn 32 | 69034030 | Not Available |
| 8 | Not Available | Windsor Tension Ring | 50317030 | Not Available |
| 9 | Not Available | Windsor Gasket 30,2X3,0 | 63631820 | Not Available |
| 10 | Not Available | Windsor Suction Hose Complete | 44409070 | Not Available |
| 11 | Not Available | Windsor Paper Filterinng Bag China | 69043700 | Not Available |
