This is a list of parts and a diagram and schematic for: Windsor Model: Titan Wet Dry
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Titan Wet Dry

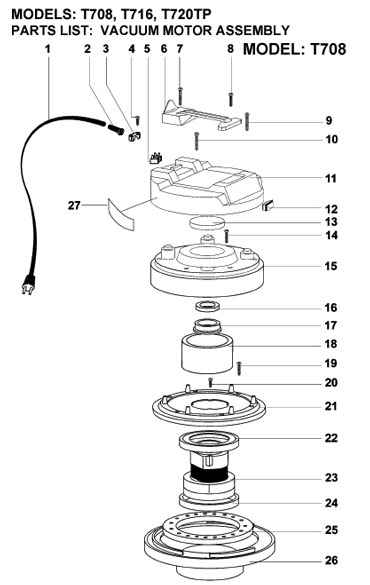

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Cord, 120 Volt | 86162840 | Not Available |
| 2 | Not Available | Windsor Strain Relief | 86164070 | Not Available |
| 3 | Not Available | Windsor Terminal Clip | 86164210 | Not Available |
| 4 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 5 | Not Available | Windsor Terminal Block | 86164220 | Not Available |
| 6 | Not Available | Windsor Handle, Gray | 86163280 | Not Available |
| 7 | Not Available | Windsor Screw, 5 X 40 | S82627 | Not Available |
| 8 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 9 | Not Available | Windsor Screw, 5 X 30 | 86163890 | Not Available |
| 10 | Not Available | Windsor Screw, 5 X 30 | 86163890 | Not Available |
| 11 | Not Available | Windsor Cover | 86162870 | Not Available |
| 12 | Not Available | Windsor Switch, On/Off | 86164150 | Not Available |
| 13 | Not Available | Windsor Filter, 95 | 86163120 | Not Available |
| 14 | Not Available | Windsor Screw, 5 X 35 | 86163880 | Not Available |
| 15 | Not Available | Windsor Cover, Motor, Gray | 86162850 | Not Available |
| 16 | Not Available | Windsor Gasket | 86163210 | Not Available |
| 17 | Not Available | Windsor Ring | 86163780 | Not Available |
| 18 | Not Available | Windsor Filter | 86163110 | Not Available |
| 19 | Not Available | Windsor Screw, 5 X 40 | S82627 | Not Available |
| 20 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 21 | Not Available | Windsor Motor Ring, Gray | 86163480 | Not Available |
| 22 | Not Available | Windsor Gasket | 86163200 | Not Available |
| 23 | Not Available | Windsor Motor, 120V | 86163470 | Not Available |
| 24 | Not Available | Windsor Gasket 1 | 86163200 | Not Available |
| 25 | Not Available | Windsor Disk, Noise Reduction | 86162940 | Not Available |
| 26 | Not Available | Windsor Base, Motor, Gray | 86162610 | Not Available |
| 27 | Not Available | Windsor Label, Windsor Logo | 86163410 | Not Available |

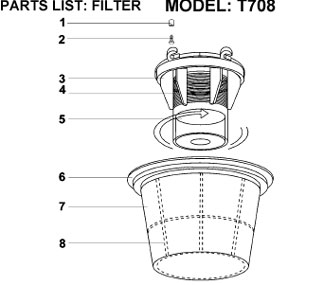

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Bushing | 86162730 | Not Available |
| 2 | Not Available | Windsor Screw, 5 X 25 | 86163950 | Not Available |
| 3 | Not Available | Windsor Body, Filter Support | 86162690 | Not Available |
| 4 | Not Available | Windsor Filter/Strainer | 86163080 | Not Available |
| 5 | Not Available | Windsor Float | 86163150 | Not Available |
| 6 | Not Available | Windsor Ring, Filter | S80123 | Not Available |
| 7 | Not Available | Windsor Filter Bag | 86163050 | Not Available |
| 8 | Not Available | Windsor Support, Filter Bag | 86164130 | Not Available |

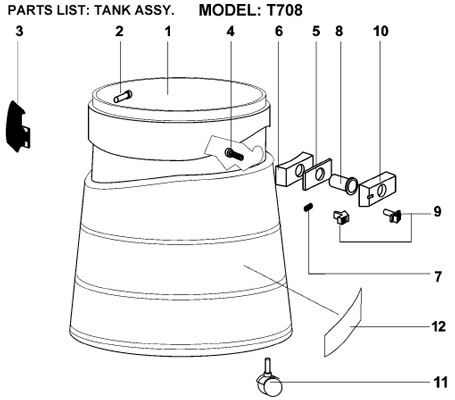

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Tank | 86164190 | Not Available |
| 2 | Not Available | Windsor Rivet, 5 X 24.5 | 86163800 | Not Available |
| 3 | Not Available | Windsor Tank Clamp | 86164160 | Not Available |
| 4 | Not Available | Windsor Screw, M5 X 35 | 86163880 | Not Available |
| 5 | Not Available | Windsor Gasket | 86163190 | Not Available |
| 6 | Not Available | Windsor Retainer, Tank Adapter | 86163770 | Not Available |
| 7 | Not Available | Windsor Spring, Push Button | 86164010 | Not Available |
| 8 | Not Available | Windsor Tank Deflector | 86164180 | Not Available |
| 9 | Not Available | Windsor Push Button, Two-Piece, Blue | 86163710 | Not Available |
| 10 | Not Available | Windsor Hose Adapter, Blue | 86163360 | Not Available |
| 11 | Not Available | Windsor Caster | 86162760 | Not Available |
| 12 | Not Available | Windsor Label, Titan | 86163400 | Not Available |

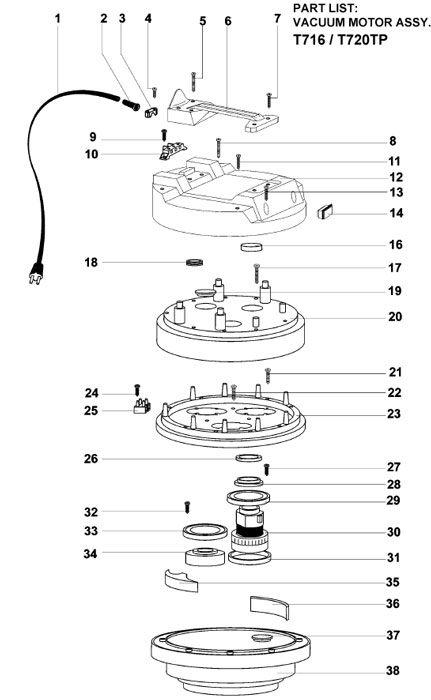

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Cord, 120 Volt | 86162840 | Not Available |
| 2 | Not Available | Windsor Strain Relief | 86164070 | Not Available |
| 3 | Not Available | Windsor Bracket | 86164210 | Not Available |
| 4 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 5 | Not Available | Windsor Screw, 5 X 50 | 86163890 | Not Available |
| 6 | Not Available | Windsor Handle, Gray | 86163290 | Not Available |
| 7 | Not Available | Windsor Screw, 5 X 25 | 86163920 | Not Available |
| 8 | Not Available | Windsor Screw, 5 X 50 | 86163890 | Not Available |
| 9 | Not Available | Windsor Screw, 5 X 14 | 86163850 | Not Available |
| 10 | Not Available | Windsor Terminal Block | 86164230 | Not Available |
| 11 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 12 | Not Available | Windsor Cover, Blue | 86162880 | Not Available |
| 13 | Not Available | Windsor Screw, 5 X 25 | 86163920 | Not Available |
| 14 | Not Available | Windsor Switch, On/Off | 86164150 | Not Available |
| 16 | Not Available | Windsor Filter | 86163120 | Not Available |
| 17 | Not Available | Windsor Screw, 5 X 50 | 86163890 | Not Available |
| 18 | Not Available | Windsor Gasket | 86163180 | Not Available |
| 19 | Not Available | Windsor Cap | 86162740 | Not Available |
| 20 | Not Available | Windsor Cover, Gray | 86162860 | Not Available |
| 21 | Not Available | Windsor Screw, 5 X 40 | S82627 | Not Available |
| 22 | Not Available | Windsor Screw, 5 X 40 | S82627 | Not Available |
| 23 | Not Available | Windsor Motor Base, Gray | 86163490 | Not Available |
| 24 | Not Available | Windsor Screw, 3 X 19 | S81004 | Not Available |
| 25 | Not Available | Windsor Terminal Block | 86164220 | Not Available |
| 26 | Not Available | Windsor Gasket | 86163210 | Not Available |
| 27 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 28 | Not Available | Windsor Ring | 86163780 | Not Available |
| 29 | Not Available | Windsor L-Gasket | 86163200 | Not Available |
| 30 | Not Available | Windsor Motor 120 Volt | Ss8813182901Ss | Not Available |
| 31 | Not Available | Windsor L-Gasket | 86163200 | Not Available |
| 32 | Not Available | Windsor Screw, 5 X 20 | 86163860 | Not Available |
| 33 | Not Available | Windsor L-Gasket | 86163200 | Not Available |
| 34 | Not Available | Windsor Motor Seal | 86163500 | Not Available |
| 35 | Not Available | Windsor Filter | S82454 | Not Available |
| 36 | Not Available | Windsor Filter | 86163100 | Not Available |
| 37 | Not Available | Windsor Base Plug | 86162640 | Not Available |
| 38 | Not Available | Windsor Base | 86162630 | Not Available |

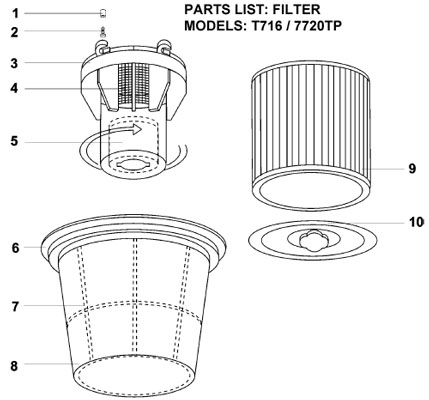

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Bushing | 86162730 | Not Available |
| 2 | Not Available | Windsor Screw, 5X25 | 86163950 | Not Available |
| 3 | Not Available | Windsor Body, Filter Support | 86162690 | Not Available |
| 4 | Not Available | Windsor Strainer | 86164080 | Not Available |
| 5 | Not Available | Windsor Float | 86163150 | Not Available |
| 6 | Not Available | Windsor Filter Ring | 86163010 | Not Available |
| 7 | Not Available | Windsor Filter Bag | 86163020 | Not Available |
| 8 | Not Available | Windsor Support, Filter | 86164120 | Not Available |
| 9 | Not Available | Windsor Filter Optional | 86163030 | Not Available |
| 10 | Not Available | Windsor Filter Retainer Optional | 86163040 | Not Available |

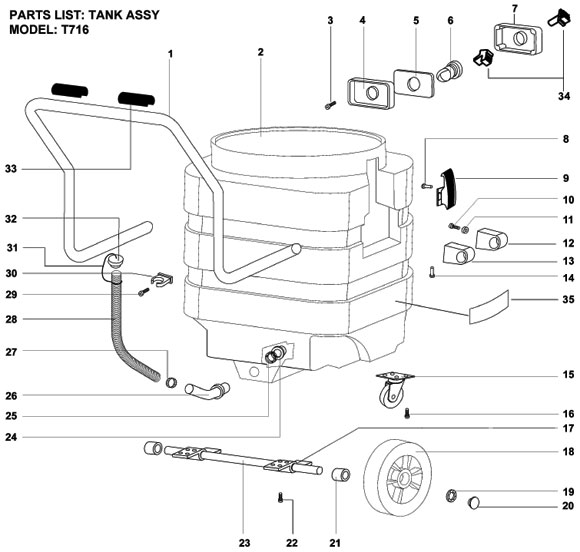

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Handle | S82558V | Not Available |
| 2 | Not Available | Windsor Tank 400 | 86164200 | Not Available |
| 3 | Not Available | Windsor Screw, M5X | 86163870 | Not Available |
| 4 | Not Available | Windsor Retainer, Tank | 86163760 | Not Available |
| 5 | Not Available | Windsor Gasket | 86163190 | Not Available |
| 6 | Not Available | Windsor Deflector, Tank | 86164180 | Not Available |
| 7 | Not Available | Windsor Adapter | 86162560 | Not Available |
| 8 | Not Available | Windsor Rivet, 5 X 24.5 | 86163800 | Not Available |
| 9 | Not Available | Windsor Clamp | 86164160 | Not Available |
| 10 | Not Available | Windsor Screw, M8 X 15 | 86163880 | Not Available |
| 11 | Not Available | Windsor Plastic Washer | 86163670 | Not Available |
| 12 | Not Available | Windsor Support, Handle | 86164090 | Not Available |
| 13 | Not Available | Windsor Support | 86164100 | Not Available |
| 14 | Not Available | Windsor Rivet, M5 X 19 | 86163810 | Not Available |
| 15 | Not Available | Windsor Wheel Caster | 86164310 | Not Available |
| 16 | Not Available | Windsor Screw, M8 X 15 | 86163930 | Not Available |
| 17 | Not Available | Windsor Support, Axle | 86164110 | Not Available |
| 18 | Not Available | Windsor Wheel | 86164300 | Not Available |
| 19 | Not Available | Windsor Cap, End | 86162750 | Not Available |
| 20 | Not Available | Windsor Axle Cap | 86162600 | Not Available |
| 21 | Not Available | Windsor Spacer, Wheel | 86164000 | Not Available |
| 22 | Not Available | Windsor Screw, M5 X 20 | 86163860 | Not Available |
| 23 | Not Available | Windsor Axle | 86162580 | Not Available |
| 24 | Not Available | Windsor Nut, Flange, 37987 | 86163570 | Not Available |
| 25 | Not Available | Windsor Gasket | 86163170 | Not Available |
| 26 | Not Available | Windsor Elbow | 86162980 | Not Available |
| 27 | Not Available | Windsor Clamp | 86162800 | Not Available |
| 28 | Not Available | Windsor Drain Tube | 86162950 | Not Available |
| 29 | Not Available | Windsor Screw, M5 X 20 | 86163940 | Not Available |
| 30 | Not Available | Windsor Clip Tube | 86162810 | Not Available |
| 31 | Not Available | Windsor Tie Rod, Plug | S82812 | Not Available |
| 32 | Not Available | Windsor Plug, Stopper | 86163690 | Not Available |
| 33 | Not Available | Windsor Handgrip | 86163300 | Not Available |
| 34 | Not Available | Windsor Push Button, Two-Piece, Blu | 86163710 | Not Available |
| 35 | Not Available | Windsor Label, Titan | 86163400 | Not Available |

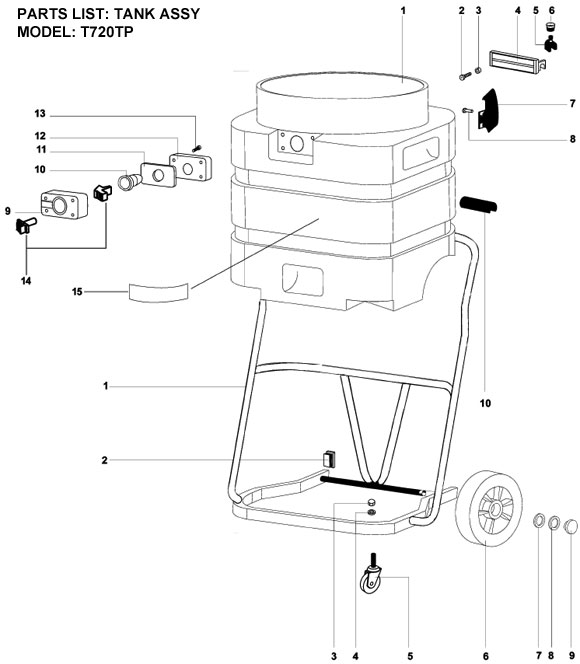

| # | Part image | Description | SKU | Price |
| 11 | Not Available | Windsor Gasket | 86163190 | Not Available |
| 12 | Not Available | Windsor Retainer, Tank Adapter | S82586Ag6 | Not Available |
| 13 | Not Available | Windsor Screw, M5 X 35 | 86163880 | Not Available |
| 14 | Not Available | Windsor Push Button, Two-Piece, Blue | 86163710 | Not Available |
| 15 | Not Available | Windsor Label, Titan | 86163400 | Not Available |

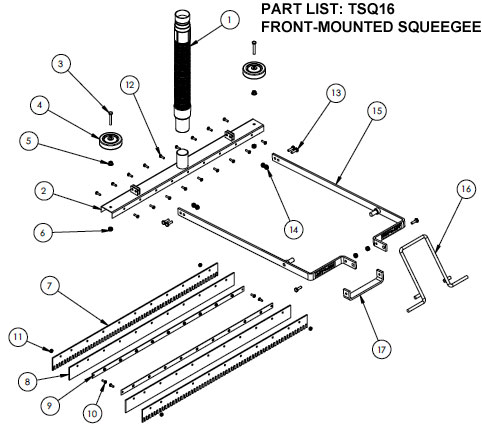

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Hose Assembly | 86163330 | Not Available |
| 2 | Not Available | Windsor Housing | 86163390 | Not Available |
| 2.12 | Not Available | Windsor Complete Squeegee Assembly | 86162820 | Not Available |
| 3 | Not Available | Windsor Bolt, Guide Wheel, 43834 X 1.75"L. | Bd735608 | Not Available |
| 4 | Not Available | Windsor Guide Wheel | 86163220 | Not Available |
| 5 | Not Available | Windsor Jam Nut, 43834 Serrated Flanged | Bd735611 | Not Available |
| 6 | Not Available | Windsor Nylock Nut, 43834 | Bd735609 | Not Available |
| 7 | Not Available | Windsor Slotted Blade | 86163960 | Not Available |
| 8 | Not Available | Windsor Solid Blade | 86163980 | Not Available |
| 9 | Not Available | Windsor Blade Support | 86162650 | Not Available |
| 10 | Not Available | Windsor Blade End Screw, 11963 X 1/2"L, Ss | Bd735604 | Not Available |
| 11 | Not Available | Windsor Blade End Screw Nut, 10-32, Nylock | Bd735605 | Not Available |
| 12 | Not Available | Windsor Blade AttachT Screw, 11963 X 5/8"L Ss | Bd735603 | Not Available |
| 13 | Not Available | Windsor Mounting Bolts, 43834 X 3/4"L | Bd735612 | Not Available |
| 14 | Not Available | Windsor Nylock Nut, 43834 | Bd735609 | Not Available |
| 15 | Not Available | Windsor Lifting Arm | 86163440 | Not Available |
| 16 | Not Available | Windsor Latch | 86163420 | Not Available |
| 17 | Not Available | Windsor Cross Member | 86162910 | Not Available |

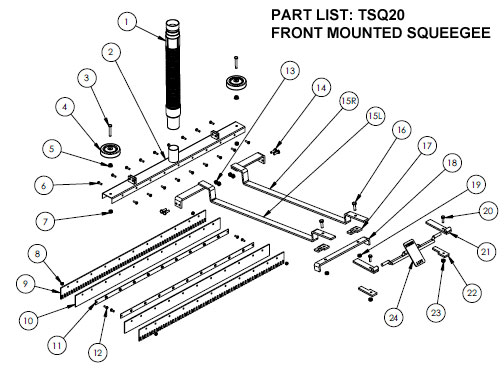

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Hose Assembly | 86163330 | Not Available |
| 2 | Not Available | Windsor Housing | 86163390 | Not Available |
| 3 | Not Available | Windsor Bolt, Guide Wheel, 1/4-20 X 1.75"L. | Bd735608 | Not Available |
| 4 | Not Available | Windsor Guide Wheel | 86163220 | Not Available |
| 5 | Not Available | Windsor Jam Nut, 1/4-20 Serrated Flanged | Bd735611 | Not Available |
| 6 | Not Available | Windsor Blade AttachT Screw, 10-32 X 5/8"L Ss | Bd735603 | Not Available |
| 7 | Not Available | Windsor Nylock Nut, 1/4-20 | Bd735609 | Not Available |
| 8 | Not Available | Windsor Blade End Screw Nut, 10-32, Nylock | Bd735605 | Not Available |
| 9 | Not Available | Windsor Slotted Blade | 86163960 | Not Available |
| 10 | Not Available | Windsor Solid Blade | 86163980 | Not Available |
| 11 | Not Available | Windsor Blade Support | 86162650 | Not Available |
| 12 | Not Available | Windsor Blade AttachT Screw, 10-32 X 5/8"L Ss | Bd735603 | Not Available |
| 13 | Not Available | Windsor Nylock Nut, 1/4-20 | Bd735609 | Not Available |
| 14 | Not Available | Windsor Mounting Bolts, 1/4-20 X 3/4"L | Bd735612 | Not Available |
| 15R | Not Available | Windsor Lifting Arm Right Side | 86163460 | Not Available |
| 15L | Not Available | Windsor Lifting Arm Left Side | 86163450 | Not Available |
| 16 | Not Available | Windsor Bolt, Lifting Arm Clamp, 5/16-18 X 1"L. | Bd735613 | Not Available |
| 17 | Not Available | Windsor Clamp, Lifting Arm | 86162780 | Not Available |
| 18 | Not Available | Windsor Cross Member | 86162920 | Not Available |
| 19 | Not Available | Windsor Nylock Nut, 5/16-18 | Bd735614 | Not Available |
| 20 | Not Available | Windsor Bolt, Pedal Mount, 1/4-20 X 3/4"L. | Bd735612 | Not Available |
| 21 | Not Available | Windsor Pedal Mount | 86163630 | Not Available |
| 22 | Not Available | Windsor Clamp, Pedal Mount | 86162790 | Not Available |
| 23 | Not Available | Windsor Nylock Nut, 1/4-20 | Bd735609 | Not Available |
| 24 | Not Available | Windsor Pedal Assembly | 86163640 | Not Available |
Report errors on this page HERE
