This is a list of parts and a diagram and schematic for: Windsor Model: Recover 18
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Recover 18
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Scr, 1/4-20 X .50 Carriage Plt Blk | 86350450 | Not Available |
| 2 | Not Available | Windsor Plate, Sign Holder | 86350440 | Not Available |
| 3 | Not Available | Windsor Handle, Lift, Squeegee | 86349030 | Not Available |
| 4 | Not Available | Windsor Plate, Back Panel | 86349010 | Not Available |
| 5 | Not Available | Windsor Standoff,1/4-20 X 1.50 | 86349000 | Not Available |
| 6 | Not Available | Windsor Bearing Flanged .252Idx.377Od | 86348990 | Not Available |
| 7 | Not Available | Windsor Handle, Wetdry Vac | 86346140 | Not Available |
| 8 | Not Available | Windsor Cable, .09 X 29, 0707, Ss | 86345860 | Not Available |
| 9 | Not Available | Windsor Scr, 1/4-20 X 1.75 Carriage Plt Blk | 87511420 | Not Available |
| 10 | Not Available | Windsor Bolt, 1/4-20 X 1/2, Nc Hh(612945) | 87185820 | Not Available |
| 11 | Not Available | Windsor Nut, 1/4 Cap Ss | 87503060 | Not Available |
| 12 | Not Available | Windsor Washer, 1/4 X 5/8 Flat Ss | 86010630 | Not Available |
| 13 | Not Available | Windsor Pin, Clevis | 86009560 | Not Available |
| 14 | Not Available | Windsor Cotter, 1/4 Ring | 86008650 | Not Available |
| 15 | Not Available | Windsor Nut, 1/4-20 Hex Nylock Ss | 86005810 | Not Available |
| 16 | Not Available | Windsor Bolt, 1/4-20 X 3/4, Nc Hh (612937) | 98027000 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Brkt, Retainer, Squeegee | FNLA | Not Available |
| 2 | Not Available | Windsor Squeegee Blade, Wet/Dry Vac | FNLA | Not Available |
| 3 | Not Available | Windsor Squeegee, 24 | FNLA | Not Available |
| 4 | Not Available | Windsor Scr, 5/16-18 X 1.75 Bshcs Ss | FNLA | Not Available |
| 5 | Not Available | Windsor Screw, 5/16-18 X 1.50 Hhcs Ss | FNLA | Not Available |
| 6 | Not Available | Windsor Scr, 10-32 X 3/8 Pphms Ss | FNLA | Not Available |
| 7 | Not Available | Windsor Pin, Clevis | FNLA | Not Available |
| 8 | Not Available | Windsor Bushing, Spanner .435 X 1.10 | FNLA | Not Available |
| 9 | Not Available | Windsor Wheel, 3 Dia. Cushion Rubber | FNLA | Not Available |
| 10 | Not Available | Windsor Wheel, 1.5 Od X .31 Id X .75 W Gry | FNLA | Not Available |
| 11 | Not Available | Windsor Washer, 7/16 X 1 Flat | FNLA | Not Available |
| 12 | Not Available | Windsor Cotter, 5/16 Ring | FNLA | Not Available |
| 13 | Not Available | Windsor Nut, 5/16, Hex, Nc | FNLA | Not Available |
| 14 | Not Available | Windsor Squeegee Assy, Wet Vac | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Spring, Squeegee Arm | FNLA | Not Available |
| 2 | Not Available | Windsor Shaft, Squeegee, Arm | FNLA | Not Available |
| 3 | Not Available | Windsor Brkt, Retainer, Arm | FNLA | Not Available |
| 4 | Not Available | Windsor Arm, Squeegee, Pivot | FNLA | Not Available |
| 5 | Not Available | Windsor Washer, .52 X .88 Flat | FNLA | Not Available |
| 6 | Not Available | Windsor Scr, 1/4-20 X 1.00 Hhcs Ss | FNLA | Not Available |
| 7 | Not Available | Windsor Scr, 1/4-20 X 5/8 Hhcs Ss | FNLA | Not Available |
| 8 | Not Available | Windsor Nut, 1/4-28 Hex | FNLA | Not Available |
| 9 | Not Available | Windsor Washer, 1/4 X 5/8 Flat Ss | FNLA | Not Available |
| 10 | Not Available | Windsor Nut, 1/4-20 Esna Nc | FNLA | Not Available |
| 11 | Not Available | Windsor Knob, 1.5 Od X 5/16-18 | FNLA | Not Available |
| 12 | Not Available | Windsor Plate, Stiffener, Wet | FNLA | Not Available |
| 13 | Not Available | Windsor Screw #10B X 1/2 Phsm Blk | FNLA | Not Available |
| 14 | Not Available | Windsor 5/16 External Tooth Lock Washer, Zinc | FNLA | Not Available |
| 15 | Not Available | Windsor Washer 7/16Id X1Dx.08 Flt Ss | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Hose, Drain, 1.5 Id X 16 Lg | FNLA | Not Available |
| 2 | Not Available | Windsor Tank, Wet/Dry, Trim, Blu | FNLA | Not Available |
| 3 | Not Available | Windsor Scr, 10-32 X 3/8 Pphms Ss | FNLA | Not Available |
| 4 | Not Available | Windsor Clamp, 3/8 Nylon Ul/Csa | FNLA | Not Available |
| 5 | Not Available | Windsor Scr,Ka40X20,Ohcs,Wn1412,Pl | FNLA | Not Available |
| 6 | Not Available | Windsor Scr, Ka50X25, Pt Ohs, Wn1412, Pltd | FNLA | Not Available |
| 7 | Not Available | Windsor Hose, Insert | FNLA | Not Available |
| 8 | Not Available | Windsor Hose, Cap | FNLA | Not Available |
| 9 | Not Available | Windsor Clamp, 2.00 Worm Gear X .312 | FNLA | Not Available |
| 10 | Not Available | Windsor Akw Latch | FNLA | Not Available |
| 11 | Not Available | Windsor Scr, 8-32 X 3/4 Pfhtc F Blk | FNLA | Not Available |
| 12 | Not Available | Windsor Clip, C 1 1/2 Plastic | FNLA | Not Available |
| 13 | Not Available | Windsor Hose Adapter, Wetdry | FNLA | Not Available |
| 15 | Not Available | Windsor Washer, M5, Fndr, Iso7039,Ss | FNLA | Not Available |
| 16 | Not Available | Windsor Nut, 8-32 Hex Nylock Ss | FNLA | Not Available |
| 17 | Not Available | Windsor Hose, Wet/Dry Vac, 26.25 L | FNLA | Not Available |

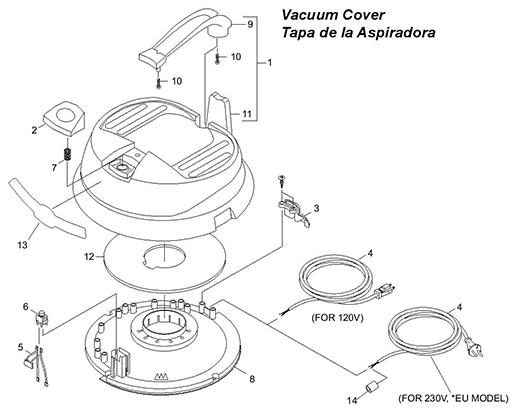

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Cover Complete Only For | FNLA | Not Available |
| 6 | Not Available | Windsor Switch | FNLA | Not Available |
| 7 | Not Available | Windsor Spring Switch | FNLA | Not Available |
| 8 | Not Available | Windsor Moulded Part | FNLA | Not Available |
| 9 | Not Available | Windsor Handhold | FNLA | Not Available |
| 10 | Not Available | Windsor Screw 4X25 -10.9-R2R (K-In6Rd) | FNLA | Not Available |
| 11 | Not Available | Windsor Cover | FNLA | Not Available |
| 12 | Not Available | Windsor Sound Insulation Set | FNLA | Not Available |
| 13 | Not Available | Windsor Label, Wet/Dry, Blu | FNLA | Not Available |
| 14 | Not Available | Windsor Ferrite Ring 230V *Eu Model | FNLA | Not Available |

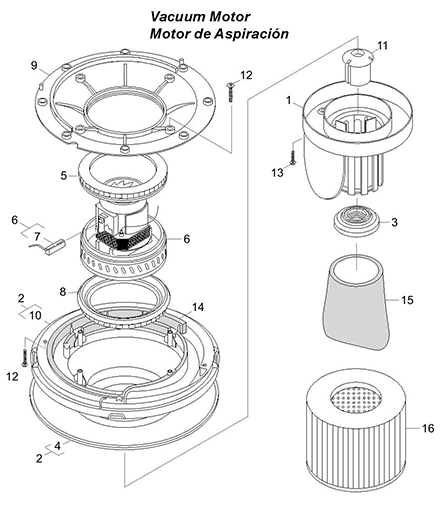

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Filtering Basket | FNLA | Not Available |
| 2 | Not Available | Windsor Motor Flange Complete | FNLA | Not Available |
| 3 | Not Available | Windsor Holder Filtering Basket | FNLA | Not Available |
| 4 | Not Available | Windsor Seal Flange Motor | FNLA | Not Available |
| 5 | Not Available | Windsor Seal Motor | FNLA | Not Available |
| 8 | Not Available | Windsor Seal Motor | FNLA | Not Available |
| 9 | Not Available | Windsor Flange Water | FNLA | Not Available |
| 10 | Not Available | Windsor Flange Motor | FNLA | Not Available |
| 11 | Not Available | Windsor Float | FNLA | Not Available |
| 12 | Not Available | Windsor Screw 4X 35 -10.9-R2R (K-In6Rd) | FNLA | Not Available |
| 13 | Not Available | Windsor Screw 4X16-St-10.9-R2R (In6Rd) | FNLA | Not Available |
| 14 | Not Available | Windsor Sound Insulation Set | FNLA | Not Available |
| 15 | Not Available | Windsor Filter (Wet) | FNLA | Not Available |
| 16 | Not Available | Windsor Filter (Dry) (Only For 230V* Eu Model) | FNLA | Not Available |

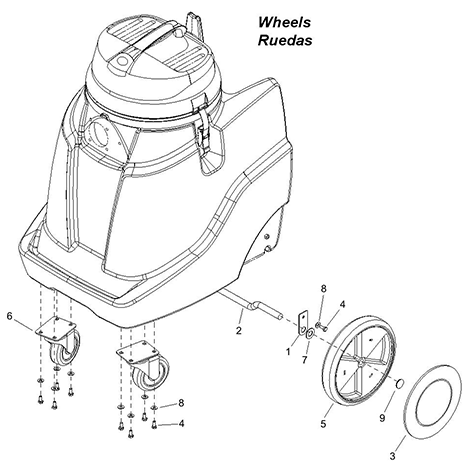

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Plate, Retainer, Axle | FNLA | Not Available |
| 2 | Not Available | Windsor Axle, Rear, 5/8 Dia | FNLA | Not Available |
| 3 | Not Available | Windsor Hubcap, 9.75 Wheel | FNLA | Not Available |
| 4 | Not Available | Windsor Scr, 1/4-20 X 5/8 Hhcs Ss | FNLA | Not Available |
| 5 | Not Available | Windsor Wheel, 9.75 X 1.5 | FNLA | Not Available |
| 6 | Not Available | Windsor Caster, Swivel 4 250# Cpcty | FNLA | Not Available |
| 7 | Not Available | Windsor Washer, 5/8 X 1-3/16 Flat Ss | FNLA | Not Available |
| 8 | Not Available | Windsor Washer, 1/4 X 5/8 Flat Ss | FNLA | Not Available |
| 9 | Not Available | Windsor Hubcap, 5/8 Shaft | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Elbow | FNLA | Not Available |
| 2 | Not Available | Windsor Hosebarb | FNLA | Not Available |
| 3 | Not Available | Windsor Suction Tube | FNLA | Not Available |
| 4 | Not Available | Windsor Suction Hose C Dn35 | FNLA | Not Available |
| 5 | Not Available | Windsor Cord Cellular Rubber | FNLA | Not Available |
| 6 | Not Available | Windsor Floor Tool Dn35 | FNLA | Not Available |
| 7 | Not Available | Windsor Axle | FNLA | Not Available |
| 8 | Not Available | Windsor Set Suction Lips | FNLA | Not Available |
| 9 | Not Available | Windsor Roller Only For | FNLA | Not Available |
| 10 | Not Available | Windsor Repair Set | FNLA | Not Available |
| 11 | Not Available | Windsor Tension Ring C35 | FNLA | Not Available |
