This is a list of parts and a diagram and schematic for: Windsor Model: Recover 17
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Recover 17
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Pushbutton | 53240570 | Not Available |
| 2 | Not Available | Windsor Spring Pushbutton | 53324900 | Not Available |
| 3 | Not Available | Windsor Cover Filter Complete | 40638500 | Not Available |
| 4 | Not Available | Windsor Cover Complete Nt 65/2 Eco | 40663210 | Not Available |
| 5 | Not Available | Windsor Handhold Complete | 43211500 | Not Available |
| 6 | Not Available | Windsor Screw 5X50 -A2-70 (In6Rd) | 73031540 | Not Available |
| 7 | Not Available | Windsor Screw 5X100-A2-70 (In6Rd) | 73031550 | Not Available |
| 8 | Not Available | Windsor Screw 5X30 -10.9-R2R (K-In6Rd) | 73030860 | Not Available |
| 11 | Not Available | Windsor Screw 4X25 -10.9-R2R (K-In6Rd) | 73030840 | Not Available |
| 12 | Not Available | Windsor Cover Backwashing | 50640170 | Not Available |
| # | Part image | Description | SKU | Price |

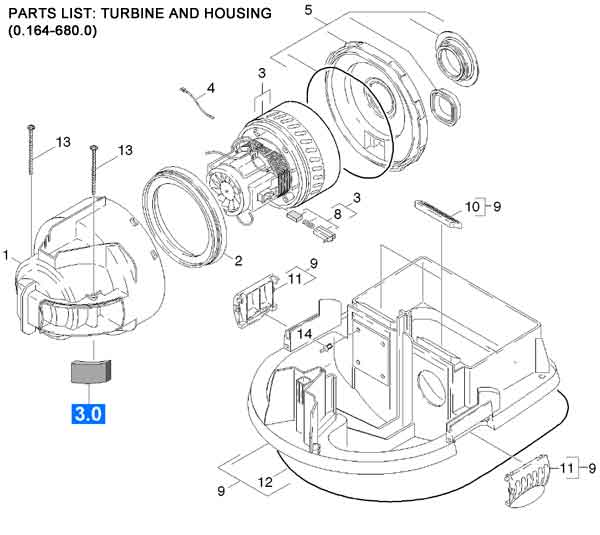

| 1 | Not Available | Windsor Housing Turbine Complete Ul | 40607500 | Not Available |
| 2 | Not Available | Windsor Seal | 53633930 | Not Available |
| 3 | Not Available | Windsor Vacuum Motor 120V | 64902280 | Not Available |
| 4 | Not Available | Windsor Cable Black Awg16X350Mm | 66490740 | Not Available |
| 5 | Not Available | Windsor Cover Complete | 40637280 | Not Available |
| 8 | Not Available | Windsor Carbon Brush | 66102460 | Not Available |
| 9 | Not Available | Windsor Housing Complete | 40610090 | Not Available |
| 10 | Not Available | Windsor Seal Aspiration | 53635750 | Not Available |
| 11 | Not Available | Windsor Locking Clip | 50322600 | Not Available |
| 12 | Not Available | Windsor Cord Cellular Rubber D10 | 63628570 | Not Available |
| 13 | Not Available | Windsor Screw 5X100-A2-70 (In6Rd) | 73031550 | Not Available |
| 14 | Not Available | Windsor Expanding Rivet 6,0 | 66415400 | Not Available |
| # | Part image | Description | SKU | Price |

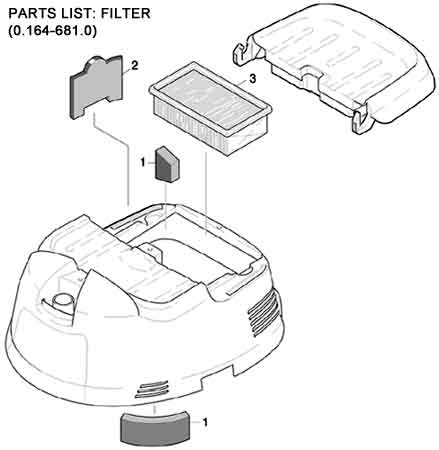

| 1 | Not Available | Windsor Filter Set | 28890710 | Not Available |
| 2 | Not Available | Windsor Filter Working Air Neutrally 3 St. | 69042140 | Not Available |
| 3 | Not Available | Windsor Flat Filter | 69042830 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Windsor Tank Blue Complete | 40706550 | Not Available |
| 2 | Not Available | Windsor Fixing | 50322850 | Not Available |
| 3 | Not Available | Windsor Screw 5X80 -10.9-R2R (K-In6Rd) | 73031710 | Not Available |
| 4 | Not Available | Windsor Holder Accessories Large | 50322610 | Not Available |
| 5 | Not Available | Windsor Holder Tilting Chassis | 50323490 | Not Available |
| 6 | Not Available | Windsor Holder Accessories | 50322620 | Not Available |
| 7 | Not Available | Windsor Drain Hose Dn32 | 63908960 | Not Available |
| 8 | Not Available | Windsor Joint Ring 32X44 | 63632500 | Not Available |
| 9 | Not Available | Windsor Hexagon Nut | 50319400 | Not Available |
| 11 | Not Available | Windsor Suction Connection | 50316020 | Not Available |
| 12 | Not Available | Windsor Handhold | 53216990 | Not Available |
| 13 | Not Available | Windsor Screw M6X20 -A2-70 (In6Rd) | 73061940 | Not Available |
| 14 | Not Available | Windsor Hexagon Nut M10 -04-A2E Iso 10511 | 73114230 | Not Available |
| 16 | Not Available | Windsor Castor With Brake | 64352410 | Not Available |
| 18 | Not Available | Windsor Rubber Buffer | 53325020 | Not Available |
| 19 | Not Available | Windsor Cylinder Head Screw M10X35-8.8-A3E Iso4 | 73060740 | Not Available |
| 20 | Not Available | Windsor Washer 10-200Hv-A3E Iso 7090 | 73120050 | Not Available |
| 21 | Not Available | Windsor O-Ring Seal 12,0 X 2,0 | 63621690 | Not Available |
| 23 | Not Available | Windsor Wheel D250 | 64353120 | Not Available |
| 24 | Not Available | Windsor Clamping Washer D25 | 63432170 | Not Available |
| 25 | Not Available | Windsor Wheel Cab Black Neutrally | 64353490 | Not Available |
| 26 | Not Available | Windsor Tilting Chassis | 64375260 | Not Available |
| 27 | Not Available | Windsor Sheet Metal Component | 50585230 | Not Available |
| 29 | Not Available | Windsor Bush M8 | 51109220 | Not Available |
| 30 | Not Available | Windsor Screw M8X12-St-A2E Din 7500-1 | 63030350 | Not Available |
| 31 | Not Available | Windsor Seal | 62732360 | Not Available |
| 33 | Not Available | Windsor Cap Nut M6 -A1-50 Din 917 | 73113340 | Not Available |
| 34 | Not Available | Windsor Cap | 63683710 | Not Available |
| 35 | Not Available | Windsor Handhold Complete | 63211720 | Not Available |
| # | Part image | Description | SKU | Price |

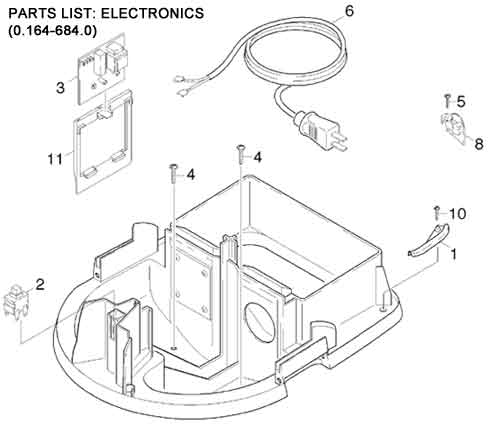

| 1 | Not Available | Windsor Covering Cap | 50323270 | Not Available |
| 2 | Not Available | Windsor Switch | 66300320 | Not Available |
| 3 | Not Available | Windsor Electronics Usa | 66825460 | Not Available |
| 4 | Not Available | Windsor Screw 5X16-St-A2C (Ko-In6Rd) | 63033060 | Not Available |
| 5 | Not Available | Windsor Screw 4X25 -10.9-R2R (K-In6Rd) | 73030840 | Not Available |
| 6 | Not Available | Windsor Cable With Plug | 66494610 | Not Available |
| 8 | Not Available | Windsor Strain Relief Iss 55-S Wuerth | 50319810 | Not Available |
| 10 | Not Available | Windsor Screw 4X16-St-10.9-R2R (In6Rd) | 73032050 | Not Available |
| 11 | Not Available | Windsor Carrier Circuit Board | 50616930 | Not Available |
| # | Part image | Description | SKU | Price |

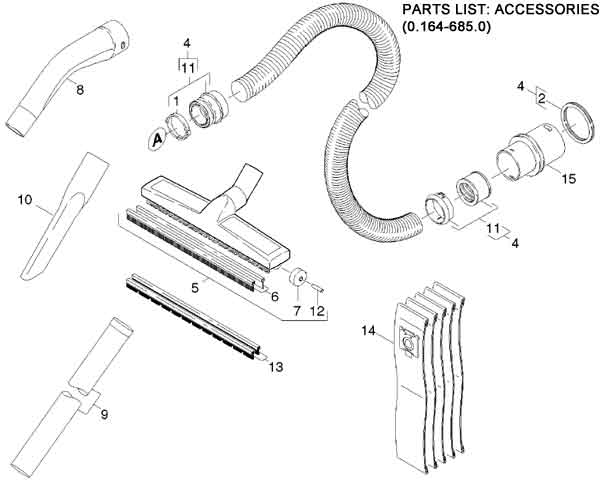

| 1 | Not Available | Windsor Tension Ring C40 | 50319050 | Not Available |
| 2 | Not Available | Windsor Cord Cellular Rubber | 62732020 | Not Available |
| 4 | Not Available | Windsor Suction Hose C40 4M | 69063210 | Not Available |
| 5 | Not Available | Windsor Floor Tool Dn40 | 69069580 | Not Available |
| 6 | Not Available | Windsor Rubber Lip Set Only For Replacement | 69058770 | Not Available |
| 7 | Not Available | Windsor Roller Only For Replacement | 45153420 | Not Available |
| 8 | Not Available | Windsor Elbow | 50319040 | Not Available |
| 9 | Not Available | Windsor Suction Tube Dn40-0,55M | 69002750 | Not Available |
| 10 | Not Available | Windsor Crevice Nozzle Dn40 | 69030330 | Not Available |
| 11 | Not Available | Windsor Repair Set | 26398730 | Not Available |
| 12 | Not Available | Windsor Axle | 64370260 | Not Available |
| 13 | Not Available | Windsor Brush Strips Set Only For Replacement | 69058780 | Not Available |
| 14 | Not Available | Windsor Filter Bags 5St. -Nt 65/2 Eco | 69042850 | Not Available |
| 15 | Not Available | Windsor Hosebarb Dn40 | 54434770 | Not Available |
