This is a list of parts and a diagram and schematic for: Shop-Vac Model: VN92650C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

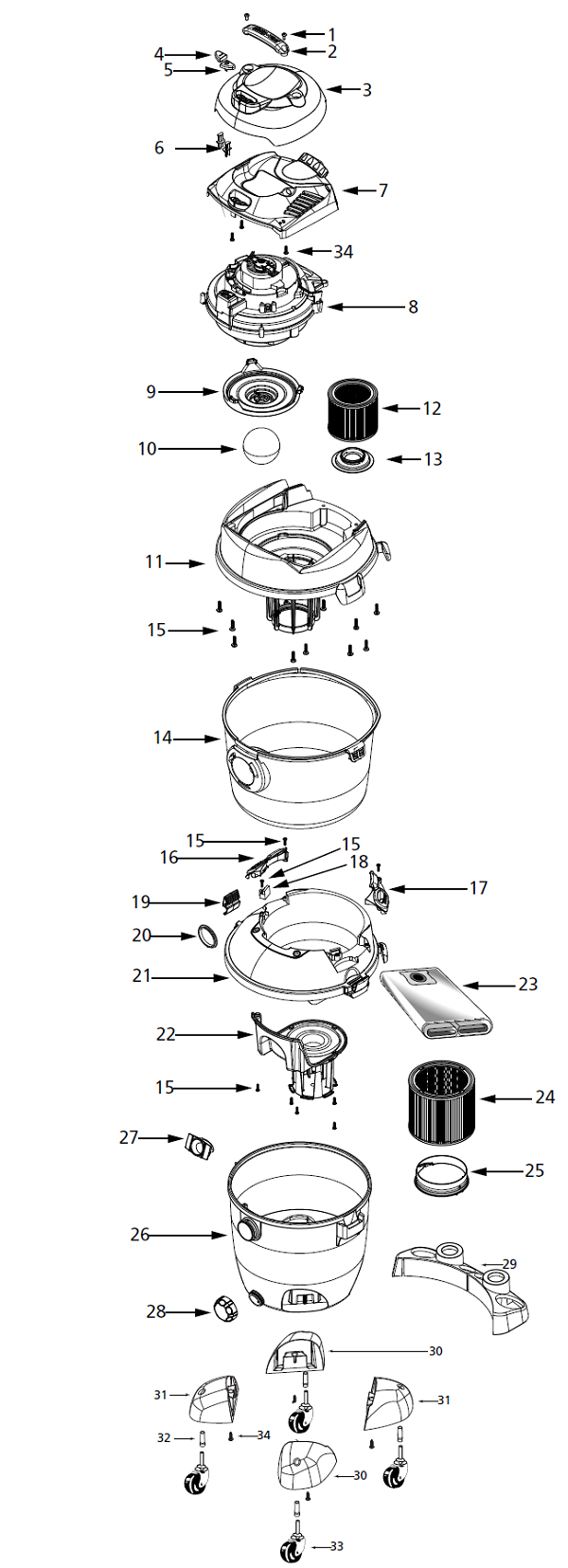

Parts for: VN92650C (16 Gal, 6.5 HP, Red)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw 1/4 x 1.5' Trilobe PH Pan | SV-1517499 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-1944448 | Not Available |
| 03 | Not Available | Shop-Vac Outer Motor Cover | SV-3740551 | Not Available |
| 04 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 06 | Not Available | Shop-Vac Switch Button Extension | SV-7414250 | Not Available |
| 07 | Not Available | Shop-Vac Inner Motor Cover | SV-3741054 | Not Available |
| 08 | Not Available | Shop-Vac Power Unit Assembly | SV-8137497 | Not Available |
| 09 | Not Available | Shop-Vac Grid Plate | SV-8866000 | Not Available |
| 10 | Not Available | Shop-Vac Ball Float | SV-0081120 | Not Available |
| 11 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944473 | Not Available |
| 12 |  | Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac | 9039800 | $29.95Read more |
| 13 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 14 | Not Available | Shop-Vac Tank Assembly | SV-1094797 | Not Available |
| 15 | Not Available | Shop-Vac Screw 1/4 x 3/4 Trilobe | SV-1516599 | Not Available |
| 16 | Not Available | Shop-Vac Securement Arm - Left | SV-3540721 | Not Available |
| 17 | Not Available | Shop-Vac Securement Arm - Right | SV-3540701 | Not Available |
| 18 | Not Available | Shop-Vac Stop | SV-3540751 | Not Available |
| 19 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 20 | Not Available | Shop-Vac Inlet Gasket | SV-2075000 | Not Available |
| 21 | Not Available | Shop-Vac Cradle Assembly | SV-1944447 | Not Available |
| 22 | Not Available | Shop-Vac Filter Cage Assembly | SV-1944433 | Not Available |
| 23 | Not Available | Shop-Vac Collection Bag | SV-9066300 | Not Available |
| 24 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 25 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 26 | Not Available | Shop-Vac Tank Assembly | SV-7345497 | Not Available |
| 27 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 28 | Not Available | Shop-Vac Drain Cover | SV-7413620 | Not Available |
| 29 | Not Available | Shop-Vac Tool Holder | SV-8411300 | Not Available |
| 30 | Not Available | Shop-Vac Casterfoot A | SV-7431330 | Not Available |
| 31 | Not Available | Shop-Vac Casterfoot B | SV-7431350 | Not Available |
| 32 | Not Available | Shop-Vac Retainer | SV-8565700 | Not Available |
| 33 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 34 | Not Available | Shop-Vac Screw 10 x 3/4' SL Hex Head | SV-1503999 | Not Available |

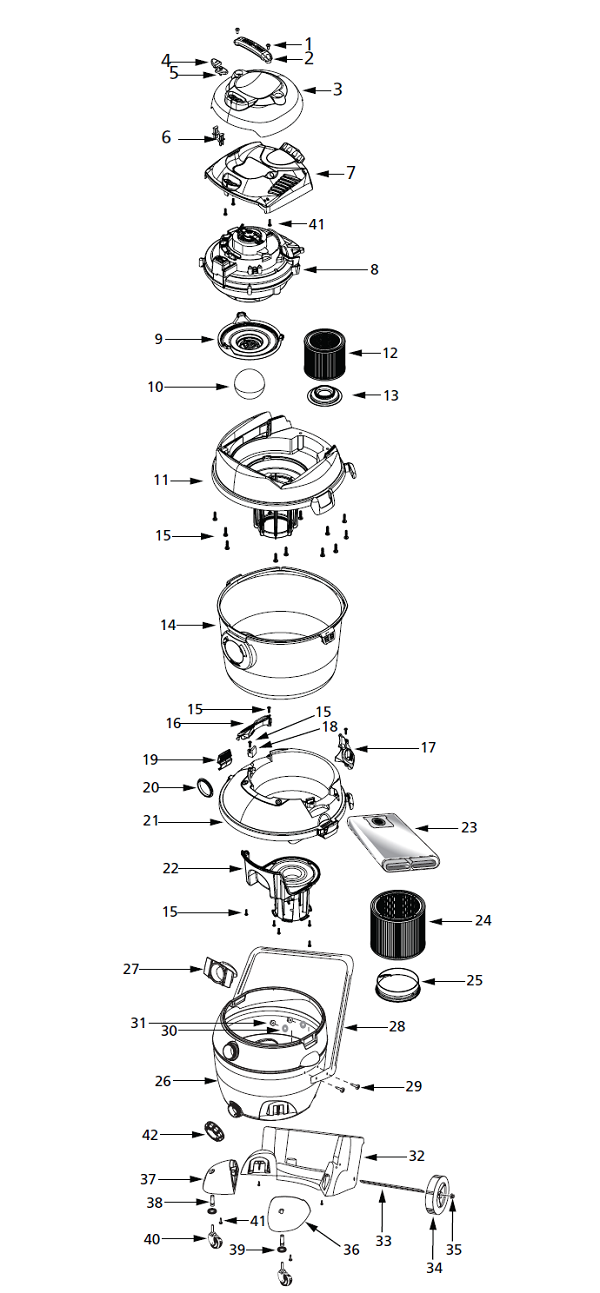

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw 1 /4 x 11 /2' Trilobe PH Pan | SV-1517499 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-1944448 | Not Available |
| 03 | Not Available | Shop-Vac Outer Motor Cover | SV-3740551 | Not Available |
| 04 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 06 | Not Available | Shop-Vac Switch Button Extension | SV-7414250 | Not Available |
| 07 | Not Available | Shop-Vac Inner Motor Cover | SV-3741054 | Not Available |
| 08 | Not Available | Shop-Vac Power Unit Assembly | SV-8137497 | Not Available |
| 09 | Not Available | Shop-Vac Grid Plate | SV-8866000 | Not Available |
| 10 | Not Available | Shop-Vac Ball Float | SV-0081120 | Not Available |
| 11 | Not Available | Shop-Vac Lid Cage | SV-1944473 | Not Available |
| 12 | | Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac | 9039800 | $29.95Read more |
| 13 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 14 | Not Available | Shop-Vac Tank Assembly | SV-1094797 | Not Available |
| 15 | Not Available | Shop-Vac Screw 10 x 3 /4Trilobe | SV-1517699 | Not Available |
| 16 | Not Available | Shop-Vac Securement Arm - Left | SV-3540721 | Not Available |
| 17 | Not Available | Shop-Vac Securement Arm - Right | SV-3540701 | Not Available |
| 18 | Not Available | Shop-Vac Stop | SV-3540751 | Not Available |
| 19 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 20 | Not Available | Shop-Vac Inlet Gasket | SV-2075000 | Not Available |
| 21 | Not Available | Shop-Vac Cradle Assembly | SV-1944447 | Not Available |
| 22 | Not Available | Shop-Vac Filter Cage Assembly | SV-1944433 | Not Available |
| 23 | Not Available | Shop-Vac Collection Bag | SV-9066300 | Not Available |
| 24 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 25 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 26 | Not Available | Shop-Vac Tank Assembly | SV-7365797 | Not Available |
| 27 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 28 | Not Available | Shop-Vac Carriage Handle | SV-2088000 | Not Available |
| 29 | Not Available | Shop-Vac Screw 1 /4'-20 x 3 /4' Slotted Thread | SV-0810899 | Not Available |
| 30 | Not Available | Shop-Vac Sealing Washer | SV-0701299 | Not Available |
| 31 | Not Available | Shop-Vac 1 /4'-20 Locknut - Heavy Hex HD | SV-1304599 | Not Available |
| 32 | Not Available | Shop-Vac Rear Dolly/Basket | SV-7417350 | Not Available |
| 33 | Not Available | Shop-Vac Axle | SV-2442100 | Not Available |
| 34 | Not Available | Shop-Vac 8' Rear Wheel | SV-2425010 | Not Available |
| 35 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 36 | Not Available | Shop-Vac Casterfoot A | SV-7431300 | Not Available |
| 37 | Not Available | Shop-Vac Casterfoot B | SV-7431310 | Not Available |
| 38 | Not Available | Shop-Vac Retainer | SV-8565700 | Not Available |
| 39 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
| 40 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 41 | Not Available | Shop-Vac Screw 10 x 3 /4' Sl Hex Head | SV-1503999 | Not Available |
| 42 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
