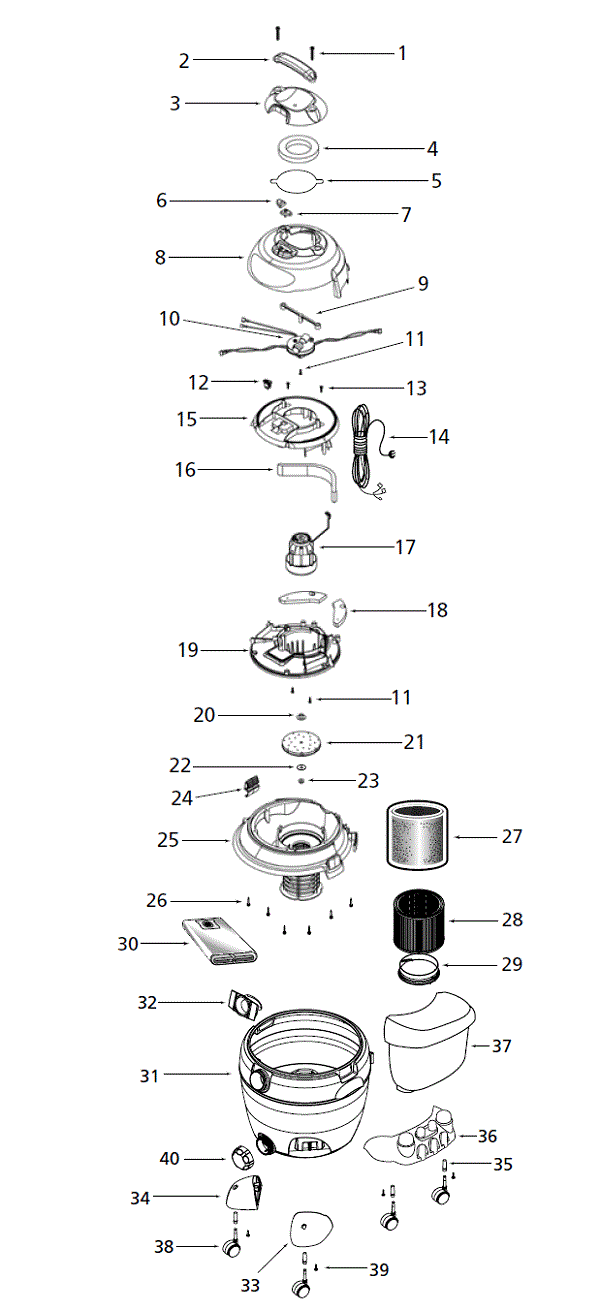

This is a list of parts and a diagram and schematic for: Shop-Vac Model: UMSR002
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: UMSR002 (12 Gal, 12 Amps, Yellow)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw 1/4 x 3/4 Trilobe | SV-1516999 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-7444400 | Not Available |
| 03 | Not Available | Shop-Vac Motor Cover | SV-7449210 | Not Available |
| 04 | Not Available | Shop-Vac Foam Pad | SV-1290533 | Not Available |
| 05 | Not Available | Shop-Vac Debris Shield | SV-1369601 | Not Available |
| 06 | Not Available | Shop-Vac Switch Button - On | SV-7414200 | Not Available |
| 07 | Not Available | Shop-Vac Switch Button - Off | SV-7414210 | Not Available |
| 08 | Not Available | Shop-Vac Motor Housing Cover Assembly | SV-1944419 | Not Available |
| 09 | Not Available | Shop-Vac Hanger | SV-2940730 | Not Available |
| 10 | Not Available | Shop-Vac Motor Controller | SV-1944268 | Not Available |
| 11 | Not Available | Shop-Vac Screw #8 - 10 x 5/8" | SV-1591725 | Not Available |
| 12 | Not Available | Shop-Vac Switch | SV-8232311 | Not Available |
| 13 | Not Available | Shop-Vac Screw #10 - 16 x 3/4" Type AB T25 Pan Head | SV-1515399 | Not Available |
| 14 | Not Available | Shop-Vac Power Cord | SV-2580048 | Not Available |
| 15 | Not Available | Shop-Vac Baffle | SV-1644270 | Not Available |
| 16 | Not Available | Shop-Vac Foam Insert | SV-1290510 | Not Available |
| 17 | Not Available | Shop-Vac Motor | SV-1944271 | Not Available |
| 18 | Not Available | Shop-Vac Foam Insert | SV-1290531 | Not Available |
| 19 | Not Available | Shop-Vac Motor Housing | SV-1944275 | Not Available |
| 20 | Not Available | Shop-Vac Impeller Spacer | SV-2940913 | Not Available |
| 21 | Not Available | Shop-Vac Impeller | SV-2781073 | Not Available |
| 22 | Not Available | Shop-Vac Washer | SV-1595503 | Not Available |
| 23 | Not Available | Shop-Vac Flanged Hex Nut | SV-1362902 | Not Available |
| 24 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 25 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944312 | Not Available |
| 26 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe T25 Head | SV-1516599 | Not Available |
| 27 | Not Available | Shop-Vac Foam Sleeve | SV-9058510 | Not Available |
| 28 | Not Available | Shop-Vac Cartridge Filter | SV-9035000 | Not Available |
| 29 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 30 | Not Available | Shop-Vac Collection Bag | SV-9190610 | Not Available |
| 31 | Not Available | Shop-Vac Tank Assembly | SV-7360497 | Not Available |
| 32 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 33 | Not Available | Shop-Vac Casterfoot A | SV-8567030 | Not Available |
| 34 | Not Available | Shop-Vac Casterfoot B | SV-8567050 | Not Available |
| 35 | Not Available | Shop-Vac Retainer | SV-8565500 | Not Available |
| 36 | Not Available | Shop-Vac Rear Caster Dolly | SV-7431135 | Not Available |
| 37 | Not Available | Shop-Vac Accessory Basket | SV-9064800 | Not Available |
| 38 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 39 | Not Available | Shop-Vac Screw #10 x 3/4" | SV-1503999 | Not Available |
| 40 | Not Available | Shop-Vac Drain Cover | SV-7416523 | Not Available |
