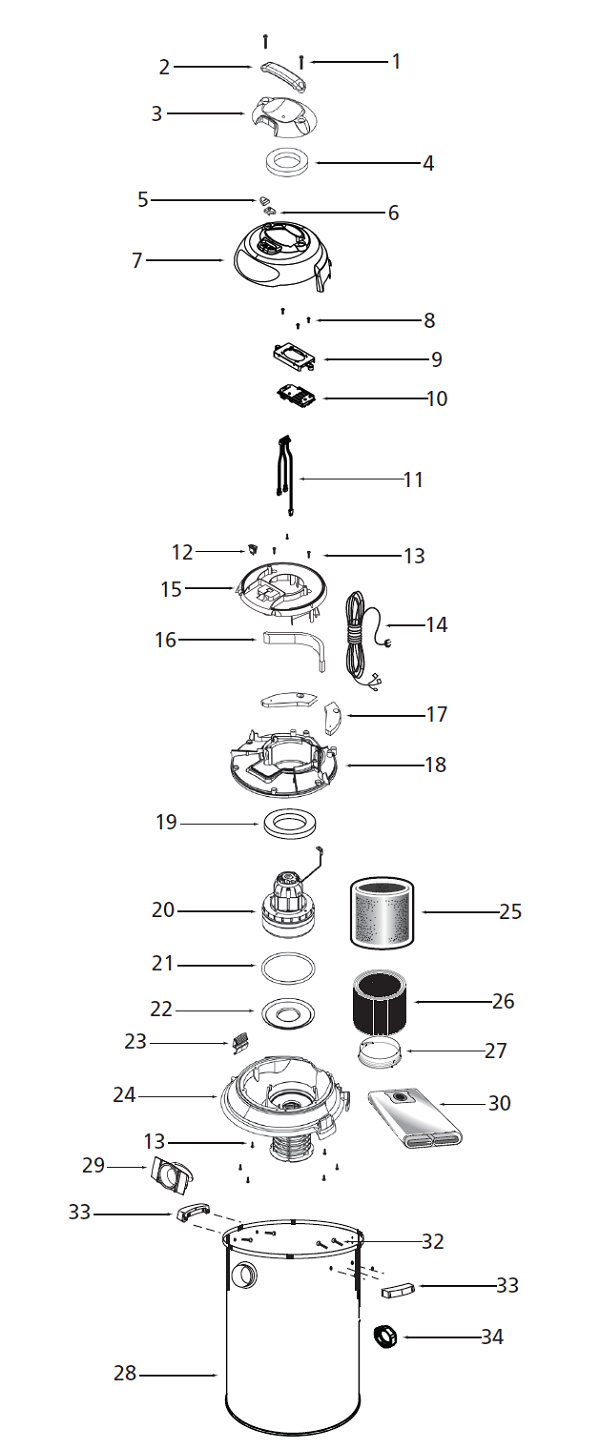

This is a list of parts and a diagram and schematic for: Shop-Vac Model: ULSR001G
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ULSR001G
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw x Trilobe T30 HD | SV-1516999 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-7444401 | Not Available |
| 03 | Not Available | Shop-Vac Motor Cover | SV-7449220 | Not Available |
| 04 | Not Available | Shop-Vac Foam Pad | SV-1290533 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button - I (On) | SV-7414200 | Not Available |
| 06 | Not Available | Shop-Vac Switch Button - O (Off) | SV-7414210 | Not Available |
| 07 | Not Available | Shop-Vac Motor Housing Cover Assembly | SV-1944930 | Not Available |
| 08 | Not Available | Shop-Vac Screw, Flanged, 16mm Long | SV-2783400 | Not Available |
| 09 | Not Available | Shop-Vac Controller Baffle | SV-2940729 | Not Available |
| 10 | Not Available | Shop-Vac Motor Controller | SV-1944931 | Not Available |
| 11 | Not Available | Shop-Vac Wire Harness | SV-1944929 | Not Available |
| 12 | Not Available | Shop-Vac Switch | SV-1944980 | Not Available |
| 13 | Not Available | Shop-Vac Screw 10 x - Trilobe, Twin Lead | SV-1517699 | Not Available |
| 14 | Not Available | Shop-Vac Power Cord | SV-4154200 | Not Available |
| 15 | Not Available | Shop-Vac Motor Baffle | SV-1957724 | Not Available |
| 16 | Not Available | Shop-Vac Foam Insert | SV-1290511 | Not Available |
| 17 | Not Available | Shop-Vac Foam Insert | SV-1290532 | Not Available |
| 18 | Not Available | Shop-Vac Motor Housing | SV-1944264 | Not Available |
| 19 | Not Available | Shop-Vac Upper Motor Gasket | SV-2070000 | Not Available |
| 20 | Not Available | Shop-Vac Motor | SV-1944278 | Not Available |
| 21 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
| 22 | Not Available | Shop-Vac Grid Plate | SV-8865500 | Not Available |
| 23 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 24 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944315 | Not Available |
| 25 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 26 | Not Available | Shop-Vac Cartridge Filter | SV-9035000 | Not Available |
| 27 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 28 | Not Available | Shop-Vac Tank Assembly | SV-1097697 | Not Available |
| 29 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 30 | Not Available | Shop-Vac Collection Bag | SV-9190710 | Not Available |
| 31 | Not Available | Shop-Vac Handle Package (Includes 32-33) | SV-9355196 | Not Available |
| 32 | Not Available | Shop-Vac #10 x " Slotted Hex Head Machine Screw | SV-1503999 | Not Available |
| 33 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 34 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
