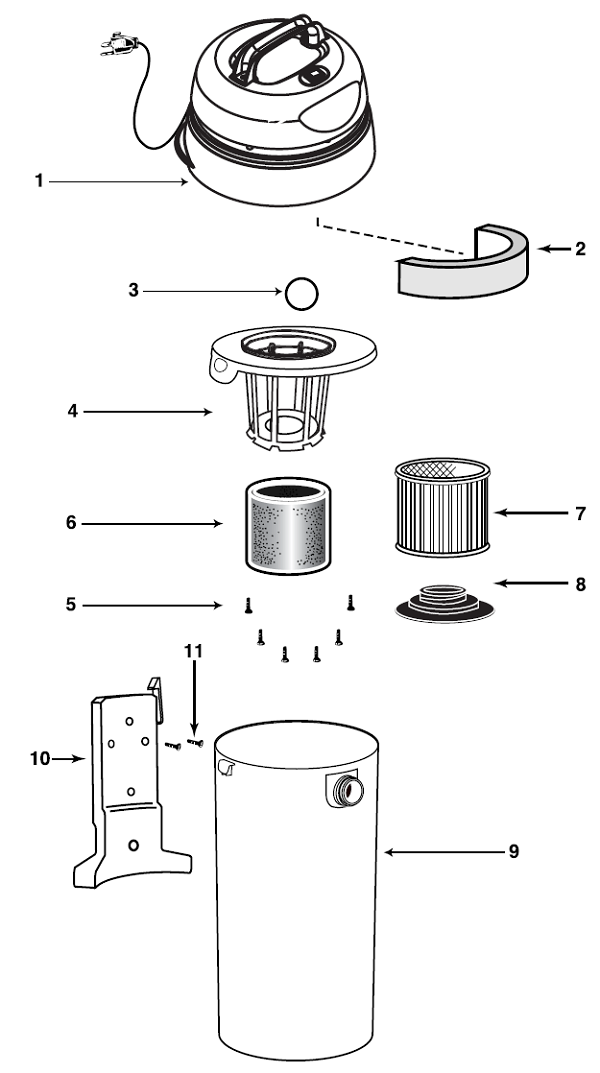

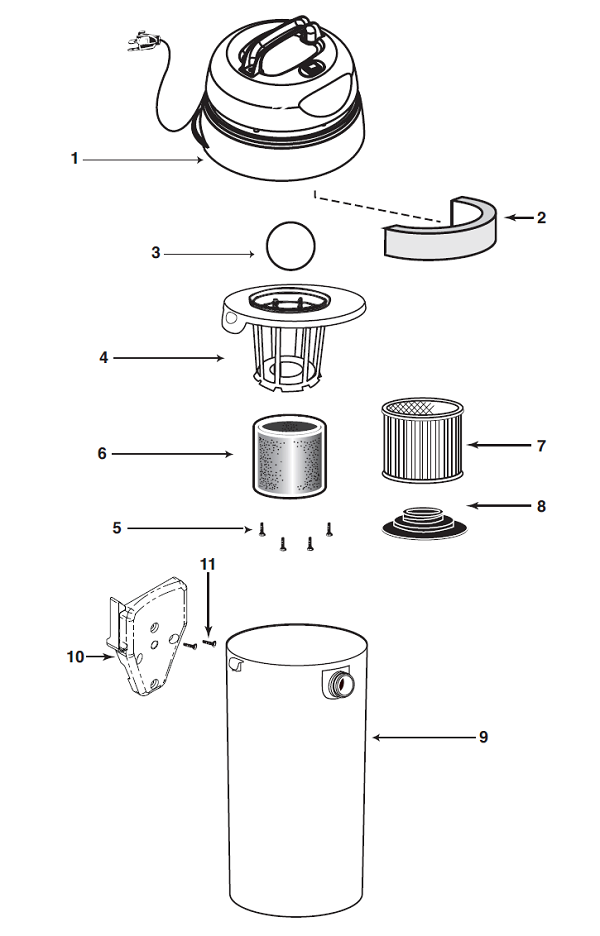

This is a list of parts and a diagram and schematic for: Shop-Vac Model: QPMH500
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QPMH500 (5 Gal, 5.0 HP, Red)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-8119897 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290507 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Cage | SV-3182001 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x 3/4" SL Hex Head | SV-1503999 | Not Available |
| 06 |  | Filter, Foam Sleeve for HangUp Reusable Part Number: 9052633 for Shop Vac | 9052633 | $13.97Read more |
| 07 | Not Available | Shop-Vac Cartidge Filter | SV-9039864 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 09 | Not Available | Shop-Vac Tank Assembly | SV-8327553 | Not Available |
| 10 | Not Available | Shop-Vac Wall Bracket | SV-8328000 | Not Available |
| 11 | Not Available | Shop-Vac Hardware Package | SV-4904096 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944449 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290507 | Not Available |
| 04 | Not Available | Shop-Vac Lid Cage | SV-3182001 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x 3/4' Trilobe | SV-1517699 | Not Available |
| 06 | | Filter, Foam Sleeve for HangUp Reusable Part Number: 9052633 for Shop Vac | 9052633 | $13.97Read more |
| 07 |  | Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac | 9039800 | $29.95Read more |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 09 | Not Available | Shop-Vac Tank Assembly | SV-8327550 | Not Available |
| 10 | Not Available | Shop-Vac Wall Bracket | SV-9432000 | Not Available |
| 11 | Not Available | Shop-Vac Hardware Package | SV-4904096 | Not Available |
