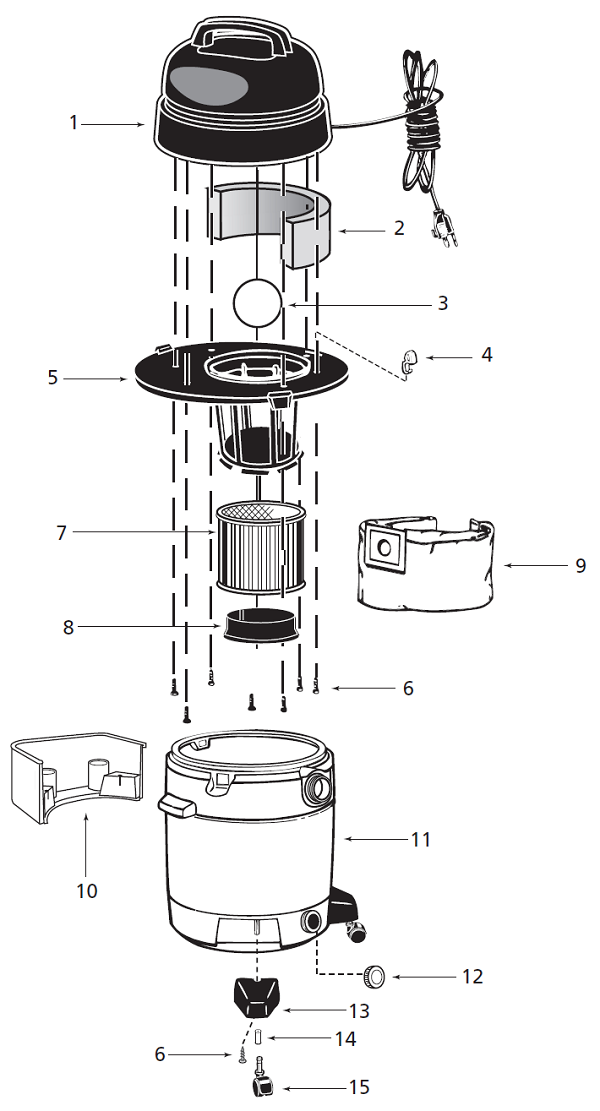

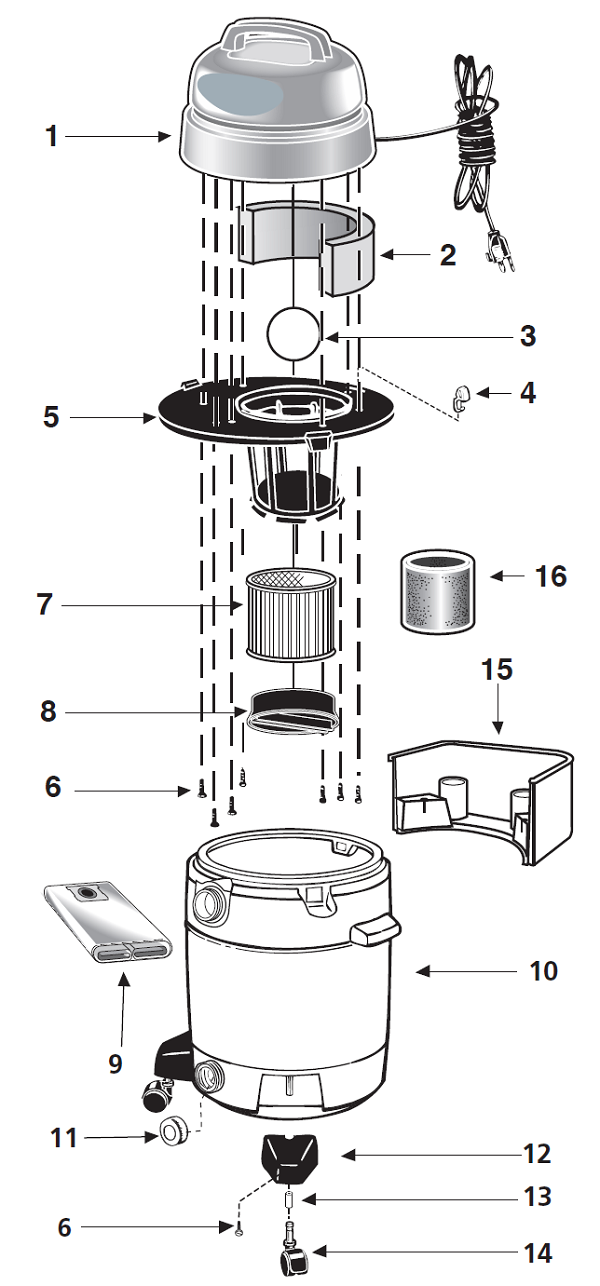

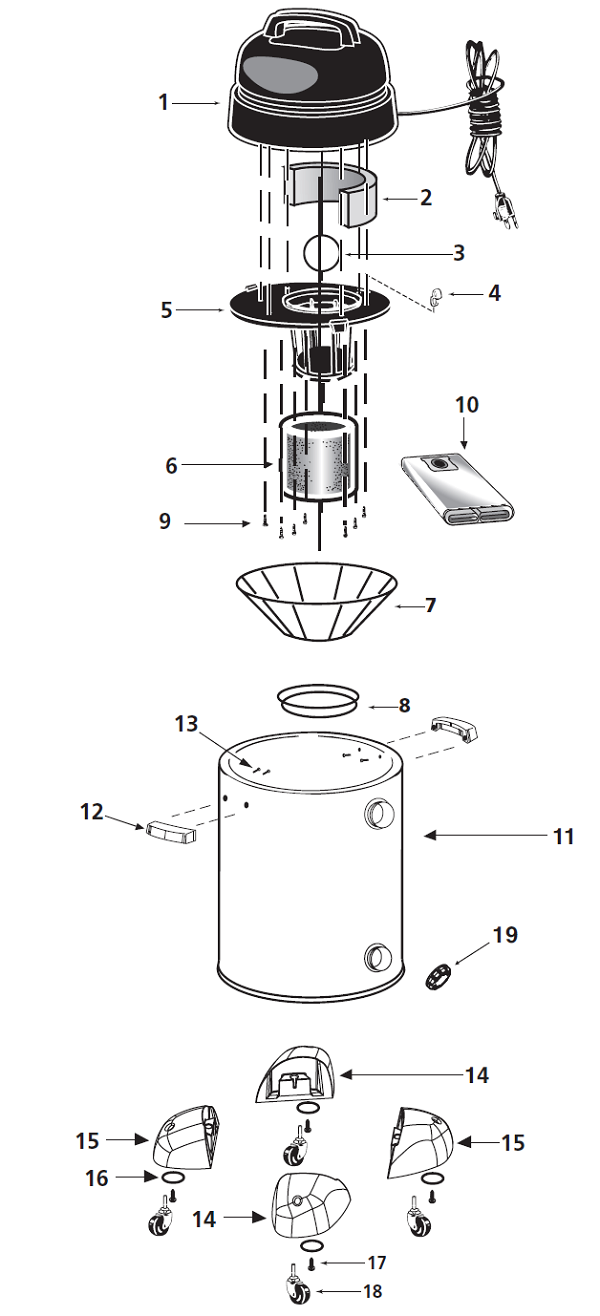

This is a list of parts and a diagram and schematic for: Shop-Vac Model: QPL50A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QPL50A (10 Gal, 5.0 HP, Stainless)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 07 | Not Available | Shop-Vac Reusable Bry Filter | SV-9010700 | Not Available |
| 08 | Not Available | Shop-Vac Filter Ring | SV-3006500 | Not Available |
| 09 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4 Type AB | SV-1516599 | Not Available |
| 10 | Not Available | Shop-Vac Collection Filter Bag | SV-9066200 | Not Available |
| 11 | Not Available | Shop-Vac Tank Assembly | SV-5109797 | Not Available |
| 12 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 13 | Not Available | Shop-Vac #10 x 3/4" Screw Hex Head | SV-1503999 | Not Available |
| 14 | Not Available | Shop-Vac Caster foot A | SV-8568100 | Not Available |
| 15 | Not Available | Shop-Vac Caster foot B | SV-8568110 | Not Available |
| 16 | Not Available | Shop-Vac Washer | SV-0704399 | Not Available |
| 17 | Not Available | Shop-Vac Screw #10 x 1" SL Hex Head | SV-1509699 | Not Available |
| 18 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 19 | Not Available | Shop-Vac Drain Cover | SV-7446804 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit | SV-1944309 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head 10 x 3/4" Type AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac CleanStream Cartridge Filter | SV-9034000 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008010 | Not Available |
| 09 | Not Available | Shop-Vac Collection Bag | SV-9067200 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1021997 | Not Available |
| 11 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 12 | Not Available | Shop-Vac Caster Foot | SV-8565000 | Not Available |
| 13 | Not Available | Shop-Vac Caster Retainer | SV-8565500 | Not Available |
| 14 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 15 | Not Available | Shop-Vac Accessory Caddy | SV-8564000 | Not Available |
| 16 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944307 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 - 3/4" AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9067200 | Not Available |
| 10 | Not Available | Shop-Vac Accessory Caddy | SV-8564100 | Not Available |
| 11 | Not Available | Shop-Vac Tank Assembly | SV-1047797 | Not Available |
| 12 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 13 | Not Available | Shop-Vac Caster Foot | SV-8565000 | Not Available |
| 14 | Not Available | Shop-Vac Caster Retainer | SV-8565500 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
