Schematic and parts list for: Shop-Vac Model: QPL40
This is a list of parts and a diagram and schematic for: Shop-Vac Model: QPL40
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QPL40 (10 Gal, 4.0 HP, Yellow)
Popular Supplies

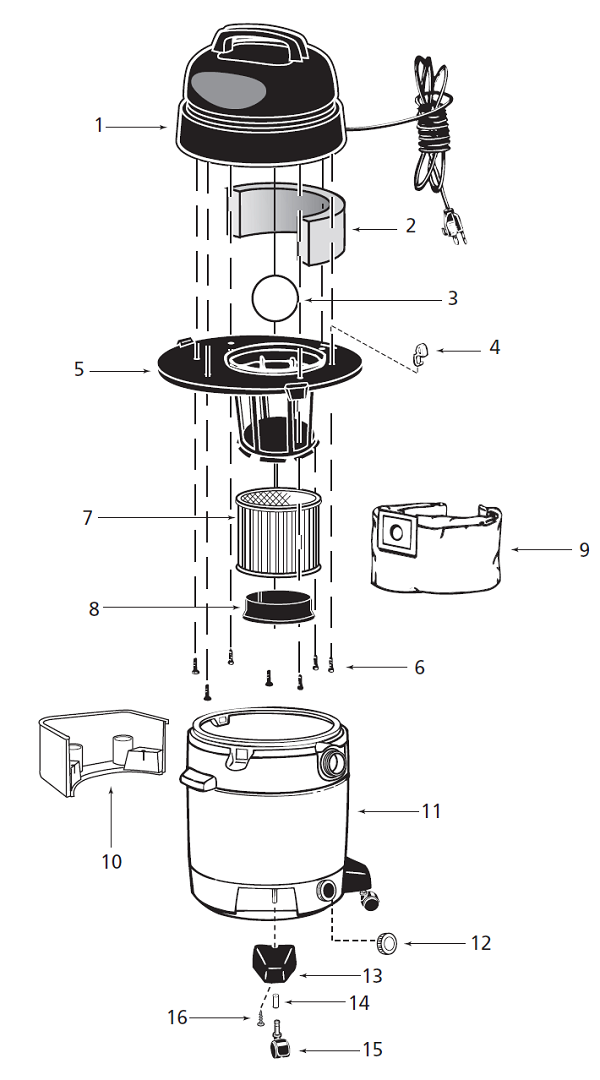

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944306 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 - 3/4" AB | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9067200 | Not Available |
| 10 | Not Available | Shop-Vac Accessory Caddy | SV-8564000 | Not Available |
| 11 | Not Available | Shop-Vac Tank Assembly | SV-1047697 | Not Available |
| 12 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 13 | Not Available | Shop-Vac Caster Foot | SV-8565000 | Not Available |
| 14 | Not Available | Shop-Vac Caster Retainer | SV-8565500 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 16 | Not Available | Shop-Vac Screw 10 x 3/4 HX HD | SV-1503999 | Not Available |

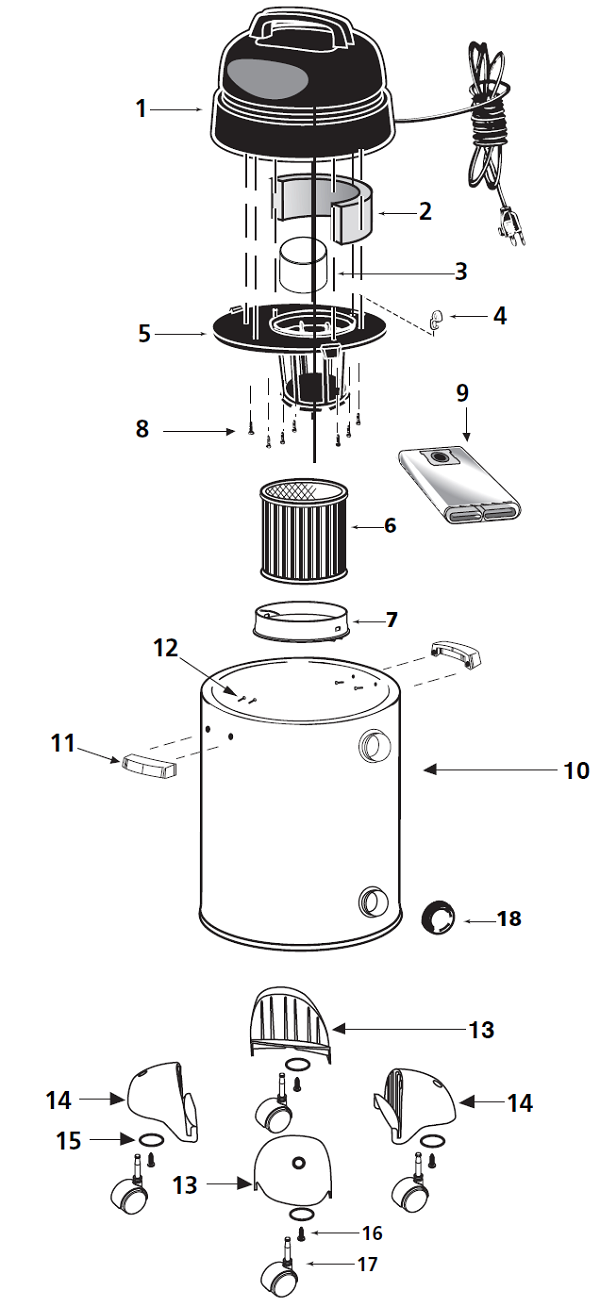

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944306 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 07 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 08 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4 Type AB | SV-1516599 | Not Available |
| 09 | Not Available | Shop-Vac Collection Filter Bag | SV-9066100 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1944678 | Not Available |
| 11 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 12 | Not Available | Shop-Vac #10 x 3/4' Screw Hex Head | SV-1503999 | Not Available |
| 13 | Not Available | Shop-Vac Caster foot A | SV-8568901 | Not Available |
| 14 | Not Available | Shop-Vac Caster foot B | SV-8568911 | Not Available |
| 15 | Not Available | Shop-Vac Washer | SV-2781018 | Not Available |
| 16 | Not Available | Shop-Vac Screw #10 x 1' SL Hex Head | SV-1509699 | Not Available |
| 17 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 18 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |

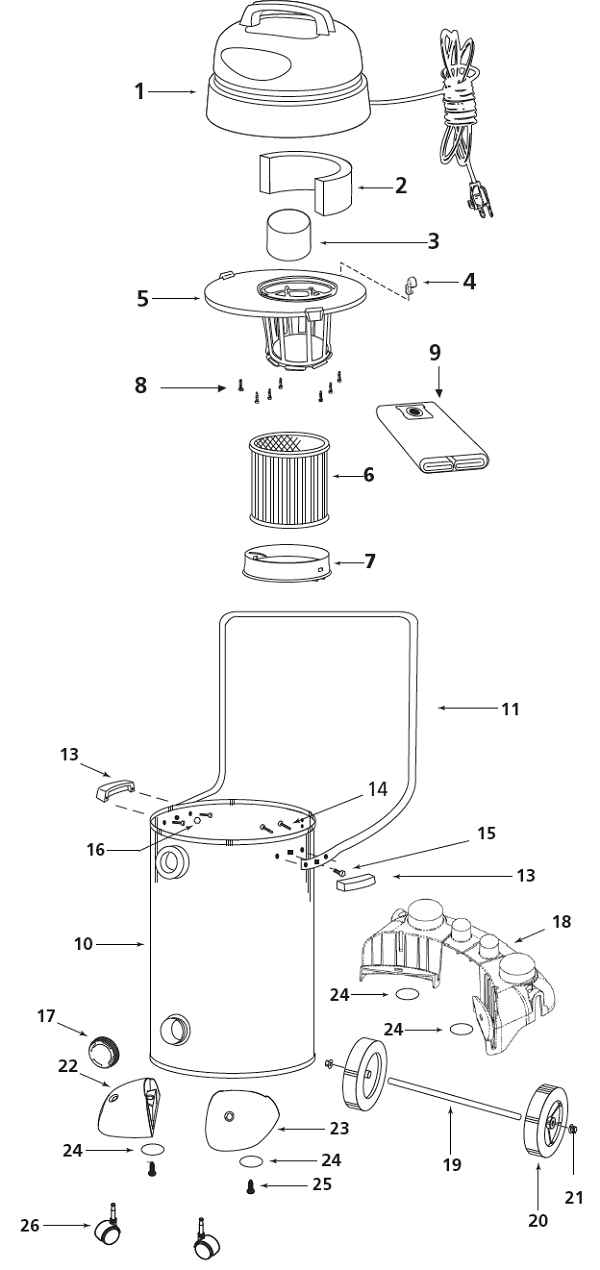

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944306 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-8988724 | Not Available |
| 06 |  | Filter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac | 9030400 | $32.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 08 | Not Available | Shop-Vac Screw Hex Head #10 x SL HX HD | SV-1503999 | Not Available |
| 09 |  | Paper Bag, 5-8 Gal Dust Collection Type E Part Number: 9066100 for Shop Vac | 9066100 | $23.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1944851 | Not Available |
| 11 | Not Available | Shop-Vac Carriage Handle | SV-2088231 | Not Available |
| 12 | Not Available | Shop-Vac Handle & Hardware Package (Includes 16-19) | SV-4940202 | Not Available |
| 13 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 14 | Not Available | Shop-Vac 10 x ' Screw Hex Head | SV-1503999 | Not Available |
| 15 | Not Available | Shop-Vac Bolt ' - 20 x ' | SV-6401299 | Not Available |
| 16 | Not Available | Shop-Vac ' - Hex Nut | SV-1300199 | Not Available |
| 17 | Not Available | Shop-Vac Drain Cap | SV-7446800 | Not Available |
| 18 | Not Available | Shop-Vac Rear Wheel Dolly | SV-3488900 | Not Available |
| 19 | Not Available | Shop-Vac Axle | SV-2442400 | Not Available |
| 20 | Not Available | Shop-Vac 7' Wheel | SV-8298952 | Not Available |
| 21 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 22 | Not Available | Shop-Vac Casterfoot A | SV-8568901 | Not Available |
| 23 | Not Available | Shop-Vac Casterfoot B | SV-8568911 | Not Available |
| 24 | Not Available | Shop-Vac Washer | SV-2781018 | Not Available |
| 25 | Not Available | Shop-Vac Screw #10 x 1' SL Hex Head | SV-1509699 | Not Available |
| 26 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
