This is a list of parts and a diagram and schematic for: Shop-Vac Model: QLH20ATS
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QLH20ATS (8 Gal, 2.0 HP, Hang Up, Stainless Steel with 1.25" Tools)

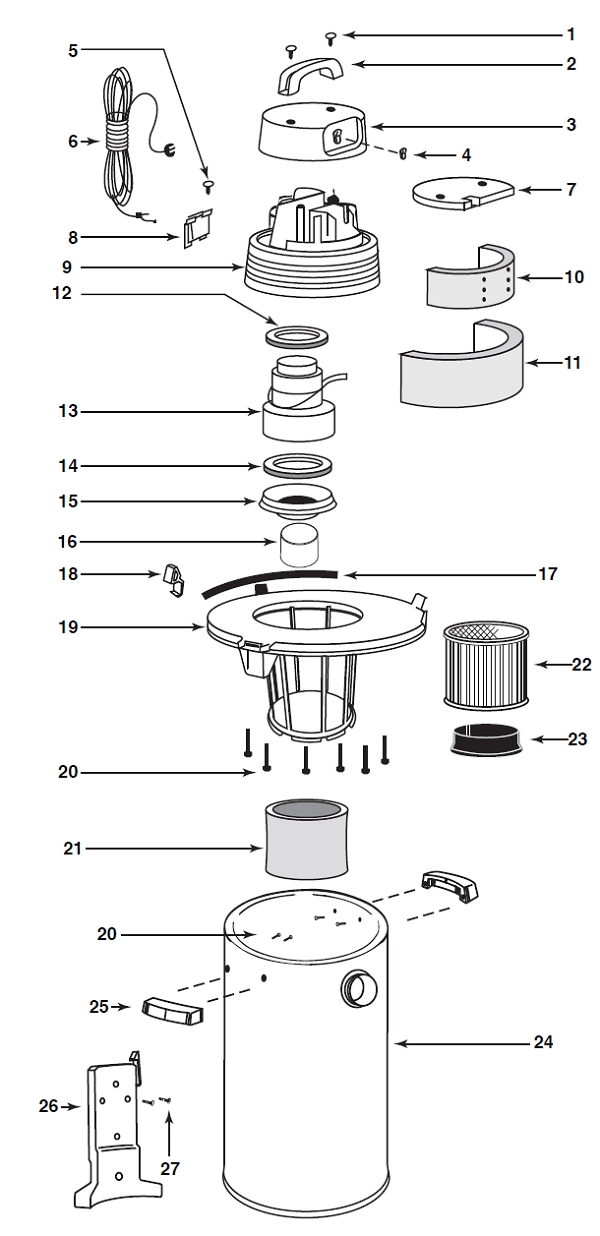

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac 1/4 x 3/4' Lg. PH Truss Screw | SV-1514699 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-2410500 | Not Available |
| 03 | Not Available | Shop-Vac Motor Housing Cover | SV-1944588 | Not Available |
| 04 | Not Available | Shop-Vac Switch | SV-8231900 | Not Available |
| 05 | Not Available | Shop-Vac Screw #8 x 1/2 Ph pan HD, Type AB | SV-1500799 | Not Available |
| 06 | Not Available | Shop-Vac Cord | SV-4150900 | Not Available |
| 07 | Not Available | Shop-Vac Foam Insert Cover | SV-2412505 | Not Available |
| 08 | Not Available | Shop-Vac Cord Retainer | SV-2411107 | Not Available |
| 09 | Not Available | Shop-Vac Motor Housing | SV-2410714 | Not Available |
| 10 | Not Available | Shop-Vac Inner Housing Acoustical Foam | SV-1290400 | Not Available |
| 11 | Not Available | Shop-Vac Outer Housing Acoustical Foam | SV-1290503 | Not Available |
| 12 | Not Available | Shop-Vac Upper Motor Gasket | SV-2070000 | Not Available |
| 13 | Not Available | Shop-Vac Motor | SV-1940045 | Not Available |
| 14 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
| 15 | Not Available | Shop-Vac Grid Plate | SV-8860700 | Not Available |
| 16 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 17 | Not Available | Shop-Vac Strip Gasket | SV-2071100 | Not Available |
| 18 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 19 | Not Available | Shop-Vac Lid Cage Assembly | SV-1944619 | Not Available |
| 20 | Not Available | Shop-Vac Screw 10 x 3/4' SL HX HD Type AB | SV-1503999 | Not Available |
| 21 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 22 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 23 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 24 | Not Available | Shop-Vac Tank | SV-5082497 | Not Available |
| 25 | Not Available | Shop-Vac Side Tank Handle | SV-9356000 | Not Available |
| 26 | Not Available | Shop-Vac Wall Bracket | SV-8328000 | Not Available |
| 27 | Not Available | Shop-Vac Hardware Package | SV-4904096 | Not Available |

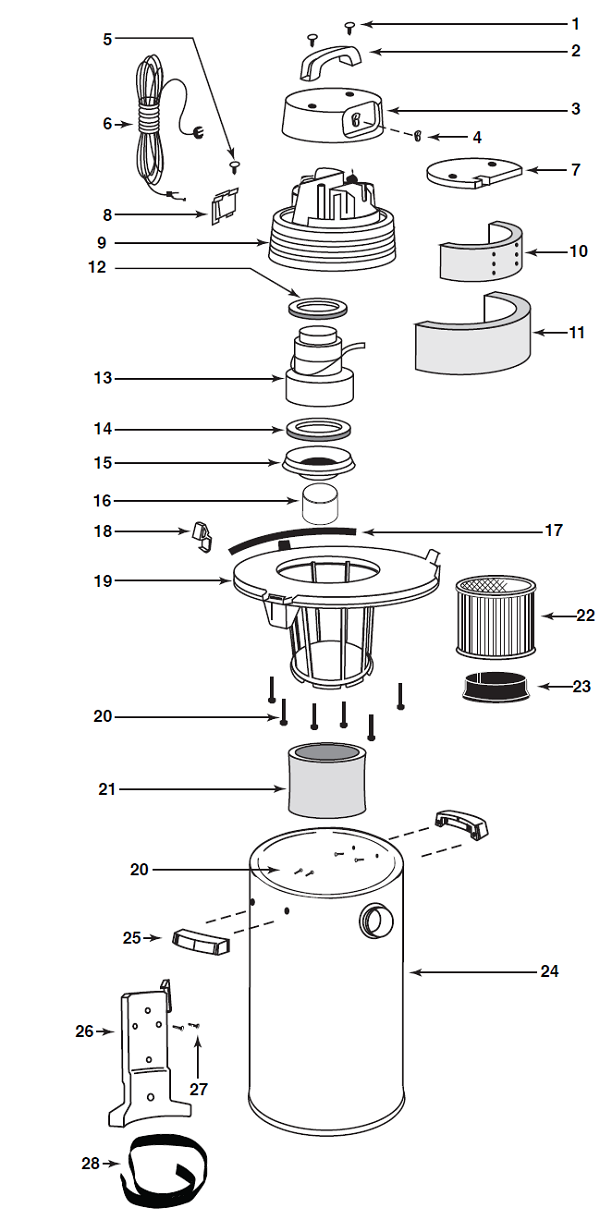

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac 1/4 x 3/4' Lg. PH Truss Screw | SV-1514699 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-2410500 | Not Available |
| 03 | Not Available | Shop-Vac Motor Housing Cover | SV-1944588 | Not Available |
| 04 | Not Available | Shop-Vac Switch | SV-8231900 | Not Available |
| 05 | Not Available | Shop-Vac Screw #8 x 1/2 Ph pan HD, Type AB | SV-1500799 | Not Available |
| 06 | Not Available | Shop-Vac Cord | SV-4150900 | Not Available |
| 07 | Not Available | Shop-Vac Foam Insert Cover | SV-2412505 | Not Available |
| 08 | Not Available | Shop-Vac Cord Retainer | SV-2411107 | Not Available |
| 09 | Not Available | Shop-Vac Motor Housing | SV-2410714 | Not Available |
| 10 | Not Available | Shop-Vac Inner Housing Acoustical Foam | SV-1290400 | Not Available |
| 11 | Not Available | Shop-Vac Outer Housing Acoustical Foam | SV-1290503 | Not Available |
| 12 | Not Available | Shop-Vac Upper Motor Gasket | SV-2070000 | Not Available |
| 13 | Not Available | Shop-Vac Motor | SV-1940045 | Not Available |
| 14 | Not Available | Shop-Vac Lower Motor Gasket | SV-2071600 | Not Available |
| 15 | Not Available | Shop-Vac Grid Plate | SV-8860700 | Not Available |
| 16 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 17 | Not Available | Shop-Vac Strip Gasket | SV-2071100 | Not Available |
| 18 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 19 | Not Available | Shop-Vac Lid Cage Assembly | SV-1944619 | Not Available |
| 20 | Not Available | Shop-Vac Screw 10 x 3/4' SL HX HD Type AB | SV-1503999 | Not Available |
| 21 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 22 | Not Available | Shop-Vac Cartridge Filter | SV-9035000 | Not Available |
| 23 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 24 | Not Available | Shop-Vac Tank | SV-5082497 | Not Available |
| 25 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 26 | Not Available | Shop-Vac Wall Bracket | SV-8328000 | Not Available |
| 27 | Not Available | Shop-Vac Hardware Package | SV-4904096 | Not Available |
| 28 | Not Available | Shop-Vac Mounting Strap | SV-2751310 | Not Available |
