Schematic and parts list for: Shop-Vac Model: QAM70
This is a list of parts and a diagram and schematic for: Shop-Vac Model: QAM70
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QAM70 (2 Gal, 3.0 HP, All Around, Burgundy)
Popular Supplies

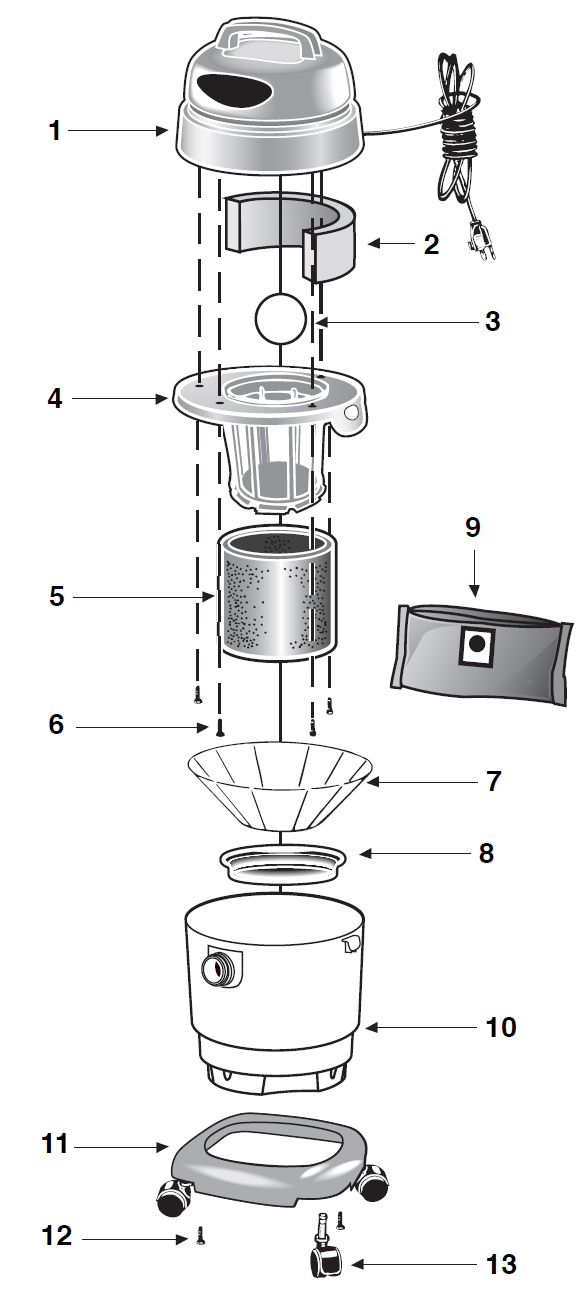

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-8114697 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290507 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 03 | Not Available | Shop-Vac Cup Float | SV-3545000 | Not Available |
| 04 | Not Available | Shop-Vac Lid Cage | SV-3181422 | Not Available |
| 05 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4 Type AB | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Reusable Dry Filter | SV-9010700 | Not Available |
| 08 | Not Available | Shop-Vac Filter Ring | SV-3006500 | Not Available |

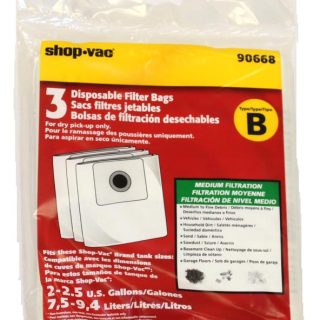

| 09 |  | Paper Bag, 2 Gal All Arnd Dust Collecn Type B 3 Pk Part Number: 9066800 for Shop Vac | 9066800 | $18.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-3151697 | Not Available |
| 11 | Not Available | Shop-Vac Dolly | SV-3153402 | Not Available |
| 12 | Not Available | Shop-Vac Screw #8 x 1/2 Ph Pan Hd Type A | SV-1501599 | Not Available |
| 13 | Not Available | Shop-Vac Caster | SV-6774210 | Not Available |

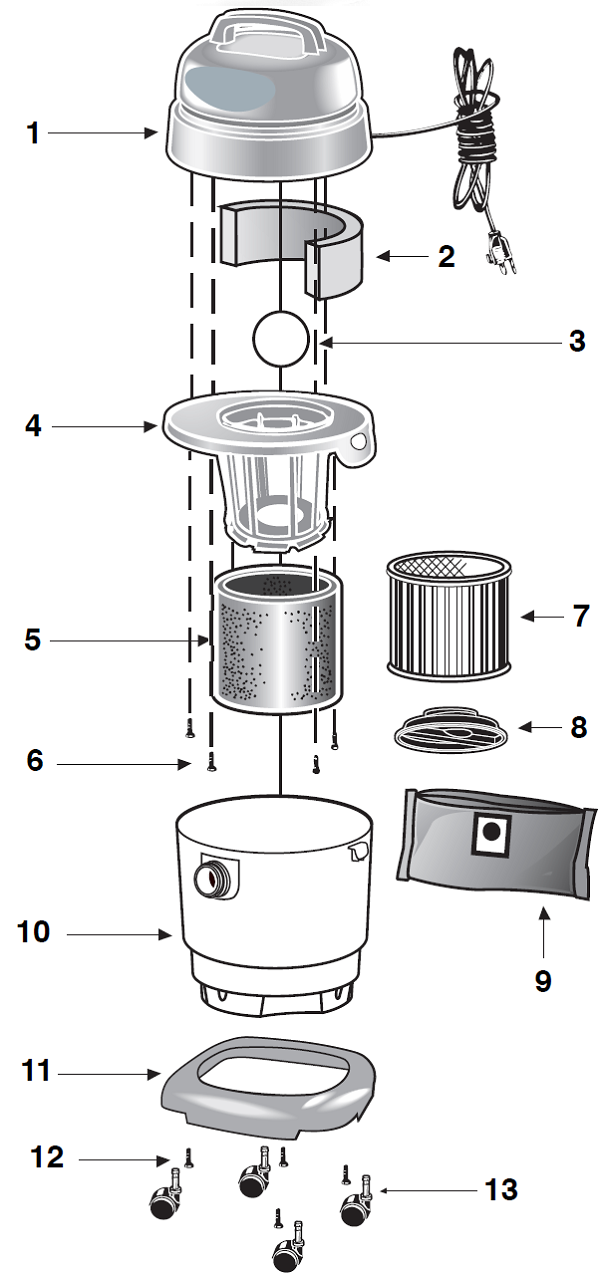

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-8111997 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290507 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Cage | SV-3182000 | Not Available |
| 05 | Not Available | Shop-Vac Foam Sleeve | SV-9059900 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4 Type AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9039900 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 09 | | Paper Bag, 2 Gal All Arnd Dust Collecn Type B 3 Pk Part Number: 9066800 for Shop Vac | 9066800 | $18.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-3151697 | Not Available |
| 11 | Not Available | Shop-Vac Dolly | SV-3153402 | Not Available |
| 12 | Not Available | Shop-Vac Screw #8 x 1/2 Ph Pan Hd Type A | SV-1501599 | Not Available |
| 13 | Not Available | Shop-Vac Caster | SV-6774220 | Not Available |

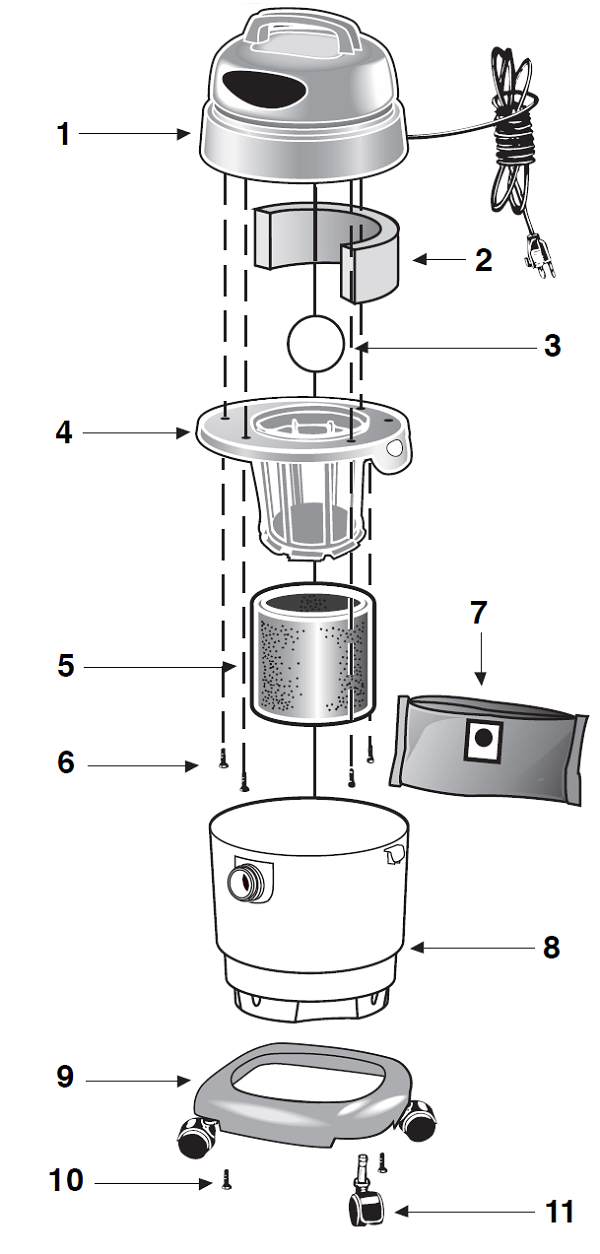

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-8114697 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290507 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 03 | Not Available | Shop-Vac Cup Float | SV-3545000 | Not Available |
| 04 | Not Available | Shop-Vac Lid Cage | SV-3181422 | Not Available |
| 05 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4 Type AB | SV-1516599 | Not Available |
| 07 | | Paper Bag, 2 Gal All Arnd Dust Collecn Type B 3 Pk Part Number: 9066800 for Shop Vac | 9066800 | $18.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Shop-Vac Tank Assembly | SV-3151697 | Not Available |
| 09 | Not Available | Shop-Vac Dolly | SV-3153402 | Not Available |
| 10 | Not Available | Shop-Vac Screw #8 x 1/2 Ph Pan Hd Type A | SV-1501599 | Not Available |
| 11 | Not Available | Shop-Vac Caster | SV-6774210 | Not Available |
