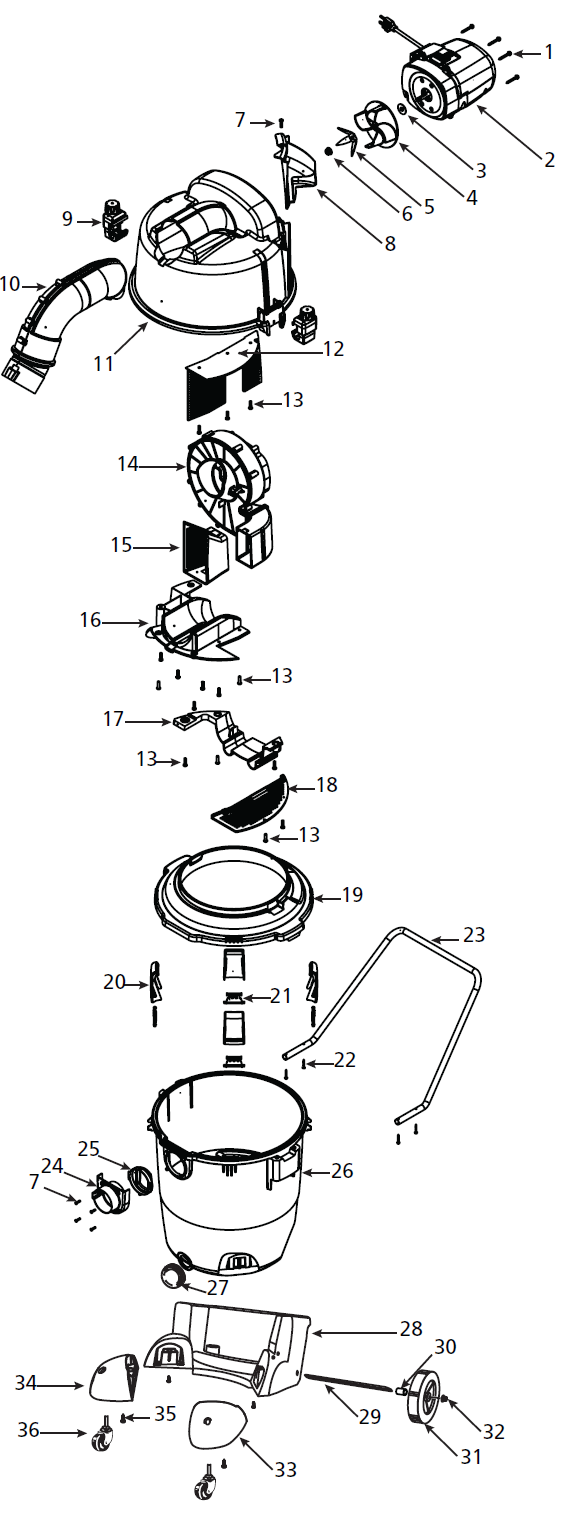

This is a list of parts and a diagram and schematic for: Shop-Vac Model: MV35
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: MV35 (12+ Gal, Mulcher Kit, Black)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw #10 x 11/2 Type A | SV-1504299 | Not Available |
| 02 | Not Available | Shop-Vac Mulcher Power Unit* | SV-1944621 | Not Available |
| 03 | Not Available | Shop-Vac Spacer | SV-2940911 | Not Available |
| 04 | Not Available | Shop-Vac Impeller | SV-8830700 | Not Available |
| 05 | Not Available | Shop-Vac 4 Vane Metal Blade | SV-8833301 | Not Available |
| 06 | Not Available | Shop-Vac Nut, 3/8 - 24, Hex, SR | SV-1362902 | Not Available |
| 07 | Not Available | Shop-Vac Screw #10 Trilobe THD | SV-1503999 | Not Available |
| 08 | Not Available | Shop-Vac Exhaust Deflector | SV-8833500 | Not Available |
| 09 | Not Available | Shop-Vac Screw Latch Sub Assembly | SV-8831497 | Not Available |
| 10 | Not Available | Shop-Vac Inlet Sub Assembly | SV-8831097 | Not Available |
| 11 | Not Available | Shop-Vac Mulcher Cover | SV-1944622 | Not Available |
| 12 | Not Available | Shop-Vac Filter Wall Side | SV-8832500 | Not Available |
| 13 | Not Available | Shop-Vac Screw #10 Trilobe, Twin Lead | SV-1517699 | Not Available |
| 14 | Not Available | Shop-Vac Impeller Housing | SV-8830597 | Not Available |
| 15 | Not Available | Shop-Vac Filter Wall Exit | SV-8832400 | Not Available |
| 16 | Not Available | Shop-Vac Skeleton Large Side | SV-8833600 | Not Available |
| 17 | Not Available | Shop-Vac Skeleton Small Side | SV-8833700 | Not Available |
| 18 | Not Available | Shop-Vac Filter Wall Bottom | SV-8832600 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Screw #10 x 11/2 Type A | SV-1504299 | Not Available |
| 02 | Not Available | Shop-Vac Mulcher Power Unit* | SV-1944621 | Not Available |
| 03 | Not Available | Shop-Vac Spacer | SV-2940911 | Not Available |
| 04 | Not Available | Shop-Vac Impeller | SV-8830700 | Not Available |
| 05 | Not Available | Shop-Vac 4 Vane Metal Blade | SV-8833301 | Not Available |
| 06 | Not Available | Shop-Vac Nut, 3/8 - 24, Hex, SR | SV-1362902 | Not Available |
| 07 | Not Available | Shop-Vac Screw #10 Trilobe THD | SV-1517799 | Not Available |
| 08 | Not Available | Shop-Vac Exhaust Deflector | SV-8833500 | Not Available |
| 09 | Not Available | Shop-Vac Screw Latch Sub Assembly | SV-8831497 | Not Available |
| 10 | Not Available | Shop-Vac Inlet Sub Assembly | SV-8831097 | Not Available |
| 11 | Not Available | Shop-Vac Mulcher Cover | SV-1944622 | Not Available |
| 12 | Not Available | Shop-Vac Filter Wall Side | SV-8832500 | Not Available |
| 13 | Not Available | Shop-Vac Screw #10 Trilobe, Twin Lead | SV-1517699 | Not Available |
| 14 | Not Available | Shop-Vac Impeller Housing | SV-8830597 | Not Available |
| 15 | Not Available | Shop-Vac Filter Wall Exit | SV-8832400 | Not Available |
| 16 | Not Available | Shop-Vac Skeleton Large Side | SV-8833600 | Not Available |
| 17 | Not Available | Shop-Vac Skeleton Small Side | SV-8833700 | Not Available |
| 18 | Not Available | Shop-Vac Filter Wall Bottom | SV-8832600 | Not Available |
| 19 | Not Available | Shop-Vac Adapter, 22' - 16' | SV-8831600 | Not Available |
| 20 | Not Available | Shop-Vac Tank Latch | SV-8832300 | Not Available |
| 21 | Not Available | Shop-Vac Tank Latch Hinge | SV-8832200 | Not Available |
| 22 | Not Available | Shop-Vac Screw 1/4-20 AB 2 Long Slot Hex | SV-1512199 | Not Available |
| 23 | Not Available | Shop-Vac Carriage Handle | SV-8833800 | Not Available |
| 24 | Not Available | Shop-Vac Tank Inlet | SV-8832100 | Not Available |
| 25 | Not Available | Shop-Vac Cap Inlet | SV-8831800 | Not Available |
| 26 | Not Available | Shop-Vac Tank | SV-1092697 | Not Available |
| 27 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
| 28 | Not Available | Shop-Vac Rear Dolly/Basket | SV-7417350 | Not Available |
| 29 | Not Available | Shop-Vac Axle | SV-2442700 | Not Available |
| 30 | Not Available | Shop-Vac Spacer | SV-1101999 | Not Available |
| 31 | Not Available | Shop-Vac Wheel | SV-2421000 | Not Available |
| 32 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 33 | Not Available | Shop-Vac Caster Foot A | SV-7431330 | Not Available |
| 34 | Not Available | Shop-Vac Caster Foot B | SV-7431350 | Not Available |
| 35 | Not Available | Shop-Vac Screw 10 x 3/4 Sl Hx Hd Wash Ab | SV-1503999 | Not Available |
| 36 | Not Available | Shop-Vac Caster | SV-6771400 | Not Available |
