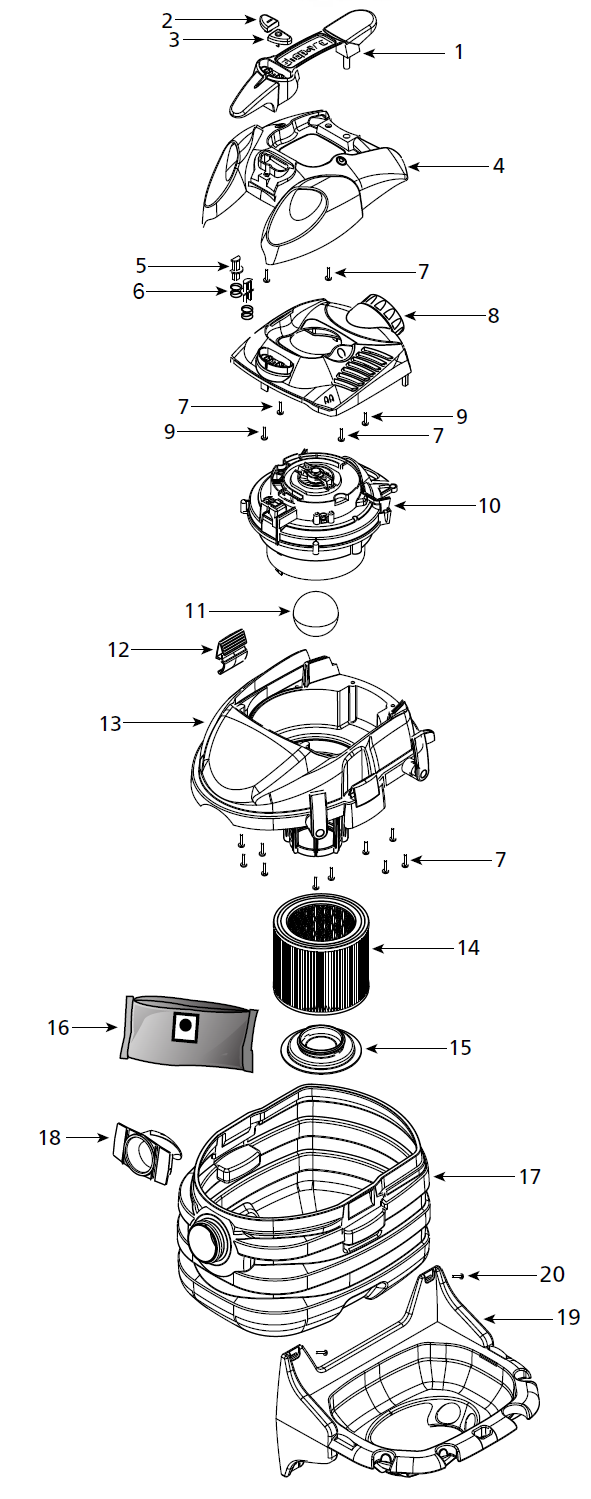

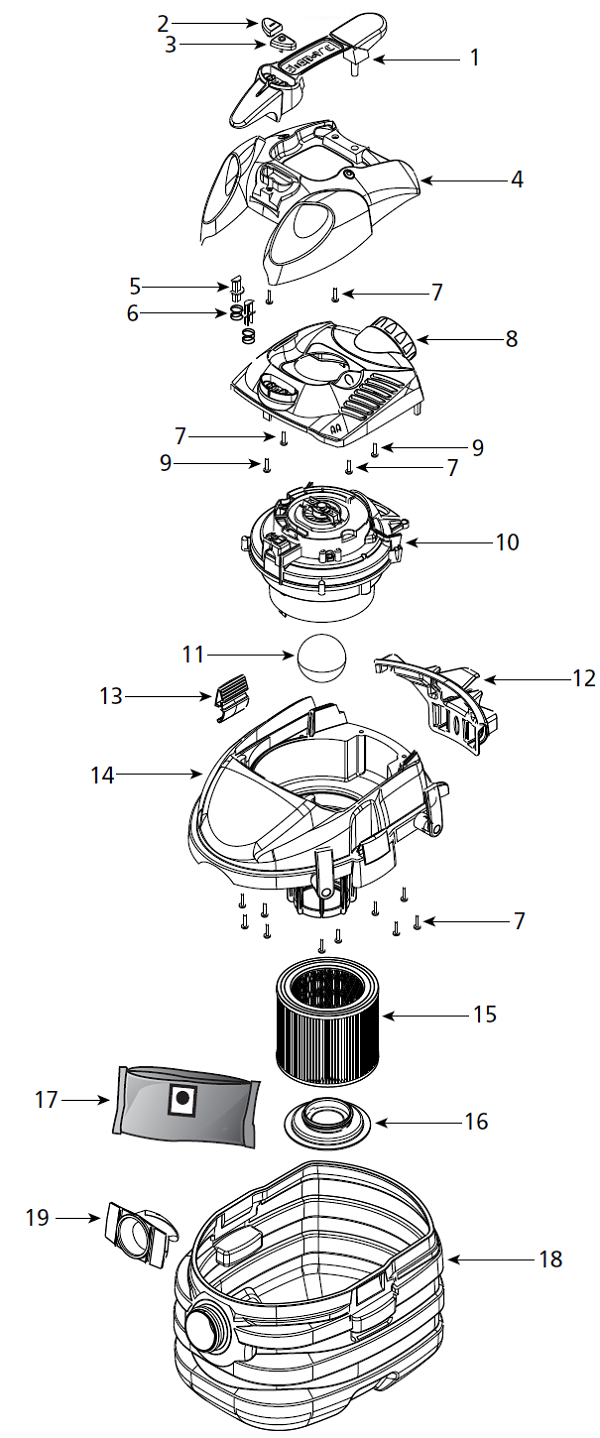

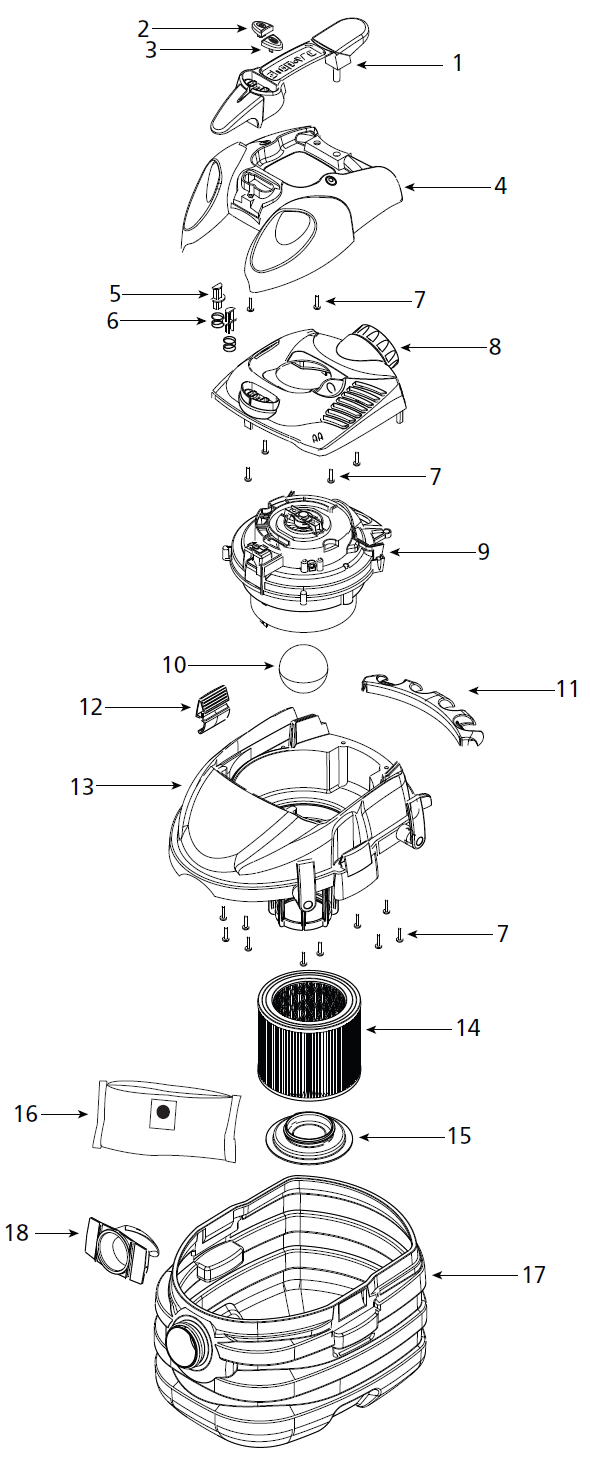

Schematic and parts list for: Shop-Vac Model: H87S450
This is a list of parts and a diagram and schematic for: Shop-Vac Model: H87S450
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: H87S450
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3549021 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - On | SV-7414205 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - Off | SV-7414215 | Not Available |
| 04 | Not Available | Shop-Vac Outer Motor Cover Assembly | SV-3549201 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button Extension | SV-7414250 | Not Available |
| 06 | Not Available | Shop-Vac Spring | SV-2802899 | Not Available |
| 07 | Not Available | Shop-Vac Screw 10 x ' Trilobe, Twin Lead | SV-1517699 | Not Available |
| 08 | Not Available | Shop-Vac Inner Motor Cover Assembly | SV-1944471 | Not Available |
| 09 | Not Available | Shop-Vac Power Unit Assembly | SV-8134697 | Not Available |
| 10 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 11 | Not Available | Shop-Vac Tool Holder | SV-8412100 | Not Available |
| 12 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 13 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944445 | Not Available |
| 14 | Not Available | Shop-Vac Cartridge Filter | SV-90398 | Not Available |
| 15 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 16 |  | Paper Bag, 5-8 Gal Dust Collection Type E Part Number: 9066100 for Shop Vac | 9066100 | $23.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Shop-Vac Tank Assembly | SV-1092397 | Not Available |
| 18 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3549022 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - On | SV-7414205 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - Off | SV-7414215 | Not Available |
| 04 | Not Available | Shop-Vac Outer Motor Cover Assembly | SV-3549202 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button Extension | SV-7414250 | Not Available |
| 06 | Not Available | Shop-Vac Spring | SV-2802899 | Not Available |
| 07 | Not Available | Shop-Vac Screw 10 x 3/4' Trilobe T25 Head | SV-1516599 | Not Available |
| 08 | Not Available | Shop-Vac Inner Motor Cover Assembly | SV-1944359 | Not Available |
| 09 | Not Available | Shop-Vac Screw 10 x 3/4' SL Hex Head | SV-1503999 | Not Available |
| 10 | Not Available | Shop-Vac Power Unit Assembly | SV-8134697 | Not Available |
| 11 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 12 | Not Available | Shop-Vac Tool Holder | SV-3755602 | Not Available |
| 13 | Not Available | Shop-Vac Lid Latch | SV-7444502 | Not Available |
| 14 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944445 | Not Available |
| 15 |  | Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac | 9039800 | $27.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 17 | Not Available | Shop-Vac Collection Filter Bag | SV-9066100 | Not Available |
| 18 | Not Available | Shop-Vac Tank Assembly | SV-1092397 | Not Available |
| 19 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3549022 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - On | SV-7414205 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - Off | SV-7414215 | Not Available |
| 04 | Not Available | Shop-Vac Outer Motor Cover Assembly | SV-3549202 | Not Available |
| 05 | Not Available | Shop-Vac Switch Button Extension | SV-7414250 | Not Available |
| 06 | Not Available | Shop-Vac Spring | SV-2802899 | Not Available |
| 07 | Not Available | Shop-Vac Screw 10 x 3/4' Trilobe T25 Head | SV-1516599 | Not Available |
| 08 | Not Available | Shop-Vac Inner Motor Cover Assembly | SV-1944359 | Not Available |
| 09 | Not Available | Shop-Vac Screw 10 x 3/4' SL Hex Head | SV-1503999 | Not Available |
| 10 | Not Available | Shop-Vac Power Unit Assembly | SV-8134697 | Not Available |
| 11 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 12 | Not Available | Shop-Vac Lid Latch | SV-7444502 | Not Available |
| 13 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944445 | Not Available |
| 14 | | Filter, HangUp Cartridge Portable Wet/Dry Part Number: 90398-00 for Shop Vac | 9039800 | $27.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Shop-Vac Filter Retainer | SV-3183000 | Not Available |
| 16 | Not Available | Shop-Vac Collection Filter Bag | SV-9066100 | Not Available |
| 17 | Not Available | Shop-Vac Tank Assembly | SV-1092397 | Not Available |
| 18 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 19 | Not Available | Shop-Vac Wall Bracket & Tool Holder | SV-3755420 | Not Available |
| 20 | Not Available | Shop-Vac Hardware Package | SV-4904096 | Not Available |
