Schematic and parts list for: Shop-Vac Model: 86MT600C

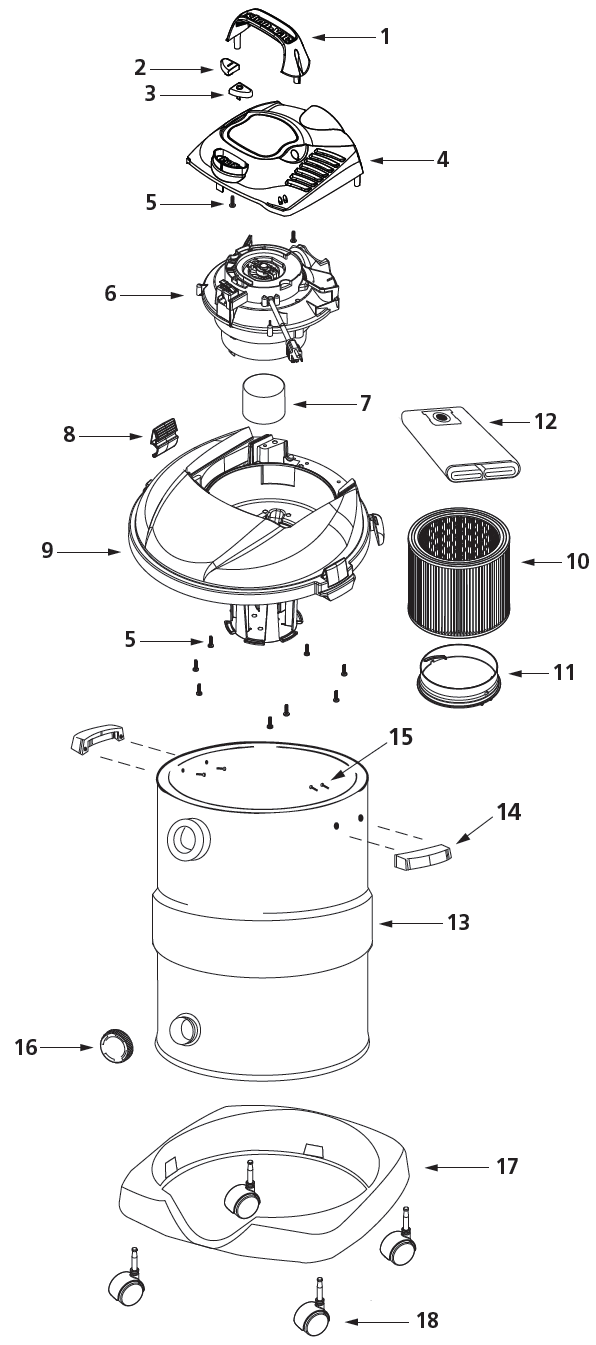

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 86MT600C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 86MT600C (12 Gal, 6.0 HP, Stainless Steel)
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3756002 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 04 | Not Available | Shop-Vac Motor Cover Assembly | SV-3748826 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x 3/4' Trilobe Twin Lead | SV-1517699 | Not Available |
| 06 | Not Available | Shop-Vac Power Unit Assembly | SV-1944737 | Not Available |
| 07 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444508 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944736 | Not Available |
| 10 |  | Filter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac | 9030400 | $32.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 12 |  | Paper Bag, 10-14 Gal Dust Collection Type F Part Number: 906-62-00 for Shop Vac | 9066200 | $28.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-5122297 | Not Available |
| 14 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 15 | Not Available | Shop-Vac #10 x 3/4' Screw Hex Head | SV-1503999 | Not Available |
| 16 | Not Available | Shop-Vac Drain Cap | SV-7446800 | Not Available |
| 17 | Not Available | Shop-Vac Caster Dolly | SV-9381851 | Not Available |
| 18 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
