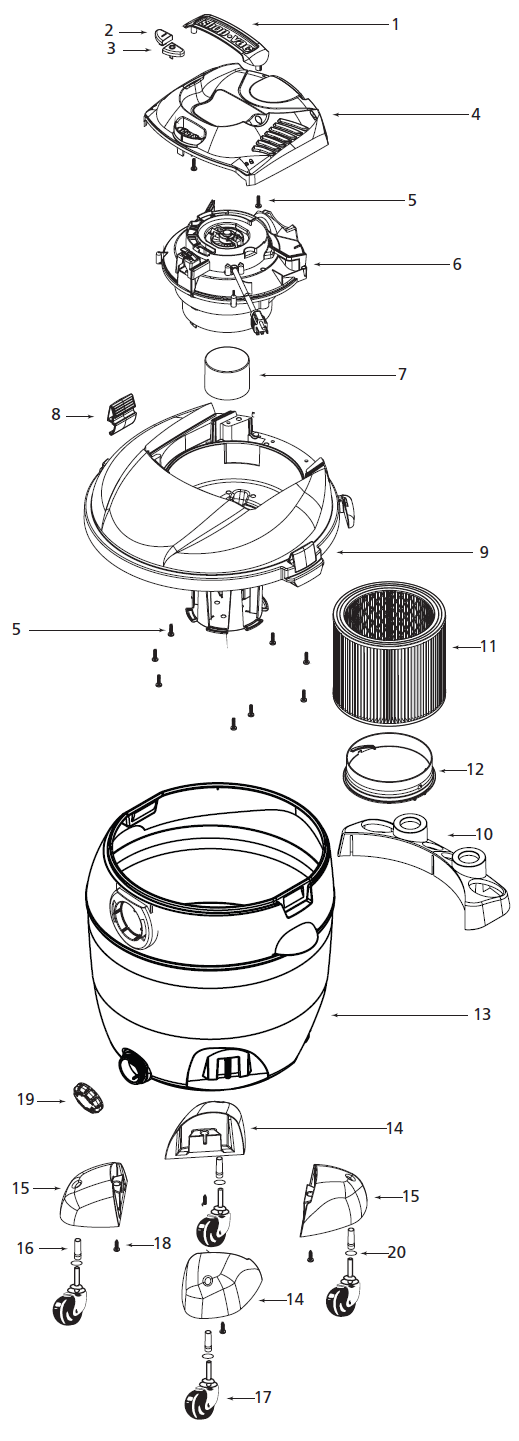

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 86L500C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 86L500C (16 Gal, 6.5 HP, Black)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3751000 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 04 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944090 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe | SV-1517699 | Not Available |
| 06 | Not Available | Shop-Vac Power Unit Assembly | SV-8135597 | Not Available |
| 07 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944120 | Not Available |
| 10 | Not Available | Shop-Vac Tool Holder | SV-9013100 | Not Available |
| 11 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 12 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-7363097 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot A | SV-7431300 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot B | SV-7431310 | Not Available |
| 16 | Not Available | Shop-Vac Retainer | SV-8565700 | Not Available |
| 17 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 18 | Not Available | Shop-Vac Screw 10 Xx 3/4" SL Hex Head | SV-1503999 | Not Available |
| 19 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
| 20 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
