Schematic and parts list for: Shop-Vac Model: 86EM350
This is a list of parts and a diagram and schematic for: Shop-Vac Model: 86EM350
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 86EM350 (10 Gal, 3.5 HP, Quiet Plus Series, Green / Gray)
Popular Supplies

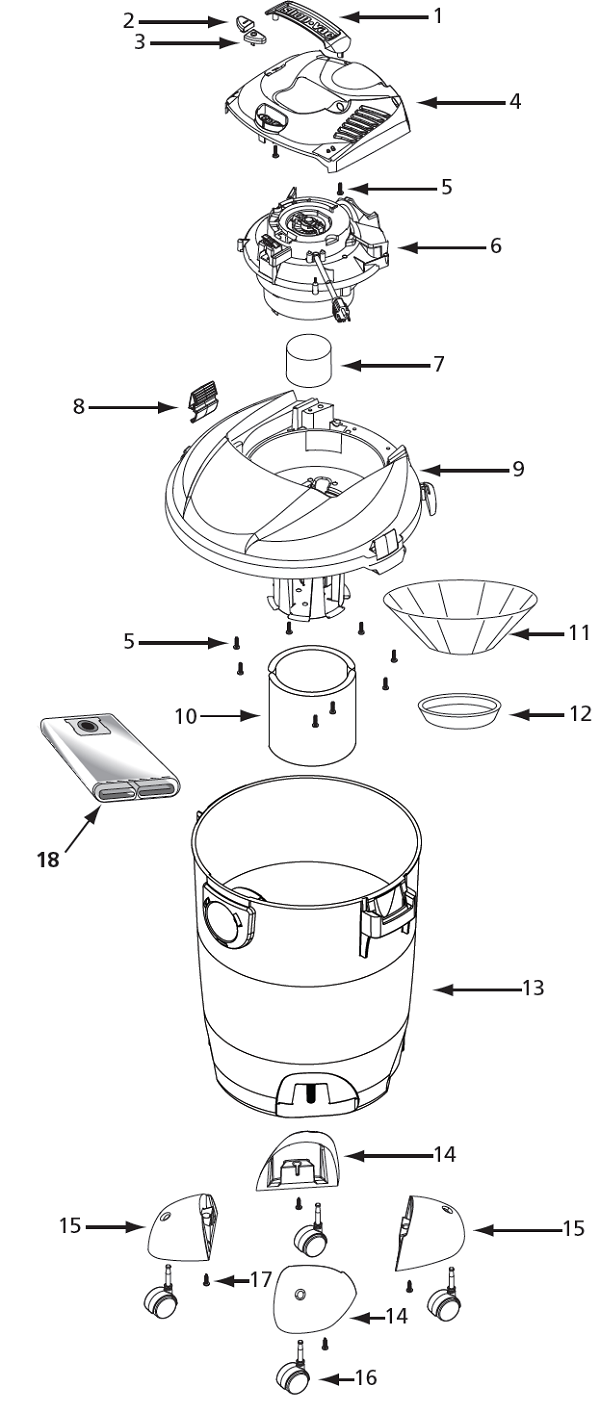

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3750013 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button I | SV-7414200 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button O | SV-7414210 | Not Available |
| 04 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944786 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x " Trilobe Twin Lead | SV-1517699 | Not Available |
| 06 | Not Available | Shop-Vac Power Unit Assembly | SV-8121097 | Not Available |
| 07 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444513 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944787 | Not Available |
| 10 |  | Filter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac | 9058500 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Filter, DVC ShopVc Flat/Dry P/U W/ Ring Typ T 3Pk Part Number: FI-372A for Shop Vac Replacement | FI372A | $7.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Shop-Vac Mounting Ring | SV-3006500 | Not Available |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-1944703 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot A | SV-8568003 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot B | SV-8568013 | Not Available |
| 16 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 17 | Not Available | Shop-Vac Screw 10 x " SL Hex Head | SV-1503999 | Not Available |
| 18 |  | Paper Bag, 10-14 Gal Dust Collection Type F Part Number: 906-62-00 for Shop Vac | 9066200 | $28.69Add to cart Product is special order please allow 2-4 weeks for delivery. |

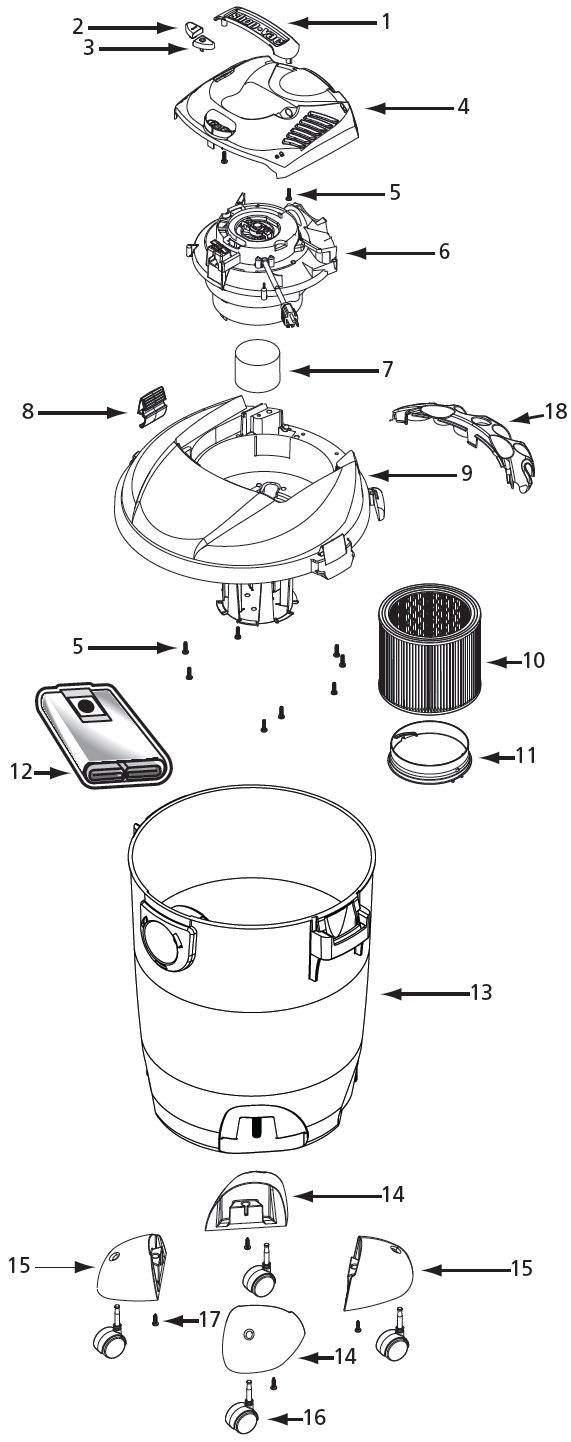

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3750010 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 04 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944786 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x ' Trilobe, Twin Lead | SV-1517699 | Not Available |
| 06 | Not Available | Shop-Vac Power Unit Assembly | SV-8121097 | Not Available |
| 07 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-1944787 | Not Available |
| 10 |  | Filter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac | 9030400 | $32.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 12 |  | Paper Bag, 5-8 Gal Dust Collection Type E Part Number: 9066100 for Shop Vac | 9066100 | $23.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-1944703 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot A | SV-8568000 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot B | SV-8568010 | Not Available |
| 16 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 17 | Not Available | Shop-Vac Screw 10 x ' SL Hex Head | SV-1503999 | Not Available |
| 18 | Not Available | Shop-Vac Tool Holder | SV-8412000 | Not Available |

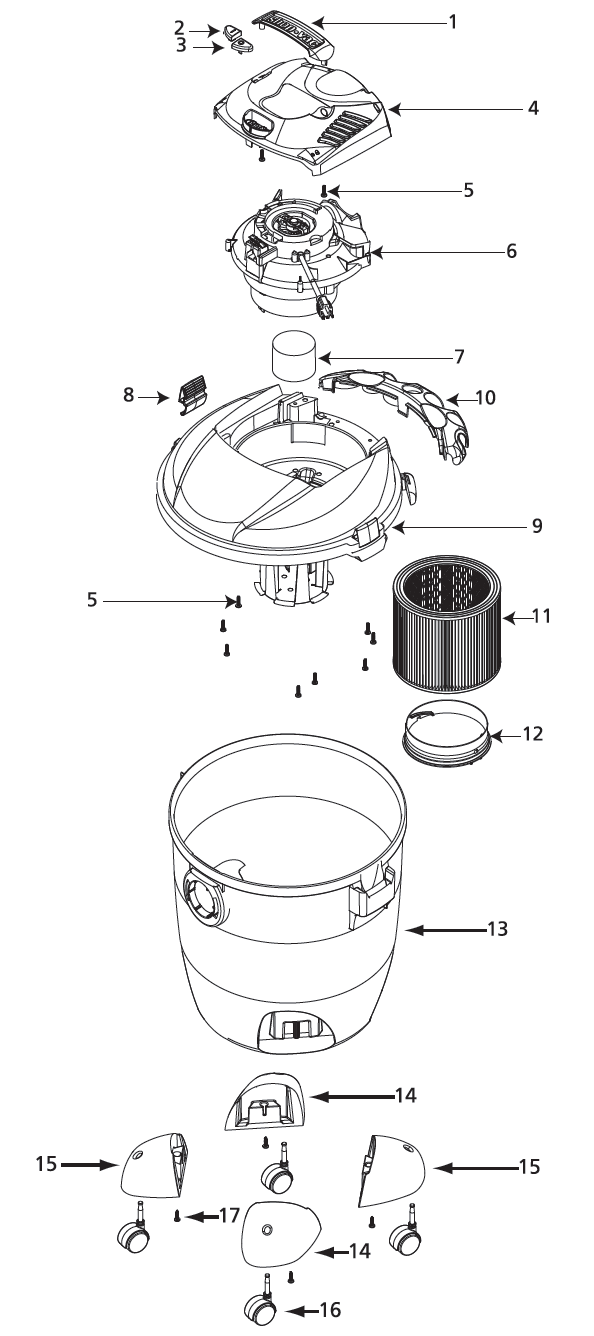

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-3750010 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - I | SV-7414200 | Not Available |
| 03 | Not Available | Shop-Vac Switch Button - O | SV-7414210 | Not Available |
| 04 | Not Available | Shop-Vac Motor Cover Assembly | SV-1944786 | Not Available |
| 05 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe, Twin Lead | SV-1517699 | Not Available |
| 06 | Not Available | Shop-Vac Power Unit Assembly | SV-8121097 | Not Available |
| 07 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-1944787 | Not Available |
| 10 | Not Available | Shop-Vac Tool Holder | SV-8412000 | Not Available |
| 11 | | Filter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac | 9030400 | $32.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-1944703 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot A | SV-8568000 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot B | SV-8568010 | Not Available |
| 16 | Not Available | Shop-Vac Caster | SV-6774200 | Not Available |
| 17 | Not Available | Shop-Vac Screw 10 x 3/4" SL Hex Head | SV-1503999 | Not Available |
