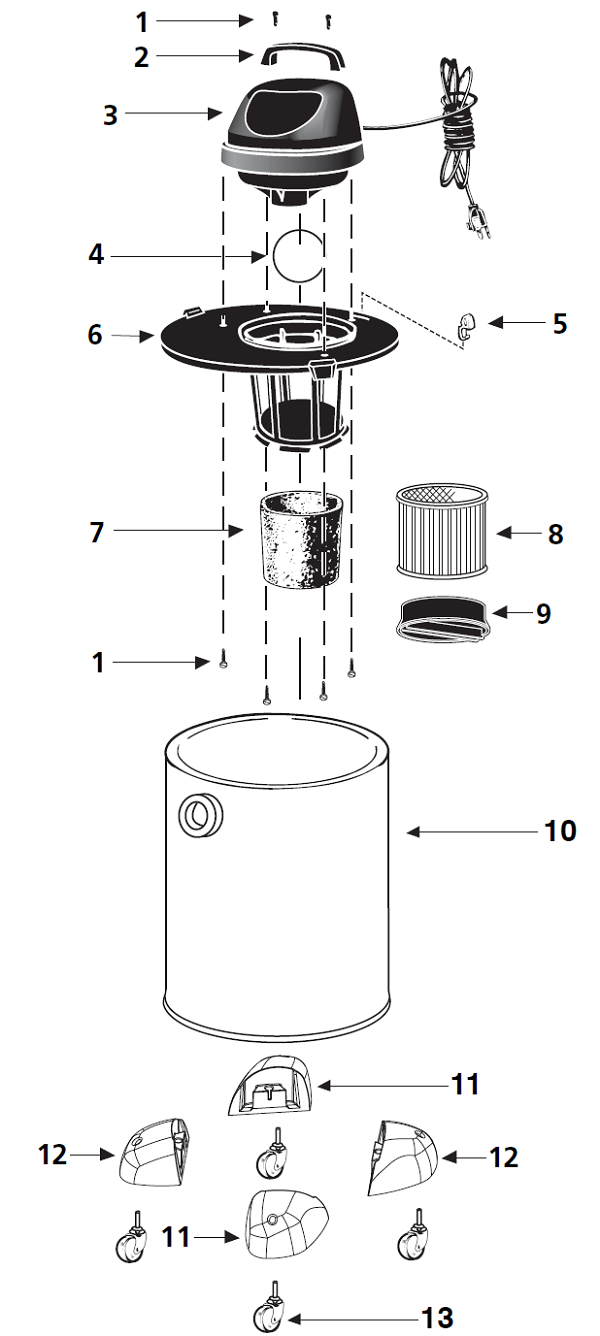

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 6045AH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 6045AH (10 Gal, 4.5 HP, Yellow Steel)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Hex Head Screw #10 x 3/4" Type AB | SV-1503999 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-2410000 | Not Available |
| 03 | Not Available | Shop-Vac Power Unit | SV-8105197 | Not Available |
| 04 | Not Available | Shop-Vac Ball float | SV-0081100 | Not Available |
| 05 | Not Available | Shop-Vac Latch | SV-8550101 | Not Available |
| 06 | Not Available | Shop-Vac Lid & cage w/ latch | SV-8988724 | Not Available |
| 07 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 08 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 09 | Not Available | Shop-Vac Filter retainer | SV-3008000 | Not Available |
| 10 | Not Available | Shop-Vac Tank | SV-5102097 | Not Available |
| 11 | Not Available | Shop-Vac Handle Package (Includes 1 & 12) | SV-9355196 | Not Available |
| 12 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 13 | Not Available | Shop-Vac Caster Foot A | SV-8568101 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot B | SV-8568111 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6772200 | Not Available |
| 16 | Not Available | Shop-Vac Washer | SV-2781018 | Not Available |
| 17 | Not Available | Shop-Vac Hex Head Screw #10 x 1 Type AB | SV-1509699 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Hex Head Screw #10 x 3/4" Type AB | SV-1503999 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-2410000 | Not Available |
| 03 | Not Available | Shop-Vac Power Unit | SV-8105197 | Not Available |
| 04 | Not Available | Shop-Vac Ball float | SV-0081100 | Not Available |
| 05 | Not Available | Shop-Vac Latch | SV-8550101 | Not Available |
| 06 | Not Available | Shop-Vac Lid & cage w/ latch | SV-8965724 | Not Available |
| 07 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 08 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 09 | Not Available | Shop-Vac Filter retainer | SV-3008000 | Not Available |
| 10 | Not Available | Shop-Vac Tank | SV-1040697 | Not Available |
| 11 | Not Available | Shop-Vac Caster Foot A | SV-8568201 | Not Available |
| 12 | Not Available | Shop-Vac Caster Foot B | SV-8568211 | Not Available |
| 13 | Not Available | Shop-Vac Caster | SV-6771200 | Not Available |
