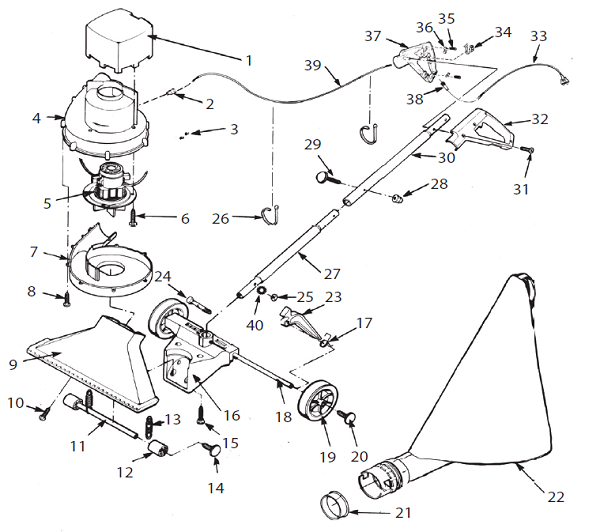

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 405EDI
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 405EDI (Shop Sweep, Electric)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Motor Cover | SV-8290504 | Not Available |
| 02 | Not Available | Shop-Vac Strain Relief Bushing | SV-3400299 | Not Available |
| 03 | Not Available | Shop-Vac Wire Nut | SV-0500199 | Not Available |
| 04 | Not Available | Shop-Vac Blower HSG - Upper | SV-8290102 | Not Available |
| 05 | Not Available | Shop-Vac Motor | SV-1343197 | Not Available |
| 06 | Not Available | Shop-Vac 1/4" x 11/4" Screw HH AB | SV-1501899 | Not Available |
| 07 | Not Available | Shop-Vac Blower HSG - Lower | SV-8290200 | Not Available |
| 08 | Not Available | Shop-Vac 10 x 3/4" Screw PH Pan AB | SV-1506099 | Not Available |
| 09 | Not Available | Shop-Vac Nozzle | SV-8290321 | Not Available |
| 10 | Not Available | Shop-Vac 10 x 3/4" Screw PH Pan AB | SV-1506099 | Not Available |
| 11 | Not Available | Shop-Vac Axle 11.60 LG | SV-3272503 | Not Available |
| 12 | Not Available | Shop-Vac Roller | SV-8291900 | Not Available |
| 13 | Not Available | Shop-Vac Spring | SV-8291800 | Not Available |
| 14 | Not Available | Shop-Vac Wheel Retainer | SV-3272600 | Not Available |
| 15 | Not Available | Shop-Vac 1/4" x 11/2" Screw HH AB | SV-1511899 | Not Available |
| 16 | Not Available | Shop-Vac Carrier | SV-8290400 | Not Available |
| 17 | Not Available | Shop-Vac Spring for Kickstand | SV-8299700 | Not Available |
| 18 | Not Available | Shop-Vac Axle (14.68 LG) | SV-3272506 | Not Available |
| 19 | Not Available | Shop-Vac Wheel - 7" | SV-8298950 | Not Available |
| 20 | Not Available | Shop-Vac Wheel Retainer | SV-3272600 | Not Available |
| 21 | Not Available | Shop-Vac Exhaust Gasket | SV-8297501 | Not Available |
| 22 | Not Available | Shop-Vac Collection Filter Bag | SV-8294396 | Not Available |
| 23 | Not Available | Shop-Vac Kickstand | SV-8299600 | Not Available |
| 24 | Not Available | Shop-Vac 1/4" - 20 x 2 HH Mach. Screw | SV-0903599 | Not Available |
| 25 | Not Available | Shop-Vac 1/4" - 20 Hex Nut | SV-1300199 | Not Available |
| 26 | Not Available | Shop-Vac Wire Tie | SV-0042202 | Not Available |
| 27 | Not Available | Shop-Vac Handle - Lower | SV-8292601 | Not Available |
| 28 | Not Available | Shop-Vac 1/4" - 20 Acorn Nut | SV-1900199 | Not Available |
| 29 | Not Available | Shop-Vac Carriage Bolt 1/4" - 20 x 11/4" | SV-6400499 | Not Available |
| 30 | Not Available | Shop-Vac Handle - Upper | SV-8291600 | Not Available |
| 31 | Not Available | Shop-Vac 8 x 3/4" PH Pan Hd AB | SV-1503199 | Not Available |
| 32 | Not Available | Shop-Vac Grip Half-Left | SV-8298600 | Not Available |
| 33 | Not Available | Shop-Vac Power Cord | SV-0451996 | Not Available |
| 34 | Not Available | Shop-Vac Switch | SV-1210022 | Not Available |
| 35 | Not Available | Shop-Vac 6 x 3/4' PH Pan Hd B | SV-1510499 | Not Available |
| 36 | Not Available | Shop-Vac Cord Clamp | SV-0049800 | Not Available |
| 37 | Not Available | Shop-Vac Grip Half - Right | SV-8298500 | Not Available |
| 38 | Not Available | Shop-Vac Cord Protector | SV-1222600 | Not Available |
| 39 | Not Available | Shop-Vac Intermediate Cord | SV-0452096 | Not Available |
| 40 | Not Available | Shop-Vac 1/4" External Tooth Lockwasher | SV-2301099 | Not Available |
