This is a list of parts and a diagram and schematic for: Shop-Vac Model: 305A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

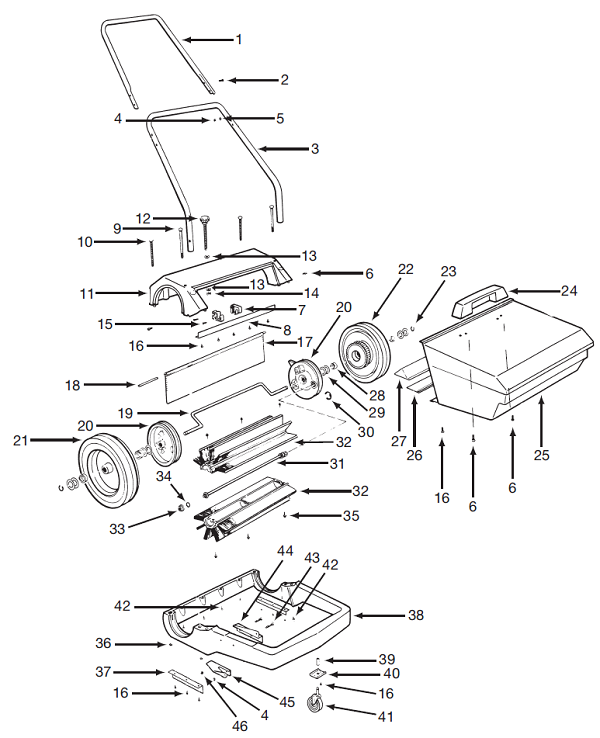

Parts for: 305A

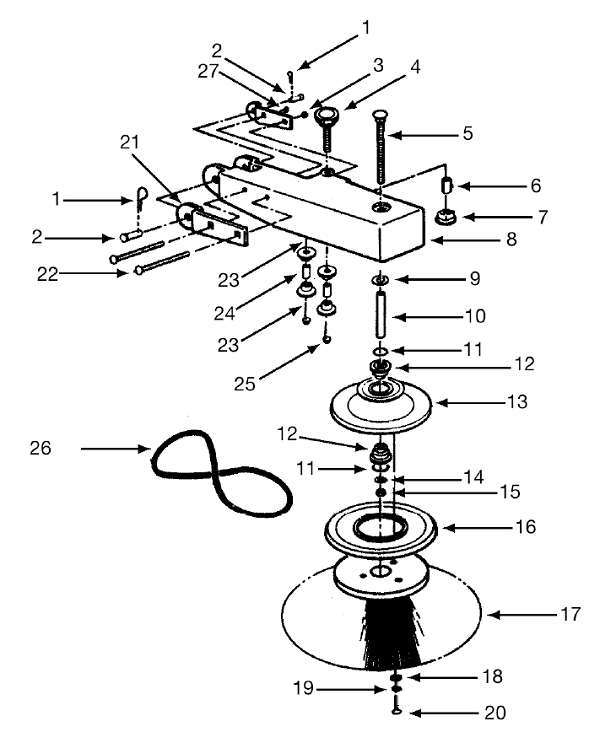

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Upper Handle | SV-3512701 | Not Available |
| 02 | Not Available | Shop-Vac 1/4 - 20 x 11/4" Slotted truss head screw | FNLA | Not Available |
| 03 | Not Available | Shop-Vac Lower handle | SV-3512601 | Not Available |
| 04 | Not Available | Shop-Vac 1/4" - 20 Hex nut | FNLA | Not Available |
| 05 | Not Available | Shop-Vac 1/4", External tooth lockwasher | FNLA | Not Available |
| 06 | Not Available | Shop-Vac 1/4" x 1" Philips truss head screw (type BT) | FNLA | Not Available |
| 07 | Not Available | Shop-Vac Height adjustment nut (half) | SV-3510200 | Not Available |
| 08 | Not Available | Shop-Vac Seal - hopper | SV-3511801 | Not Available |
| 09 | Not Available | Shop-Vac 5/16 - 18 x 41/2" Round head bolt | FNLA | Not Available |
| 10 | Not Available | Shop-Vac 5/16 - 18 x 51/2" Round head bolt (square neck) | FNLA | Not Available |
| 11 | Not Available | Shop-Vac Rear housing | SV-3517096 | Not Available |
| 12 | Not Available | Shop-Vac Main broom adjustment knob | SV-3513200 | Not Available |
| 13 | Not Available | Shop-Vac 3/8" Flatwasher | FNLA | Not Available |
| 14 | Not Available | Shop-Vac Set screw collar | SV-3514200 | Not Available |
| 15 | Not Available | Shop-Vac #10 x 1" Slotted hex head screw (type BF) | FNLA | Not Available |
| 16 | Not Available | Shop-Vac #10 x 3/4" Phillips pan head screw (type AB) | FNLA | Not Available |
| 17 | Not Available | Shop-Vac Rear floor seal | SV-3516400 | Not Available |
| 18 | Not Available | Shop-Vac Rear seal support rod | SV-3515700 | Not Available |
| 19 | Not Available | Shop-Vac Axle | SV-3514500 | Not Available |
| 20 | Not Available | Shop-Vac Pivot hub | SV-3511600 | Not Available |
| 21 | Not Available | Shop-Vac Wheel and bearing assembly includes 1 wheel (3512801) and 2 bearings (3510900) | SV-3515896 | Not Available |
| 22 | Not Available | Shop-Vac Wheel and clutch assembly | SV-3515996 | Not Available |
| 23 | Not Available | Shop-Vac Retaining ring | SV-3600999 | Not Available |
| 24 | Not Available | Shop-Vac Hopper handle | SV-3511400 | Not Available |
| 25 | Not Available | Shop-Vac Hopper | SV-3516197 | Not Available |
| 26 | Not Available | Shop-Vac Floor blade | SV-3512100 | Not Available |
| 27 | Not Available | Shop-Vac Floor blade retainer | SV-3511300 | Not Available |
| 28 | Not Available | Shop-Vac Wheel bearing | SV-3510900 | Not Available |
| 29 | Not Available | Shop-Vac 1/2" Flatwasher | FNLA | Not Available |
| 30 | Not Available | Shop-Vac External E-ring | SV-3601099 | Not Available |
| 31 | Not Available | Shop-Vac Broom shaft assembly | SV-3515496 | Not Available |
| 32 | Not Available | Shop-Vac Main broom (half) | SV-3514400 | Not Available |
| 33 | Not Available | Shop-Vac Bearing | SV-3513100 | Not Available |
| 34 | Not Available | Shop-Vac O-ring | SV-7403999 | Not Available |
| 35 | Not Available | Shop-Vac 13/4" x #10 Phillips pan head screw (Type A) | FNLA | Not Available |
| 36 | Not Available | Shop-Vac Serrated hex flange nut, 5/16" | SV-1258400 | Not Available |
| 37 | Not Available | Shop-Vac Floor seal (sides) | SV-3511800 | Not Available |
| 38 | Not Available | Shop-Vac Main frame | SV-3510000 | Not Available |
| 39 | Not Available | Shop-Vac Caster socket | SV-3510800 | Not Available |
| 40 | Not Available | Shop-Vac Caster support | SV-3512500 | Not Available |
| 41 | Not Available | Shop-Vac Caster | SV-6772800 | Not Available |
| 42 | Not Available | Shop-Vac 1/4 x 11/2" Hex head screw (type AB) | FNLA | Not Available |
| 43 | Not Available | Shop-Vac 1/4 - 20 x 13/4" Round head bolt (square neck) | FNLA | Not Available |
| 44 | Not Available | Shop-Vac Inner sidearm mounting bracket | SV-3512400 | Not Available |
| 45 | Not Available | Shop-Vac Outer sidearm mounting bracket | SV-3512300 | Not Available |
| 46 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Hairpin | SV-7000299 | Not Available |
| 02 | Not Available | Shop-Vac Clevis pin | SV-3513300 | Not Available |
| 03 | Not Available | Shop-Vac 1/4" - 20 hex nut | FNLA | Not Available |
| 04 | Not Available | Shop-Vac Stop adjustment knob | SV-3518300 | Not Available |
| 05 | Not Available | Shop-Vac 3/8 - 16 x 4' Round head bolt, (square neck) | FNLA | Not Available |
| 06 | Not Available | Shop-Vac 3/8" Threaded insert | SV-7300199 | Not Available |
| 07 | Not Available | Shop-Vac Stop adjustment foot | SV-3510300 | Not Available |
| 08 | Not Available | Shop-Vac Side broom arm | SV-3511100 | Not Available |
| 09 | Not Available | Shop-Vac 1/2" Flatwasher | FNLA | Not Available |
| 10 | Not Available | Shop-Vac Side broom shaft | SV-3512900 | Not Available |
| 11 | Not Available | Shop-Vac O-ring | SV-7403999 | Not Available |
| 12 | Not Available | Shop-Vac Bearing | SV-3513100 | Not Available |
| 13 | Not Available | Shop-Vac Side broom cover | SV-3510400 | Not Available |
| 14 | Not Available | Shop-Vac 3/8" Lockwasher | FNLA | Not Available |
| 15 | Not Available | Shop-Vac 3/8" - 16 Hex nut | FNLA | Not Available |
| 16 | Not Available | Shop-Vac Side broom bumper | SV-3510500 | Not Available |
| 17 | Not Available | Shop-Vac Side broom | SV-3511700 | Not Available |
| 18 | Not Available | Shop-Vac 1/4" Flatwasher | FNLA | Not Available |
| 19 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |
| 20 | Not Available | Shop-Vac 1/4 x 1" Slotted pan head screw (type AB) | FNLA | Not Available |
| 21 | Not Available | Shop-Vac Sidearm bracket | SV-3512200 | Not Available |
| 22 | Not Available | Shop-Vac 1/4 - 20 x 3" Round head square neck bolt | FNLA | Not Available |
| 23 | Not Available | Shop-Vac Belt guide | SV-3510700 | Not Available |
| 24 | Not Available | Shop-Vac Spacer | SV-1101799 | Not Available |
| 25 | Not Available | Shop-Vac 1/4 x 11/2" Hex head screw (type AB) | FNLA | Not Available |
| 26 | Not Available | Shop-Vac Belt | SV-3514000 | Not Available |
| 27 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Upper Handle | SV-3512701 | Not Available |
| 02 | Not Available | Shop-Vac 1/4 - 20 x 11/4" Slotted truss head screw | FNLA | Not Available |
| 03 | Not Available | Shop-Vac Lower handle | SV-3512601 | Not Available |
| 04 | Not Available | Shop-Vac 1/4" - 20 Hex nut | FNLA | Not Available |
| 05 | Not Available | Shop-Vac 1/4", External tooth lockwasher | FNLA | Not Available |
| 06 | Not Available | Shop-Vac 1/4" x 1" Philips truss head screw (type BT) | FNLA | Not Available |
| 07 | Not Available | Shop-Vac Height adjustment nut (half) | SV-3510200 | Not Available |
| 08 | Not Available | Shop-Vac Seal - hopper | SV-3511801 | Not Available |
| 09 | Not Available | Shop-Vac 5/16 - 18 x 41/2" Round head bolt | FNLA | Not Available |
| 10 | Not Available | Shop-Vac 5/16 - 18 x 51/2" Round head bolt (square neck) | FNLA | Not Available |
| 11 | Not Available | Shop-Vac Rear housing | SV-3517096 | Not Available |
| 12 | Not Available | Shop-Vac Main broom adjustment knob | SV-3513200 | Not Available |
| 13 | Not Available | Shop-Vac 3/8" Flatwasher | FNLA | Not Available |
| 14 | Not Available | Shop-Vac Set screw collar | SV-3514200 | Not Available |
| 15 | Not Available | Shop-Vac #10 x 1" Slotted hex head screw (type BF) | FNLA | Not Available |
| 16 | Not Available | Shop-Vac #10 x 3/4" Phillips pan head screw (type AB) | FNLA | Not Available |
| 17 | Not Available | Shop-Vac Rear floor seal | SV-3516400 | Not Available |
| 18 | Not Available | Shop-Vac Rear seal support rod | SV-3515700 | Not Available |
| 19 | Not Available | Shop-Vac Axle | SV-3514500 | Not Available |
| 20 | Not Available | Shop-Vac Pivot hub | SV-3511600 | Not Available |
| 21 | Not Available | Shop-Vac Wheel and bearing assembly includes 1 wheel (3512801) and 2 bearings (3510900) | SV-3515896 | Not Available |
| 22 | Not Available | Shop-Vac Wheel and clutch assembly | SV-3515996 | Not Available |
| 23 | Not Available | Shop-Vac Retaining ring | SV-3600999 | Not Available |
| 24 | Not Available | Shop-Vac Hopper handle | SV-3511400 | Not Available |
| 25 | Not Available | Shop-Vac Hopper | SV-3516197 | Not Available |
| 26 | Not Available | Shop-Vac Floor blade | SV-3512100 | Not Available |
| 27 | Not Available | Shop-Vac Floor blade retainer | SV-3511300 | Not Available |
| 28 | Not Available | Shop-Vac Wheel bearing | SV-3510900 | Not Available |
| 29 | Not Available | Shop-Vac 1/2" Flatwasher | FNLA | Not Available |
| 30 | Not Available | Shop-Vac External E-ring | SV-3601099 | Not Available |
| 31 | Not Available | Shop-Vac Broom shaft assembly | SV-3515496 | Not Available |
| 32 | Not Available | Shop-Vac Main broom (half) | SV-3514400 | Not Available |
| 33 | Not Available | Shop-Vac Bearing | SV-3513100 | Not Available |
| 34 | Not Available | Shop-Vac O-ring | SV-7403999 | Not Available |
| 35 | Not Available | Shop-Vac 13/4" x #10 Phillips pan head screw (Type A) | FNLA | Not Available |
| 36 | Not Available | Shop-Vac Serrated hex flange nut, 5/16" | SV-1258400 | Not Available |
| 37 | Not Available | Shop-Vac Floor seal (sides) | SV-3511800 | Not Available |
| 38 | Not Available | Shop-Vac Main frame | SV-3510000 | Not Available |
| 39 | Not Available | Shop-Vac Caster socket | SV-3510800 | Not Available |
| 40 | Not Available | Shop-Vac Caster support | SV-3512500 | Not Available |
| 41 | Not Available | Shop-Vac Caster | SV-6772800 | Not Available |
| 42 | Not Available | Shop-Vac 1/4 x 11/2" Hex head screw (type AB) | FNLA | Not Available |
| 43 | Not Available | Shop-Vac 1/4 - 20 x 13/4" Round head bolt (square neck) | FNLA | Not Available |
| 44 | Not Available | Shop-Vac Inner sidearm mounting bracket | SV-3512400 | Not Available |
| 45 | Not Available | Shop-Vac Outer sidearm mounting bracket | SV-3512300 | Not Available |
| 46 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |

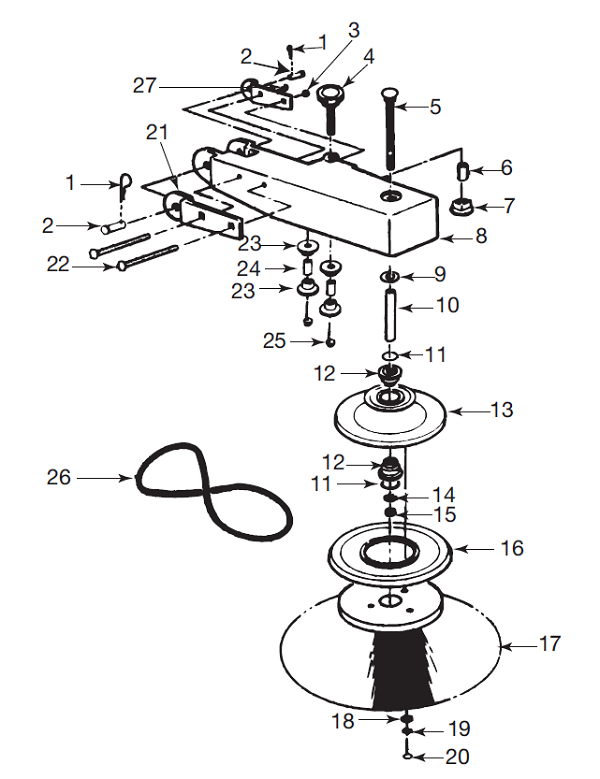

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Hairpin | SV-7000299 | Not Available |
| 02 | Not Available | Shop-Vac Clevis pin | SV-3513300 | Not Available |
| 03 | Not Available | Shop-Vac 1/4" - 20 hex nut | FNLA | Not Available |
| 04 | Not Available | Shop-Vac Stop adjustment knob | SV-3518300 | Not Available |
| 05 | Not Available | Shop-Vac 3/8 - 16 x 4' Round head bolt, (square neck) | FNLA | Not Available |
| 06 | Not Available | Shop-Vac 3/8" Threaded insert | SV-7300199 | Not Available |
| 07 | Not Available | Shop-Vac Stop adjustment foot | SV-3510300 | Not Available |
| 08 | Not Available | Shop-Vac Side broom arm | SV-3511100 | Not Available |
| 09 | Not Available | Shop-Vac 1/2" Flatwasher | FNLA | Not Available |
| 10 | Not Available | Shop-Vac Side broom shaft | SV-3512900 | Not Available |
| 11 | Not Available | Shop-Vac O-ring | SV-7403999 | Not Available |
| 12 | Not Available | Shop-Vac Bearing | SV-3513100 | Not Available |
| 13 | Not Available | Shop-Vac Side broom cover | SV-3510400 | Not Available |
| 14 | Not Available | Shop-Vac 3/8" Lockwasher | FNLA | Not Available |
| 15 | Not Available | Shop-Vac 3/8" - 16 Hex nut | FNLA | Not Available |
| 16 | Not Available | Shop-Vac Side broom bumper | SV-3510500 | Not Available |
| 17 | Not Available | Shop-Vac Side broom | SV-3511700 | Not Available |
| 18 | Not Available | Shop-Vac 1/4" Flatwasher | FNLA | Not Available |
| 19 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |
| 20 | Not Available | Shop-Vac 1/4 x 1" Slotted pan head screw (type AB) | FNLA | Not Available |
| 21 | Not Available | Shop-Vac Sidearm bracket | SV-3512200 | Not Available |
| 22 | Not Available | Shop-Vac 1/4 - 20 x 3" Round head square neck bolt | FNLA | Not Available |
| 23 | Not Available | Shop-Vac Belt guide | SV-3510700 | Not Available |
| 24 | Not Available | Shop-Vac Spacer | SV-1101799 | Not Available |
| 25 | Not Available | Shop-Vac 1/4 x 11/2" Hex head screw (type AB) | FNLA | Not Available |
| 26 | Not Available | Shop-Vac Belt | SV-3514000 | Not Available |
| 27 | Not Available | Shop-Vac 1/4" Lockwasher | FNLA | Not Available |
