This is a list of parts and a diagram and schematic for: Shop-Vac Model: 24M2S400
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

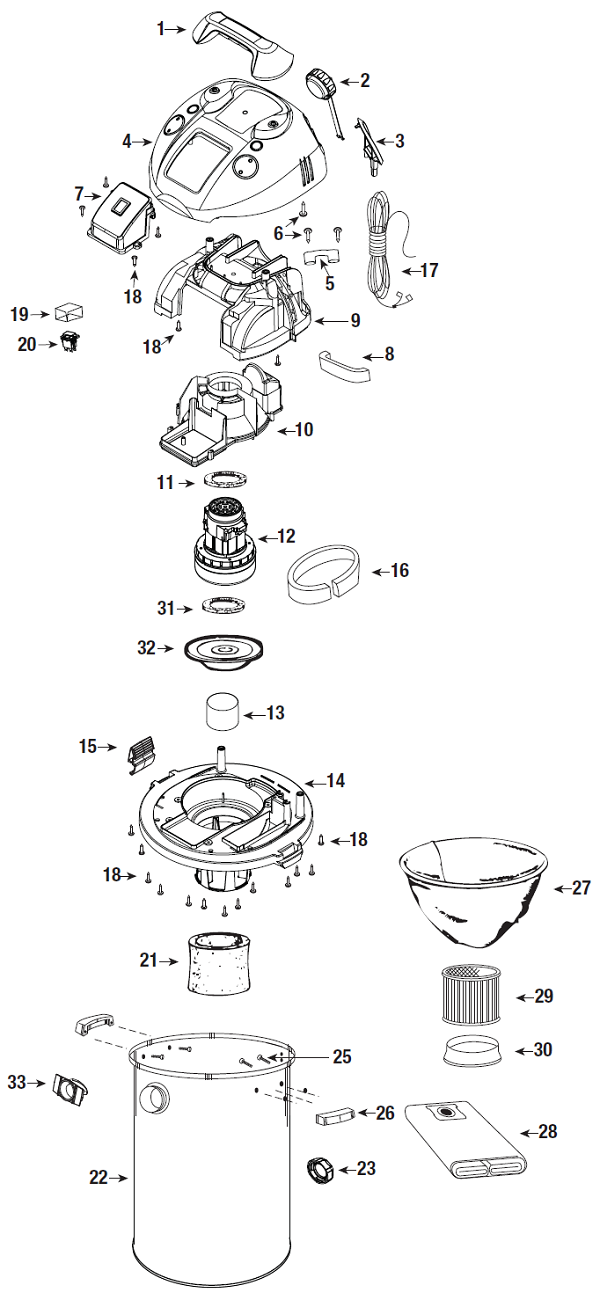

Parts for: 24M2S400
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle Assembly | SV-6463351 | Not Available |
| 02 | Not Available | Shop-Vac Blower Cap Assembly | SV-7412538 | Not Available |
| 03 | Not Available | Shop-Vac Power Cord Surround | SV-6463100 | Not Available |
| 04 | Not Available | Shop-Vac Top Cover Assembly | SV-1944904 | Not Available |
| 05 | Not Available | Shop-Vac Cord Clamp | SV-0049810 | Not Available |
| 06 | Not Available | Shop-Vac Screw #6 x Type B Phillips | SV-1510499 | Not Available |
| 07 | Not Available | Shop-Vac Electrical Panel Assembly (includes 19-20) | SV-6460570 | Not Available |
| 08 | Not Available | Shop-Vac Inner Cover Acoustical Foam | SV-1290556 | Not Available |
| 09 | Not Available | Shop-Vac Undercover | SV-6460300 | Not Available |
| 10 | Not Available | Shop-Vac Motor Housing | SV-6460401 | Not Available |
| 11 | Not Available | Shop-Vac Upper Motor Gasket | SV-2070000 | Not Available |
| 12 | Not Available | Shop-Vac Motor | SV-1944252 | Not Available |
| 13 | Not Available | Shop-Vac Float Cup | SV-3545000 | Not Available |
| 14 | Not Available | Shop-Vac Lid Cage and Latch Assembly | SV-6460621 | Not Available |
| 15 | Not Available | Shop-Vac Lid Latch | SV-6461100 | Not Available |
| 16 | Not Available | Shop-Vac Lid Cage Acoustical Foam | SV-1290555 | Not Available |
| 17 | Not Available | Shop-Vac Power Cord | SV-4151700 | Not Available |
| 18 | Not Available | Shop-Vac Screw #10 x " Trilobe T25 | SV-1516599 | Not Available |
| 19 | Not Available | Shop-Vac Switch Boot | SV-8232450 | Not Available |
| 20 | Not Available | Shop-Vac Switch Double Pole | SV-8232420 | Not Available |
| 21 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 22 | Not Available | Shop-Vac Tank Assembly | SV-1944905 | Not Available |
| 23 | Not Available | Shop-Vac Drain Cap | SV-7446800 | Not Available |
| 24 | Not Available | Shop-Vac Handle Package (Includes 25-26) | SV-9355196 | Not Available |
| 25 | Not Available | Shop-Vac Screw 10 x SL HX HD | SV-1503999 | Not Available |
| 26 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 27 | Not Available | Shop-Vac Full Polyester Filter | SV-9063800 | Not Available |
| 28 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9190610 | Not Available |
| 29 | Not Available | Shop-Vac Cartridge Filter | SV-9038010 | Not Available |
| 30 | Not Available | Shop-Vac Filter Retainer | SV-3008010 | Not Available |
| 31 | Not Available | Shop-Vac Lower Motor Gasket | SV-2072000 | Not Available |
| 32 | Not Available | Shop-Vac Grid Plate | SV-8865700 | Not Available |
| 33 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |

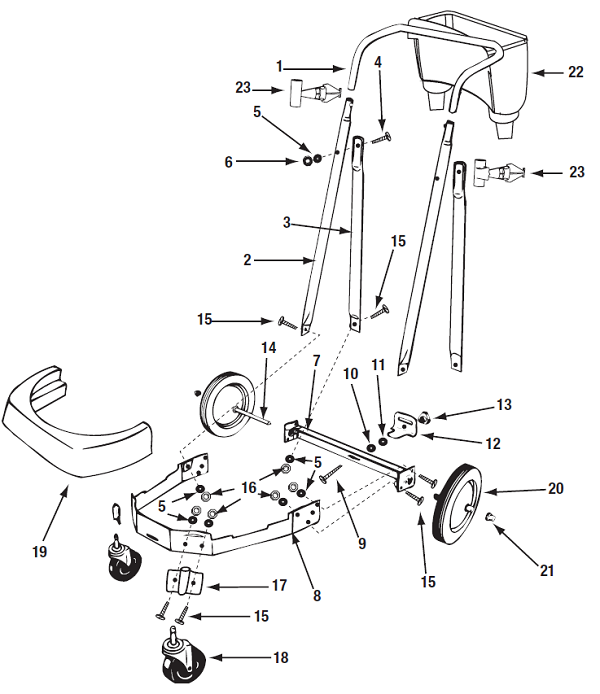

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-6463351 | Not Available |
| 02 | Not Available | Shop-Vac Handle upright | SV-7412538 | Not Available |
| 03 | Not Available | Shop-Vac Handle brace | SV-6463100 | Not Available |
| 04 | Not Available | Shop-Vac 1/4 - 20 x 11/4" Hex head machine screw (Black) | SV-1944904 | Not Available |
| 05 | Not Available | Shop-Vac 1/4" External tooth lockwasher | SV-0049810 | Not Available |
| 06 | Not Available | Shop-Vac 1/4 - 20 Hex nut (Black) | SV-1510499 | Not Available |
| 07 | Not Available | Shop-Vac Rear dolly frame | SV-6460570 | Not Available |
| 08 | Not Available | Shop-Vac Main dolly frame | SV-1290556 | Not Available |
| 09 | Not Available | Shop-Vac 5/16 -18 x 21/2" Hex head bolt | SV-6460300 | Not Available |
| 10 | Not Available | Shop-Vac 5/16" - Split lockwasher | SV-6460401 | Not Available |
| 11 | Not Available | Shop-Vac 5/16 - 18 Hex nut | SV-2070000 | Not Available |
| 12 | Not Available | Shop-Vac Tank retainer bracket | SV-1944252 | Not Available |
| 13 | Not Available | Shop-Vac Threaded knob | SV-3545000 | Not Available |
| 14 | Not Available | Shop-Vac Axle | SV-6460621 | Not Available |
| 15 | Not Available | Shop-Vac 1/4 - 20 x 5/8" Hex head machine screw | SV-6461100 | Not Available |
| 16 | Not Available | Shop-Vac 1/4 - 20 Hex nut | SV-1290555 | Not Available |
| 17 | Not Available | Shop-Vac Caster socket | SV-4151700 | Not Available |
| 18 | Not Available | Shop-Vac Caster | SV-1516599 | Not Available |
| 19 | Not Available | Shop-Vac Bumper | SV-8232450 | Not Available |
| 20 | Not Available | Shop-Vac 10' Wheel (25.4cm) Grey | SV-8232420 | Not Available |
| 21 | Not Available | Shop-Vac Cap nut | SV-9058500 | Not Available |
| 22 | Not Available | Shop-Vac Accessory basket | SV-1944905 | Not Available |
| 23 | Not Available | Shop-Vac Basket Adapters | SV-7446800 | Not Available |
