Schematic and parts list for: Shop-Vac Model: 16RTP550A

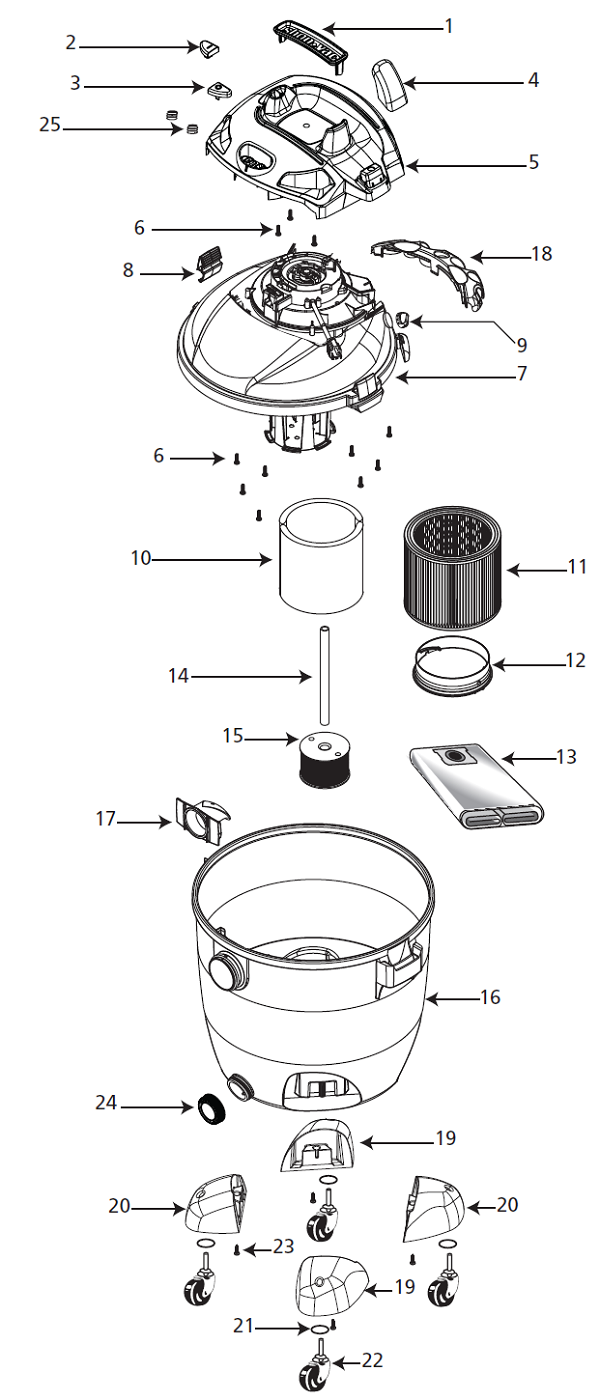

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 16RTP550A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 16RTP550A (14 Gal, 5.5 HP, 16RTP Series)
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
$12.31Add to cart
Product is special order please allow 2-4 weeks for delivery.
$32.10Add to cart
Product is special order please allow 2-4 weeks for delivery.
$28.69Add to cart
# | Part image | Description | SKU | Price |
01 | Not Available | Shop-Vac Handle | SV-3751031 | Not Available |
02 | Not Available | Shop-Vac Switch Button - On | SV-7414200 | Not Available |
03 | Not Available | Shop-Vac Switch Button - Off | SV-7414210 | Not Available |
04 | Not Available | Shop-Vac Cord Hook | SV-3856430 | Not Available |
05 | Not Available | Shop-Vac Motor Cover Assembly | SV-2432222 | Not Available |
06 | Not Available | Shop-Vac Screw 10 - 3/4' Trilobe, Twin Lead | SV-1517699 | Not Available |
07 | Not Available | Shop-Vac Power Unit Assembly | SV-8134097 | Not Available |
08 | Not Available | Shop-Vac Lid Latch | SV-7444500 | Not Available |
09 | Not Available | Shop-Vac Outlet Fitting Cap | SV-7443300 | Not Available |
10 | Filter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac | 9058500 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. | |
11 | Filter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac | 9030400 | $32.10Add to cart Product is special order please allow 2-4 weeks for delivery. | |
12 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
13 | Paper Bag, 10-14 Gal Dust Collection Type F Part Number: 906-62-00 for Shop Vac | 9066200 | $28.69Add to cart Product is special order please allow 2-4 weeks for delivery. | |
14 | Not Available | Shop-Vac Pickup Tube | SV-2723107 | Not Available |
15 | Not Available | Shop-Vac Pickup Cage Assembly | SV-7412250 | Not Available |
16 | Not Available | Shop-Vac Tank Assembly | SV-1094897 | Not Available |
17 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
18 | Not Available | Shop-Vac Tool Holder | SV-8412000 | Not Available |
19 | Not Available | Shop-Vac Casterfoot A | SV-8568006 | Not Available |
20 | Not Available | Shop-Vac Casterfoot B | SV-8568016 | Not Available |
21 | Not Available | Shop-Vac Flat Washer | SV-0704399 | Not Available |
22 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
23 | Not Available | Shop-Vac Screw 10 x 3/4' SL Hex Head | SV-1503999 | Not Available |
24 | Not Available | Shop-Vac Drain Cover | SV-7446800 | Not Available |
25 | Not Available | Shop-Vac Spring | SV-2802899 | Not Available |
