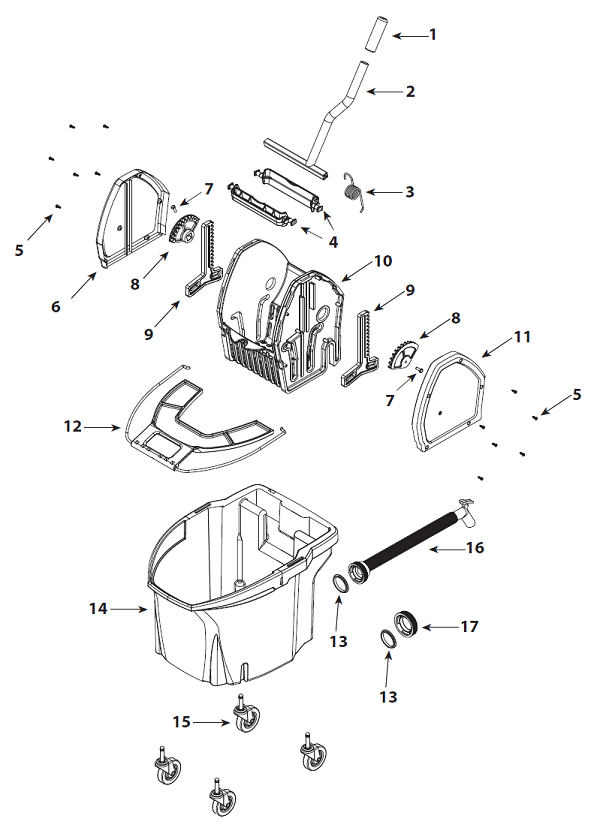

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 1560300
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 1560300 (Mop Bucket w/ Wringer (35 qt.))
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle Grip | SV-1550230 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-1550329 | Not Available |
| 03 | Not Available | Shop-Vac Torsion Spring | SV-1550328 | Not Available |
| 04 | Not Available | Shop-Vac Wringer Bar | SV-1550720 | Not Available |
| 05 | Not Available | Shop-Vac Screw 8 x 5/8, PH PAN HD Type AB | SV-1515299 | Not Available |
| 06 | Not Available | Shop-Vac Side Cover - Left | SV-1550600 | Not Available |
| 07 | Not Available | Shop-Vac Screw Hex HD - 20 x | SV-0902999 | Not Available |
| 08 | Not Available | Shop-Vac Sector Gear | SV-1550710 | Not Available |
| 09 | Not Available | Shop-Vac Rack | SV-1550700 | Not Available |
| 10 | Not Available | Shop-Vac Wringer Housing | SV-1550507 | Not Available |
| 11 | Not Available | Shop-Vac Side Cover - Right | SV-1550620 | Not Available |
| 12 | Not Available | Shop-Vac Handle & Splash Guard Assembly | SV-1944813 | Not Available |
| 13 | Not Available | Shop-Vac Gasket Seal | SV-1550422 | Not Available |
| 14 | Not Available | Shop-Vac Bucket (Includes Item 12,13,15, & 17) | SV-1944812 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6775200 | Not Available |
| 16 | Not Available | Shop-Vac Drain Hose Assembly (Includes Item 13) | SV-1550450 | Not Available |
| 17 | Not Available | Shop-Vac Drain Cover (Includes Item 13) | SV-1944831 | Not Available |
