Schematic and parts list for: Sanitaire Model: SP5035A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SP5035A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

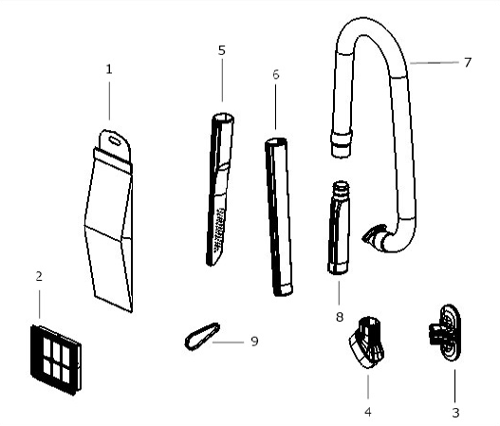

Parts for: SP5035A
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Sumo Adapter | 045027-355N | Not Available |
| xx | Not Available | Sanitaire Floor & Wall Brush Assembly | 75973-1 | Not Available |
| 01 | Not Available | Sanitaire Uprt Dust Bag Package W/Motor | EL205B | Not Available |
| 02 | Not Available | Sanitaire Hepa Filter | EL012A | Not Available |
| 03 | Not Available | Sanitaire Nozzle - Furniture | 75985 | Not Available |
| 04 | Not Available | Sanitaire Dusting Brush | 54505-5 | Not Available |
| 05 | Not Available | Sanitaire Wand - Crevice | 75048-366N | Not Available |
| 06 | Not Available | Sanitaire Wand - Straight | 75047-366N | Not Available |
| 07 | Not Available | Sanitaire Hose Assembly - Cartoned | 61865-11 | Not Available |
| 08 | Not Available | Sanitaire Wand - Short | 75046-366N | Not Available |
| 09 | Not Available | Sanitaire Electrolux Upright Cogged | EL095 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Control Board 6 Wire Sensor Board Harness | 75133B | Not Available |
| 02 | Not Available | Sanitaire Lead & Terminal Assembly-Motor To | 75755 | Not Available |
| 03 | Not Available | Sanitaire Brushroll Motor - Package | 63179 | Not Available |
| 04 | Not Available | Sanitaire Bracket - Left Brushroll | 74803 | Not Available |
| 05 | No Image | FOOT PEDAL, VS14/VS18 NEW MODELS STARTING 2016 Part Number: 8.636-318.0 for Windsor | 86363180 | $109.32Read more |
| 06 | Not Available | Sanitaire Washer Package | 63189 | Not Available |
| 07 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Sanitaire Front Wheel & Axle Assembly | 63177 | Not Available |
| 09 | Not Available | Sanitaire Clamp - Axle | 74872 | Not Available |
| 10 | Not Available | Sanitaire Soleplate Assembly | 75145-1SV | Not Available |
| 11 | Not Available | Sanitaire Brushroll - Cartoned | 63176 | Not Available |
| 12 | Not Available | Sanitaire Led Board | 75134A | Not Available |
| 13 |  | BASE, W/CAP Part Number: 63178 for Eureka | 63178 | $20.16Read more |
| 14 | Not Available | Sanitaire Grommet - Motor Mount | 74997-316N | Not Available |
| 15 | Not Available | Sanitaire Micro Switch & Bracket As | 59397-4 | Not Available |
| 16 | Not Available | Sanitaire Motor Jumper Assembly | 76012SV | Not Available |
| 17 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 18 | Not Available | Sanitaire Lens - Headlight | 74989-313N | Not Available |
| 19 | Not Available | Sanitaire Furniture Guard | 74922A-355N | Not Available |
| 20 | Not Available | Sanitaire Hood Assembly - Packaged | 63188-1 | Not Available |
| 21 | Not Available | Sanitaire Lower Display Board | 75135 | Not Available |
| 22 | Not Available | Sanitaire Lower Display & Graphics | 75824-1 | Not Available |
| 23 | Not Available | Sanitaire Tie - Cable (Purchased) | 46713-4 | Not Available |
| 24 | Not Available | Sanitaire Base Adapter Assembly | 75821-1 | Not Available |
| 25 | No Image | HOSE, BASE EL5035 Part Number: 75571-1 for Eureka | 755711 | $14.75Read more |
| 26 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.94Read more |
| 27 | Not Available | Sanitaire Screw Package | 53238-27 | Not Available |
| 28 | Not Available | Sanitaire Gear - Spur Height Adjust | 74809-316N | Not Available |
| 29 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $13.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Sanitaire Height Adjustment Sensor 6 Wire Harness | 75123A | Not Available |
| 31 | Not Available | Sanitaire Cover & Bushing Assembly | 76508SV | Not Available |
| 32 | Not Available | Sanitaire Gear - Pinion Height Adjust | 74810-316N | Not Available |
| 33 |  | Clutch Rod (R20D, R20P, R20UP) Part Number B017-4800 for Maytag and Riccar and Simplicity Models M700,R20S, R20D, R20P, R20UP,S20S, S20D, S20P, S20UP | B0174800 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Sanitaire Axle Block Assembly | 75146 | Not Available |
| 35 | Not Available | Sanitaire Screw Package | 63181 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | No Image | COVER, GRIP EL5035 Part Number: 74908-355N for Eureka | 74908355N | $6.49Read more |
| 02 | Not Available | Sanitaire Grip - Handle W/Overmold | 75170A-1 | Not Available |
| 03 | Not Available | Sanitaire Retainer - Hose | 75244-355N | Not Available |
| 04 | Not Available | Sanitaire Ptc Assembly | 76286A | Not Available |
| 05 | Not Available | Sanitaire Handle Assembly - Welded | 75803-1 | Not Available |
| 06 | Not Available | Sanitaire Screw Package | 53238-27 | Not Available |
| 07 | Not Available | Sanitaire Button Cover & Grphcs Ass | 75876-1 | Not Available |
| 08 | Not Available | Sanitaire Button-Power | 75180-392P | Not Available |
| 09 | Not Available | Sanitaire Height Button & Grphcs As | 76336-1 | Not Available |
| 10 |  | Switch, 3 Speed Rocker 5902 5893AVZ Part Number: 27871A1 for Eureka | 27871A1 | $12.41Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | SWITCH, MOMENTARY EL5305A/AZ/B/BZ Part Number: 75431 for Eureka | 75431 | $6.52Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Bearing Hub | 78982-316N | Not Available |
| xx | Not Available | Sanitaire Cover - Handle Release Pe | 75440-366N | Not Available |
| xx | Not Available | Sanitaire Grommet - Sensor | 75711-316N | Not Available |
| xx | Not Available | Sanitaire Tube - Cord Reel Cooling | 75847-1 | Not Available |
| xx | Not Available | Sanitaire Wheel Retainer Assembly - Cartoned | 63868 | Not Available |
| xx |  | FILTER, RETAINER HEPA Part Number: 74977A-313N for Eureka | 74977A313N | $12.49Read more |
| 01 | Not Available | Sanitaire Accessory Door & Cover Assembly | 76686-2 | Not Available |
| 02 | Not Available | Sanitaire Tube - Dirt | 75204-313N | Not Available |
| 03 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Sanitaire Cover - Lower Hose | 75108-355N | Not Available |
| 05 | Not Available | Sanitaire Valve Assembly | 74910SV | Not Available |
| 06 |  | COVER, CORD Part Number: 74999-355N for Eureka | 74999355N | $6.49Read more |
| 07 | Not Available | Sanitaire Pedal - Cord Rewind | 75000-392P | Not Available |
| 08 |  | PEDAL, HANDLE RELEASE EL5035 Part Number: 74876-355N for Eureka | 74876355N | $6.49Read more |
| 09 | Not Available | Sanitaire Screw Package 10 | 60160 | Not Available |
| 10 | Not Available | Sanitaire Cover - Wheel | 74984-392P | Not Available |
| 11 | Not Available | Sanitaire Wheel Retainer | 74880A-119N | Not Available |
| 12 | Not Available | Sanitaire Wheel-Rear W/Overmolded | 75019-1 | Not Available |
| 13 | Not Available | Sanitaire Washer Package | 63190 | Not Available |
| 14 | Not Available | Sanitaire Bracket Retainer | 75245A-355N | Not Available |
| 15 | Not Available | Sanitaire Bracket - Left Base/Rear | 74874 | Not Available |
| 16 | Not Available | Sanitaire Bracket - Right Base/Rear | 74873 | Not Available |
| 17 |  | Bearing, 8MM Common/Fits Many Motors Part Number: 530885 for Eureka | 530885 | $18.79Read more |
| 18 | Not Available | Sanitaire Rear Housing Assembly - Package | 63186 | Not Available |
| 19 | Not Available | Sanitaire Upper Display Board | 75136B | Not Available |
| 20 | Not Available | Sanitaire Cover - Rear Wires | 75122-355N | Not Available |
| 21 | Not Available | Sanitaire Upper Display & Grphcs As | 75829-1 | Not Available |
| 22 | Not Available | Sanitaire Bag In Place Assembly | 75370SV | Not Available |
| 23 | Not Available | Sanitaire Frame-Motor Filter | 74968-366N | Not Available |
| 24 | Not Available | Sanitaire Filter - Pre-Motor | 75707 | Not Available |
| 25 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 26 | Not Available | Sanitaire Lead & Trmnl Assembly-Motor | 75755 | Not Available |
| 27 | Not Available | Sanitaire Cord Reel Assembly | 74889A | Not Available |
| 28 | Not Available | Sanitaire Air Duct Assembly | 75199A | Not Available |
| 29 | No Image | COVER, 116.39512991 Part Number: 8174976 for Kenmore | 8174976 | $51.98Read more |
| 30 | Not Available | Sanitaire Gasket - Motor Can | 74884-316N | Not Available |
| 31 | No Image | MOTOR, EL5035 Part Number: 63182 for Eureka | 63182 | $62.56Read more |
| 32 | Not Available | Sanitaire Thermostat & Terminal Assembly | 39252-13 | Not Available |
| 33 | No Image | HOUSING, TOOL DC11 LIGHT GRAY Part Number: 905763-07 for Dyson | 90576307 | $39.31Read more |
| 34 | Not Available | Sanitaire Motor Cover Assembly - Pack | 63185 | Not Available |
| 36 | Not Available | Sanitaire Bag Cvr & Exhaust Cvr Assembly | 63184-1 | Not Available |
