Schematic and parts list for: Sanitaire Model: SC684E
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC684E
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC684E
Popular Supplies

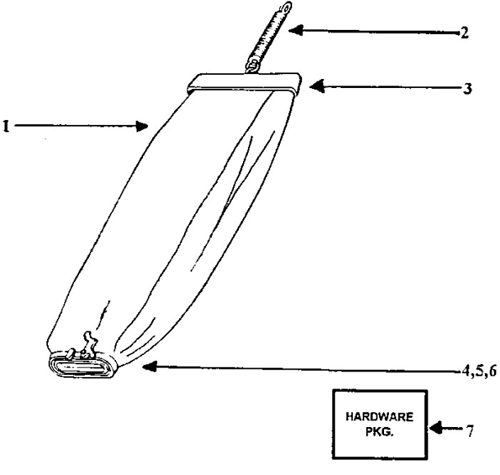

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Bag Assembly - Packaged | 53354-3 | Not Available |
| 02 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Clip, Metal Bag SC679/SC684/SC881/SC886/SC899 Part Number: 30599D10 for Eureka | 30599D10 | $9.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | No Image | Washer, Fits SC899, SC996 Series Part Number: 48748 for Eureka | 48748 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Gasket, :( Rubber Bag Adapter Part Number: 48282 for Eureka | 48282 | $4.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Adapter - Bag | 54174-1 | Not Available |
| 07 | Not Available | Sanitaire Hardware Package - Comm Upright | 49461A | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Rivet - Shoulder Package | 53118 | Not Available |
| xx |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.94Read more |
| xx | Not Available | Sanitaire Cam (Left) | 24965A | Not Available |
| xx | Not Available | Sanitaire Cam (Right) | 24964A | Not Available |
| 01 |  | Switch, Button 1934/1967/1968/SC678/SC679/SC684 Part Number: 146601 for Eureka | 146601 | $4.98Read more |
| 02 | No Image | Pedal, Gray/Metal Foot Eureka/Sani Uprt/Commercial | E-24834A1 | $5.99Add to cart |
| 05 | No Image | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 06 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Sanitaire Spring - Adapt Retainer | 37034 | Not Available |
| 08 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Knob, Black Height Adjustment C2000 Series Part Number: 380532 for Eureka | 380532 | $6.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Sanitaire Separator Assembly | 38067 | Not Available |
| 11 |  | Bracket, Metal Bushing C2000/C4000 Series Part Number: 382181 for Eureka | 382181 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $2.00Add to cart |
| 14 |  | Bushing, Strn Relief SC679/SC689/SC887/SC888 10PK Part Number: 53122 for Eureka | 53122 | $9.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Sanitaire Clamp & Screw Assembly Package | 53140 | Not Available |
| 17 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $3.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Sanitaire Wire Nuts/Package 10 | 53214-1 | Not Available |
| 19 | Not Available | Sanitaire Screw Package | 53215-4 | Not Available |
| 20 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 22 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $5.47Read more |
| 23 | Not Available | Sanitaire Switch, Use 13738-5 | 54151-1 | Not Available |
| 24 | Not Available | Sanitaire Wire & Terminal Assembly | 54177 | Not Available |
| 25 |  | Hood, Dark Gray Plastic SC684/SC679/SC688/SC695 Part Number: 799176 for Sanitaire | 799176 | $39.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Sanitaire Base Assembly 12" - Cartoned | 57900-2 | Not Available |

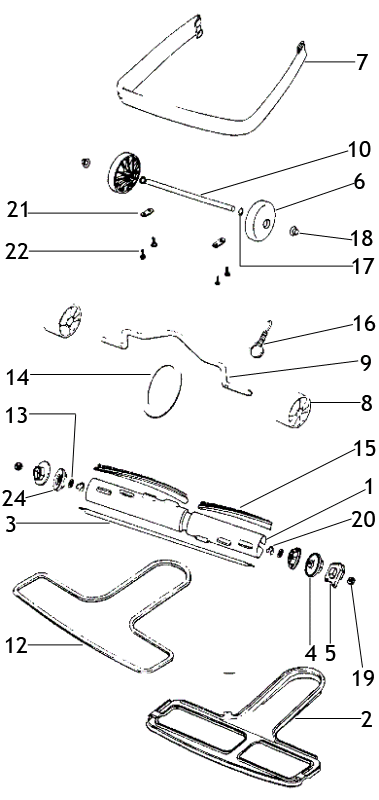

| # | Part image | Description | SKU | Price |
| xx | No Image | Wheel Axle and Press Clips for Bissell BG101 BG102 Oreck OR101 OR102 and Sanitaire Commercial | 60161 | $11.99Read more |
| xx |  | Brushroll, 12 In Hex End BB W/Beater Bar VG2 Metal Part Number: EK53270 for Eureka Replacement | EK53270 | $27.06Read more |
| 01 | Not Available | Sanitaire Tube - Disturbulator | 13236-3 | Not Available |
| 02 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.13Read more |
| 03 | Not Available | Sanitaire Shaft - Disturbulator | 25937 | Not Available |
| 04 |  | End Cap, Small Hex Brushroll VGII Part Number: 26057A for Eureka | 26057A | $3.44Read more |
| 05 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.98Read more |
| 07 |  | Bumper, 31"x .75" Wide Clear Wrap Santaire SC888 Part Number: 285041 for Eureka | 285041 | $7.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.53Read more |
| 09 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $9.77Read more |
| 10 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $8.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Gasket, 48-1/4" Foam Wide Track Bottom Plate Part Number: 465384 for Eureka | 465384 | $10.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Sanitaire Washer - Felt | 49899 | Not Available |
| 15 | Not Available | Sanitaire Bristle Strip Package | 52282-4 | Not Available |
| 17 |  | CYCLONE ASSY, DC25 PINK Part Number: 915531-10 for Dyson | 91553110 | $66.90Read more |
| 18 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $0.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $9.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Klipring, Eur/Sani C2000/C4046/S647/SC887 Ser 10Pk Part Number: 53184 for Eureka | 53184 | $9.77Read more |
| 21 |  | Clamp, Axle Most Uprights Part Number: 53201 for Eureka | 53201 | $0.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Sanitaire Bearing & Retainer Assmebly | 54256 | Not Available |

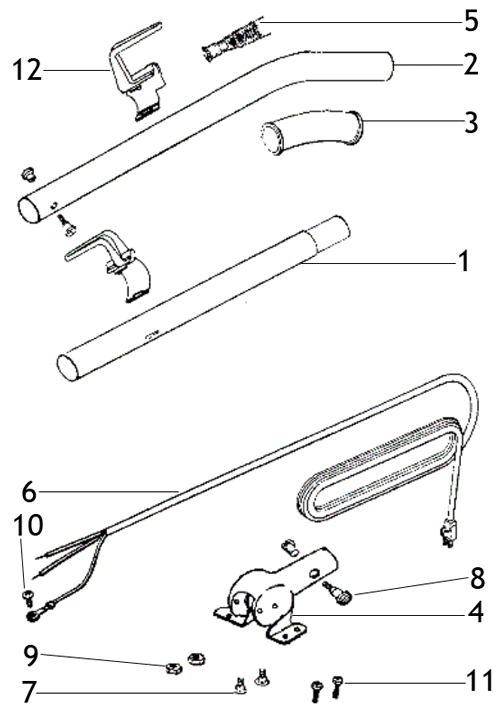

| # | Part image | Description | SKU | Price |
| xx |  | Shield, Handle Socket C2194A/B C4046B/D/E/F/F-1 Part Number: 36439 for Eureka | 36439 | $4.08Read more |
| 01 | No Image | Lower Handle for Sanitaire SC899 | WP11625 | $18.00Read more |
| 02 | Not Available | Sanitaire Handle Assembly (Upper) | 25329-20 | Not Available |
| 03 |  | Handle, Beige Vinyl Grip Fitall Part Number: 32-6340-72 for Fitall | 32634072 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | No Image | Handle Socket, Chrome W/Bracket C2000 | E-38183-1 | $17.99Add to cart |
| 05 |  | Handle Support Part Number 53.077 for Cleanmax Models CMC-1N,CMC-QD | 53077 | Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Cord & Terminal Assembly 50'1 | 52370-10 | Not Available |
| 07 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $1.06Read more |
| 08 | Not Available | Sanitaire Handle Screw Assembly Package | 53198-1 | Not Available |
| 09 | Not Available | Sanitaire Nuts - Package 10 | 53213-5 | Not Available |
| 10 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $4.08Read more |
| 11 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 12 | Not Available | Sanitaire Cord Retainer Set | 53574-1 | Not Available |

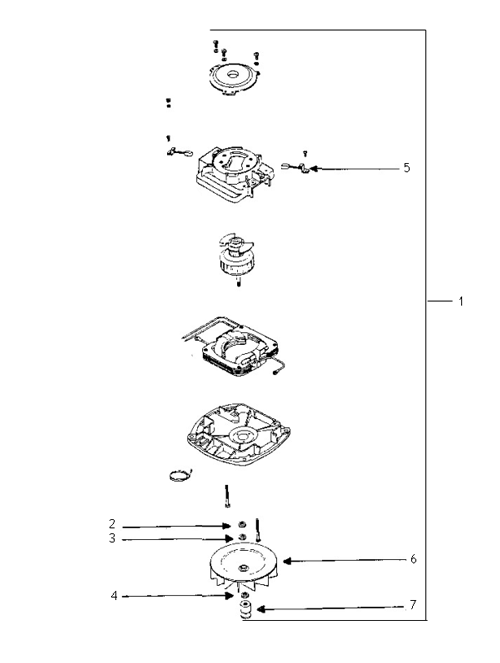

| # | Part image | Description | SKU | Price |
| 01 |  | Motor, 7 Amp SC899 Part Number: 5435217 for Eureka | 5435217 | $101.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Washer, SC886/SC888/SC899 Series 10Pk Part Number: 531882 for Eureka | 531882 | $12.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Sanitaire Washer - Fan Package (10) | 53148-1 | Not Available |
| 04 | Not Available | Sanitaire Washer - Fan Package (10) | 53148-1 | Not Available |
| 05 |  | Carbon Brush, SC889A/SC685G/SC888K Part Number: UAU-000000-00K03 for Eureka | UAU00000000K03 | $28.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Fan Blower - Motor | UAU-000000-00K02 | Not Available |
| 07 |  | Pulley, Motor Belt Lux/Eur/Sanitaire Part Number: UAU-000000-00K06 for Eureka | UAU00000000K06 | $10.09Read more |
