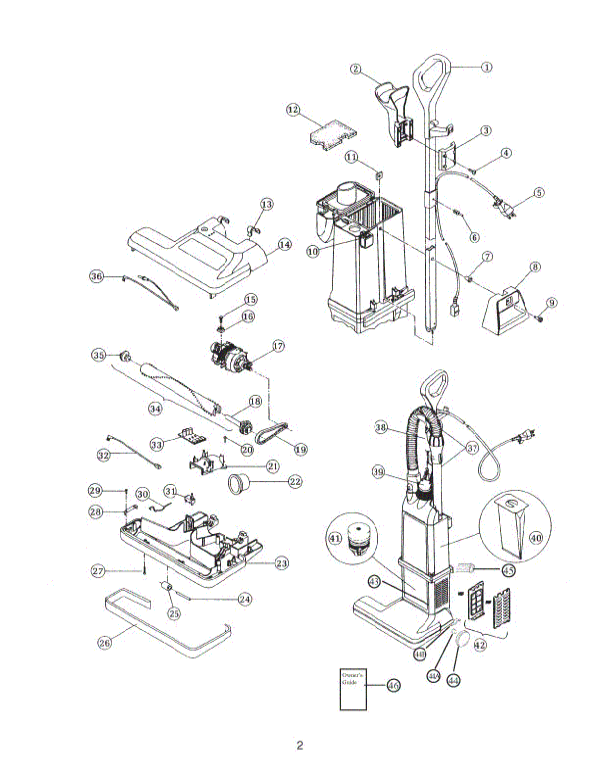

This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6600A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC6600A
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | No Image | SWITCH, P/N LOCKOUT Part Number: 009410072 for Eureka | 009410072 | $10.76Read more |
| 01 | Not Available | Sanitaire Assembly, Handle & Tube | 05440-0216-0414 | Not Available |
| 02 | Not Available | Sanitaire Kit, Caddy | 09570-0107-0414 | Not Available |
| 03 | Not Available | Sanitaire Kit, Caddy | 09570-0108-0414 | Not Available |
| 04 | Not Available | Sanitaire Screw, Self-Tapping | 00233-0051-18 | Not Available |
| 05 | No Image | Hexagon nut, Side Broom Arm, TW050-W43-U | 39857 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Rivet, Nylon-Black | 00438-0010 | Not Available |
| 07 | Not Available | Sanitaire Bushing, Handle-Disc Ii | 05332-0006-0000 | Not Available |
| 08 | Not Available | Sanitaire Carry Handle | 05440-0172 | Not Available |
| 09 |  | SCREW, HANDLE MOUNT SC6600 PROLUX/XTREME/PLUS Part Number: 00209000733 for Eureka | 00209000733 | $4.82Read more |
| 10 | Not Available | Sanitaire Switch, Upright C & K | 00941-0061 | Not Available |
| 11 | Not Available | Sanitaire Plate,Handle Nut-1500 | 09765-0011 | Not Available |
| 12 | Not Available | Sanitaire Filter, After - Diii | 05501-0011 | Not Available |
| 13 | Not Available | Sanitaire Spring,Detent-1500 Upr. | 07518-0011 | Not Available |
| 14 | Not Available | Sanitaire Base Cover (Nla) | 07510-0153-0423 | Not Available |
| 16 | Not Available | Sanitaire Grommet | 05148-0009-0262 | Not Available |
| 17 | Not Available | Sanitaire Brushroll Motor - Cartone | 62058-1 | Not Available |
| 18 | Not Available | Sanitaire Pulley - Only Available With #34. | FNLA | Not Available |
| 19 | Not Available | Sanitaire Belt, Motor (.375 Wide) | 07527-0027 | Not Available |
| 20 | Not Available | Sanitaire Screw, Self Tapping | 00253-0018-18 | Not Available |
| 21 | Not Available | Sanitaire Cover, Nozzle | 07552-0036-0000 | Not Available |
| 22 | Not Available | Sanitaire Sleeve Hose | 07240-0041-0000 | Not Available |
| 23 | Not Available | Sanitaire Base, Comm. Upright (Blac | 07520-0132-0262 | Not Available |
| 24 |  | Shaft Front Wheel Sanitaire Sc-6600 Commercial For: eureka,sanitaire | 075430025 | $3.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Sanitaire Roller, Front-Pn6B | 07516-0025-0262 | Not Available |
| 26 | Not Available | Sanitaire Bumper | 05139-0140-0414 | Not Available |
| 27 | Not Available | Sanitaire Screw, Thd Cut #8 Ov Hd D | 00263-0019-23 | Not Available |
| 28 | Not Available | Sanitaire Retainer, Brush | 07538-0020 | Not Available |
| 29 | Not Available | Sanitaire Screw, Self-Tap 6X20X438 (Nla) | 00232-0018-18 | Not Available |
| 30 | Not Available | Sanitaire Form,Wire | 07529-0008 | Not Available |
| 31 | Not Available | Sanitaire Breaker, Circuit Eta 2.25 | 00938-0091 | Not Available |
| 32 | Not Available | Sanitaire Lead Assy, Blue | 06726-0959 | Not Available |
| 33 | Not Available | Sanitaire Mec, Sys Perf Indicator | 00938-0141 | Not Available |
| 34 | Not Available | Sanitaire Brushroll Assy - Cartoned Includes Items 18 And 35. | 62077-1 | Not Available |
| 35 | Not Available | Sanitaire Brush Bearing - Only Available With #34. | FNLA | Not Available |
| 36 | Not Available | Sanitaire Lead Assy, White | 06726-0886 | Not Available |
| 37 | Not Available | Sanitaire Hose Assy. Includes Items 37A And 37B. | 62079-1 | Not Available |
| 37A | Not Available | Sanitaire Hose & Coupling Assembly | 39965-1 | Not Available |
| 37B | Not Available | Sanitaire Extension Wand & Handle A | 39966-1 | Not Available |
| 38 |  | CREVICE TOOL Part Number: 08610-0016-0414 for Eureka | 0861000160414 | $12.83Read more |
| 39 | No Image | COMBINATION TOOL, SC6600 DARK GRAY Part Number: 078000066 for Eureka | 078000066 | $28.51Read more |
| 40 |  | Genuine Sanitaire UP 1 Vacuum Bags - 5pk | 023169115125 | $18.70Add to cart |
| 40 |  | Compatible alternatePaper Bags-Electrolux - U - 12Pk - 4 Ply - Upright
Envirocare - Repl For: electrolux/aerus More Product Details | 138FP | $19.79Add to cart Special order — allow 2-4 weeks. |
| 40 |  | Compatible alternatePaper Bag, Extreme Intercept Micro Proforce 10 Pk More Product Details | 14245906 | $30.25Add to cart |
| 40 |  | Compatible alternatePaper Bag, Commercial 2 Motor Upright 12 Pack More Product Details | DC-14241201 | $25.29Add to cart |
| 41 | Not Available | Sanitaire Motor Assy - Cartoned | 62078-1 | Not Available |
| 42 |  | Filter, Exhaust W/Cover Side SC6600 Prolux Xtreme | E-39861 | $26.63Read more |
| 42 | No Image | Compatible alternateHexagon nut, Side Broom, TW050-W43-U More Product Details | 39861 | $0.99Add to cart Special order — allow 2-4 weeks. |
| 43 | Not Available | Sanitaire Body Motor Housing | 05166-0041-0414 | Not Available |
| 44 | Not Available | Sanitaire Wheel Assy-Diii | 08835-0069-0262 | Not Available |
| 44A | Not Available | Sanitaire Bearing, Nyliner 12L121-F | 00903-0058 | Not Available |
| 44B | Not Available | Sanitaire Clamp, Rear Wheel (Commer | 08847-0009 | Not Available |
| 45 |  | Hose, Power Nozzle To Lower Air Duct Part Number: 104230 for Proteam | 104230 | $20.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Sanitaire Owner's Guide | 73426 | Not Available |
| 50 | Not Available | Sanitaire Kit, Caddy Includes 2,3, And 4. | 05440-0218 | Not Available |
