This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6205A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC6205A 20" Auto -Scrubber

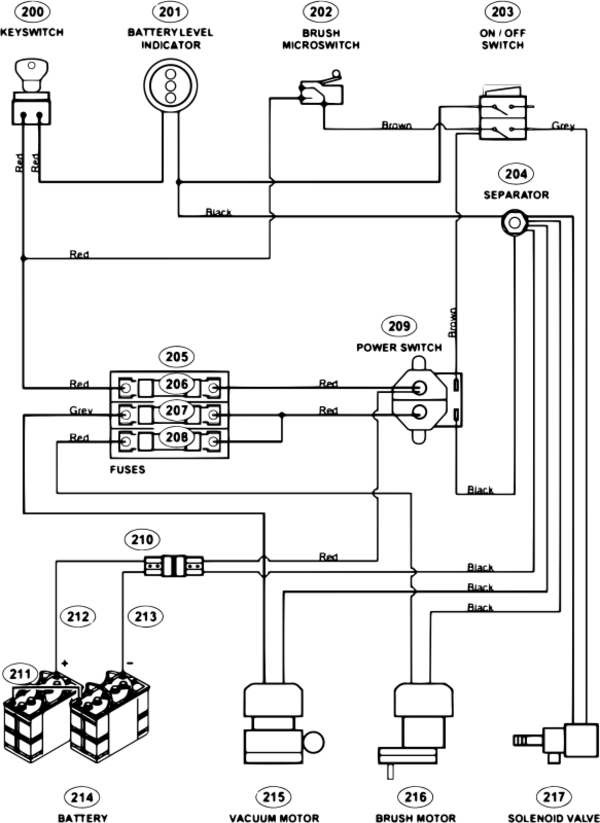

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Complete Wiring | 16911CP | Not Available |
| 200 | Not Available | Sanitaire Key Switch | 16898CP | Not Available |
| 201 | Not Available | Sanitaire Battery Indicator | 16899CP | Not Available |
| 202 | Not Available | Sanitaire Microswitch | 16799CP | Not Available |
| 203 | Not Available | Sanitaire Switch 24V | 16900CP | Not Available |
| 204 | Not Available | Sanitaire Separator | 16901CP | Not Available |
| 205 | Not Available | Sanitaire Fuse Socket | 16902CP | Not Available |
| 206 | Not Available | Sanitaire Fuse 6A | 16903CP | Not Available |
| 207 | Not Available | Sanitaire Fuse 20A | 16904CP | Not Available |
| 208 | Not Available | Sanitaire Fuse 16A | 16905CP | Not Available |
| 209 | Not Available | Sanitaire Power Switch | 16906CP | Not Available |
| 210 | Not Available | Sanitaire Connection | 16907CP | Not Available |
| 211 | Not Available | Sanitaire Bridge | 16908CP | Not Available |
| 212 | Not Available | Sanitaire Cable(+) | 16909CP | Not Available |
| 213 | Not Available | Sanitaire Cable(-) | 16910CP | Not Available |
| 214 | Not Available | Sanitaire Battery | 16569CP | Not Available |
| 215 | Not Available | Sanitaire Vacuum Motor 24V | 16838CP | Not Available |
| 216 | Not Available | Sanitaire Motor Reducer | 16844CP | Not Available |
| 217 | Not Available | Sanitaire Solenoid Valve | 16817CP | Not Available |

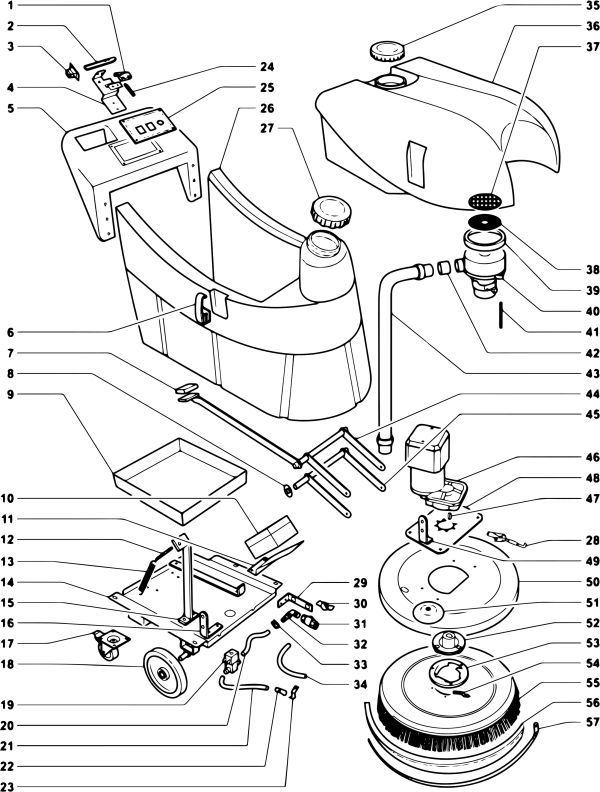

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Sanitaire Lever | 16799CP | Not Available |
| 2 | Not Available | Sanitaire Bellows | 16800CP | Not Available |
| 3 | Not Available | Sanitaire Support | 16801CP | Not Available |
| 4 | Not Available | Sanitaire Handle | 16802CP | Not Available |
| 5 | Not Available | Sanitaire Hook | 16803CP | Not Available |
| 6 | Not Available | Sanitaire Pedal | 16804CP | Not Available |
| 7 | Not Available | Sanitaire Washer | 16805CP | Not Available |
| 8 | Not Available | Sanitaire Vat | 16806CP | Not Available |
| 9 | Not Available | Sanitaire Box | 16807CP | Not Available |
| 10 | Not Available | Sanitaire Support | 16808CP | Not Available |
| 11 | Not Available | Sanitaire Tie Rod | 16809CP | Not Available |
| 12 | Not Available | Sanitaire Spring | 16810CP | Not Available |
| 13 | Not Available | Sanitaire Steel Frame | 16811CP | Not Available |
| 14 | Not Available | Sanitaire Support | 16812CP | Not Available |
| 15 | Not Available | Sanitaire Support | 16813CP | Not Available |
| 16 | Not Available | Sanitaire Wheel | 16814CP | Not Available |
| 17 | Not Available | Sanitaire Wheel | 16815CP | Not Available |
| 18 | Not Available | Sanitaire Solenoid Valve | 16816CP | Not Available |
| 19 | Not Available | Sanitaire Hose | 16817CP | Not Available |
| 20 | Not Available | Sanitaire Hose | 16818CP | Not Available |
| 21 | Not Available | Sanitaire Hose Fitting | 16819CP | Not Available |
| 22 | Not Available | Sanitaire Pipe Support | 16820CP | Not Available |
| 23 | Not Available | Sanitaire Spring | 16821CP | Not Available |
| 24 | Not Available | Sanitaire Control Panel | 16822CP | Not Available |
| 25 | Not Available | Sanitaire Tank | 16823CP | Not Available |
| 26 | Not Available | Sanitaire Plug | 16824CP | Not Available |
| 27 | Not Available | Sanitaire Hook | 16825CP | Not Available |
| 28 | Not Available | Sanitaire Support | 16826CP | Not Available |
| 29 | Not Available | Sanitaire Butterfly | 16827CP | Not Available |
| 30 | Not Available | Sanitaire Water Tap | 16828CP | Not Available |
| 31 | Not Available | Sanitaire Hose Fitting | 16829CP | Not Available |
| 32 | Not Available | Sanitaire Hose Collar | 16830CP | Not Available |
| 33 | Not Available | Sanitaire Hose | 16831CP | Not Available |
| 34 | Not Available | Sanitaire Plug | 16832CP | Not Available |
| 35 | Not Available | Sanitaire Tank | 16833CP | Not Available |
| 36 | Not Available | Sanitaire Filter | 16834CP | Not Available |
| 37 | Not Available | Sanitaire Net | 16835CP | Not Available |
| 38 | Not Available | Sanitaire Seal | 16836CP | Not Available |
| 39 | Not Available | Sanitaire Vacuum Motor 24V | 16837CP | Not Available |
| 40 | Not Available | Sanitaire Tie Rod | 16838CP | Not Available |
| 41 | Not Available | Sanitaire Sleeve | 16839CP | Not Available |
| 42 | Not Available | Sanitaire Hose | 16840CP | Not Available |
| 43 | Not Available | Sanitaire Lever | 16841CP | Not Available |
| 44 | Not Available | Sanitaire Lever | 16842CP | Not Available |
| 45 | Not Available | Sanitaire Motor Reducer | 16843CP | Not Available |
| 46 | Not Available | Sanitaire Tang | 16844CP | Not Available |
| 47 | Not Available | Sanitaire Support | 16845CP | Not Available |
| 48 | Not Available | Sanitaire Support | 16846CP | Not Available |
| 49 | Not Available | Sanitaire Plate | 16847CP | Not Available |
| 50 | Not Available | Sanitaire Buffer Wheel | 16848CP | Not Available |
| 51 | Not Available | Sanitaire Joint | 16849CP | Not Available |
| 52 | Not Available | Sanitaire Flange | 16850CP | Not Available |
| 53 | Not Available | Sanitaire Srring Band | 16851CP | Not Available |
| 54 | Not Available | Sanitaire Pad Holder | 16852CP | Not Available |
| 55a | Not Available | Sanitaire Tynex Brush | 16495CP | Not Available |
| 55b | Not Available | Sanitaire Nylon Brush | 16496CP | Not Available |
| 55c | Not Available | Sanitaire Polish Pads 20"-5Pk | 16497CP | Not Available |
| 55d | Not Available | Sanitaire Buffing Pads 20"-5Pk | 17163CP | Not Available |
| 55e | Not Available | Sanitaire Srtipping Pads 20"-5Pk | 17164CP | Not Available |
| 55f | Not Available | Sanitaire Splash Guard | 17165CP | Not Available |
| 56 | Not Available | Sanitaire Stop Strip | 16853CP | Not Available |

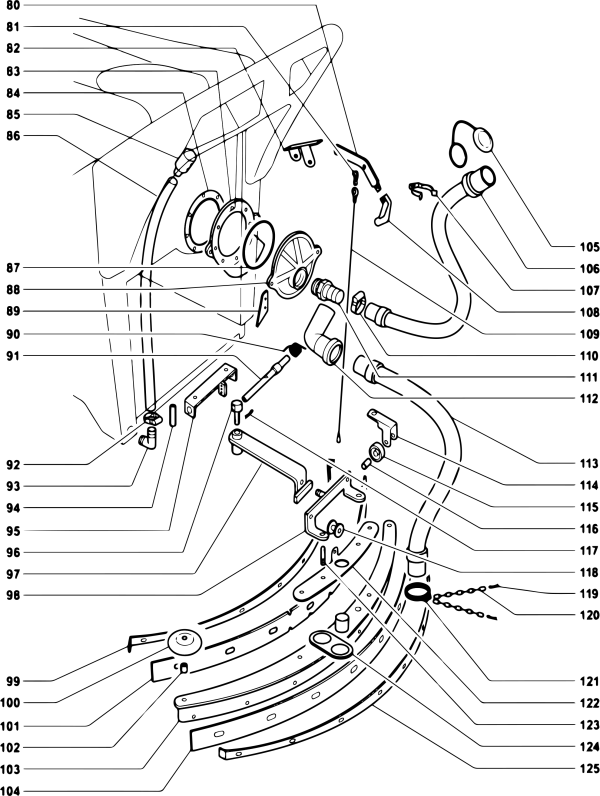

| # | Part image | Description | SKU | Price |
| 80 | Not Available | Sanitaire Lever | 16855CP | Not Available |
| 81 | Not Available | Sanitaire Carabiner | 16856CP | Not Available |
| 82 | Not Available | Sanitaire Support | 16857CP | Not Available |
| 83 | Not Available | Sanitaire Fixed Flange | 16858CP | Not Available |
| 84 | Not Available | Sanitaire Seal | 16859CP | Not Available |
| 85 | Not Available | Sanitaire Pipe Support | 16860CP | Not Available |
| 86 | Not Available | Sanitaire Hose | 16861CP | Not Available |
| 87 | Not Available | Sanitaire Seal | 16862CP | Not Available |
| 88 | Not Available | Sanitaire Flange | 16863CP | Not Available |
| 89 | Not Available | Sanitaire Cam | 16864CP | Not Available |
| 90 | Not Available | Sanitaire Spring | 16865CP | Not Available |
| 91 | Not Available | Sanitaire Shaft | 16866CP | Not Available |
| 92 | Not Available | Sanitaire Hose Collar | 16867CP | Not Available |
| 93 | Not Available | Sanitaire Hose Fitting | 16868CP | Not Available |
| 94 | Not Available | Sanitaire Hose | 16869CP | Not Available |
| 95 | Not Available | Sanitaire Support | 16870CP | Not Available |
| 96 | Not Available | Sanitaire Pin | 16871CP | Not Available |
| 97 | Not Available | Sanitaire Lever | 16872CP | Not Available |
| 98 | Not Available | Sanitaire Support | 16873CP | Not Available |
| 99 | Not Available | Sanitaire Front Strip | 16874CP | Not Available |
| 100 | Not Available | Sanitaire Buffer Wheel | 16875CP | Not Available |
| 101 | Not Available | Sanitaire Front Squeegee Blade | 16493CP | Not Available |
| 102 | Not Available | Sanitaire Spacer | 16876CP | Not Available |
| 103 | Not Available | Sanitaire Squeegee Bady | 16877CP | Not Available |
| 104 | Not Available | Sanitaire Rear Squeegee Blade | 16494CP | Not Available |
| 105 | Not Available | Sanitaire Plug | 16878CP | Not Available |
| 106 | Not Available | Sanitaire Pipe | 16879CP | Not Available |
| 107 | Not Available | Sanitaire Pipe Strap | 16880CP | Not Available |
| 108 | Not Available | Sanitaire Handle | 16881CP | Not Available |
| 109 | Not Available | Sanitaire Cable | 16882CP | Not Available |
| 110 | Not Available | Sanitaire Hose Collar | 16883CP | Not Available |
| 111 | Not Available | Sanitaire Hose Fitting | 16884CP | Not Available |
| 112 | Not Available | Sanitaire Curve | 16885CP | Not Available |
| 113 | Not Available | Sanitaire Pipe | 16886CP | Not Available |
| 114 | Not Available | Sanitaire Support | 16887CP | Not Available |
| 115 | Not Available | Sanitaire Wheel | 16888CP | Not Available |
| 116 | Not Available | Sanitaire Spacer | 16889CP | Not Available |
| 117 | Not Available | Sanitaire Cotter Pin | 16890CP | Not Available |
| 118 | Not Available | Sanitaire Regulator | 16891CP | Not Available |
| 119 | Not Available | Sanitaire Cotter Pin | 16890CP | Not Available |
| 120 | Not Available | Sanitaire Chain | 16892CP | Not Available |
| 121 | Not Available | Sanitaire Hose Collars | 16893CP | Not Available |
| 122 | Not Available | Sanitaire Support | 16894CP | Not Available |
| 123 | Not Available | Sanitaire Pin | 16895CP | Not Available |
| 124 | Not Available | Sanitaire Support | 16896CP | Not Available |
| 125 | Not Available | Sanitaire Back Strip | 16897CP | Not Available |
