Schematic and parts list for: Sanitaire Model: SC5505A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC5505A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC5505A EON Allergen Upright Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 3 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 4 | Not Available | Sanitaire Handle Grip | A03784501 | Not Available |
| 5 | Not Available | Sanitaire Screw Package | 1621911 | Not Available |
| 6 | Not Available | Sanitaire Tube - Handle | A03785201 | Not Available |
| 7 | Not Available | Sanitaire Plug - Handle | A03786901 | Not Available |
| 8 | Not Available | Sanitaire Cover - Handle | A03783401 | Not Available |
| 9 | No Image | Switch, SC5000 Series Part Number: A03785101 for Eureka | A03785101 | $15.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Sanitaire Handle Cover Assembly | A07521301 | Not Available |
| 11 | Not Available | Sanitaire Cap - Switch Button | A03784901 | Not Available |
| 12 | Not Available | Sanitaire Frame - Switch Button | A03868301 | Not Available |
| 13 | Not Available | Sanitaire Square Brush Assembly | A07514801 | Not Available |
| 14 | Not Available | Sanitaire Crevice Tool | A03802701 | Not Available |
| 16 | Not Available | Sanitaire Cord Lock | A03840301 | Not Available |
| 17 | Not Available | Sanitaire Dusting Brush & Holder Kit | 17379SAN | Not Available |
| 18 | Not Available | Sanitaire Holder - Dusting Brush | A05881801 | Not Available |
| 19 | Not Available | Sanitaire Dusting Brush | A05924601 | Not Available |
| 20 | Not Available | Sanitaire Complete Handle Assembly | A07520901 | Not Available |
| 21 |  | Paper Bag, Windsor Sensor 10 Pk Part Number: 9.840-643.0 for Windsor | 98406430 | $63.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Sanitaire Front Cover Assembly - Grey | A07522603 | Not Available |
| 23 | Not Available | Sanitaire Dust Bag Release Button | A03800301 | Not Available |
| 24 | Not Available | Sanitaire Upper Body Cover - Grey | A03801003 | Not Available |
| 25 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 26 | Not Available | Sanitaire Cover - Db Release Button | A03800101 | Not Available |
| 27 | Not Available | Sanitaire Gasket - Door Release | A03801301 | Not Available |
| 28 | Not Available | Sanitaire Gasket - Body Cover Upper | A03801701 | Not Available |
| 29 | Not Available | Sanitaire Gasket - Body Cover Lower | A03801801 | Not Available |
| 30 | Not Available | Sanitaire Protector - No Bag | A03800801 | Not Available |
| 31 | Not Available | Sanitaire Bracket - Dust Bag | A03800601 | Not Available |
| 32 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 33 | Not Available | Sanitaire Hose Retainer Ring | A03802601 | Not Available |
| 34 | Not Available | Sanitaire Inner Cover Assembly | A08700501 | Not Available |
| 35 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 36 | Not Available | Sanitaire Cord Cover Inside Body | A03837801 | Not Available |
| 37 | No Image | Filter, Pre-Motor Foam SC5500 Part Number: A03831201 for Eureka | A03831201 | $5.64Read more |
| 38 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 39 | Not Available | Sanitaire Frame - Foam Filter | A03831101 | Not Available |
| 40 | Not Available | Sanitaire Upper Body Release Button | A03828301 | Not Available |
| 41 | Not Available | Sanitaire Wire Nut Package | 173731 | Not Available |
| 42 | Not Available | Sanitaire Lower Jumper Harness | A07531801 | Not Available |
| 43 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 44 | Not Available | Sanitaire Handle Socket Harness Assembly | A07531701 | Not Available |
| 45 | Not Available | Sanitaire Ground Wire Assembly | A07544101 | Not Available |
| 46 | Not Available | Sanitaire Gasket - Ground Lead | A04944001 | Not Available |
| 47 | Not Available | Sanitaire Clamp - Cord | A03868401 | Not Available |
| 48 | Not Available | Sanitaire Back Cover Assembly - Grey | A07521603 | Not Available |
| 49 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 50 | Not Available | Sanitaire Plastic Clip | A03802801 | Not Available |
| 51 | Not Available | Sanitaire Inlet Sealing Overmold | A06032701 | Not Available |
| 52 | Not Available | Sanitaire Upper Body Lock Rod | A03828401 | Not Available |
| 53 | Not Available | Sanitaire Spring - Body Release Button | A03802901 | Not Available |
| 54 | Not Available | Sanitaire Back Cover - Upper Body | A03834403 | Not Available |
| 55 | Not Available | Sanitaire Screw Package | 162191 | Not Available |
| 56 | Not Available | Sanitaire Screw Package | 1621910 | Not Available |
| 57 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 58 | Not Available | Sanitaire Carry Handle | A03802301 | Not Available |
| 59 | Not Available | Sanitaire Spring Package | 5494313 | Not Available |
| 60 | Not Available | Sanitaire Cord Hook | A03802501 | Not Available |
| 61 | Not Available | Sanitaire Power Cord Sleeve | A03868601 | Not Available |
| 62 | Not Available | Sanitaire Power Cord - Red | A03871802 | Not Available |
| 63 | Not Available | Sanitaire Cord Lock | A03840301 | Not Available |
| 64 | Not Available | Sanitaire Cord - Commercial Ext - Red | A05944002 | Not Available |
| 65 | Not Available | Sanitaire Screw Package | 1621912 | Not Available |
| 66 | No Image | Pedal, Handle Release SC5500 Part Number: A03836401 for Eureka | A03836401 | $8.55Read more |
| 67 | Not Available | Sanitaire Wheel Axle - Rear | A03836201 | Not Available |
| 68 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 69 | No Image | Elbow, Swivel SC5500A Part Number: a07497401 for Eureka | A07497401 | $20.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | Sanitaire Connector - Air Channel | A03843301 | Not Available |
| 71 | Not Available | Sanitaire Bracket - Swivel Connector | A03834301 | Not Available |
| 72 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 73 | Not Available | Sanitaire Cover - Swivel Bracket | A03834501 | Not Available |
| 74 | Not Available | Sanitaire Screw Package | 162198 | Not Available |
| 75 | Not Available | Sanitaire Screw Package | 162197 | Not Available |
| 76 | Not Available | Sanitaire Clamp - Height Adj Knob | A04650501 | Not Available |
| 77 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 78 | Not Available | Sanitaire Hgt Adjust Reset | A07531601 | Not Available |
| 79 | Not Available | Sanitaire Knob - Height Adjust | A03841001 | Not Available |

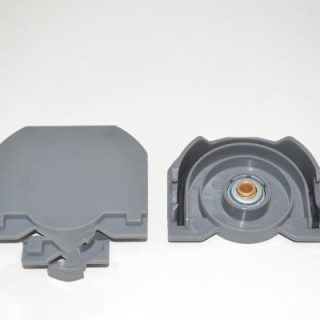

| 80 | Not Available | Sanitaire Brushroll Bearing & Cvr Assembly | A07495201 | Not Available |
| 81 | Not Available | Sanitaire Button - Br Release | A03840401 | Not Available |
| 82 | Not Available | Sanitaire Limiter - Motor Location | A03835301 | Not Available |
| 83 | Not Available | Sanitaire Base Assembly | 173941 | Not Available |
| 84 | Not Available | Sanitaire Rod - Push | A04944301 | Not Available |
| 85 | Not Available | Sanitaire Spring Package | 5494311 | Not Available |
| 86 | Not Available | Sanitaire Guard - Side Furniture | A03841201 | Not Available |
| 87 | Not Available | Sanitaire Spring Package | 54943-10 | Not Available |
| 88 | Not Available | Sanitaire Tube - Pressure Sensor | A03844701 | Not Available |
| 89 | Not Available | Sanitaire Pcb - Drive Board | A11256702 | Not Available |
| 90 | Not Available | Sanitaire Tube - Cooling | A04965901 | Not Available |
| 91 |  | Brushroll, EON Upright Red bristle Part Number: 173691 for Eureka | 173691 | $33.12Read more |
| 92 | Not Available | Sanitaire Wire - Led | A03834001 | Not Available |
| 93 | Not Available | Sanitaire Pcb - Led | A04944701 | Not Available |
| 94 | Not Available | Sanitaire Screw Package | 162195 | Not Available |
| 95 | Not Available | Sanitaire Shaft - Height Adjust | A03841901 | Not Available |
| 96 | Not Available | Sanitaire Axle Clamp - Packaged | 532013 | Not Available |
| 97 | Not Available | Sanitaire Cover - Air Channel | A03843101 | Not Available |
| 98 | Not Available | Sanitaire Cover - Height Adj Shaft | A03841801 | Not Available |
| 99 | Not Available | Sanitaire Screw Package | 162191 | Not Available |
| 100 | Not Available | Sanitaire Wire - Cord Saver 2 | A04945001 | Not Available |
| 101 | No Image | Soleplate Assembly, Sanitaire Eon Quiet Clean Part Number: A07496801 for Eureka | A07496801 | $9.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 102 | Not Available | Sanitaire Gasket - Front Soleplate | A04966301 | Not Available |
| 103 | Not Available | Sanitaire Guard - Front Furniture | A03841101 | Not Available |
| 104 | Not Available | Sanitaire Wire - Low Voltage | A03830901 | Not Available |
| 105 | Not Available | Sanitaire Pcb Cover | A04654401 | Not Available |
| 106 | Not Available | Sanitaire Main Pcb Assembly | A07511201 | Not Available |
| 107 | Not Available | Sanitaire Wire - Hall Sensor Signal | A04654301 | Not Available |
| 108 | Not Available | Sanitaire Brushroll Gear Assembly | A03844801 | Not Available |
| 109 | Not Available | Sanitaire Screw Package | 162191 | Not Available |
| 110 | Not Available | Sanitaire Pcb - Hall Sensor | A03844501 | Not Available |
| 111 | Not Available | Sanitaire Front Wheel Assembly | A07496401 | Not Available |
| 112 | Not Available | Sanitaire Block - Front Wheel | A04944501 | Not Available |
| 113 | Not Available | Sanitaire Cover - Nozzle Wire | A03843501 | Not Available |
| 114 | Not Available | Sanitaire Screw Package | 162194 | Not Available |
| 115 | Not Available | Sanitaire Gasket - Rear Soleplate | A04966401 | Not Available |
| 116 | Not Available | Sanitaire Rear Cover - Soleplate | A04945101 | Not Available |
| 117 | Not Available | Sanitaire Wire - Cord Saver 1 | A03843001 | Not Available |
| 118 | Not Available | Sanitaire Hood Assembly - Grey | A07511803 | Not Available |
| 119 | No Image | Spring, Rear Wheel Axle EON SC5500A Part Number: A03836601 for Bissell | A03836601 | $5.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | Not Available | Sanitaire Axle Clamp - Packaged | 532014 | Not Available |
| 121 | Not Available | Sanitaire Clip - Rear Wheel | A03837101 | Not Available |
| 122 | Not Available | Sanitaire Rear Wheel Assembly | A07531301 | Not Available |
| 123 | Not Available | Sanitaire Cover - Rear Wheel | A03836901 | Not Available |
| 124 | Not Available | Sanitaire Gasket - Motor Bracket | A03833501 | Not Available |
| 125 | Not Available | Sanitaire Bracket - Motor | A03833401 | Not Available |
| 126 | Not Available | Sanitaire Mount - Motor Front | A03833001 | Not Available |
| 127 | Not Available | Sanitaire Foam - Sound Absorption | A03832001 | Not Available |
| 128 | Not Available | Sanitaire Motor Assembly - Packaged | 173723 | Not Available |
| 129 | Not Available | Sanitaire Mount - Motor Rear | A03833201 | Not Available |
| 130 | Not Available | Sanitaire Pulley - Motor | A04654001 | Not Available |
| 131 | Not Available | Sanitaire Cover - Motor Pulley | A03836001 | Not Available |
| 132 | Not Available | Sanitaire Wire - Motor Live | A03842401 | Not Available |
| 133 | Not Available | Sanitaire Wire - Motor Neutral | A03842501 | Not Available |
| 134 | Not Available | Sanitaire Screw Package | 162199 | Not Available |
| 135 | Not Available | Sanitaire Female Ground Wire | A10054501 | Not Available |
| 136 | Not Available | Sanitaire Washer Package | 173711 | Not Available |
| 137 | Not Available | Sanitaire Clutch Assembly | A03871701 | Not Available |
| 138 | No Image | BELT, EON MOTOR BELT Part Number: A03837901 for Eureka | A03837901 | $35.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 139 |  | BELT, EON BRUSHROLL BELT BLUELINE Part Number: A03838001 for Eureka | A03838001 | $32.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | Not Available | Sanitaire Package - Retaining Ring | 544329 | Not Available |
| 141 | No Image | Connector, Nozzle Asssembly SC5500 Part Number: A07531501 for Eureka | A07531501 | $19.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 142 | Not Available | Sanitaire Wire Nut Package | 173731 | Not Available |
| 143 | Not Available | Sanitaire Gaskets - Motor Cover | A03832701 | Not Available |
| 144 | Not Available | Sanitaire Screw Package | 162191 | Not Available |
| 145 | Not Available | Sanitaire Motor Cover | A03831901 | Not Available |

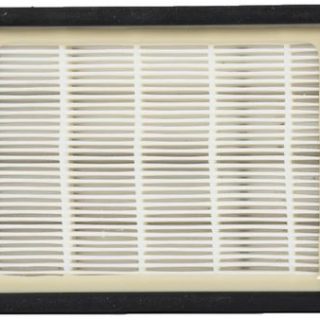

| 146 |  | Filter, HF50 Hepa S5000/SC5500 Series Part Number: 68904 for Eureka | 68904 | $41.36Read more |
| 147 | Not Available | Sanitaire Exhaust Cover Assembly - Grey | A07531403 | Not Available |
