Schematic and parts list for: Sanitaire Model: S3191B
This is a list of parts and a diagram and schematic for: Sanitaire Model: S3191B
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: S3191B
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | No Image | Bissell inner tank bladder for ProHeat 2X Carpet Cleaner models: 8920, 8930, 9200, 9300, 9500 66Q4 9200A 8920 89203 8920V 8920W 8930 8930N 9200 92002 92003 92005 92008 9200B 9200C 9200H 9200R 9200T 9200U 9200W 9200Y 9200P 92006 92009 9200M 9200Q 9400S | 2036878 | $19.99Read more |
| xx | Not Available | Sanitaire Insert-Floor & Wall Brush | 36877 | Not Available |
| xx | Not Available | Sanitaire Bristle Strip-Floor & Wall | 33405 | Not Available |
| 01 | No Image | ***USE E-13719-2 WAND,:( 3710B Part Number: 21876A1 for Eureka | 21876A1 | $28.86Read more |
| 02 | Not Available | Sanitaire Hose W/Coupling& (53439-4) | 53439-1 | Not Available |
| 03 | Not Available | Sanitaire Upholstery Nozzle Assembly - | 53467-4 | Not Available |
| 04 |  | Dust Brush, Black Natural Bristles Part Number: 602901 for Eureka | 602901 | $16.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Sanitaire Floor & Wall Brush & Elbow- | 53355-5 | Not Available |
| 06 | Not Available | Sanitaire Tool - Crevice | 54308-1 | Not Available |

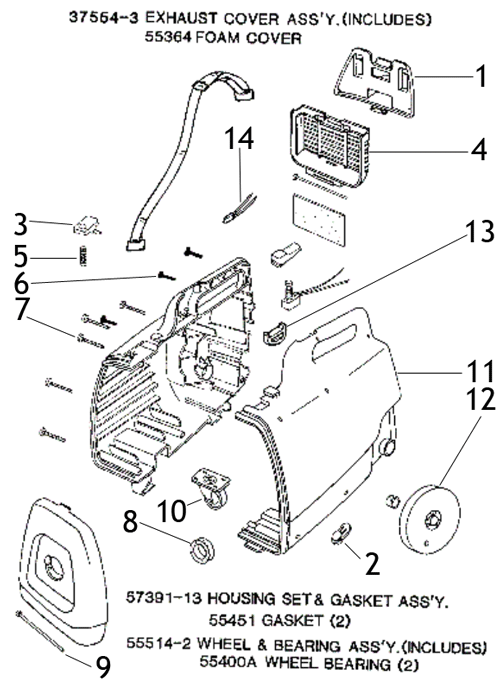

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Support - Tool | 13709-3 | Not Available |
| 02 | Not Available | Sanitaire Hook - Cord Release | 37115-3 | Not Available |
| 03 | Not Available | Sanitaire Latch - Cover | 37116-3 | Not Available |
| 04 | Not Available | Sanitaire Exhaust Cover Assembly | 37554-3 | Not Available |
| 05 | Not Available | Sanitaire Spring - Carpet Nozzle | 42797 | Not Available |
| 06 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 07 | Not Available | Sanitaire Screws Pkg 10 (55372- (Fnla) | 53197-2 | Not Available |
| 08 | Not Available | Sanitaire Gasket - Front Cover | 55363A | Not Available |
| 09 | Not Available | Sanitaire Pin | 55399 | Not Available |
| 10 | Not Available | Sanitaire Caster Assembly | 55406 | Not Available |
| 11 |  | Wand, Upper BM1393 Part Number: 155451 for Built-In | 155451 | $26.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Sanitaire Wheel - Rear | 55514-2 | Not Available |
| 13 | Not Available | Sanitaire Spacer - Switch | 55538 | Not Available |
| 14 | Not Available | Sanitaire Thermostat | 56146 | Not Available |

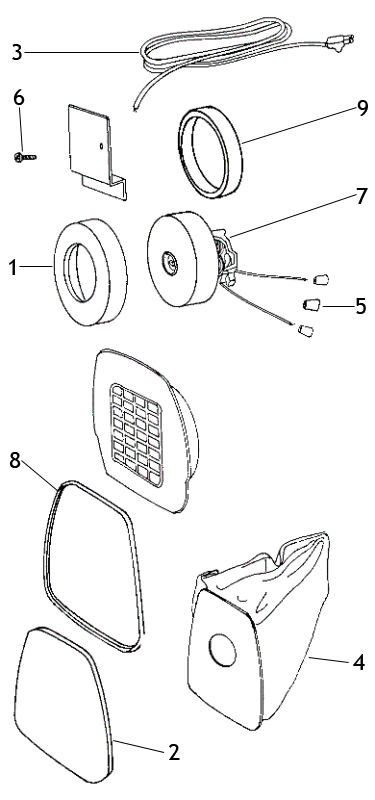

| # | Part image | Description | SKU | Price |
| 01 |  | Hoover Brush Block 6 Bristle Green for F8100 | 302619001 | $49.99Read more |
| 02 | Not Available | Sanitaire Filter | 26197 | Not Available |
| 03 | Not Available | Sanitaire Cord & Polarized Plug Assembly | 36528-5-25 | Not Available |
| 04 | No Image | Aftermarket Eureka Type C Mighty Mite 3000/3100 Series Canisters. | 748167002504 | $7.99Add to cart |
| 05 | Not Available | Sanitaire Wire Splice 5 | 53214-2 | Not Available |
| 06 | Not Available | Sanitaire Screws - Package 10 | 53228-4 | Not Available |
| 07 |  | Assy Brush Motor P2954 SWET REPL Bissell repair part number: 1626673 | 1626673 | $37.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Sanitaire Gasket | 55394 | Not Available |
| 09 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
