Schematic and parts list for: Karcher Model: CVU36/1test

Schematic and parts list for: Karcher Model: CVU36/1

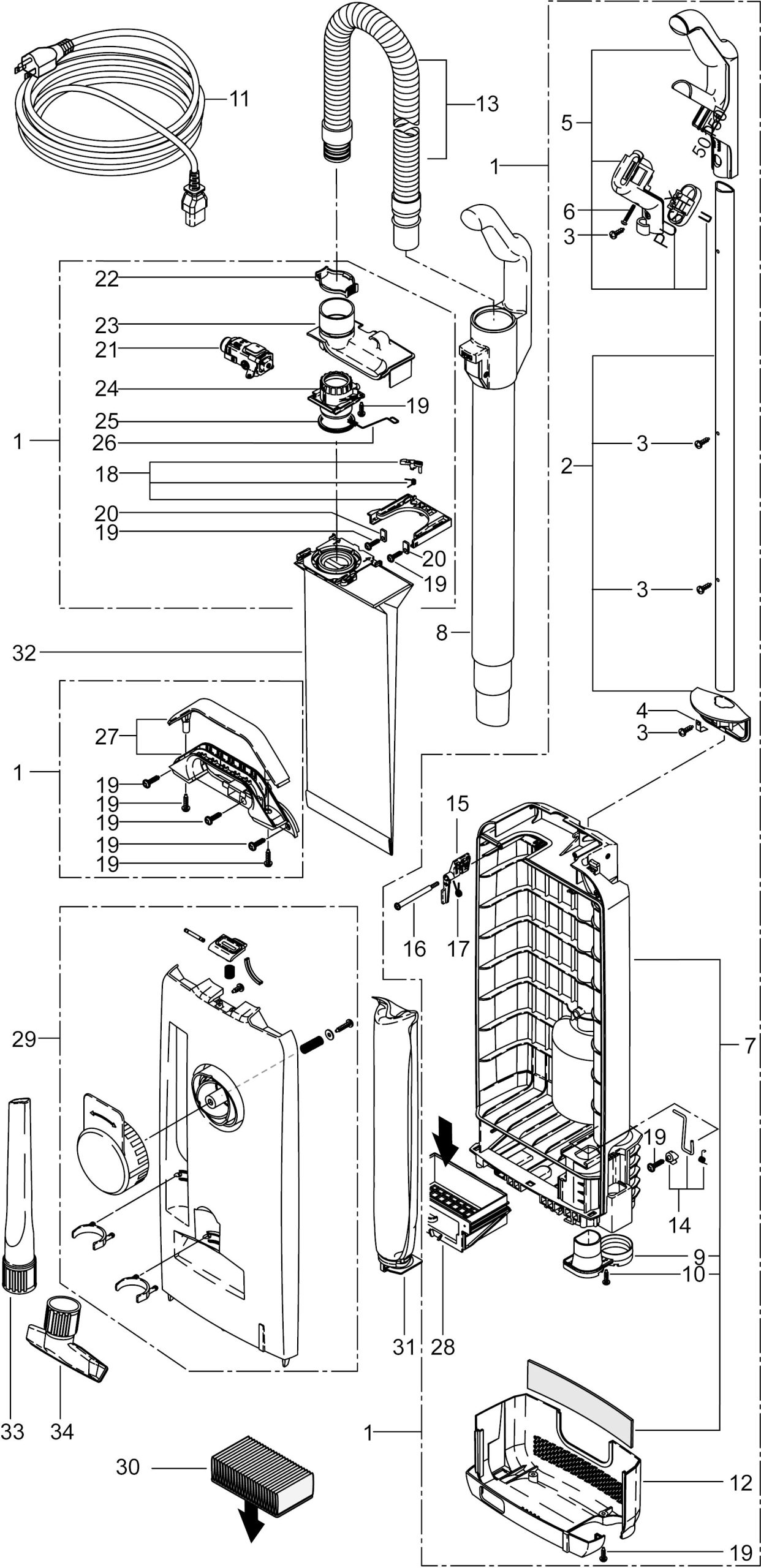

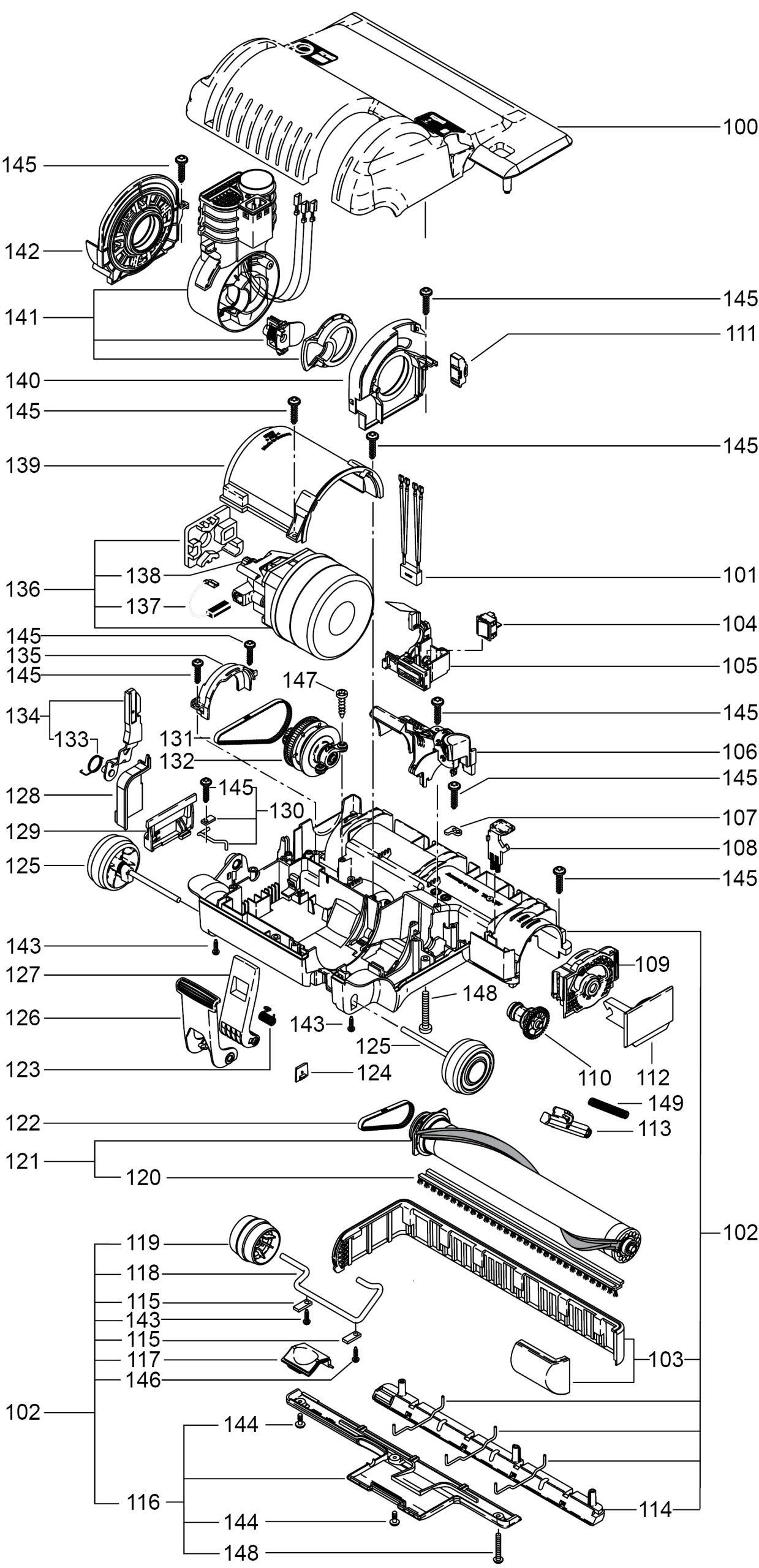

This is a list of parts and a diagram and schematic for: Karcher Model: CVU36/1 Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE Parts for: CVU 36/1

Popular Supplies



# Part image Description SKU Price
1Not AvailableKarcher Dust bag housing kpl Kärcher For Model: CVU36/18.640-016.0Not Available
1Product ThumbnailDust Bag Housing, complete, for 300 and 350 (gray black) Sebo vacuum cleaner repair part

More Product Details

50100SE

$110.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailHandle Tube, including Tube Cover, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50145SE

$35.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Not AvailableKarcher handle tube incl. tube cover Karcher For Model: CVU36/18.639-431.0Not Available
3Not AvailableKarcher SCREW, M4 X 10 For Model: CVU36/18.614-483.0Not Available
3Not AvailableSebo Screw M4 x 10k, taptite 127Not Available
4Not AvailableKarcher Clamp For Model: CVU36/18.639-447.0Not Available
4Product ThumbnailClamp, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50147ER

$5.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Not AvailableKarcher Handle cpl For Model: CVU36/18.639-448.0Not Available
5Product ThumbnailHandle, complete, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50214HGER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
6Not AvailableSebo Screw C3.9 x 25 DIN 7981 104Not Available
6Not AvailableKarcher Screw 3,9x 25 For Model: CVU36/18.639-755.0Not Available
7Product ThumbnailDust Bag Housing, for 300 and 350 (gray black) Sebo vacuum cleaner repair part

More Product Details

50200GS

$49.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Not AvailableKarcher Dustbag housing For Model: CVU36/18.639-432.0Not Available
8Not AvailableKarcher Extension tube For Model: CVU36/18.639-452.0Not Available
8Product ThumbnailCleaning Wand (on-board), for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50165HG

$22.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailConnection Tube, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50105HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
9Not AvailableKarcher connecting tube For Model: CVU36/18.639-433.0Not Available
10Not AvailableSebo Screw C2.9 x 13 107Not Available
10Not AvailableKarcher screw 2,9 x 13, 10 pcs For Model: CVU36/18.639-455.0Not Available
11Not AvailableKarcher Mains cable yellow 40ft For Model: CVU36/18.639-756.0Not Available
11Product ThumbnailPower Cord, 40 ft. Range/42.6 ft. Actual, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

501843

$45.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
12Not AvailableKarcher Dust bag housing bumper base For Model: CVU36/18.639-434.0Not Available
12Product ThumbnailDust Bag Housing Bumper Base, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50118HG

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
13No ImageHose, for X, G, and 370 series, 300 and 350 (silver) Sebo vacuum cleaner repair part

More Product Details

WP12019

$38.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Not AvailableKarcher HOSE, SENSOR SILVER For Model: CVU36/18.614-265.0Not Available
14Not AvailableKarcher filter safty catch cpl For Model: CVU36/18.639-435.0Not Available
14Product ThumbnailFilter Safety Catch, complete, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50205ER

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
15Not AvailableKarcher Dust bag lever For Model: CVU36/18.639-436.0Not Available
16Not AvailableKarcher Axle For Model: CVU36/18.639-437.0Not Available
16Product ThumbnailAxle for Dust Bag Lever, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50123ER

$9.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
17Product ThumbnailReturn Spring for Lever, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50124ER

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
17Not AvailableKarcher leg spring For Model: CVU36/18.639-438.0Not Available
18Not AvailableKarcher Bag holder For Model: CVU36/18.639-783.0Not Available
18Product ThumbnailBag Holder, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50125ER

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
19Not AvailableSebo Screw 4 x 14 1036Not Available
19Not AvailableKarcher SCREW M4 X 14 For Model: CVU36/18.636-337.0Not Available
20Not AvailableKarcher CLAMP CONNECTING ROD (AXLE) For Model: CVU36/18.614-000.0Not Available
20Product ThumbnailAxle Clamp (single), for X1, X2, X4, X5, G series, 300/350, 370 series, and ET-C Sebo vacuum cleaner repair part

More Product Details

2014

$1.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Product ThumbnailFilter Indicator, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50209ER

$30.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
21Not AvailableKarcher Filterindicator For Model: CVU36/18.639-443.0Not Available
22No ImageRetaining Ring (single), for X1/X2, X4/X5, G and 370 series, 300/350 (gray black) Sebo vacuum cleaner repair part

More Product Details

WP11786

$1.50Add to cart

Product is special order please allow 2-4 weeks for delivery.
22Not AvailableKarcher RETAINING RING, DK.GRY For Model: CVU36/18.614-462.0Not Available
23Not AvailableKarcher recessed grip For Model: CVU36/18.639-439.0Not Available
23Product ThumbnailRecessed Grip, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50130HG

$9.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Not AvailableKarcher Connection adapter For Model: CVU36/18.639-440.0Not Available
24Product ThumbnailFitting for Bag Housing, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50131HG

$11.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
25Product ThumbnailSeal, Filter Tube, for X series, G1/G2, 300/350, and 370 series Sebo vacuum cleaner repair part

More Product Details

5289

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
25Not AvailableKarcher SEAL, FILTER TUBE For Model: CVU36/18.614-493.0Not Available
26Product ThumbnailAnti-static Wire, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50142ER

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
26Not AvailableKarcher Antistatic wire For Model: CVU36/18.639-444.0Not Available
27Product ThumbnailCarrying Handle, for 300 and 350 (gray black) Sebo vacuum cleaner repair part

More Product Details

50143GSER

$22.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
27Not AvailableKarcher carry handle For Model: CVU36/18.639-445.0Not Available
28Not AvailableKarcher Box exhaust filter For Model: CVU36/18.639-450.0Not Available
29Product ThumbnailBack Cover, for 300 and 350 (gray black) Sebo vacuum cleaner repair part

More Product Details

50215GS

$48.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
29Not AvailableKarcher Back cover cpl For Model: CVU36/18.639-449.0Not Available
30Product ThumbnailFilter, Exhaust 300 350 S Class Part Number: 50170ER for Sebo

More Product Details

50170ER

$38.71Add to cart

Product is special order please allow 2-4 weeks for delivery.
31Not AvailableKarcher MICRO HYGENE FILTER For Model: CVU36/18.614-330.0Not Available
32Not AvailableKarcher SENSOR FILTER BAG PACK For Model: CVU36/18.628-484.0Not Available
32Product ThumbnailSebo Vacuum Bags for X4 and X7 Uprights - 8pk

More Product Details

676224050932

$34.99Add to cart

33Not AvailableKarcher CREVICE NOZZLE, BLACK For Model: CVU36/18.631-930.0Not Available
34Not AvailableKarcher UPHOLSTERY NOZZLE BLK For Model: CVU36/18.631-929.0Not Available




# Part image Description SKU Price
100Not AvailableKarcher Power head cover 350 CVU36 For Model: CVU36/18.639-442.0Not Available
100Product ThumbnailPower Head Cover, for 350 MECHANICAL (gray black) Sebo vacuum cleaner repair part

More Product Details

50431GSAM

$42.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
101Not AvailableKarcher Suppressor kit For Model: CVU36/18.639-726.0Not Available
101Product ThumbnailSuppressor Kit for motor, for 300/350 MECHANICAL Sebo vacuum cleaner repair part

More Product Details

1013ER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
102Not AvailableKarcher Chassis 350 For Model: CVU36/18.639-766.0Not Available
102Product ThumbnailChassis, for 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50444HGER

$70.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
103Not AvailableKarcher Bumper 350 For Model: CVU36/18.639-767.0Not Available
103Product ThumbnailBumper, for 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50314HG

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
104Product ThumbnailSwitch, complete, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

05112WI

$16.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
105Not AvailableKarcher Swiching unit For Model: CVU36/18.639-748.0Not Available
105Product ThumbnailSwitching Unit, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50443UL

$22.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
106Product ThumbnailAir Channel Cover, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50308ER

$22.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
106Not AvailableKarcher Cover for air channel For Model: CVU36/18.639-747.0Not Available
107Product ThumbnailClamp for axle thrust member spring, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2856

$4.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
107Not AvailableKarcher CLAMP For Model: CVU36/18.614-001.0Not Available
108Not AvailableKarcher Brush roller release 350 For Model: CVU36/18.639-729.0Not Available
108Product ThumbnailBrush Roller Release, for 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50433HGER

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
109Not AvailableKarcher Bearing block rh For Model: CVU36/18.639-734.0Not Available
109Product ThumbnailBearing Block, R.H., for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50356HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
110Not AvailableKarcher Position cams For Model: CVU36/18.639-751.0Not Available
111Product ThumbnailThrust Member for pile adjustment knob, for G series, 370 COMFORT, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2833

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
111Not AvailableKarcher THRUST MEMBER For Model: CVU36/18.614-622.0Not Available
112Product ThumbnailBrush Strip Cover, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50352HG

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
112Not AvailableKarcher Brush strip cover For Model: CVU36/18.639-735.0Not Available
113Not AvailableKarcher THRUST MEMBER For Model: CVU36/18.614-623.0Not Available
113Product ThumbnailThrust Member for pile adjustment axle, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2834

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
114Not AvailableKarcher Front bottom plate 350 For Model: CVU36/18.639-769.0Not Available
114Product ThumbnailFront Bottom Plate, for 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50434HGER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
115Not AvailableKarcher AXLE CLAMP For Model: CVU36/18.613-792.0Not Available
115Product ThumbnailAxle Clamp, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2849

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
116Not AvailableKarcher Rear bottom plate 350 For Model: CVU36/18.639-768.0Not Available
116Product ThumbnailRear Bottom Plate, for 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50311HGER

$13.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
117Not AvailableKarcher Access door cpl For Model: CVU36/18.640-015.0Not Available
118Product ThumbnailPile Adjustment Axle, for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2861

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
118Not AvailableKarcher PILE ADJUSTMENT AXLE For Model: CVU36/18.614-385.0Not Available
119Product ThumbnailPile Adjustment Wheel, for G series and 300/350 (light gray) Sebo vacuum cleaner repair part

More Product Details

5174HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
119Not AvailableKarcher Pile adjustment wheel light gray For Model: CVU36/18.614-392.0Not Available
120Product ThumbnailBrush Strip For 370 And Et-C For Replacement Order Alt Item For: sebo

More Product Details

2046

$19.37Add to cart

Product is special order please allow 2-4 weeks for delivery.
120Not AvailableKarcher Brush strip For Model: CVU36/18.600-244.0Not Available
121Not AvailableKarcher Brush roller 350 For Model: CVU36/18.639-770.0Not Available
121Product ThumbnailBrush Roller Mechanism, with strip, for 350 Sebo vacuum cleaner repair part

More Product Details

50471ER

$49.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
122Not AvailableKarcher Belt HTD-II, 219 3M For Model: CVU36/18.600-500.0Not Available
122Product ThumbnailBelt HTD-II-6, 219 3M, for X and G series, and 300/350 (sensor to bearing block) Sebo vacuum cleaner repair part

More Product Details

WP11775

$12.00Add to cart

123Product ThumbnailSpring, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50332ER

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
123Not AvailableKarcher Spring For Model: CVU36/18.639-746.0Not Available
124Product ThumbnailRubbing Plate for pile adjustment axle for G series, 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

2869HG

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
124Not AvailableKarcher RUBBING PLATE BLK For Model: CVU36/18.632-032.0Not Available
125Not AvailableKarcher Axle and wheel For Model: CVU36/18.639-728.0Not Available
125Product ThumbnailAxle with Wheel, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50348HGER

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
126Not AvailableKarcher Foot pedal For Model: CVU36/18.639-744.0Not Available
127Product ThumbnailCatch Pedal, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50331HG

$10.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
127Not AvailableKarcher Catch pedal For Model: CVU36/18.639-745.0Not Available
128Not AvailableKarcher covering cap For Model: CVU36/18.639-727.0Not Available
128Product ThumbnailCovering Cap, for 300 and 350 (black) Sebo vacuum cleaner repair part

More Product Details

50334SW

$8.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
129Not AvailableKarcher Power switch button For Model: CVU36/18.639-736.0Not Available
130Not AvailableKarcher Switch rod For Model: CVU36/18.639-749.0Not Available
130Product ThumbnailSwitch Rod, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50371ER

$9.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
131Not AvailableKarcher BELT 312 3M-HTDII-6 (RPL 5109) For Model: CVU36/18.613-823.0Not Available
131Product ThumbnailBelt 312 3M HTDII-6, for X1 and X2 (motor to Sensor), and 300/350 Sebo vacuum cleaner repair part

More Product Details

5379

$12.00Add to cart

132Not AvailableKarcher Sensor For Model: CVU36/18.639-752.0Not Available
133Not AvailableKarcher SUPPORT SPRING For Model: CVU36/18.614-546.0Not Available
133Product ThumbnailSpring for Support Lever, for X and G series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

5107-1

$2.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
134Not AvailableKarcher Support lever with spring For Model: CVU36/18.639-740.0Not Available
134Product ThumbnailSupport Lever with spring, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50438HGER

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
135Product ThumbnailBearing Block, L.H., for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50355HG

$12.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
135Not AvailableKarcher Bearing block lh For Model: CVU36/18.639-733.0Not Available
136Not AvailableKarcher Brush motor 120V For Model: CVU36/18.639-737.0Not Available
136Product ThumbnailMotor 1000 W / 120 V, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50465ER

$99.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
137Not AvailableKarcher CARBON BRUSH SET 100/120V For Model: CVU36/18.613-940.0Not Available
137Product ThumbnailCarbon Brush Set, for 5468, 1843/2 (after 2001), and 50465ER vacuum motors, for X4/X5, X7/X8, G series, 370 series, and 300/350 Sebo vacuum cleaner repair part

More Product Details

05117S

$18.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
138Not AvailableKarcher Belt pulley motor For Model: CVU36/18.614-358.0Not Available
138Product ThumbnailSensor Pulley for X4/X5 and G series. Motor Pulley for 300/350. Sensor & Motor Pulley for X1/X2. Sebo vacuum cleaner repair part

More Product Details

5117/1

$6.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
139Not AvailableKarcher Motor cover For Model: CVU36/18.639-743.0Not Available
139Product ThumbnailMotor Cover, for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50441UL

$19.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
140Product ThumbnailSwivel Neck Support, R.H., for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50440ER

$20.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
140Not AvailableKarcher Swivel support rh For Model: CVU36/18.639-742.0Not Available
141Product ThumbnailSwivel Neck, complete, 2-wire, for 300 and 350 (light gray) Sebo vacuum cleaner repair part

More Product Details

50448HG

$36.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
141Not AvailableKarcher Swivel neck cpl 3-wire For Model: CVU36/18.639-738.0Not Available
142Product ThumbnailSwivel Neck Support, L.H., for 300 and 350 Sebo vacuum cleaner repair part

More Product Details

50439ER

$24.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
142Not AvailableKarcher Swivel support lh For Model: CVU36/18.639-741.0Not Available
143Not AvailableKarcher SCREW, M3.9 X 13 DIN7981 For Model: CVU36/18.614-703.0Not Available
143Not AvailableSebo Screw F 3.9 x 13 102Not Available
144Not AvailableSebo Screw M 4 x 12 Z1 197Not Available
144Not AvailableKarcher SCREW, M4 X 12 HWH For Model: CVU36/18.614-485.0Not Available
145Not AvailableSebo Screw STS 4 x 16 T20 1016Not Available
145Not AvailableKarcher SCREW, M4 X16-T20 SS For Model: CVU36/18.614-478.0Not Available
146Not AvailableSebo Screw AM 4 x 16 DIN 7985 1010Not Available
146Not AvailableKarcher Screw AM4x16 For Model: CVU36/18.639-754.0Not Available
147Not AvailableSebo Screw C 3.9 x 25 DIN 7981 104Not Available
147Not AvailableKarcher Screw 3,9x 25 For Model: CVU36/18.639-755.0Not Available
148Product ThumbnailScrew, AM4 x 30 DIN 7985 TL (single), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and duo Sebo vacuum cleaner repair part

More Product Details

0176TL

$0.30Add to cart

Product is special order please allow 2-4 weeks for delivery.
148Not AvailableKarcher SCREW, M4-.7 X 30 PHPNHMS ZN DIN7985 For Model: CVU36/18.614-717.0Not Available
149Product ThumbnailSpring for axle for chassis thrust member for G series, 300 and 350 Sebo vacuum cleaner repair part

More Product Details

2867

$3.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
149Not AvailableKarcher SPRING For Model: CVU36/18.614-525.0Not Available



Report errors on this page HERE
