Schematic and parts list for: DustCare Model: PB11
This is a list of parts and a diagram and schematic for: DustCare Model: PB11
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: PB11 Power Head Power Nozzle
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DustCare Upper Cover | PB11-1-1 | Not Available |
| 2 | No Image | Central Vacuum Power Cord for Wands - 47 inch | PB11126 | $14.99Read more |
| 3 | Not Available | DustCare Lamp Cover | PB11-1-3 | Not Available |
| 4 | Not Available | DustCare Dust Block | PB11-1-4 | Not Available |
| 5 | Not Available | DustCare A i r Collect Cover | PB11-1-5 | Not Available |
| 6 | Not Available | DustCare Upper Felt for A i r Collect Cover | PB11-1-6 | Not Available |
| 7 | Not Available | DustCare Lower Felt for A i r Collect Cover | PB11-1-7 | Not Available |
| 8 | Not Available | DustCare P V C Protection Ring | PB11-1-8 | Not Available |
| 9 |  | Brushroll, PB11 (Flat Pulley) Assembly Part Number: PB11-1-9 for Dust Care | PB1119 | $42.76Read more |
| 10 | No Image | Wheel, Rear Large PB11 Powerhead Part Number: PB11-1-10 for Dust Care | PB11110 | $9.23Read more |
| 11 |  | Brush Strip, Blue 2-Short 2-Long PB11 Power Nozzle Part Number: PB11-1-11 for Dust Care | PB11111 | $25.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | DustCare Bulb | PB11-1-12 | Not Available |
| 13 | Not Available | DustCare Bulb Holder 1 | PB11-1-13 | Not Available |
| 14 | Not Available | DustCare Bulb Holder 2 | PB11-1-14 | Not Available |
| 15 | Not Available | DustCare Small Wheel Shaft | PB11-1-15 | Not Available |
| 16 | Not Available | DustCare Small Wheel Protector Cover | PB11-1-16 | Not Available |
| 17 | Not Available | DustCare Small Wheel | PB11-1-17 | Not Available |
| 18 | Not Available | DustCare Switch Pedal | PB11-1-18 | Not Available |
| 19 |  | Switch, Red Square Push Button Deluxe 825 PN Part Number: PB11-1-19 for Fitall | PB11119 | $6.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | DustCare Internal Wire | PB11-1-20 | Not Available |
| 21 | Not Available | DustCare Clip | PB11-1-21 | Not Available |
| 22 | Not Available | DustCare Switch Pedal Stand | PB11-1-22 | Not Available |
| 23 | Not Available | DustCare Lower Cover | PB11-1-23 | Not Available |
| 24 | Not Available | DustCare Bend Tube Protector | PB11-1-24 | Not Available |
| 25 | Not Available | DustCare Power Cord Protector | PB11-1-25 | Not Available |
| 26 | No Image | Central Vacuum Power Cord for Wands - 47 inch | PB11126 | $14.99Read more |
| 27 | Not Available | DustCare Capacity | PB11-1-27 | Not Available |
| 28 | Not Available | DustCare Belt | PB11-1-28 | Not Available |
| 29 | Not Available | DustCare Belt Baffle | PB11-1-29 | Not Available |
| 30 |  | Motor, Power Nozzle Geared Shaft FA-5750-2/3 Part Number: PB11-1-30 for Fitall | PB11130 | $47.52Read more |
| 31 | Not Available | DustCare Big Wheel Felt | PB11-1-31 | Not Available |
| 32 | Not Available | DustCare Glistened Mask | PB11-1-32 | Not Available |
| 33 | Not Available | DustCare Bend Tube Plate | PB11-1-33 | Not Available |
| 34 | Not Available | DustCare Bend Tube | PB11-1-34 | Not Available |
| 35 | Not Available | DustCare Anti-Dust Cloth | PB11-1-35 | Not Available |
| 36 | Not Available | DustCare Upper Cover Felt | PB11-1-36 | Not Available |
| 37 | Not Available | DustCare Bend Tube Plate (B) | PB11-1-37 | Not Available |
| 38 | Not Available | DustCare Shock Absorber Ring | PB11-1-38 | Not Available |
| # | Part image | Description | SKU | Price |

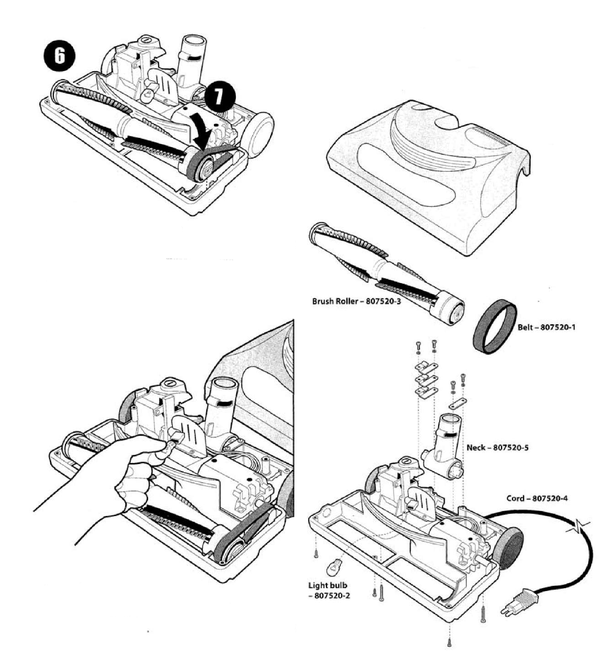

| xx | Not Available | DustCare Light Bulb | 807520-2 | Not Available |
| xx | Not Available | DustCare Brush Roller | 807520-3 | Not Available |
| xx | Not Available | DustCare Belt | 807520-1 | Not Available |
| xx | Not Available | DustCare Neck | 807520-5 | Not Available |
| xx | Not Available | DustCare Cord | 807520-4 | Not Available |
