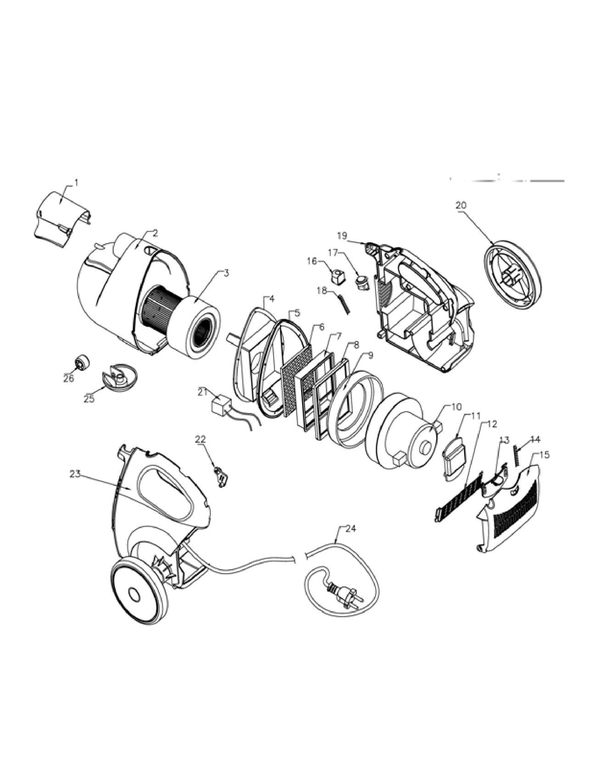

This is a list of parts and a diagram and schematic for: DustCare Model: KPA03
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: KPA03 Lil Sucker II Bagless Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DustCare Suction Tube | 17-7883-31 | Not Available |
| 2 | Not Available | DustCare Dust Container | FNLA | Not Available |
| 3 | Not Available | DustCare Inlet Hepa | 17-2324-06 | Not Available |
| 4 | Not Available | DustCare Container Top Cover | 17-7888-62 | Not Available |
| 5 | Not Available | DustCare Container Seal | 17-8922-62 | Not Available |
| 6 | Not Available | DustCare Inlet Filter | 17-2376-02 | Not Available |
| 7 | Not Available | DustCare Air Inlet Mesh | 17-2377-01 | Not Available |
| 8 | Not Available | DustCare Inlet Filter Seal | 17-2378-07 | Not Available |
| 9 | Not Available | DustCare Motor Seal | 17-8924-06 | Not Available |
| 10 | Not Available | DustCare Motor | 17-8520-05 | Not Available |
| 11 | Not Available | DustCare Motor Rubber Causion | 17-8925-03 | Not Available |
| 12 | Not Available | DustCare Outlet Board | 17-7886-68 | Not Available |
| 13 | Not Available | DustCare Outlet locker | 17-2530-39 | Not Available |
| 14 | Not Available | DustCare Outlet Locker Spring | 17-2531-01 | Not Available |
| 15 | Not Available | DustCare Back Cover | 17-7885-36 | Not Available |
| 16 | Not Available | DustCare Container Locker | 17-2528-65 | Not Available |
| 17 | Not Available | DustCare Switch | 17-9310-02 | Not Available |
| 18 | Not Available | DustCare Container Locker Spring | 17-2529-03 | Not Available |
| 19 | Not Available | DustCare Right Body Cover | FNLA | Not Available |
| 20 | Not Available | DustCare Big Wheels (2 Pcs/set) | 17-7925-68 | Not Available |
| 22 | Not Available | DustCare Cable Pressor | 17-7887-65 | Not Available |
| 23 | Not Available | DustCare Left Body Cover | FNLA | Not Available |
| 24 | Not Available | DustCare Power Cable | 17-5205-68 | Not Available |
| 25 | Not Available | DustCare Small Wheel Support | 17-7926-65 | Not Available |
| 26 | Not Available | DustCare Small Wheel | 17-7927-62 | Not Available |
