Schematic and parts list for: Dirt Devil Model: UD70090

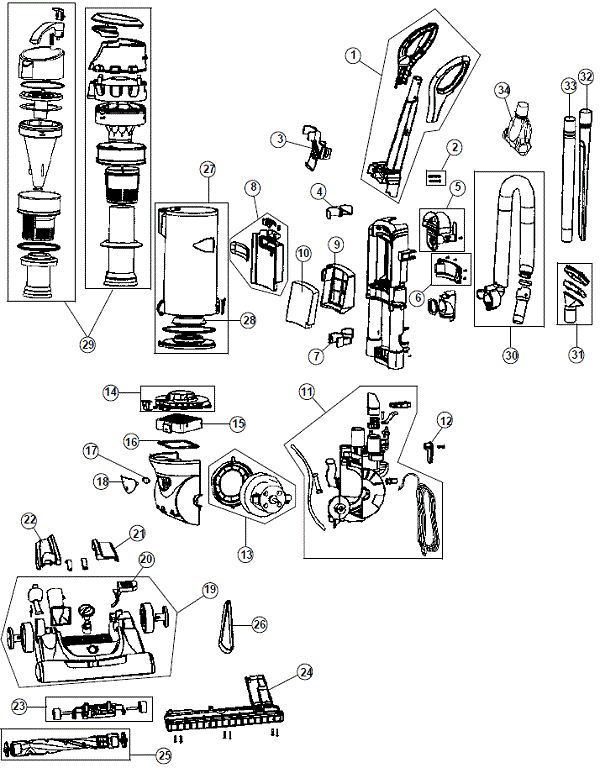

This is a list of parts and a diagram and schematic for: Dirt Devil Model: UD70090
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Power Reach MultiCyclonic
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Handle Assembly - Gray | 2JDA201000 | Not Available |
| 02 | Not Available | Dirt Devil Handle Screw Package | 1JDA204000 | Not Available |
| 03 | Not Available | Dirt Devil Turbo Tool Clip - Gray | 1JDA202000 | Not Available |
| 04 | Not Available | Dirt Devil Upper Tool Clip | 1JDA213000 | Not Available |
| 05 | Not Available | Dirt Devil Hose Holder Assembly | 2JDA216000 | Not Available |
| 06 | Not Available | Dirt Devil Access Door With Screws | 2JDA215000 | Not Available |
| 07 | Not Available | Dirt Devil Lower Tool Clip | 1JDA217000 | Not Available |
| 08 | Not Available | Dirt Devil Door Cover Assembly | 1JDA207000 | Not Available |
| 09 | Not Available | Dirt Devil Pre-Motor Filter Frame | 1JDA205000 | Not Available |
| 10 | Not Available | Dirt Devil F-40 Pre-Motor Foam Filter | 1JDA105000 | Not Available |
| 11 | Not Available | Dirt Devil Rear Housing And Wiring | 2JDA221000 | Not Available |
| 12 | Not Available | Dirt Devil Cord Hook | 1JDA222000 | Not Available |
| 13 | Not Available | Dirt Devil Motor Assembly | 2JDA220000 | Not Available |
| 14 | Not Available | Dirt Devil Exhaust Filter Door Assembly | 1JDA218000 | Not Available |
| 15 | Not Available | Dirt Devil F-41 Charcoal Hepa Exhaust Filter | 1JDA103000 | Not Available |
| 16 | Not Available | Dirt Devil Seal - Exhaust Filter | 1JDA223000 | Not Available |
| 17 | Not Available | Dirt Devil Light Bulb | 1JDA250000 | Not Available |
| 18 | Not Available | Dirt Devil Light Bulb Lens | 1JDA260000 | Not Available |
| 19 | Not Available | Dirt Devil Nozzle Assembly | 2JDA224000 | Not Available |
| 20 | Not Available | Dirt Devil Handle Release Pedal | 1JDA227000 | Not Available |
| 21 | Not Available | Dirt Devil Pivot Cover - Left | 1JDA225000 | Not Available |
| 22 | Not Available | Dirt Devil Pivot Cover - Right | 1JDA226000 | Not Available |
| 23 | Not Available | Dirt Devil Roller Lifter Assembly | 2JDA228000 | Not Available |
| 24 | Not Available | Dirt Devil Nozzle Guard Assembly | 2JDA240000 | Not Available |
| 25 | No Image | Royal Dirt Devil UD70065 Brush Roll Assembly - 2JDA230000 - Genuine | RO-JDA230 | $40.50Read more |
| 26 | Not Available | Dirt Devil Style 23 Belt | 38528040 | Not Available |
| 27 | Not Available | Dirt Devil Dirt Cup Assembly | 2JDA209000 | Not Available |
| 28 | Not Available | Dirt Devil Gasket - Dirt Cup | 1JDA210000 | Not Available |
| 29 | Not Available | Dirt Devil Dirt Cup Lid Assembly | 2JDA208000 | Not Available |
| 30 | Not Available | Dirt Devil Hose Assembly | 2JDA214000 | Not Available |
| 31 | Not Available | Dirt Devil 2 In 1 Tool Assembly | 2JDA203000 | Not Available |
| 32 | Not Available | Dirt Devil Crevice Tool | 1JDA212000 | Not Available |
| 33 | Not Available | Dirt Devil Extension Wand | 1JDA211000 | Not Available |
| 34 | Not Available | Dirt Devil Turbo Tool | 2UTT000000 | Not Available |
