Schematic and parts list for: Dirt Devil Model: UD40350

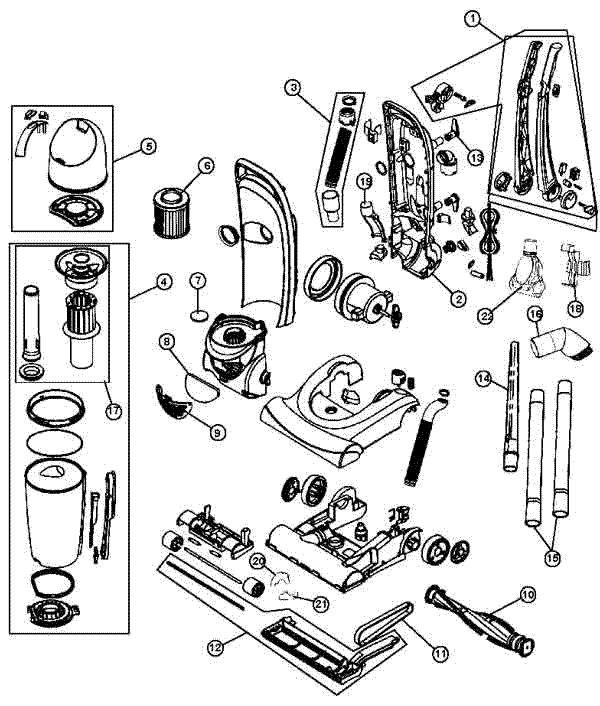

This is a list of parts and a diagram and schematic for: Dirt Devil Model: UD40350
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Total Pet Compact Bagless
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dirt Devil Handle Assembly / Handle Swivel Not Included - Red | 2LW1101000 | Not Available |
| 1 | Not Available | Dirt Devil Handle Assembly / Includes Handle Swivel - Red | 2LW4010000 | Not Available |
| 2 | Not Available | Dirt Devil Back Panel Assembly - Red | 2LW1103000 | Not Available |
| 3 | Not Available | Dirt Devil Upper Hose Assembly | 2LW1102000 | Not Available |
| 3 | Not Available | Dirt Devil Upper Hose Assembly | 2LW3000000 | Not Available |
| 4 | Not Available | Dirt Devil Dirt Cup Assembly | 2LV1120000 | Not Available |
| 5 | Not Available | Dirt Devil Dirt Cup Lid Assembly - Red | 1LV1115600 | Not Available |
| 6 |  | Filter, F22/F26 Aspire 084590/AD40135/UD40000 Pltd Part Number: 1LV1110000 for Royal | 1LV1110000 | $12.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Dirt Devil Inlet Filter - Foam | 1LV1125000 | Not Available |
| 8 |  | Filter, Exhaust Foam 084590/UD40000/UD40005 Part Number: 1LV1130000 for Royal | 1LV1130000 | $2.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Dirt Devil Exhaust Filter Cover - Red | 1LV1135000 | Not Available |
| 10 | Not Available | Dirt Devil Brush Roll Assembly(for models 085850, UD40000, and UD40005) | 2LV1130000 | Not Available |
| 10 | Not Available | Dirt Devil Brush Roll Assembly(for models UD40270, UD40285, and UD40350) | 2LW3070000 | Not Available |
| 11 |  | Royal/Dirt Devil Style 19 Belt | 1LV1000000 | $5.99Add to cart |
| 12 | Not Available | Dirt Devil Nozzle Guard Assembly With Rubber Strip | 1LW3040000 | Not Available |
| 12 | Not Available | Dirt Devil Nozzle Guard Assembly With Rubber Strip | 2LV1135600 | Not Available |
| 13 | Not Available | Dirt Devil Cord Hook | 1LV1140000 | Not Available |
| 14 | Not Available | Dirt Devil Crevice Tool | 1LW3010000 | Not Available |
| 14 | Not Available | Dirt Devil Crevice Tool | 1SN0112000 | Not Available |
| 15 | Not Available | Dirt Devil Extension Wand | 1SN0110000 | Not Available |
| 15 | Not Available | Dirt Devil Extension Wand | 1LW3030000 | Not Available |
| 16 | Not Available | Dirt Devil Upholstery / Dusting Brush Tool | 1LW3020000 | Not Available |
| 16 | Not Available | Dirt Devil Upholstery / Dusting Brush Tool | 1SN0114000 | Not Available |
| 17 |  | ***USE RO-LV1120 FILTER, DIRT CUP AIR 085855 Part Number: 2LW8585000 for Royal | 2LW8585000 | $22.45Read more |
| 18 | Not Available | Dirt Devil Turbo Tool Clip | 1LW4030000 | Not Available |
| 19 | Not Available | Dirt Devil Lower Hose Adaptor | 1LW4040000 | Not Available |
| 19 | Not Available | Dirt Devil Lower Hose Adaptor | 1LW3080000 | Not Available |
| 20 | Not Available | Dirt Devil Upper Felt | 1LW3050000 | Not Available |
| 21 | Not Available | Dirt Devil Lower Felt | 1LW3060000 | Not Available |
| 22 | Not Available | Dirt Devil Turbo Tool | 2LW4020000 | Not Available |
