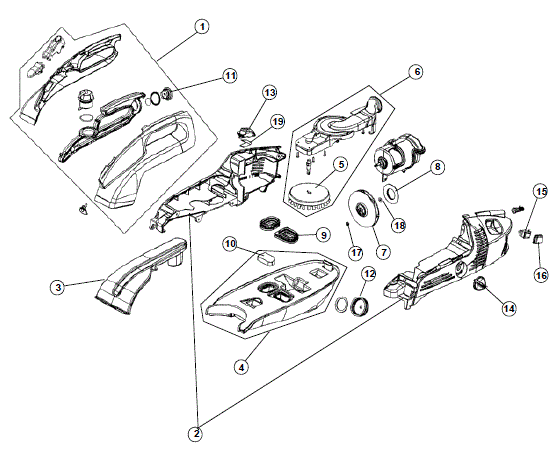

This is a list of parts and a diagram and schematic for: Dirt Devil Model: FD10005XB
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Spot Scrubber
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Clean Water Tank W/Cap - Green | 2280102000 | Not Available |
| 02 | Not Available | Dirt Devil Housing Assembly W/Motor | FNLA | Not Available |
| 03 | Not Available | Dirt Devil Inlet Tube Assembly | 2280507000 | Not Available |
| 04 | Not Available | Dirt Devil Dirty Water Tank Assembly | 2280303000 | Not Available |
| 05 | Not Available | Dirt Devil Brush Assembly | 2280700000 | Not Available |
| 06 | Not Available | Dirt Devil Turbine Housing/Brush Assembly | 2280603000 | Not Available |
| 07 | Not Available | Dirt Devil Impeller Assembly | 2280024600 | Not Available |
| 08 | Not Available | Dirt Devil Motor Housing Gasket | 1280037000 | Not Available |
| 09 | Not Available | Dirt Devil Dwt/Turbine Gasket | 1280315000 | Not Available |
| 10 | Not Available | Dirt Devil Foam Filter | 1280075600 | Not Available |
| 11 | Not Available | Dirt Devil Cwt Cap Assembly | 2280130000 | Not Available |
| 12 | Not Available | Dirt Devil Drain Cap Assembly - Green | 1380340AT0 | Not Available |
| 13 | Not Available | Dirt Devil Cwt Latch | 1280125B00 | Not Available |
| 14 | Not Available | Dirt Devil Turbine Valve Knob | 1280085Y00 | Not Available |
| 15 | Not Available | Dirt Devil Switch | 1280150100 | Not Available |
| 16 | Not Available | Dirt Devil Switch Seal | 1280155000 | Not Available |
| 17 | Not Available | Dirt Devil Impeller/Motor Nut | 1280270000 | Not Available |
| 18 | Not Available | Dirt Devil Impeller/Motor Washer | 1280260000 | Not Available |
| 19 | Not Available | Dirt Devil Clean Water Tank Spring | 1280127000 | Not Available |
