Schematic and parts list for: Dirt Devil Model: CE6605

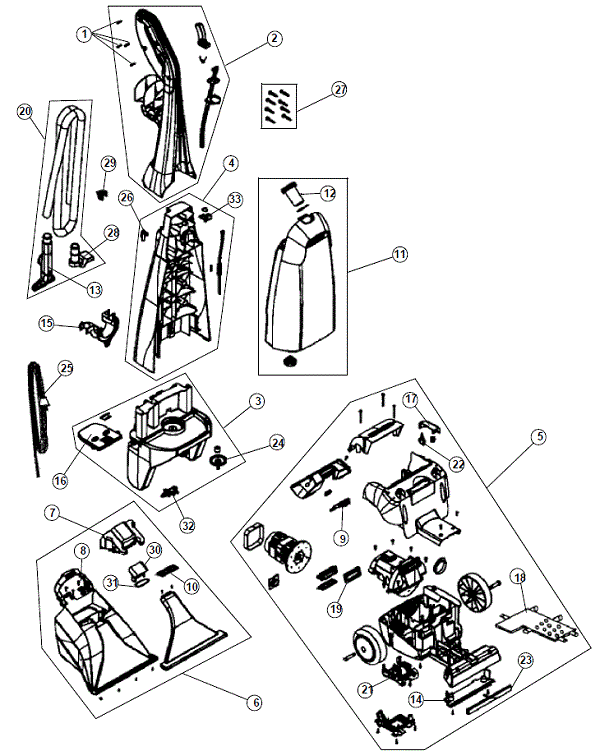

This is a list of parts and a diagram and schematic for: Dirt Devil Model: CE6605
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Jaguar Carpet Steamer/Extractor
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Handle Screw | 1618017000 | Not Available |
| 02 | Not Available | Dirt Devil Upper Handle Assembly - Blue | 2660100000 | Not Available |
| 03 | Not Available | Dirt Devil Lower Handle Assembly - Blue | 2660109000 | Not Available |
| 04 | Not Available | Dirt Devil Back Panel Assembly - Red | 2660104000 | Not Available |
| 05 | Not Available | Dirt Devil Nozzle Base Assembly W/Motor - Blue | 2660134000 | Not Available |
| 06 | Not Available | Dirt Devil D. W. Tank Assembly - Smoke Blue | 2660120000 | Not Available |
| 07 | Not Available | Dirt Devil D. W. Tank Top - Smoke Blue | 1660127000 | Not Available |
| 08 | Not Available | Dirt Devil Dirty Water Tank Handle - Black | 1660130000 | Not Available |
| 09 | Not Available | Dirt Devil Dirty Water Tank Latch | 1660134000 | Not Available |
| 10 |  | Filter Dirty Water Royal Ce-6600 Easy Steamer For: hako | 1660125000 | $4.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Dirt Devil Logo Clean Water Tank Assembly - White | 2660117000 | Not Available |
| 12 | Not Available | Dirt Devil Clean Water Tank Cup | 1660118000 | Not Available |
| 13 | Not Available | Dirt Devil Brush Tool Assembly | 1660151000 | Not Available |
| 14 | Not Available | Dirt Devil Brush Bar Assembly | 2660157000 | Not Available |
| 15 | Not Available | Dirt Devil Hose Caddy - Blue | 2660147000 | Not Available |
| 16 | Not Available | Dirt Devil Handle Release Pedal - Grey | 1660109000 | Not Available |
| 17 |  | PEDAL, SWITCH CE6000 Part Number: 1660135000 for Royal | 1660135000 | $1.78Read more |
| 18 | Not Available | Dirt Devil Exhaust Cover - Blue | 1660107000 | Not Available |
| 19 | Not Available | Dirt Devil Upper Motor Inlet Seal | 1660104000 | Not Available |
| 20 | Not Available | Dirt Devil 2 Hose Assembly Complete | 2660148000 | Not Available |
| 21 | Not Available | Dirt Devil Pump | 1661110000 | Not Available |
| 22 | Not Available | Dirt Devil Switch | 1661111000 | Not Available |
| 23 | Not Available | Dirt Devil Spray Bar Assembly | 1660145000 | Not Available |
| 24 | Not Available | Dirt Devil Solution Inlet Port | 1660116000 | Not Available |
| 25 | Not Available | Dirt Devil Power Cord - 25 Ft | 1700644600 | Not Available |
| 26 | Not Available | Dirt Devil Cord Hook | 1661080000 | Not Available |
| 27 | No Image | SCREW, PACKAGE CE6600 Part Number: 2660106000 for Royal | 2660106000 | $1.78Read more |
| 28 | Not Available | Dirt Devil D.W.T. Hose Adaptor | 1660155000 | Not Available |
| 29 | Not Available | Dirt Devil Hose Clip | 1660156000 | Not Available |
| 30 | Not Available | Dirt Devil Hose Door - Smoke Blue | 1660129000 | Not Available |
| 31 | Not Available | Dirt Devil Hose Door O-Ring | 1660906000 | Not Available |
| 32 | Not Available | Dirt Devil Valve Assembly | FNLA | Not Available |
| 33 | Not Available | Dirt Devil C.W. Tank Latch - Included In #4 | 2660104000 | Not Available |
