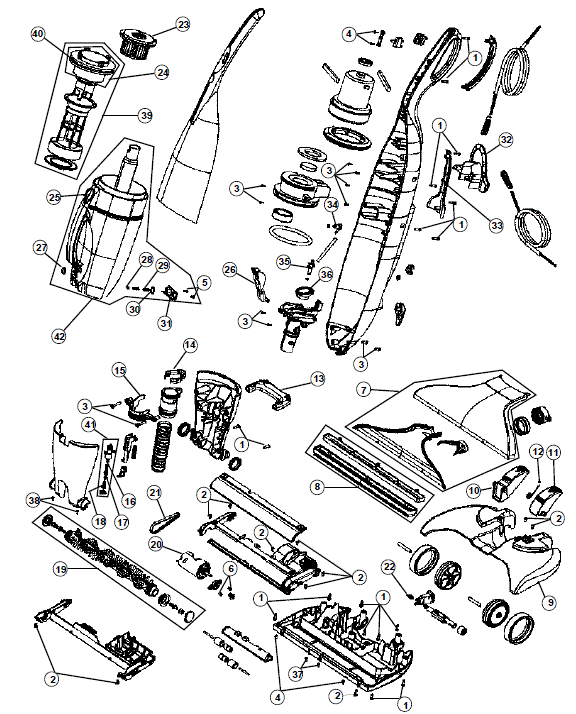

This is a list of parts and a diagram and schematic for: Dirt Devil Model: CE5500
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Floor Keeper
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Screw 4 - 16mm Back Housing | 1VH0911000 | Not Available |
| 02 | Not Available | Dirt Devil Screw 3.5 - 8mm Brushroll Guard | 1VH0906000 | Not Available |
| 03 | Not Available | Dirt Devil Screw 4 -12mm Body | 1VH0910000 | Not Available |
| 04 | Not Available | Dirt Devil Screw 3 - 8mm Bottom Base | 1VH0905000 | Not Available |
| 05 | Not Available | Dirt Devil Screw 3 - 12mm Valve | 1VH0933000 | Not Available |
| 06 | Not Available | Dirt Devil Screw 5.5 Mm Brushroll Motor | 1VH0902000 | Not Available |
| 07 | Not Available | Dirt Devil Nozzle Assembly | 2VH0700000 | Not Available |
| 08 | Not Available | Dirt Devil Squeegee Carrier Assembly | 2VH0700000 | Not Available |
| 09 | Not Available | Dirt Devil Nozzle Cover | 1VH0919000 | Not Available |
| 10 | Not Available | Dirt Devil Height Adjustment Pedal | 1VH0920000 | Not Available |
| 11 | Not Available | Dirt Devil Release Pedal | 1VH0670000 | Not Available |
| 12 | Not Available | Dirt Devil Release Pedal Spring | 1VH0675000 | Not Available |
| 13 | Not Available | Dirt Devil Solution Pedal | 1VH0908000 | Not Available |
| 14 | Not Available | Dirt Devil Nozzle Release Clip | 1VH0320000 | Not Available |
| 15 | Not Available | Dirt Devil Push - Push Connector | 1VH0335000 | Not Available |
| 16 | Not Available | Dirt Devil O-Ring - D6 | 1VH0962000 | Not Available |
| 17 | Not Available | Dirt Devil O-Ring - D8 | 1VH0961000 | Not Available |
| 18 | Not Available | Dirt Devil Spiral Spring | 1VH0963000 | Not Available |
| 19 | Not Available | Dirt Devil Brushroll Assembly | 2VH0430000 | Not Available |
| 20 | Not Available | Dirt Devil Brushroll Motor | 1VH0500000 | Not Available |
| 21 | Not Available | Dirt Devil Timing Belt | 1VH0510000 | Not Available |
| 22 | Not Available | Dirt Devil Pull Spring | 1VH0330000 | Not Available |
| 23 |  | FILTER, PLEATED CE5500 Part Number: 3550003000 for Royal | 3550003000 | $6.80Read more |
| 24 | Not Available | Dirt Devil Filter Mount - Included In #39 | 2QB0260000 | Not Available |
| 25 | Not Available | Dirt Devil Cap | 1VH0210000 | Not Available |
| 26 | Not Available | Dirt Devil Cup Latch | 1VH0140000 | Not Available |
| 27 | Not Available | Dirt Devil O-Ring - D34 | 1VH0932000 | Not Available |
| 28 | Not Available | Dirt Devil O-Ring - D2 | 1VH0931000 | Not Available |
| 29 | Not Available | Dirt Devil Spring | 1VH0934000 | Not Available |
| 30 | Not Available | Dirt Devil O-Ring - D12 | 1VH0930000 | Not Available |
| 31 | Not Available | Dirt Devil Insert | 1VH0220000 | Not Available |
| 32 | Not Available | Dirt Devil Upper Cord Hook | 1VH0165000 | Not Available |
| 33 | Not Available | Dirt Devil Cover, Vent | 1VH0167000 | Not Available |
| 34 | Not Available | Dirt Devil Water Jug Connector - Grey | 1VH0952000 | Not Available |
| 35 | Not Available | Dirt Devil Water Neck Connector - Grey | 1VH0951000 | Not Available |
| 36 | Not Available | Dirt Devil Seal - Molded Support Plate | 1VH0974000 | Not Available |
| 37 | Not Available | Dirt Devil Screw 12mm Bottom Center Base | 1VH0904000 | Not Available |
| 38 | Not Available | Dirt Devil Screw 4 - 32mm Front Cover | 1VH0909000 | Not Available |
| 39 | Not Available | Dirt Devil Filter Housing | 2QB0260000 | Not Available |
| 40 | Not Available | Dirt Devil Gasket | 1VH0258600 | Not Available |
| 41 | Not Available | Dirt Devil Valve Assembly | 2VH0350000 | Not Available |
