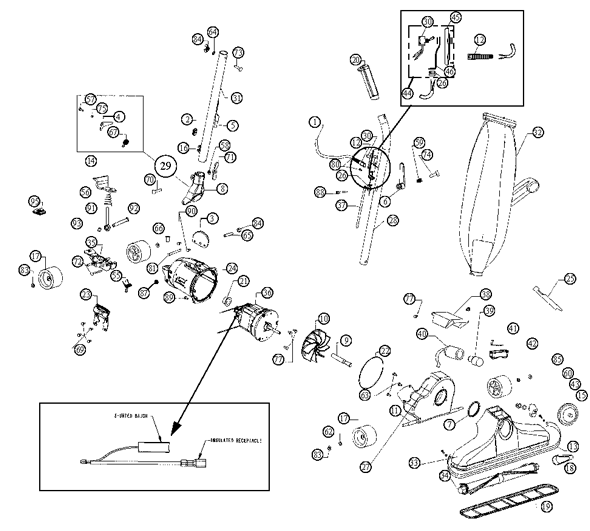

Schematic and parts list for: Dirt Devil Model: 4000
#VALUE!
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | Dirt Devil Attachment Kit (Kit Is Nla - Must Order Each Part Individually) | M304 | Not Available |
| xx | Not Available | Dirt Devil Crevice Tool | 1502801600 | Not Available |
| xx | Not Available | Dirt Devil Hose Assembly | 2051284600 | Not Available |
| xx | Not Available | Dirt Devil Round Brush | 3050282600 | Not Available |
| xx | Not Available | Dirt Devil 10" Floor Brush | 3097682600 | Not Available |
| xx |  | WAND, STRAIGHT LOWER BUTTON LOCK & SLEEVE MTL Part Number: 2041076B00 for Royal | 2041076B00 | $44.62Read more |
| xx | No Image | FLOOR TOOL, METAL NECK GRAY METAL UPRIGHTS Part Number: 3415682B00 for Royal | 3415682B00 | $36.82Read more |
| xx | Not Available | Dirt Devil 6" Upholstery Tool | 3415582B00 | Not Available |
| xx | Not Available | Dirt Devil Round Brush - Gray | 3097282B00 | Not Available |
| xx | Not Available | Dirt Devil 7' Hose & Bleed Valve Assembly | 2995084B00 | Not Available |
| xx | Not Available | Dirt Devil Upper Wand Assembly | 2041077000 | Not Available |
| xx | Not Available | Dirt Devil Hose Con. Adaptor Assembly | 2024585B00 | Not Available |
| xx | Not Available | Dirt Devil Crevice Tool - Dark Gray | 1258801B00 | Not Available |
| xx | Not Available | Dirt Devil Attachment Kit - Deluxe (Kit Is Nla - Must Order Each Part Individually) | M305G | Not Available |
| xx | No Image | Royal Handle Fork with Release Latch 2028590000 for all metal royal vacuum cleaners models: ry8500 ry8600 2075 | 2028590000 | $85.00Read more |
| xx | Not Available | Dirt Devil Upholstery Tool | 3098584600 | Not Available |
| xx | Not Available | Dirt Devil Extension Wand | 1402803600 | Not Available |
| 1 | Not Available | Dirt Devil Power Cord - 40' Burgandy | 1088340800 | Not Available |
| 2 | Not Available | Dirt Devil Grommet | 1230324000 | Not Available |
| 3 |  | Plate, Handle Stop 1030/1058/1059 Part Number: 1133716000 for Royal | 1133716000 | $24.98Read more |
| 4 | Not Available | Dirt Devil Handle Release Lever | 1133739B00 | Not Available |
| 5 | Not Available | Dirt Devil Handle Fork Revised - Polished | 1028590000 | Not Available |
| 5 |  | Cord Hook, :( Metal Lower Dirt Devil CR5158 Comm Part Number: 1259316000 for Royal | 1259316000 | $11.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Dirt Devil Cord Hook - Upper Quick Release | 1259319000 | Not Available |
| 7 |  | Gasket, :( Nozzle Dirt Devil Commercial Upr Part Number: 1285427000 for Royal | 1285427000 | $1.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Pulley, CR5128Z/30Z/58Z Part Number: 1380261000 for Royal | 1380261000 | $13.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | FAN, CERTIFIED PILE BRUSH MACHINE Part Number: 1-608005-000 for Jansan | 1608005000 | $88.54Read more |
| 11 | Not Available | Dirt Devil Axle Stud | 1611101000 | Not Available |
| 12 | Not Available | Dirt Devil Strain Relief - Power Cord | 1322305000 | Not Available |
| 13 | Not Available | Dirt Devil Bumper - Mag Blue | 1801201A00 | Not Available |
| 14 | Not Available | Dirt Devil Adjuster Release | 1133715000 | Not Available |
| 15 | Not Available | Dirt Devil Adjust-O-Rite Assembly Burg | 2870169800 | Not Available |
| 16 | Not Available | Dirt Devil Cord Clip | 1670844600 | Not Available |
| 17 | Not Available | Dirt Devil Wheel, 2-1/2" Dia. | 1671705000 | Not Available |
| 18 |  | Belt, Metal Uprights With Inside Track Part Number: 1672260001 for Royal | 1672260001 | $4.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Metal Bottom Base Plate 14in for Royal 609, 7710, and 880 | WP11278 | $54.99Read more |
| 20 | Not Available | Dirt Devil Handle Grip - Black | 1880314600 | Not Available |
| 21 | Not Available | Dirt Devil Grommet, Motor | 1870006600 | Not Available |
| 22 | Not Available | Dirt Devil Ring Motor Housing | 1870024600 | Not Available |
| 23 | Not Available | Dirt Devil Side Plate | 1870130P00 | Not Available |
| 24 |  | Motor Housing Drop In Style 1870201000 For Metal Upright Model 1058Z M1058Z | 1871201000 | $69.99Read more |
| 25 |  | Belt Lifter, :( Part Number: 1880262000 for Royal | 1880262000 | $8.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Dirt Devil Strain Relief - Internal Cord | 1880305000 | Not Available |
| 27 | Not Available | Dirt Devil Fancase Assembly | 2880117000 | Not Available |
| 28 | Not Available | Dirt Devil Upper Handle Assy-Incls # 6, 20 | 2891051B00 | Not Available |
| 29 | Not Available | Dirt Devil Handle Fork & Latch Assembly Replaced By 2028590000 & 2208590000 | 2028580000 | Not Available |
| 30 | No Image | Switch, Metal Toggle 12 Amp Uprights | RO-163309 | $30.49Read more |
| 31 | Not Available | Dirt Devil Lower Handle Tube Assembly - Incl #5 & #16 | 2208590000 | Not Available |
| 32 | Not Available | Dirt Devil Gun Metal Gray Scafitex Cloth Bag - (Type B Bag) Order 2028543A01 Mag Blue | 2066348AR1 | Not Available |
| 33 | Not Available | Dirt Devil Nozzle Assembly - Incls # 13 & 43 | 2080226800 | Not Available |
| 34 | Not Available | Dirt Devil Brush Roll Assembly - 14" Hex Ends With Speed Indicator | 2673274000 | Not Available |
| 35 | Not Available | Dirt Devil Wheel Fork & Axle Assembly | 2996575000 | Not Available |
| 36 | No Image | Royal all metal vacuum Motor, 10 Amp Metal Upright 1030/89130/1010/1050 | 2870114000 | $60.00Read more |
| 37 | Not Available | Dirt Devil Short Cord / 2 Wire - Black | 1870040600 | Not Available |
| 38 | Not Available | Dirt Devil Headlight, Bracket, Socket, Bumper Assembly | 2870060800 | Not Available |
| 39 | Not Available | Dirt Devil Bulb (12 Volt) | 1725629000 | Not Available |
| 40 | Not Available | Dirt Devil Light Socket & Cord Assembly Order 2870060600 | 1870060000 | Not Available |
| 41 | Not Available | Dirt Devil Chem Chamber Cover Assembly | 2028563000 | Not Available |
| 42 | Not Available | Dirt Devil Chemical Chamber | 1880118000 | Not Available |
| 43 | Not Available | Dirt Devil B. S. I. Assembly | 3802260600 | Not Available |
| 44 | Not Available | Dirt Devil Switch And Plate Assembly | 2028537000 | Not Available |
| 45 | Not Available | Dirt Devil Switch Plate | 1249303000 | Not Available |
| 46 | Not Available | Dirt Devil Strain Relief Stamping | 1153339000 | Not Available |
| 55 | Not Available | Dirt Devil Wheel Fork Spring | 1003008000 | Not Available |
| 56 | Not Available | Dirt Devil Rod Spring | 1003009000 | Not Available |
| 57 | Not Available | Dirt Devil Latch Retainer Screw | 1003022000 | Not Available |
| 58 | Not Available | Dirt Devil Washer Adaptor Clamp Screw | 1003311000 | Not Available |
| 59 | Not Available | Dirt Devil Spring - Cord Hook | 1003884000 | Not Available |
| 60 | Not Available | Dirt Devil Lockwasher | 1004221000 | Not Available |
| 61 | Not Available | Dirt Devil Handle Fork Spring | 1004723000 | Not Available |
| 62 | Not Available | Dirt Devil Wheel Retainer Washer | 1005138000 | Not Available |
| 63 |  | Screw, #10 x 3/4" Dirt Devil CR5158/089000/CR5158Z Part Number: 1023309000 for Royal | 1023309000 | $1.09Read more |
| 64 | Not Available | Dirt Devil Lockwasher | 1074330000 | Not Available |
| 65 |  | Insert, Motor Housing Metal Everlast Uprights Part Number: 1110773000 for Royal | 1110773000 | $9.93Read more |
| 66 | Not Available | Dirt Devil Rod Adj. Sleeve | 1110775000 | Not Available |
| 67 |  | Spring, Handle Latch **New Style** Part Number: 1133738000 for Royal | 1133738000 | $2.65Read more |
| 69 | No Image | SCREW, SELF TAPPING Part Number: 1186012000 for Royal | 1186012000 | $6.69Read more |
| 70 | Not Available | Dirt Devil Carriage Bolt - Handle | 1230713000 | Not Available |
| 71 | Not Available | Dirt Devil Large Wingnut | 1285720000 | Not Available |
| 72 | Not Available | Dirt Devil Rear Axel Screw | 1311031000 | Not Available |
| 73 | Not Available | Dirt Devil Square Neck Bolt | 1074329000 | Not Available |
| 74 | Not Available | Dirt Devil Screw - Cord Hook | 1597743000 | Not Available |
| 75 | Not Available | Dirt Devil Latch Spacer | 1601772000 | Not Available |
| 77 | Not Available | Dirt Devil Motor Plate Screw | 1670013000 | Not Available |
| 80 | Not Available | Dirt Devil Screw | 1801701000 | Not Available |
| 81 |  | Bolt, Holds ForkK To Machine EverLast Metal Uprt Part Number: 1801708000 for Royal | 1801708000 | $2.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | Not Available | Dirt Devil Small Wingnut Order 1801715000 | 1801710000 | Not Available |
| 83 | Not Available | Dirt Devil Wheel Retainer Cap | 1801711000 | Not Available |
| 84 | Not Available | Dirt Devil Nut W/Nylon Insert | 1801715000 | Not Available |
| 85 | Not Available | Dirt Devil Screw | 1802244000 | Not Available |
| 87 | Not Available | Dirt Devil Screw #6-32 X 1/4" | 1880707000 | Not Available |
| 88 | Not Available | Dirt Devil Eye Bolt | 1884708000 | Not Available |
| 89 | Not Available | Dirt Devil Eye Bolt - Longer | 1884709000 | Not Available |
| 90 |  | Screw, Nozzle Head to Main Body CR5158/5158Z Part Number: 1980743000 for Royal | 1980743000 | $11.32Read more |
| 91 | Not Available | Dirt Devil Screw #10-24 X 5/8" | 1990104000 | Not Available |
| 92 | Not Available | Dirt Devil Adjuster Rod | 1996011000 | Not Available |
| 93 | Not Available | Dirt Devil Retaining Pin | 1996101000 | Not Available |
| 94 | Not Available | Dirt Devil E Ring | 1996711000 | Not Available |
| 95 | Not Available | Dirt Devil Foot Adj. Lever Cover | 1130008800 | Not Available |
