Schematic and parts list for: Dirt Devil Model: 089000

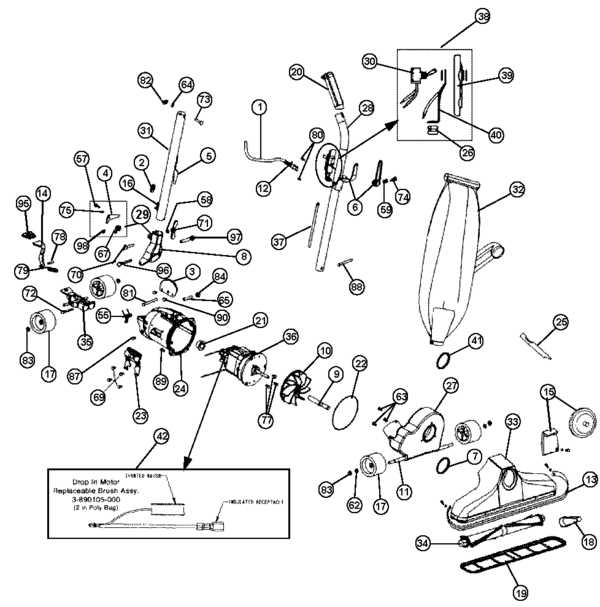

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 089000
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial
Popular Supplies
| # | Part image | Description | SKU | Price |

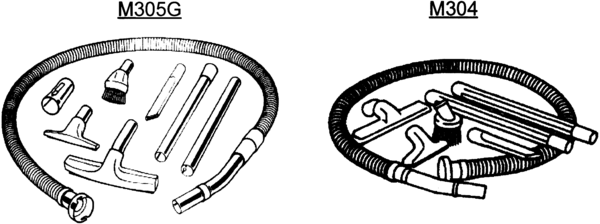

| M305G | Not Available | Dirt Devil Attachment Kit - Deluxe | M305G | Not Available |
| M304 | Not Available | Dirt Devil Attachment Kit | M304 | Not Available |
| 1 | Not Available | Dirt Devil Crevice Tool - Dark Gray | 1258801B00 | Not Available |
| 2 | Not Available | Dirt Devil Hose Connector Adaptor Assembly | 2024585B00 | Not Available |
| 3 |  | WAND, STRAIGHT LOWER BUTTON LOCK & SLEEVE MTL Part Number: 2041076B00 for Royal | 2041076B00 | $44.62Read more |
| 4 | Not Available | Dirt Devil Upper Wand Assembly | 2041077000 | Not Available |
| 5 | Not Available | Dirt Devil 7' Hose & Bleed Valve Assembly | 2995084B00 | Not Available |
| 6 | Not Available | Dirt Devil Round Dusting Brush - Grey | 3097282B00 | Not Available |
| 7 | Not Available | Dirt Devil 6" Upholstery Tool | 3415582B00 | Not Available |
| 8 | No Image | FLOOR TOOL, METAL NECK GRAY METAL UPRIGHTS Part Number: 3415682B00 for Royal | 3415682B00 | $36.82Read more |
| 9 | Not Available | Dirt Devil Extension Wand | 1402803600 | Not Available |
| 10 | Not Available | Dirt Devil 8" Crevice Tool | 1502801600 | Not Available |
| 11 | Not Available | Dirt Devil Hose Connector Adaptor Assembly | 2024585B00 | Not Available |
| 12 | Not Available | Dirt Devil Hose Assembly | 2051284600 | Not Available |
| 13 | Not Available | Dirt Devil Round Dusting Brush | 3050282600 | Not Available |
| 14 | Not Available | Dirt Devil 10" Floor Brush Nozzle | 3097682600 | Not Available |
| 15 | Not Available | Dirt Devil Upholstery Tool | 3098584600 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dirt Devil Power Cord - 50' 3-Wire | 1061136AU0 | Not Available |
| 2 | Not Available | Dirt Devil Grommet | 1230324000 | Not Available |
| 3 |  | Plate, Handle Stop 1030/1058/1059 Part Number: 1133716000 for Royal | 1133716000 | $24.98Read more |
| 4 | Not Available | Dirt Devil Handle Release Lever - Revised Units Mfg 12/2010 And Newer Must Use Screw 440001674 | 1133739B00 | Not Available |
| 5 |  | Cord Hook, :( Metal Lower Dirt Devil CR5158 Comm Part Number: 1259316000 for Royal | 1259316000 | $11.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Dirt Devil Cord Hook - Upper Riveted | 1259317000 | Not Available |
| 7 |  | Gasket, :( Nozzle Dirt Devil Commercial Upr Part Number: 1285427000 for Royal | 1285427000 | $1.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Pulley, CR5128Z/30Z/58Z Part Number: 1380261000 for Royal | 1380261000 | $13.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | FAN, CERTIFIED PILE BRUSH MACHINE Part Number: 1-608005-000 for Jansan | 1608005000 | $88.54Read more |
| 11 | Not Available | Dirt Devil Axle Stud | 1611101000 | Not Available |
| 12 | Not Available | Dirt Devil Strain Relief - Power Cord | 1611305000 | Not Available |
| 13 | Not Available | Dirt Devil Bumper - Blue Black Nla | 1801201A00 | Not Available |
| 14 | Not Available | Dirt Devil Release Pedal - Incremental | 1690715000 | Not Available |
| 16 | Not Available | Dirt Devil Cord Clip | 1670844600 | Not Available |
| 17 | Not Available | Dirt Devil Wheel | 1671705000 | Not Available |
| 18 |  | Belt, Metal Uprights With Inside Track Part Number: 1672260001 for Royal | 1672260001 | $4.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Metal Bottom Base Plate 14in for Royal 609, 7710, and 880 | WP11278 | $54.99Read more |
| 20 | Not Available | Dirt Devil Handle Grip - Black | 1880314600 | Not Available |
| 21 | Not Available | Dirt Devil Grommet - Motor | 1870006600 | Not Available |
| 22 | Not Available | Dirt Devil O-Ring - Motor Housing | 1870024600 | Not Available |
| 23 | Not Available | Dirt Devil Side Plate | 1870130P00 | Not Available |
| 24 |  | Motor Housing Drop In Style 1870201000 For Metal Upright Model 1058Z M1058Z | 1871201000 | $69.99Read more |
| 25 |  | Belt Lifter, :( Part Number: 1880262000 for Royal | 1880262000 | $8.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Dirt Devil Strain Relief - Internal Cord | 1880304000 | Not Available |
| 27 | Not Available | Dirt Devil Fancase Assembly - Polished | 2670116000 | Not Available |
| 28 | Not Available | Dirt Devil Upper Handle - Quick Release Cord Hook - Polished / Can Only Be Used With 2208590000 | 2891051600 | Not Available |
| 29 | No Image | Royal Handle Fork with Release Latch 2028590000 for all metal royal vacuum cleaners models: ry8500 ry8600 2075 | 2028590000 | $85.00Read more |
| 30 | No Image | Switch, Metal Toggle 12 Amp Uprights | RO-163309 | $30.49Read more |
| 31 | Not Available | Dirt Devil Lower Handle Tube - Incl #5, #16 Revised - Polished / Can Only Be Used With 2891051600 Upper Handle | 2208590000 | Not Available |
| 32 | No Image | ZIP BAG MICROTEX RED D/D Part Number: 2028543000 for Royal | 2028543000 | $81.80Read more |
| 33 | Not Available | Dirt Devil Nozzle Assembly | 9061126B00 | Not Available |
| 34 | Not Available | Dirt Devil Brush Roll Assembly - 14" Hex Ends | 2673273000 | Not Available |
| 35 |  | Axle, Wheel Fork & For Metal/Metal Everlast Uprigh Part Number: 2670007000 for Royal | 2670007000 | $0.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Royal all metal vacuum Motor, 10 Amp Metal Upright 1030/89130/1010/1050 | 2870114000 | $60.00Read more |
| 37 | No Image | CORD, JUMPER SWITCH TO MOTOR 1030Z Part Number: 3870323600 for Royal | 3870323600 | $12.90Read more |
| 38 | Not Available | Dirt Devil Switch And Plate Assembly | 2060837000 | Not Available |
| 39 | Not Available | Dirt Devil Switch Plate | 1608303000 | Not Available |
| 40 | Not Available | Dirt Devil Strain Relief Stamping | 2031103000 | Not Available |
| 41 | Not Available | Dirt Devil Rubber Inlet Gasket | 1604108000 | Not Available |
| 42 | Not Available | Dirt Devil Carbon Brush Pkg - Johnson Drop In Motors | 3970109000 | Not Available |
| 42 | Not Available | Dirt Devil Carbon Brush Pkg - Pentalpha Drop In Motors | 2870115000 | Not Available |
| 42 | Not Available | Dirt Devil Carbon Brush Pkg - Ametek Drop In Motors | 3890105000 | Not Available |
| 55 | Not Available | Dirt Devil Wheel Fork Spring | 1003008000 | Not Available |
| 56 | Not Available | Dirt Devil Rod Spring | 1003009000 | Not Available |
| 57 | Not Available | Dirt Devil Latch Retainer Screw - Revised Mfg 2006 To 12/2010 | 1211321000 | Not Available |
| 57 | No Image | SCREW, 1018Z 1030Z 1058Z LATCH RETAINER Part Number: 440001674 for Hoover | 440001674 | $0.91Read more |
| 57 | Not Available | Dirt Devil Latch Retainer Screw Mfg Prior To 2006 | 1003022000 | Not Available |
| 58 | Not Available | Dirt Devil Washer Adaptor Clamp Screw - Handle Fork | 1003311000 | Not Available |
| 59 | Not Available | Dirt Devil Spring - Cord Hook | 1003884000 | Not Available |
| 60 | Not Available | Dirt Devil Lock Washer | 1006318000 | Not Available |
| 61 | Not Available | Dirt Devil Handle Fork Spring | 1004723000 | Not Available |
| 62 | Not Available | Dirt Devil Wheel Retainer Washer | 1005138000 | Not Available |
| 63 |  | Screw, #10 x 3/4" Dirt Devil CR5158/089000/CR5158Z Part Number: 1023309000 for Royal | 1023309000 | $1.09Read more |
| 64 | Not Available | Dirt Devil Lock Washer - Handle Tube | 1074330000 | Not Available |
| 65 |  | Insert, Motor Housing Metal Everlast Uprights Part Number: 1110773000 for Royal | 1110773000 | $9.93Read more |
| 66 | Not Available | Dirt Devil Rod Adjustment Sleeve - Screw In | 1110775000 | Not Available |
| 67 |  | Spring, Handle Latch **New Style** Part Number: 1133738000 for Royal | 1133738000 | $2.65Read more |
| 68 | Not Available | Dirt Devil Screw #6-32 X 3/8 | 1UA0305000 | Not Available |
| 69 | No Image | SCREW, SELF TAPPING Part Number: 1186012000 for Royal | 1186012000 | $6.69Read more |
| 70 | Not Available | Dirt Devil Carriage Bolt - Handle | 1230713000 | Not Available |
| 71 | Not Available | Dirt Devil Large Wingnut For New Version Order 2700132000 | 1285720000 | Not Available |
| 72 | Not Available | Dirt Devil Rear Axel Screw | 1311031000 | Not Available |
| 73 | Not Available | Dirt Devil Bolt - Handle Tube / Curved Head | 1074329000 | Not Available |
| 74 | Not Available | Dirt Devil Screw - Cord Hook | 1597743000 | Not Available |
| 75 | Not Available | Dirt Devil Latch Spacer | 1601772000 | Not Available |
| 76 | Not Available | Dirt Devil Headlight Spring Clip | 1606210000 | Not Available |
| 77 | Not Available | Dirt Devil Motor Plate Screw | 1670013000 | Not Available |
| 78 | Not Available | Dirt Devil Spring Pin - Release Pedal | 1670705000 | Not Available |
| 79 |  | Spring, Release Pedal Metal Uprights Part Number: 1672009000 for Royal | 1672009000 | $0.85Read more |
| 80 | Not Available | Dirt Devil Screw - Switch Plate | 1801701000 | Not Available |
| 81 |  | Bolt, Holds ForkK To Machine EverLast Metal Uprt Part Number: 1801708000 for Royal | 1801708000 | $2.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | Not Available | Dirt Devil Nut W/Nylon Insert | 1801715000 | Not Available |
| 83 | Not Available | Dirt Devil Wheel Retainer Cap | 1801711000 | Not Available |
| 84 | Not Available | Dirt Devil Nut - Handle Fork Bolt Order 1801715000 | 1801713000 | Not Available |
| 85 | Not Available | Dirt Devil Screw | 1802244000 | Not Available |
| 87 | Not Available | Dirt Devil Screw #6-32 X 1/4" - Motor Housing | 1880707000 | Not Available |
| 88 | Not Available | Dirt Devil Eye Bolt | 1884708000 | Not Available |
| 88 | Not Available | Dirt Devil Eye Bolt - Longer | 1884709000 | Not Available |
| 89 |  | Screw, Nozzle Head to Main Body CR5158/5158Z Part Number: 1980743000 for Royal | 1980743000 | $11.32Read more |
| 90 | Not Available | Dirt Devil Screw #10-24 X 5/8" - Handle Stop Plate | 1990104000 | Not Available |
| 91 | Not Available | Dirt Devil Adjuster Rod | 1996011000 | Not Available |
| 92 | Not Available | Dirt Devil Retaining Pin - Adjuster Rod | 1996101000 | Not Available |
| 93 | Not Available | Dirt Devil E Ring - Adjuster Rod | 1996711000 | Not Available |
| 94 | Not Available | Dirt Devil Screw | 1133054000 | Not Available |
| 95 | Not Available | Dirt Devil Cover, Foot Adjustment Lever - Gray | 1130008B00 | Not Available |
| 96 | Not Available | Dirt Devil Handle Fork Screw - Male Order 2700132000 | 1700132000 | Not Available |
| 97 | Not Available | Dirt Devil Handle Fork Screw - Female Order 2700132000 | 1700133000 | Not Available |
| 97 |  | Screw Kit, Handle Fork Male/Female Part Number: 2700132000 for Royal | 2700132000 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 98 | Not Available | Dirt Devil #10 Flat Lock Washer | 1028000000 | Not Available |
