Schematic and parts list for: Dirt Devil Model: 085590

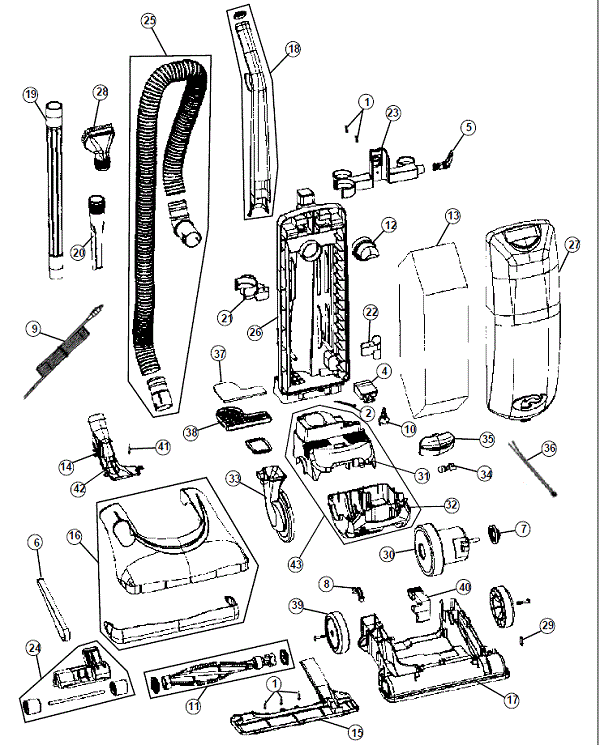

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 085590
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Featherlite
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 |  | Screw, Combo Head O86900 Part Number: 1720430000 for Royal | 1720430000 | $0.24Read more |
| 02 | Not Available | Dirt Devil Screw | 1520180000 | Not Available |
| 03 | Not Available | Dirt Devil Screw Package | 2520415000 | Not Available |
| 04 | Not Available | Dirt Devil Pedal - Switch | 1855140B00 | Not Available |
| 05 | Not Available | Dirt Devil Cord Hook | 1920015B00 | Not Available |
| 05 | Not Available | Dirt Devil Cord Hook | 1JN3102000 | Not Available |
| 06 |  | Belt, Dirt Devil Upright Style 4/5 2 Pk Part Number: 3720310001 for Royal | 3720310001 | $9.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Dirt Devil Motor Grommet | 1JN0217600 | Not Available |
| 08 | Not Available | Dirt Devil Pivot Clamp | 1820351600 | Not Available |
| 09 | Not Available | Dirt Devil Power Cord - 25 | 1855240600 | Not Available |
| 10 |  | Switch, Black Power Button 085500/UD70105 Part Number: 1860081000 for Royal | 1860081000 | $5.75Read more |
| 11 |  | BRUSHROLL, FEATHERLITE/ JAGUAR 085570/75/ NLA | RO-JN0300 | $40.99Read more |
| 12 | Not Available | Dirt Devil Air Deflector | 1JN0021Q00 | Not Available |
| 13 |  | Paper Bag, Type U Ultra MVP Micro Fresh 3 Pk Part Number: 3920750001 for Royal | 3920750001 | $11.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Dirt Devil Dirt Passage | 1JN0115Q00 | Not Available |
| 15 | Not Available | Dirt Devil Nozzle Guard | 1855135600 | Not Available |
| 16 | Not Available | Dirt Devil Nozzle Cover Assembly-Red | 2JN3100000 | Not Available |
| 17 | Not Available | Dirt Devil Nozzle Base | 1JN0110600 | Not Available |
| 18 | Not Available | Dirt Devil Handle Assembly - Upper | 1JN0050000 | Not Available |
| 18 | Not Available | Dirt Devil Handle Assembly - Upper | 2JN3101000 | Not Available |
| 19 | Not Available | Dirt Devil Extension Wand | 1402803600 | Not Available |
| 20 | Not Available | Dirt Devil Crevice Tool | 1JN0058B00 | Not Available |
| 21 | Not Available | Dirt Devil Wand / Hose Cup | 1JN0027600 | Not Available |
| 22 | No Image | Cord Hook - Lower / Royal 085570 - 085575 - 085580 Upt For: dirt devil | 1JN0026000 | $1.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Dirt Devil Upper Tool Caddy With Cord Hook | 1JN0055600 | Not Available |
| 23 | Not Available | Dirt Devil Upper Tool Caddy | 1JN3101000 | Not Available |
| 24 | Not Available | Dirt Devil Front Roller Assembly | 2540095600 | Not Available |
| 25 | Not Available | Dirt Devil Hose Assembly | 2JN0080600 | Not Available |
| 26 | Not Available | Dirt Devil Back Panel Assembly | 2JN0020600 | Not Available |
| 27 | Not Available | Dirt Devil Front Panel Assembly-Red | 2JN3103000 | Not Available |
| 28 | Not Available | Dirt Devil Upholstery Tool | 2JN0059B00 | Not Available |
| 29 | Not Available | Dirt Devil Belt Guide Clip | 1720380000 | Not Available |
| 30 | Not Available | Dirt Devil Motor Assembly | 2JN0400000 | Not Available |
| 31 | Not Available | Dirt Devil Upper Motor Housing | 1JN0215600 | Not Available |
| 32 | Not Available | Dirt Devil Lower Motor Housing | 1JN0216600 | Not Available |
| 33 | Not Available | Dirt Devil Motor Inlet Cover | 1JN0218600 | Not Available |
| 34 | Not Available | Dirt Devil #906 Bulb | 1920906000 | Not Available |
| 35 | Not Available | Dirt Devil Lens | 1JN0222Q00 | Not Available |
| 36 | Not Available | Dirt Devil Socket Assembly W/Clip | 2JN0410000 | Not Available |
| 37 | Not Available | Dirt Devil Chamber Filtler | 1JN0024000 | Not Available |
| 38 | Not Available | Dirt Devil Filtler Holder | 1JN0023600 | Not Available |
| 39 | Not Available | Dirt Devil Wheel | 1855120600 | Not Available |
| 40 | Not Available | Dirt Devil Handle Release Pedal | 1620070600 | Not Available |
| 41 | Not Available | Dirt Devil Dirt Passage Door Spring | 1JN0012000 | Not Available |
| 43 | Not Available | Dirt Devil Motor Housing Assembly | 2JN0215600 | Not Available |
