This is a list of parts and a diagram and schematic for: CleanMax Model: ZM-800Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HEREParts for: ZM-800 Upright Vacuum
Popular Supplies

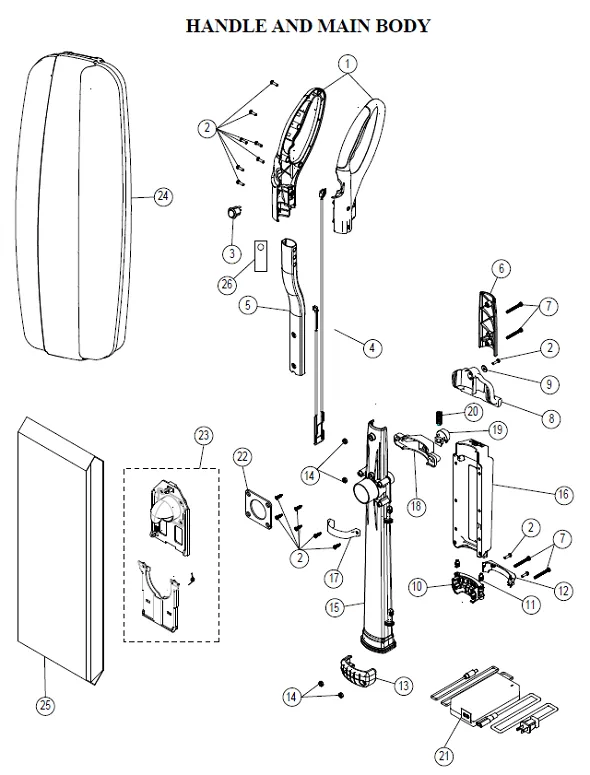

| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C223-0114 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV... | C2230114 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 3 |  | ON OFF Switch Part Number A328-1500 for Maytag and Riccar and Simplicity Models M700,R10CV, R10CV... | A3281500 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | WIRE HARNESS DC ULW HANDLE/PCB COMMERCIAL BATTERY ULW | B2236000 | $12.99Read more |
| 5 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... | B2203400 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... | B2203114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 8 |  | Carry Handle Part Number B223-0314 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R10C... | B2230314 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Washer Part Number A733-5100 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R10CV.6,S1... | A7335100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Neck Coupling Back Part Number B223-0914 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4... | B2230914 | $0.00Read more |
| 11 | No Image | Post for Battery ULW b223-1300 | B2231300 | $1.35Read more |
| 12 | | Cable Cover Part Number B223-1014 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R10CV... | B2231014 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Neck Coupling Front Black | WP10347 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... | B2203014C | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Battery Pack for Simplicity S10CV and Riccar R10CV | C2231800B | $277.99Read more |
| 17 |  | Battery Clamp Part Number B223-0814 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R10... | B2230814 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Latch Case (R10CV.4, R10CV.6) Part Number B223-4014 for Riccar and Simplicity Models R10CV, R10CV... | B2234014 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Latch Button (R10CV.4, R10CV.6) Part Number B223-4197 for Riccar and Simplicity Models R10CV, R10... | B2234197 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Spring Dust Cover 6000 Series 82.128 | A2240600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Battery Charger for Riccar and Simplicity ROAM, R10CV, S10CV | C2232000B | $156.99Add to cart |
| 22 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... | B2203900 | $2.99Add to cart |
| 23 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... | D4842282 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | CleanMax Hard Shell Outer Bag for ZM500, ZM700, ZM800 | B2206800 | $68.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Riccar HEPA Vacuum Bags Charcoal Infused Type L for R10S R10P R10CV and R17 - 6pk green dock | RLH6 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Compatible alternateSIMPLICITY S10 ULW SERIES CHARCOAL-LINED HEPA BAG 6PK 6CS GREEN COLLAR More Product Details | SLHC6 | $31.99Add to cart Special order — allow 2-4 weeks. |
| 25 | No Image | Clean Obsessed Type R10 S/d/o/p Riccar Supralite HEPA Filter Bags, Simplicity S10p/s (Fits Maytag... | CH828 | $24.19Read more |
| 25 |  | CleanMax Zoom Series HEPA Filtration Bags - 6pk | CLH6 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Bulk 25 Pack Vacuum Bags Type L Green Dock for CleanMax Zoom 500 and Zoom 700 | CLH50 | $109.99Read more |
| 25 |  | Aftermarket Riccar Type L HEPA Vacuum Bags green dock - 6pk | TACONYLBAG | $20.89Add to cart |
| 26 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... | B3885900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

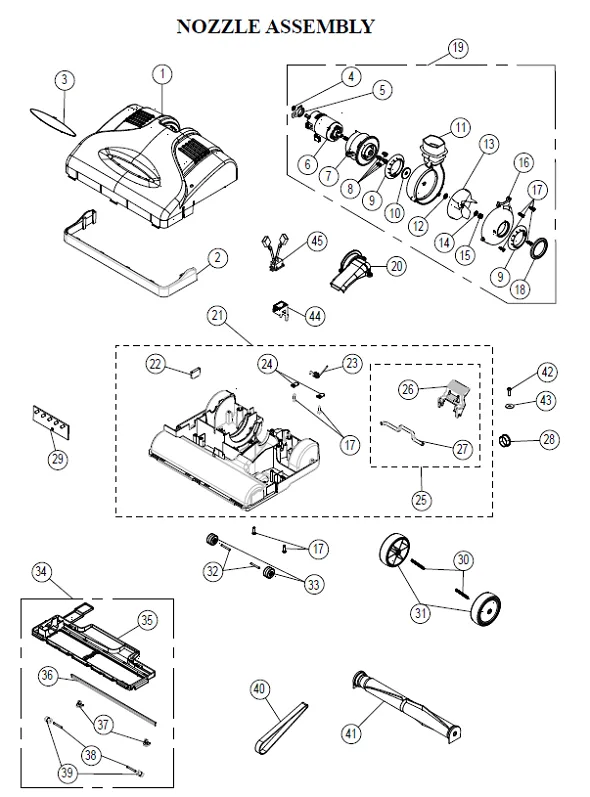

| # | Part image | Description | SKU | Price |
| 1 | No Image | CleanMax Nozzle Cover for ZM-800 Black ABS Commercial | B2202446 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | CleanMax Furniture Bumber for ZM-500 ZM-700 ZM-800.6 and Above Furniture Guard | B2202600 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Black Furniture Bumper for Riccar Simplicity CleanMax R10 S10 R17 ZM500 ZM700 ZM800 | WP11778 | $5.99Add to cart |
| 3 |  | Lens Part Number B018-0415 for Maytag and Riccar Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV,... | B0180415 | $2.99Add to cart |
| 4 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... | A7323000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Motor Support Boss Part Number B223-2814C for Riccar and Simplicity Models PRIMAP.TAD, PRIMA.TAP,... | B2232814C | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Motor Housing Part Number B223-0114 for Riccar and Simplicity Models PRIMAP.TAD, PRIMA.TAP, R50TA... | B2230114 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Screw M5 X 6mm Socket Part Number A733-5000 for Riccar and Simplicity Models PRIMAP.TAD, PRIMA.TA... | A7335000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... | B2204500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart |
| 12 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 16 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 18 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart |
| 19 |  | Motor Assembly Part Number D223-2100 for Riccar and Simplicity Models R10CV, R10CV.2, R10CV.4, R1... | D2232100 | $115.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... | B2200214 | $3.99Add to cart |
| 21 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... | B0161914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Axle clamp for simplicity s10 freedom and riccar r10 supralights | WP10350 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Compatible alternateTitan Cord Hook - Lower Fuller Fbhd2t Upright Vacuumfits Cpu2 Titan T4000 More Product Details | 54018 | $3.12Add to cart Special order — allow 2-4 weeks. |
| 24 |  | Compatible alternateCarpet Pro Cord Hook Holder CPU2 More Product Details | 54050 | $2.99Add to cart |
| 24 |  | Compatible alternateFuller Brush Carpet Pro Inlet Tall N/S More Product Details | 54076 | $13.99Add to cart Special order — allow 2-4 weeks. |
| 24 |  | Compatible alternateLower Cord Hook for Carpet Pro CPU1 CPU2 and FBHD1 More Product Details | WP11266 | $3.99Add to cart Special order — allow 2-4 weeks. |
| 25 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 26 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 28 |  | Plug For Circuit Breaker Hole (F3700, F3700.
SAND, F3700C) Part Number A018-1414 for Simplicity a... | A0181414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | LED PC Board Removable Battery
(R10CV.4, R10CV.6) Part Number B317-1150K for Riccar and Simplicit... | B3171150K | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $2.99Add to cart |
| 31 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... | C2200531C | $4.99Add to cart |
| 32 |  | Base Plate Wheel Axle Vibrance, SS ULW 4000 U-912 | B0100001E | $2.99Add to cart |
| 33 |  | Front Wheel Assembly with Busing for Supralite, Wonder, and Prima Vacuums | WP11835 | $2.99Add to cart |
| 34 |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... | D2200414 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | Bottom Plate Axle Part Number B370-1700 for Riccar Models PRIMAP.TAD, PRIMA.TAP, R50TAP | B3701700 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 40 |  | Replacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart |
| 40 |  | Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640
Also Fits Simplicity Freedom - Replacement For:... More Product Details | 17394 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 40 |  | Compatible alternateSingle Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums More Product Details | B0140814B | $6.00Add to cart Special order — allow 2-4 weeks. |
| 40 |  | Rubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk | RBS2 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Agitator Assy Battery 10 Series White Bristle | D0122300 | $82.99Read more |
| 42 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Cradle for Isolator Switch (Used in ZM-800.6 only in the following Serial # range 0518003442-0120... | B2232914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Rocker Switch Winged for Cordless Battery ULW Isolator-Type | A3280900 | $8.79Read more |

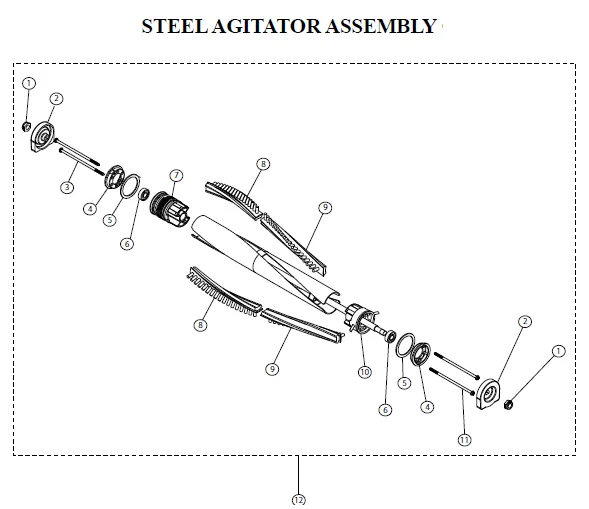

| # | Part image | Description | SKU | Price |
| 1 |  | Locking Hex Nut Part Number A3750100 for Simplicity Models SPB-400S.2 | A3750100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PR... | B0131600 | $7.99Add to cart |
| 3 | | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 |  | Agitator Bearing for Simplicity and Riccar | A3750200 | $4.99Add to cart |
| 7 |  | Brush Roll Pulley for Simplicity Freedom and Riccar SupraLite with Metal Brush Rolls and Flat Str... | WP11571 | $4.99Add to cart |
| 8 |  | Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND... | B0130301B | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND,... | B0130401B | $4.50Add to cart |
| 10 |  | Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity an... | B0131500 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Agitator Assy Battery 10 Series White Bristle | D0122300 | $82.99Read more |
